Used Paul Edger for sale (42)

Condition: used, Double-seam folder, 750 mm width. Rcjdpfezpyc Isx Amyod

Condition: excellent (used), 1 roller table 3.0 m long x 0.77 m wide with 7 support rollers, with pneumatic lifting/adjustment chain with worm gear and bellows cylinder, with a timber transfer roller carriage with rubber turntable for 1-man timber feed, with 2 lift-up stop rollers for planks from the band saw that have already been trimmed on one side. Rcjdpfxjt E Nw Ts Amyod 1 roller table 3.5 m long x 0.77 m wide with 8 support rollers, with or without transfer roller carriage. Original PAUL roller tables in various widths and lengths, available in standard or heavy-duty versions for use in front of cross-cut, trimming and re-cutting circular saws; short work tables allow, for example, the transfer of material from the cross conveyor, passage through the table assembly or the loading of heavy beams by forklift; long work tables are also available in various dimensions

Condition: good (used), Original spacer rings PAUL in various widths for edging saw KME 2 or BM, outside-Ø 120 mm, bore-Ø 75 mm, with 2 keyways Rcsdpfeiimz Ajx Amyod Original PAUL saw bushings with effective clamping lengths of 55 mm and 110 mm for the KME 2 and BM Original PAUL spacer rings in various widths for S 900 re-cutting saw, outside-Ø 150 mm, bore-Ø 110 mm, with 2 keyways

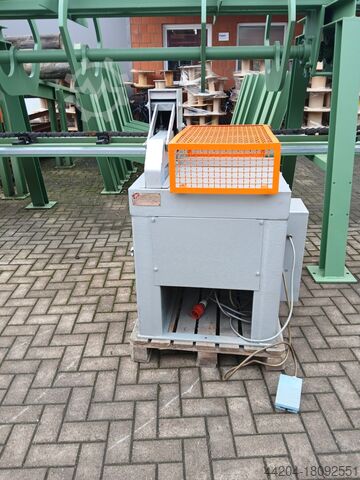

Condition: excellent (used), For sale is an industrial crosscut saw from the renowned German company Paul Maschinenfabrik GmbH & Co. Model 15 A0 is a reliable and robust machine, perfect for any sawmill, carpentry workshop, or pallet production facility, guaranteeing speed, precision, and cutting safety. ⚙️ TECHNICAL DATA AND SPECIFICATIONS: Manufacturer: Paul Maschinenfabrik GmbH & Co, Dürmentingen (Germany) Rjdpfx Amszp Af Ssyjcd Type / Model: 15 A0 Machine Number (Masch. Nr.): 8621628 Date of Manufacture (Liefertag): 17.03.1986 Motor Power: 3 kW (according to the nameplate, the machine's connected power ranges from 3 kW to 4.5 kW) Supply Voltage: 380 V / 50 Hz (20-25A fuse) Spindle Diameter: 30 mm Dimensions of work tables (included): Left feed table: 240 cm Right discharge table: 180 cm Maximum cutting width: Up to 450 mm - 500 mm, depending on the blade used and the final machine configuration. 🛠️ ADVANTAGES AND MACHINE FEATURES: Hydraulic drive: The saw blade advances hydraulically with the possibility of smooth adjustment, which significantly facilitates operation, ensuring smooth performance and reducing operator fatigue. Integrated clamping and safety: The hydraulic clamping system for the material being cut also functions as a blade guard, guaranteeing the highest safety standards at the workstation. Comfort and efficiency: Very long roller tables allow for convenient handling of even exceptionally long timbers or boards. Solid German construction: Durable construction (Made in Germany) ensuring stability, complete absence of vibrations, and very long service life, even with intensive use in a multi-shift system. 📍 ADDITIONAL INFORMATION: Condition: Used machine, in very good condition and fully functional. The machine is ready for on-site testing and immediate implementation in production.

Condition: used, machine/vehicle number: 008441, Max. panel width: 1100 mm Rcodsyz Slbepfx Amysd Max. panel length: 5700 mm Max forward speed: 30 mt/min Number of shafts: 2 Motor Power: 90 KW

Year of construction: 1989, condition: good (used), functionality: fully functional, machine/vehicle number: 18678, Used 100,000-liter steel tank Rcedpezaquwofx Amyod Year of manufacture: 1989 Located in 79423 Heitersheim Price is negotiable

Condition: used, Complete sawmill, for now only for sale as a whole. Reservation for individual purchase possible at any time. Sawmill consisting of: 01. Log infeed 3-strand Mayrhofer with separator with inserter Total length: 8 meters Width: 3.5 meters 02. Fully hydraulic carriage Mayrhofer with auxiliary carriage with rails Track gauge: 90 cm 03. Pini & Kay FN65 HH frame saw Passage width: 650 mm Drive motor: 33 kW With saw blades With suspension With intermediate gear With splitting wedge With scraper conveyor for sawdust 04. Frame roller table with 3 extractors and steep conveyor Length: 8.5 meters Width: 1.8 meters Roller width: 1.6 meters 05. Extraction table 4-strand Length: 4.5 meters Width: 2 meters 06. Steep conveyor 4-strand Conveyor length: 3.6 meters Rcjdpewptuyjfx Amyed Width: 3.8 meters 07. Double edger Paul KME 2 0-line left Right-hand machine Drive motor: 22 kW With 2 under-table crosscut saws With hydraulic roller lifting With hydraulic width adjustment With sliver separator With extraction table/cross conveyor for slivers With elevator for main material With conveyor belt With spiral roller conveyor With manual box sorting (10 boxes/carts) 08. Sharpening room consisting of: Frame saw sharpener Vollmer CNHV 1978 Set device Loroch SGB 6 1983 09. Drying chamber Vanicek Internal dimensions: Length: 4.53 m Width: 9.16 m Height: 4.4 m External dimensions: Length: 4.6 m Width: 9.3 m Height: 4.62 m Location: Austria, near Vienna

Year of construction: 2002, condition: good (used), Min. input length: 500 mm, max. 5.5 m. Cross-section: max. 85 x 150 Motor: 5.5 kW Saw blade movement: servo-controlled oscillating arm Feed mechanism: using rollers, 5 pieces above, 5 pieces below CNC control: Maxi 4.0 Redobg Svhepfx Amyecd 1 sorting line, 11.5 m long Year of manufacture: 2002

Condition: like new (used), Min. input length: 500 mm, max. 6 m. Cross section: max. 140 X 250 Motor: 5.5 kW Sawing stroke servo swing arm Rodsr A Et Topfx Amyjcd Feed by means of rollers, 6 pieces top, 6 pieces bottom CNC control Maxi 8.0 1 X sorting unit per 11.5 m Machine is set up according to your wishes

Condition: refurbished (used), Model 11 completely overhauled Designation: CNC miter saw line Paul MKL or K or KE, as desired Rcodpfx Ajb Rl I Hjmysd Manufacturer: Paul Year of manufacture: General overhaul with the latest technology Condition: Like new Technical data: Cutting width 150 mm Cutting height 85 mm Saw blade diameter: 450 mm Saw motor 5.5 kW Infeed length as desired CNC Maxi 5 control with optimization Sorting conveyor as desired Machine completely overhauled, all bearings new, motors new, with the latest energy-efficient technology, control new, saw arm new.

Condition: excellent (used), Catalogue number 7386 TECHNICAL DATA - max. saw blade diameter: 500mm - spindle diameter: 30mm - hydraulic clamp serves as blade guard - hydraulic blade stroke - max. cutting width: 550mm - 4 sliding rollers in the table - top feed roller, toothed and pressure type - max. cutting height (in the centre): 100mm - main motor: 5.9 kW - extraction port diameter: 100mm, 120mm - table dimensions: 700x630mm - table height from base: 830mm - infeed roller table - roller diameter: 350mm table size: - length/width: 4480x700mm - motor: 0.75kW - outfeed table (belt) - belt width: 510mm table size: - length/width: 3130x800mm - motor: 0.75kW - machine dimensions (L/W/H): 890x910x1200mm - total weight approx.: 900kg – Infeed and outfeed table – Hydraulically adjustable blade – Used saw, in very good condition Net price: 24,900 PLN Net price: 5,930 EUR based on 4.2 EUR rate (Prices may vary with greater fluctuations) Rcsdpfx Amszh Iglsyed

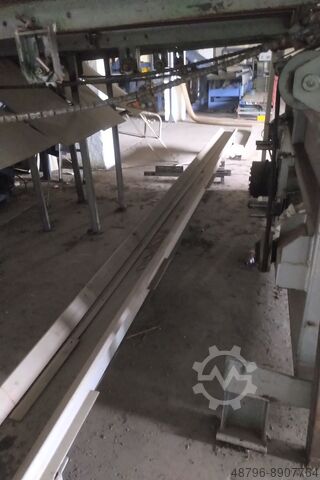

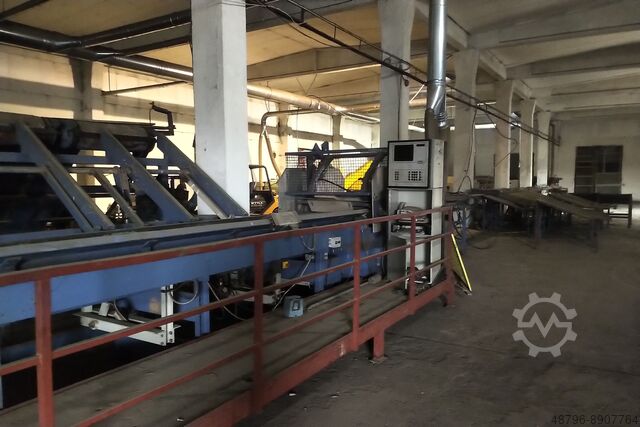

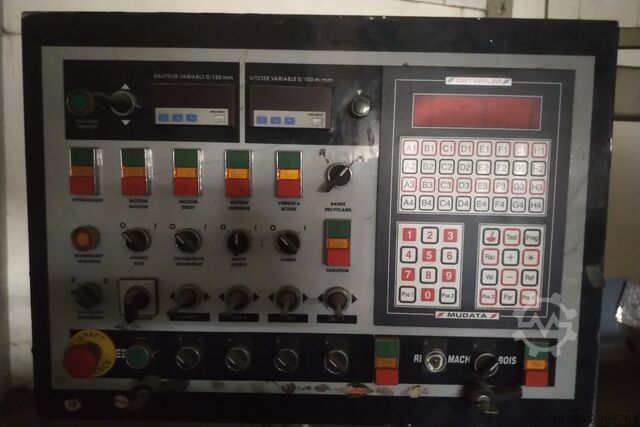

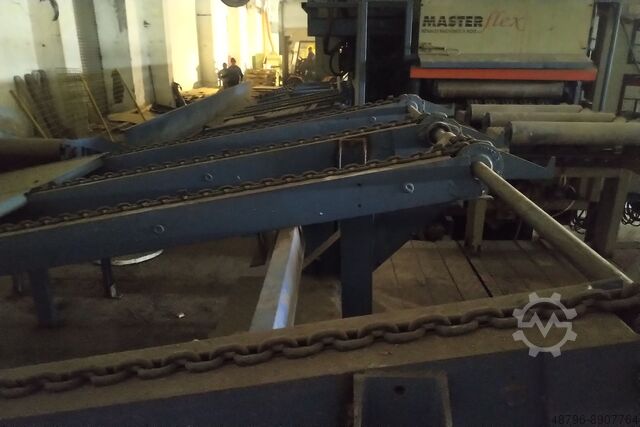

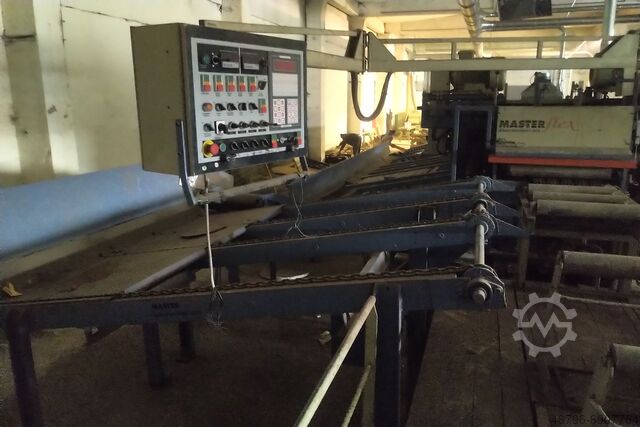

Condition: like new (used), Fully mechanized line for splitting and cutting (Masterflex+Paul) consisting in: - transverse conveyor for 2 packages - automatic destacking and singularization installation with slat recovery with conveyor included - transverse conveyor for circular feed piece by piece - trolleys on the rail for circular feeding - circular Masterflex provided with 4 movable blades, axis to axis, free passage width of 1,000 mm, cutting height 100 mm - 2 motors of 50 KW, 4 releases electrically controlled by joystick, provided with a control panel Rcedpfekt I Uyex Amyjd - timber evacuation conveyor provided with a waste separator (edges and hems) - waste conveyor + automatic waste cutting pendulum - parts recovery conveyor with return to the operator for repair - transversal conveyor with singularization for feeding optimizer Paul - optimizer Paul model, passage width of 1,000 mm, cutting height of 100 mm, equipped with marking station for defects, with laser (without chalk) - sorting line by optimizer with 20 ejectors. Installation is in a very good working condition.

Condition: like new (used), functionality: fully functional, Tool shaft for multi-saw PAUL K34G total length 850mm Rcedeqwg Swjpfx Amyjd diameter 100mm

Condition: good (used), Year of construction: 1983, machine/vehicle number: 8398714, functionality: fully functional, Paul multi-blade saw in good, used condition. K2V800/370/310 - Year of manufacture 1983 The multi-blade saw was used reliably for many years for the production of moldings and is still connected to the power supply. The machine is being sold as part of the closure of our carpentry business. Includes 5 saw blades. Collection price – delivery possible upon request. Rcedpfoziuxdox Amyod The sale is made with the exclusion of any warranty for defects. Liability for intent, gross negligence, and damages resulting from injury to life, body, or health remains unaffected. Claims for defects that have been fraudulently concealed also remain unaffected. An inspection of the machine is possible by arrangement. A fixed inspection date is scheduled for July 18 or August 1 from 10 a.m. to 2 p.m. at our facility in Stemwede.

Condition: refurbished (used), hydraulic feed drive unit, fully reconditioned, stepless variable; Rcodpsirmulofx Amyjd 1 unit for KME 2 or BM - right execution - without additional pump - type 56-009

Condition: used, Year of construction: 2016, Operating hours of the machine: 1271 h Maximum feed width: 600 mm Processable sheet thickness: 1-120 mm Working height, constant: 850 mm Voltage: 400 V (50 Hz) / 480 V (60 Hz) Rated current: 30 A Rated power: 17 kW Protection class: IP 42 Redpfozg U Slex Amyscd Feed rate, continuously adjustable: 1-4 m/min Depth: 1930 mm Width: 1600 mm Height: 1550 mm Machine weight, approx.: 2200 kg With the Pluto, you are opting for a compact machine for deburring parts cut with oxy-fuel and plasma processes. Features: - Tolerance and distortion compensation up to 6 mm - Durable steel wire brushes for edge finishing - Magnetic clamping system across the entire working width - Heat-resistant conveyor belt made of chrome leather - Incl. extraction system

Condition: used, Year of construction: 1999, machine/vehicle number: 99131021, functionality: fully functional, cutting width (max.): 270 mm, Data: Offer title: USED PAUL K 34G/1500 MULTI-BLADE SAW. Manufacturer: PAUL Model: K 34G/1500 Year of manufacture: 1999 Technical condition: Machine used in production. Condition: Good. Cutting tools – maximum diameter 270 mm Rcodpfjzf Urvsx Amyjd Technical specifications: - Conveyor system: Rubber-coated rollers - Working width of the conveyor: 1500 mm - Main motor power: 47.6 kW

Condition: new, New spacer rings for PAUL KME 2 and BM, with bore diameter 75 mm, outer diameter 120 mm, in widths 41, 30, 26, 22, 20 and 10 mm, new spacer rings for PAUL K2V, with bore diameter 60 mm, outer diameter 90 mm, in widths 40, 30, 20, 10, 2 and 1 mm, Saw bushings for saw shafts with diameters of 60 mm, 50 mm, 45 mm and 40 mm, new hard-chromed CV saw blades in various diameters for KME 2, BM and K2V Redeh Anyfopfx Amyscd

Year of construction: 2003, condition: used, Paul AB 920 Infeed Table Rcjdpeiauhzofx Amyjd

Condition: excellent (used), Drilling depth 9 cm Pneumatic press Pneumatic feed Motor 1.7/2.3 kW Height adjustment 14 cm 45-degree angle Table length 60 cm Width 72 cm Rjdpswndwpofx Amyocd Reach 60 cm (right-left) Front-back 20 cm

Condition: used, A complete sawmill machinery package is being sold as follows. Sale as a complete package is preferred, but individual items or reservations are possible! 1. Log infeed system, 2-strand Conveyor length: 5.5m Width: 2.8m Rcedpozb A R Hefx Amysd 2. Rail car/cross conveyor, driven 3-strand Length: 4.0m Width: 2.55m Track gauge: 1.85m 3. Tensioning car, Mayrhofer with auxiliary car Track gauge: 90cm 4. Circular sawmill, Möhringer Model: OSS75 Year of manufacture: 1991 Stroke: 500mm Frame length: 750mm with drive motor with saw guide with saw blades with hydraulic saw tensioner with splitting wedge, Möhringer 5. Driven circular log transfer system Length: 9m Width: 1.4m Roller width: 1.2m 6. Spiral log transfer system Length: approx. 6m Width: 1.2m with lift for boards 7. Log transfer system Length: 14m Width: 1.1m Roller width: 0.85m with spiral log transfer system Length: approx. 7m Width: 1.1m Roller width: 0.85m 8. Cross conveyor, 4-strand Conveyor length: 2.3m Width: 4.2m 9. Double edger, Paul KME2 with cut-off saw with templates with saw blades with drive motor with sawdust extractor with length sorting 10. Cut-off saw, Stihl with rail car 11. Circular saw sharpening machine, Vollmer CABG 12. Circular saw tensioning machine, RIVO GSA 13. Circular saw sharpening machine, Vollmer CNE (2 units available) 14. Forklift, Manitou MSI 50, year of manufacture 2002 with accessories 15. Wheel loader, Manitou / Ahlmann AL85t, year of manufacture 2001 with accessories

Condition: used, Year of construction: 1997, operating hours: 0 h, functionality: fully functional, machine/vehicle number: 00000, ROUND LOG INFEED AND CUTTING LINE - Round log infeed to band saw in a two-part design - Cutting line, 4-4.5-5-5.5 meters (manually and continuously adjustable) with conveyor for sections and sawdust separator, as well as a robust sawdust screw conveyor - Automation and control system, as well as sensors for automatic/continuous cutting - "Nigger" (likely a mis-translation or colloquial term) for positioning logs on the bogie carriage SAWING AND CONVEYING - Carriage: Primultini electric with 2 log turners, length 5.70m • Clamping block 1-2: 86cm • Clamping block 2-3: 145cm Rjdezbtq Rspfx Amyocd • Clamping block 3-4: 220cm - Block band saw BRENTA, roller width 130mm, with control panel for all systems - Trimming band saw BRENTA, roller width 130 - PAUL KMEL edging saw, year of manufacture 1974 Incl. roller conveyors for infeed and outfeed Incl. control system and spare parts Incl. crosscut saw for cutting the boards to length - Edging saw “old” type CORONA - Roller-chain conveyors for all saws, as shown in the photos

Condition: used, Two roller conveyors from Paul, suitable for the sub-table crosscut saw AO or similar machines. Roller conveyor length 1: 340 cm Roller conveyor length 2: 190 cm Rsdpfx Aoyarm Usmyjcd Roller width: 56 cm

Year of construction: 1991, condition: used, Volume: 15 hl Periphery: Pump Rcsdpfx Amjw Tml Ejysd

Year of construction: 1993, condition: used, - working width (mm): 2200 - engine power (kW): 22 - top rollers: with PU rings - bottom rollers: knurled Rcsdpfxsn I Twye Amysd - Saw shaft: included
