Used Cutter Head for sale (17,094)

Condition: like new (used), locker cabinet Bedpoxbfzmjfx Acysww

Condition: used, Year of construction: 1984, Milling Head vertical accessory for a milling machine Fritz Heckert FSS 400 - weight 255 kg - dimensions: LxWxH: 560 x 500 x 400mm - swiveable 90° right / left - clamping area 500 x 400mm Bwjdpfx Acou N E Absyew *

Condition: used, Year of construction: 2000, Board cutter Kolbus PK 170 Bwodpfx Acjxp Np Royow Year: 2000 For cutting board sheets into finished cut-to-size blanks in 2 operating processes. Description: - Hand feeding - Magazin for second cut (strips) - Circular knives, 8 - Belt delivery - Waste removal conveyor

Year of construction: 2010, condition: excellent (used), functionality: fully functional, Maximum cutting length: 4000 mm Blade diameter: 500 mm Electronic inclination of heads Internal/external tilting from 22°30′ to 135° Bwjdoxp Hggspfx Acyow labeling machine

Year of construction: 2024, condition: used, Serial number: 20240065xxxx Please contact ATS Norway for more information Please provide reference number upon request: 21580 Specifications: 2024 model Only 10 hours, according to owner Weight: 745 kg Max pressure: 250 bar 60-mount Forestry mulcher / heavy-duty crusher Own weight: 745 Model: 100-FHM-1050 Skogsfreser Bedexp Avwopfx Acysww

Condition: excellent (used), functionality: fully functional, Radius and round arch cutter set Field of application: Solid wood, wood panel materials, solid surface materials and much more. Consisting of: 1. Scheer HM 16 hand router Power 1800 W / 18000 rpm 220 V Tool: Carbide insert router 16 mm Cutting length 50 mm Storage case for machine and tools 2nd radius milling device ¼ circle from R 30 - 160 mm 3. radius milling device ¼ circle from R 110 - 360 mm 4. round arc milling device with radius ruler For radii from 300 - 5500 mm For the production of round, stitch and basket arches Machine and device fully functional and cleaned Bwodpfjuy T Exjx Acyjw

Year of construction: 2023, condition: ready for operation (used), This Other FSW head was manufactured in 2023. Designed to integrate seamlessly with milling machines, it features friction welding technology. Ideal for enhancing your milling setup with advanced welding capabilities. Contact us for more information. Bwjdsxpypuopfx Acyjw Application Types Other Machine Tools

Condition: used, Technical details: grinding length: 450 mm centre height over plate: 120 mm grinding width: 200 mm grinding spindle - swivable: 350 ° grinding head adjustable: 15° re/li ° grinding head adjustable: vertical: 250 mm adjustment of spindle-head: quer/transversal 230 mm spindle revolutions per minute : 2200/3500/5200 U/min work table:: B x L: 120 x 950 mm table movement: quer: 220 mm table movement: längs/longitudinal=500mm mm table adjustment: 5° / 45° rechts / links ° dimensions of grinding wheel: Ø 120x15 mm dimensions of hydaulic: 0,6x0,5x0,9 mm total power requirement: 1,8 kW weight of the machine ca.: 1,2 t Bsdpfx Aceu Ng Ifeyeww dimension machine xH: 1,6 x 1,2 x 1,6 m dimensions of hydaulic: 600 x 550 x 820 mm The tool grinding machine is currently re-equipped as a surface grinding machine. with Orsta hydraulic power unit with dust extraction and various accessories i.D. *

Condition: used, Year of construction: 2021, Exhibition unit (little used) Unit for cutting soft materials such as honeycomb cores, acoustic elements and fabrics using oscillating movements Processing options: Cutting straight or radial cutouts Typical areas of application: • Textiles: Cutting fabrics or textiles (e.g. leather, felt, etc.) • Cutting honeycomb cores for doors, staircase construction, exhibition stand construction, caravan construction • Acoustic elements: Cutting polyester, foam or other sound-absorbing materials • Aviation, boat building, aerospace: Cutting honeycomb cores Technical specifications Max. input speed: 6,000 min-1 Max. output speed: 9,000 min-1 Gear ratio: 1:1.48 Max. torque: 8 Nm Permissible operating temperature: max. 85°C Position of the torque arm to the tool: 360° Processing angle: 0° Number of tool outputs: 1 / fixed Lubrication: Grease / lifetime grease filling Amplitude: 4 mm Frequency: 150 Hz Bwodpfxsvvi Iqs Acyow Storage location: Garbsen

Condition: good (used), Year of construction: 1995, Electrical connection rating: 1.75 kW 380/220 V/ 5.2 A Total length with side tables: approx. 2520 mm Bwjdpfx Asxrp Niecyow Depth max. approx. 1170 mm Height max. 1550 mm

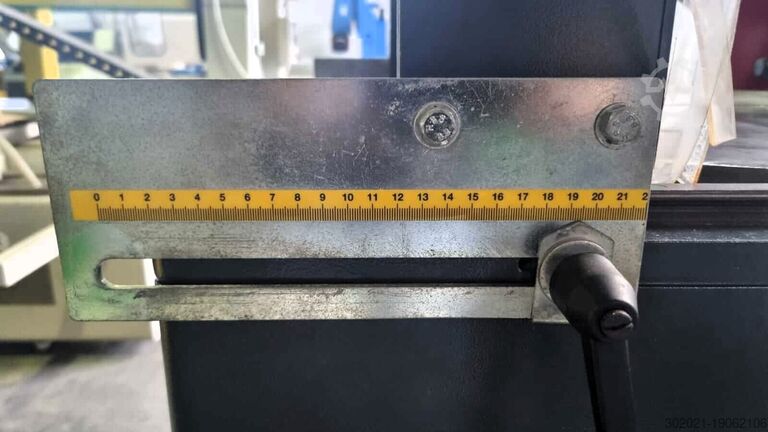

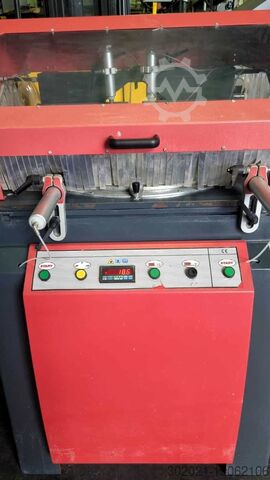

Condition: excellent (used), Year of construction: 2010, Single-head cutting-off machine with ascending blade Blade diameter: 600 mm Blade tilting: -45° / +45° Blade rotation with digital readout No. 2 horizontal hold-down clamps Bwjdpfswg Dm Iox Acyjw No. 2 vertical hold-down clamps Safety guard (Roller conveyors available, not included)

Condition: reconditioned (used), Deckel FP1 AKTIV (3-Axis Active) Machine No. 2102-5745 Year of manufacture: approx. 1988 Travel distances: X-axis: 300 mm Y-axis: 150 mm Z-axis: 330 mm Table size: 600 x 210 mm Spindle taper: SK 40 - S20x2 Spindle speed: 40–2000 rpm Motor power: 1.6 and 2 kW Power supply: 380 Volt, 50 Hz Equipment: Bwedexpwfgepfx Acyow - HEIDENHAIN 3-axis active digital readout, type TNC 113 - Infinitely variable feed on X, Y, and Z axes - Quill movement on vertical milling head: 60 mm - Vertical milling head swivels and extends horizontally by 100 mm - Coolant system (coolant tank in machine base) - Documentation - Centralized lubrication Space requirements (L x W x H): 1350 x 1100 x 1700 mm Weight: 850 kg The machine has been visually refurbished and technically inspected. Geometry measurement videos can be provided upon request. Backlash Y-axis: 0.15 mm Backlash X-axis: 0.3 mm Backlash Z-axis: 0.2 mm Runout horizontal spindle: 0.002 mm Runout vertical spindle: 0.002 mm Parallelism deviation Y-axis: 0.002 mm (measuring length 150 mm) Parallelism deviation X-axis: 0.002 mm (measuring length 300 mm) The following parts have been renewed: - Centralized lubrication checked - Heidenhain digital readout overhauled - New wiper set installed - LEDs in the Active display replaced - Oil changed - Vertical milling head fitted with new bearings - Oil sight glass replaced Net price, ex stock, free loaded

Condition: good (used), Year of construction: 1987, Saw head with pneumatic feed cylinder for aluminum and non-ferrous metals Saw blade size 370 mm, 1700 + 3400 rpm • Feed cylinder with pneumatic control and limit switch Bsdpfx Ajxptxpecysww • Double clamping arm (pneumatic)

Year of construction: 2012, condition: used, Technical details: Number of working hours: ca. 700 h number: Rotormesserhalter: 5 number: Stattormesserhalter: 4 Rotor-Ø: 440 mm material: PET control voltage: 24 VDC kW Cutting mill (shredder) The plastic granulator is intended for industrial use. Application: Size reduction of all kinds of plastics, such as ABS, POM, PA6, PE, PP, PG and PET Plant consists of a granulator with belts and a bottle bunker. Material is fed into the bunker via feeding belt Hopper 20M2 V2A complete with gear motor 7,5 kW, The screw conveyor is activated by the control system of the granulator. Bucket volume approx. 20 m³, HxWxD: 4400x3300x3300mm, weight approx. 27,0 to, Bunker with discharge unit CentriCut 44SR granulator 55 kW, granulator 55 kW (50Hz, 400Volt) and feed screw 55 kW (50Hz, 400Volt) Grinding chamber: rotor knife length 272mm, weight approx. 2.0 to Conveyor belt NT9, belt length 3500mm, useful belt width 416mm, (guide profile height 60mm, driving bar height 60mm, driving bar distance approx. 500mm) total length 3550mm, total width 780mm, total height 2350mm, weight 250kg Sound insulation LxWxH: 2700x2300x2500mm, weight 1,3 to Tunnel detector 600 is integrated into the CentriCut cutting mill on the control side, scanning side 600mm, passage width 840mm, passage height 400mm, weight approx. 150kg The plant is ready for transport and for sale. i.D. Bedpsu Nw Ebofx Acyoww *

Condition: new, Dittel Marposs WB HEAD-ST50X120 / FC NP TF 0950 / O3PL2024504 Electromagnetic built-in balancing head, SN:O14LW1379, unused, 100% functional, scope of delivery as per photos Bwsdsi D Upvspfx Acysw

Condition: used, Year of construction: 2012, functionality: fully functional, machine/vehicle number: C112239, travel distance X-axis: 5,200 mm, Emmegi, Twin Electra Sun TU/5 CNC twin head mitre saw. Cutting lenght: 5200mm Bwedpfoxrg Shjx Acysw Blade 500mm

Condition: excellent (used), Year of construction: 1999, travel distance X-axis: 800 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 600 mm, overall weight: 9,500 kg, spindle speed (max.): 12,000 rpm, mount diameter: 40 mm, 3-axis machining center Manufacturer: DMG Series: DMU-80P Year of manufacture: 1999 Control type: Heidenhain TNC-430 Switch-on hours: approx. 95,900 h Program run: approx. 28,100 h technical data: ----- - Travel X-Y-Z: 800 x 700 x 600 mm - Work table: 900 x 630 mm - Spindle max.: 12,000 rpm - Swivel head H/V - Tool holder: SK40 - Tool magazine: 30x / chain Bwodpfxorqhbbe Acyew - Coolant system - Central lubrication - SpäFö - Weight: approx. 9.2 t Accessories: ----- - Manuals - 3D workpiece probe TS-641 Remarks: ----- - FEB 2023: new spindle + kinematics - FEB 2023: new E-module 36kW - APR 2023: new AC servo inverter - DEZ 2015: General overhaul - Machine absolutely true to size!

Condition: good (used), Year of construction: 2006, Year: 2006 - technically efficient, ready to work - after full service - cutting length: 6000 mm Bsdpfx Acsr Ikvusyjww - discs: 550 mm - E555 control - digital angle indicator - pneumatic angle adjustment 45-90 degrees - cutting according to external dimensions, without correction - cooling installation - roller feeder - vertical pneumatic clamps - automatically lowered and raised disc guards - chip extraction for each head

Condition: used, functionality: unexamined, Clamping range: max. 240 mm Bwedpfjw Npk Aex Acyow Cutting height: max. 450 mm Cutting depth: max. 380 mm Motor power: 2.2 kW

Condition: used, Technical details: grinding length: 300 mm grinding spindle - swivable: 350 ° grinding head adjustable: senkrecht: 250 mm adjustment of spindle-head: quer: 230 mm Bwedju Ng Npjpfx Acyjw grinding head adjustable: neigbar +/-15° ° grinding diameter: Ø 250 mm spindle revolutions per minute : 2200 - 3500 - 5200 U/min work table:: B:120 x L: 950 mm table movement: Obertisch schräg: recht/links 45° mm table movement: größter Tischweg: 500 manuell mm surface of magnetic-table: 305 x 130 x 100 mm dimensions of grinding wheel: Topfscheibe 125 x 20 Ø 32mm mm total power requirement: 1,8 kW weight of the machine ca.: 1,0 t dimension machine xH: 1,6 x 1,3 x 1,7 m dimensions of hydaulic: 600 x 550 x 870 mm Accessories: Universal clamping head cone MK5 Drill grinding holder Ø 10mm *

Condition: new, Dittel Marposs WB HEAD-ST50X120 / FC NP TF 0950 / O3PL2024504 Electromagnetic built-in balancing head, SN:O14LW1381, unused in opened original packaging, 100% functional, scope of delivery as per photos Bedoi D Upyspfx Acysww

Condition: used, Year of construction: 2004, functionality: fully functional, machine/vehicle number: M275603, travel distance X-axis: 6,200 mm, Emmegi, Twin Electra Sun TU/6 CNC twin head mitre saw. Cutting lenght: 6200mm Blade 500mm Bsdpfxoxrg R Rs Acysww

Condition: not inspected (used), Year of construction: 1984, 1 milling unit 2.8/3.5 kW Bwodpfsga Tu Dox Acyjw nominal current 6,4/9,3 A workpiece thickness max. 130 mm Lateral table for routing work

Condition: used, VERTICAL MILLING HEAD Bodpsv U I Slefx Acyeww Accessory for a Fritz Heckert FSS 400 milling machine Weight: 285 kg Dimensions (LxWxH): 550 x 500 x 550 mm Swivels 90° to the right / left Clamping surface: 500 x 400 mm Taper: SK 45 Flange diameter: D = 260 mm Mounting: 4 holes, diameter D = 17.5 mm *

Condition: used, Accessories for e.g. a bench drill BFT 130: The spindle head and swivel angle can be swivelled 360° around their own axes. Two swivel planes The set angles can be read off on circumferential scales Speed max. 600 rpm. Spindle taper ISO 50 Weight approx. 270kg incl. connecting piece to the drive SK 50 pinoler/head * Bedou Nlgyspfx Acyoww
