Used Angle Transfer for sale (9,299)

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: 013531, An efficient and economical lamination process is realized with the SMARTLAM CHK hot-cold transfer press system (Twin Stack series). The SMARTLAM CHK is a twin-stack system that offers higher efficiency and increased output compared to conventional single-stack systems. By using two presses—one for heating and one for cooling—cycle times and energy consumption are significantly reduced. Depending on the material and laminate structure, up to 4 cycles per hour can be achieved with the SMARTLAM when processing 10 laminate layers per level. Lhsdpsxwdmaefx Affsr It is possible to place multiple laminates side by side in a single cassette. In alternative short-cycle test operation, approximately 1–2 cycles per minute can be achieved with one laminate layer per cassette (without vacuum and without a pressurized preheating phase).

Condition: ready for operation (used), An electrically operated lifting and transport trolley Serapid with rigid push chain is available. Loading position min./max.: 520mm/2820mm, max. trolley load: 10000kg, max. lifting speed under load: 50mm/s, chain stroke: 2240mm, chain travel speed: 57mm/s, pushing force: 30kN, chain type: 60S, trolley speed: 2.7km/h, ground clearance: 30mm. Machine dimensions X/Y/Z: approx. 3450mm/1700mm/2100mm, weight: approx. 4500kg. Documentation available. An on-site inspection is possible. Lhsdjxwcu Nopfx Affor

Condition: used, Year of construction: 1994, functionality: fully functional, machine/vehicle number: M08L/9038, Offer Number: M08L/9038 Machinetype: 6 die - 6 blow transfer header Lhedpfx Asw N Dmfjffor Info: bushing cut-off Make: Carlo Salvi Type: 663/TR Constr. year: 1994 diameter range: 5 mm number of dies: 6 number of stations (incl. cut off): 7 cutting length: 35 mm shaft length under head: 25 mm output - pieces/min: 400 press power: 15 to Location: In our warehouse

Year of construction: 2009, condition: excellent (used), MASS NC steep conveyor, angle conveyor Angle conveyor belt with substructure Conveyor belt length: 1,500mm flat + 1500mm rising. Dropping height: approx. 1400mmmm. Description: available immediately, Ready to ship more pieces Belt speed: 7m/min T 30 studs Welded stud height 30 mm Drive: 0.37 kw 380V 50Hz Height-adjustable angle conveyor belt with adjustable angles Feed part 1500 mm Riser section 1500 mm Usable width 850 mm Stud height 30 mm Ljdpfx Afopby Urefehr Belt speed: 7m/min Standard control with emergency stop/stop button External width 950 mm (without motor) PU strap color green L studs Stud spacing approx. 450 mm Stud height 30 mm Standard control with emergency stop/stop button mobile on steerable stop rollers Lateral collecting plates in the feed section

Condition: good (used), Clamping angle, clamping aid, clamping angle for workpiece clamping Lsdpfjxrkqusx Affshr -Clamping angle: clamping aid for workpiece clamping -Clamping surface: width 470 mm, holes M16 -Dimensions: see photos -Dimensions: 560/470/H405 mm -Weight: 62 kg

Condition: used, Year of construction: 2014, Technical details: Punching capacity: 500 kN cutting capacity : 9,0 t control: Siemens Touch Panel S7 ram adjustment: 80 mm stroke of ram - fixed: 170 mm no. of strokes: 20 - 120 Hub/min distance between columns: 1140 mm dayligth: 350 - 430 mm column travel -side: 315 mm table surface area: L x B 1100 x 400 mm ram surface area: L x B 1100 x 400 mm passage opening in table: 950 x 100 mm table height over floor: 1100 mm column travel -side: 315 mm drive AC: 230 VAC/24 VDC kW operating pressure: 6 bar Number of working hours: Maschine 1: 6654 h Number of working hours: Maschine 2: 5970 h total power requirement: ca. 30 kW je Maschine kW weight of the machine ca.: 9,5 je Maschine t 2 transfer presses - PRESS LINE This transfer press line is currently equipped for the production of vehicle sockets/electrical sockets. Plant equipped with: 1. decoiler PM245 coil weight 2 t, coil width up to 450 mm 2. controlled strip feeder (roller feeder) 3. press 1: Deep-drawing press with five pneumatic ejectors (can be individually adjusted and expandable) 4. feeding device from the company Püschel Output up to 100 parts/minute Belt swivel conveyor for discharging the deep-drawn parts/ forwarding via steep conveyor into the gate swivel conveyor/ forwarding into the infeed of the punching press via mechanical oscillating conveyor rails Lhedsu Nfttjpfx Affor 5. punch press (with preparation for ejector) Various safety fences, guards, safety switches, monitoring systems (adapted to machine guidelines) Optional: 1 unused spare flywheel gearbox Optional: complete tool set for the production of vehicle sockets (e.g. for cigarette lighters or electrical appliances) incl. complete technology and technical drawings (DXF) *

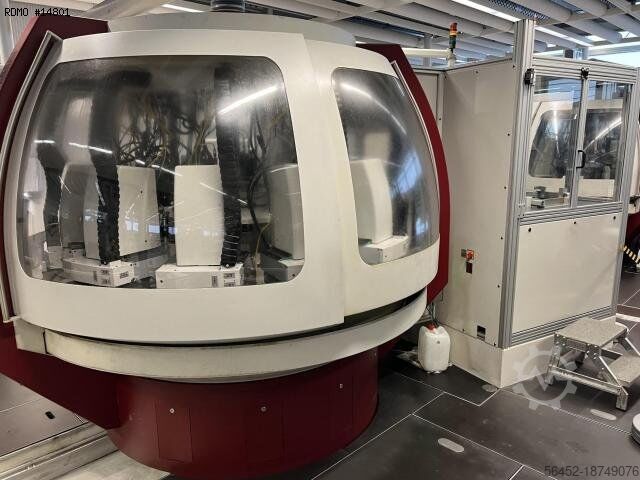

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 8450-02-001, rotary table diameter: 4,000 mm, Equipment: chip conveyor, TECHNICAL DETAILS Rotary indexing table diameter: 4,000 mm Machining stations: 12 Axis configuration: 4 × 3 axes, 8 × 2 axes Clamping chucks: 12 units for tool holders Drilling units: NC-controlled Accessory systems Chip conveyor: Knoll, type 500K-1/500, year of manufacture 2001 Coolant system: available Filtration system: available Measuring device: integrated MACHINE DETAILS Identification number: 8450-02-001 Customs tariff number: 84573010 Weight Machine: 6,000 kg Lhjdpfxjxur Ruj Affer Control cabinet: 800 kg Coolant system: 600 kg Dimensions Working height: 1,170 mm Machine height: 2,220 mm Footprint: 5,231 x 4,540 mm EQUIPMENT - Rotary indexing table with large 4,000 mm diameter for extensive machining operations - 12 NC drilling units with 12-piece clamping chuck setup - Integrated chip conveyor of type Knoll 500K-1/500 - Complete system with filtration and coolant system - Measuring system and automatic loading and unloading for seamless automation

Condition: used, Year of construction: 2000, functionality: fully functional, pressing force: 70 t, For sale: a fully functional and well-maintained Husmann MP6070-TS waste compactor installation, currently still in daily operation. The installation is immediately ready for use and is particularly suitable for compacting and transferring various waste streams. Ljdexuhtropfx Affjhr Features: - Fully operational and functional installation - In daily use and well maintained - Includes two swap bodies for moving containers - Equipped with hydraulic container couplings and a hydraulic container locking system - Features a large feed hopper - Can be easily filled with a wheel loader, excavator, or from a platform/ramp - Immediately available for use Containers are not included.

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, total length: 90 mm, total width: 80 mm, total height: 160 mm, overall weight: 100 kg, input voltage: 230 V, compressed air connection: 7 bar, Unifiller "Hopper Topper" transfer pump HT3P, pneumatic transfer pump for masses, fillings, creams, etc. also with soft pieces up to approx. 25 mm, year of manufacture 2019 in very good condition, incl. fill level sensor for the downstream device for automatic activation of subsequent conveying. Pneumatic pump for conveying a wide variety of masses, creams, fillings, etc. or even liquid or very soft doughs, scalded pieces, salads, dips, sauces, etc. in cold or hot condition. The product to be conveyed can be removed directly from the kneading or mixing bowl; the height (pneumatic) and position of the transfer pump can be flexibly adjusted for this purpose. Simple operation, adjustment and cleaning, virtually tool-free. The very gentle mode of operation preserves the volume of the mixture and also conveys pieces, fruit etc. up to approx. 25 mm extremely gently. The pump can refill continuously or stop and start automatically thanks to the fill level sensor. Perfect in combination with pastry lines and filling devices of all kinds. Up to approx. 49 litres per minute. - Maximum immersion depth of the suction pipe: approx. 70 cm - Incl. original gasket set as spare part. Lhjdpfx Aew Ex R Esffor Dimensions: approx. 90 cm wide, 80 cm deep and 160 cm high, weight approx. 100 kg

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, Manufacturer: KNAPP STREAMLINE Year of construction: 2010 Drive: SEW-Eurodrive motor Cross roller conveyor DPP - Dynamic positioning platform Lodpfx Aef Arpbjffjhr Motorized roller conveyor equipped with sensors. Dynamic material positioning - incoming boxes, crates or trays can be positioned, rotated or conveyed to the exact location by the system. Direction change, distribution - the unit can move the goods in different directions, to other tracks or machines. Stopping and waiting - can also serve as an automatic buffer. Transfer roller part: Length: 765 mm Width: 325 mm Transfer roller diameter: 50 mm Conveyor roller part: Length: 335 mm Width: 325 mm 4 support rollers: 50x310 mm Overall unit size: Width: 800 mm Length: 1250 mm Height: 530 mm

Condition: good (used), Clamping table, clamping angle, T-slot table, rotary table, milling machine table -Clamping angle: for workpiece clamping -Table surface: 1000x800 mm, height 1250 mm -Wall thickness: 90 mm -T slots: slot width 36 mm Lhedpfxsxrgbpj Affjr -Dimensions: see photos -Dimensions: 1000/800/H1250 mm -Weight: 1069 kg

Condition: used, Technical details: Lhsdpfx Aeu Idvwjffsr number of spindles: 15 Stück number of stations: 8 Stück control: PS 2000 total power requirement: 72 kW weight of the machine ca.: 18,0 t dimensions of machine: LxBxH: 2100x3400x2600 mm dimensions electric cabinet: Nr.1: LxBxH: 1000x850x2300 mm dimensions electric cabinet: Nr.2: LxBxH: 1250x850x2500 mm dimensions electric cabinet: Nr.3: LxBxH: 1000x850x2100 mm dimensions electric cabinet: Nr.4: LxBxH: 1000x500x2350 mm space requirements approx. LxWxH: 5,0 x 6,2 x 3,8 m TRANSFER MACHINE with 3 work station and 15 drill & mill spindles for example the production of a high quantity of armatures Other technical information about the machine: - workpiece carrier: workpiece holding barrel Ø 800mm for 8 work piece - clamping station, cycle time of 10 sec. - drilling and milling unit: SK 40 intake; spindle stroke 125 mm; standard feed rate 1m/min; rapid traverse feed rate 4m/min; RPM max. 2240 rpm - left 3x drill & mill spindle and 2x thread cutting spindle - right 2x drill & mill spindle and 2x thread cutting spindle and 1x U-Axis such as 2x thread cutting spindle slidable, 2x drill and milling spindle from that one slideable and 1x U-axis slideable - 1. thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 125mm; RPM 35.5 - 900 rpm; right/left - 2. thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 80mm; RPM 45 - 560 rpm; right/left Equipment: - 2 hydraulic aggregate - chip conveyor - belt filter produced by Filtertechnik Gera (fleece band 430mm) - control panel - manual switch i.D. *

Condition: like new (used), Year of construction: 2018, functionality: fully functional, As new, barely used Smipack shrink wrap system consisting of angular sealer WS 560A and shrink tunnel T 450. Very few operating hours! Hardly any wear or signs of use. Ready for immediate operation. Shipping by freight forwarding is possible. Sealing frame format: 560 x 430 mm Max. product height: 230 mm Ledpoxtf Ansfx Affshr

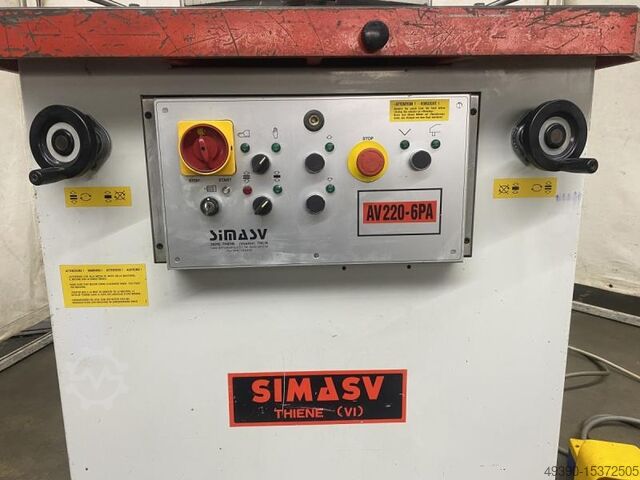

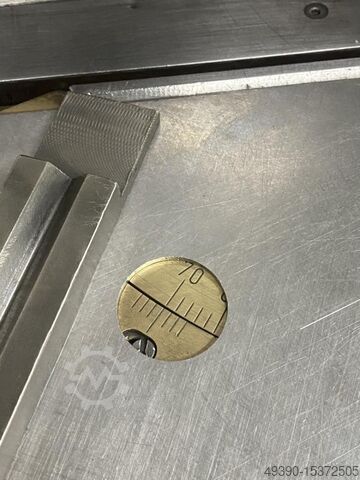

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1994, Capacity: 250 x 6 mm Electric variable angle adjustment, independently adjustable from 30 to 130 degrees Hydraulic drive Blade height and depth adjustable via potentiometers Table dimensions: 1200 x 900 mm Motor power: 5.5 hp Connection voltage: 380V Lsdpfx Afoxrv Hbefehr Length: 1000 mm Width: 1200 mm Height: 1400 mm Weight: 1200 kg VAT/margin: VAT: The listed price is excluding VAT (VAT deductible for businesses) Note: The information on this page has been compiled to the best of our knowledge, however, its accuracy cannot be guaranteed. Accordingly, it does not constitute representation or contract, and we recommend you verify all relevant details.

Condition: good (used), Year of construction: 2005, Year of manufacture: 2005 Condition: functional Model:Schulze Air press x Double pneumatic transfer press, semi-automatic model. The print can be adjusted using an air gauge, which also ensures the same pressure regardless of the quality of the garment. Digital temperature and time control. Automatically opens when the transfer is finished. Bottom plates are available in different sizes. Lhsdpsudydgefx Affjr - Print size: 400 x 500 - Dimensions: 1.67 x 0.74 x 0.98 m - Weight (including packaging): 170 kg - Power: 10 A / 230 V - Temperature: max. 220 °C - Temperature accuracy: ± 0.5% - Power: 2.4 kW - Heating time: 12 min. at 180 °C - Timer range: max. 9 min., 59 sec. - Operating pressure: 2490 kg

Condition: excellent (used), Butterfly valve, flap valve, ball valve, butterfly valve, shut-off valve, gate valve, pneumatic control valve, angle seat valve, valve Ledpfx Asigwcyoffohr -Manufacturer: bürkert, pneumatically operated 2/2-way angle seat valve unused -Type: 2000 A 50.0 PTFE VA -Connection: DN50 PN16 -Dimension: 290/103/H260 mm -Weight: 4.4 kg

Condition: used, Technical details: number of spindles: 11 Stück number of stations: 11 Stück taper: SK 40 Lodpfxju Idw Ie Affohr air pressure - required: 6 - 7 bar total power requirement: 13 kW weight of the machine ca.: 10,2 t space requirements of the machine approx.: 4,0 x 4,0 x 3,4 m dimensions of machine: 3,4 x 3,45 x 2,9 m dimensions electric cabinet: 2,1 x 0,4 x 1,9 mm Transfermachine (drilling & cutting) Accesssories optional please enquire to this additional position! - workpiece holding turret Ø 1000mm with tool holder for 8 tool clamping stations, self centering clamping chuck jaws between the jaws, max. 20mm chuck jaw stroke ( oil pneumatic circulation) - 11 working stations with Sk40 intake (right 4x Drill-& Mill spindle and 1x mitU-axis , left 4x Drill-& Mill spindle ) - drill unit 8x spindle stroke 125mm, feed 0 - 2 m/min, 164 - 1005 rpm with 12 gears stages - thread cutting unit working stroke 125mm, rotation direction clockwise and counter clockwise, 31,5 - 194 rpm with 12 gears stages - opposite located drill units 8 pieces with SK 40 holder - coolant device with supply - control via switch panel - with swarf basin L: 1200 x W: 740 x H: 220mm i.D. *

Condition: used, Technical details: number of spindles: 15 Stück number of stations: 8 Stück control: PS 2000 total power requirement: 72 kW Lodpfxsu Idv Dj Affehr weight of the machine ca.: 18,0 t dimensions of machine: LxBxH: 2100x3400x2600 mm dimensions electric cabinet: Nr.1: LxBxH: 1000x850x2300 mm dimensions electric cabinet: Nr.2: LxBxH: 1250x850x2500 mm dimensions electric cabinet: Nr.3: LxBxH: 1000x850x2100 mm dimensions electric cabinet: Nr.4: LxBxH: 1000x500x2350 mm space requirements approx. LxWxH: 5,0 x 6,2 x 3,8 m TRANSFER MACHINE with 3 work station and 15 drill & mill spindles for example the production of a high quantity of armatures Other technical information about the machine: - workpiece carrier: workpiece holding barrel Ø 800mm for 8 work piece - clamping station, cycle time of 10 sec. - drilling and milling unit: SK 40 intake; spindle stroke 125 mm; standard feed rate 1m/min; rapid traverse feed rate 4m/min; RPM max. 2240 rpm - left 3x drill & mill spindle and 2x thread cutting spindle - right 2x drill & mill spindle and 2x thread cutting spindle and 1x U-Axis such as 2x thread cutting spindle slidable, 2x drill and milling spindle from that one slideable and 1x U-axis slideable - 1. thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 125mm; RPM 35.5 - 900 rpm; right/left - 2. thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 80mm; RPM 45 - 560 rpm; right/left Equipment: - 2 hydraulic aggregate - chip conveyor - belt filter produced by Filtertechnik Gera (fleece band 430mm) - control panel - manual switch i.D. *

Condition: used, Technical details: spindle taper: 40 number of spindles: 9 Stück weight of the machine ca.: 10,0 t total power requirement: 13 (17,5 PS) kW dimensions of machine: LxBxH: 4100x3400x3200 mm dimensions electric cabinet: LxBxH: 2100x350x1900 mm TRANSFER MACHINE DRILL AND THREADCUTTING MACHINE - ROTARY TRANSFER MACHINE with 9x Drill-& Mill Spindles - right 2x Drill-&Mill Spindle from that 1x with U-axis flexible and 1x thread cutting unit with 9 stages flexible - left 2x Drill-&Mill Spindle from that 1x with U-axis flexible and 1x thread cutting unit with 9 stages flexible, such as radial 2x Drill-&Mill spindle and 1x thread cutting unit 9 stages, flexible - workpiece carrier with 8 clamping stations: workpiece holding barrel Ø 1000 mm (oil-pneumatic cycle), clamping station self-centering clamping jaws - Drilling: SK 40 intake; spindle stroke 125 mm; standard feed rate 0 - 2 m/min; RPM at 12 stages with 164-1005 rpm - Drill- and facing unit; SK 40 intake; spindle stroke 90 mm; standard feed rate 0 - 2 m/min; rapid traverse feed rate 7.5 m/min; RPM at 12 stages with 166 - 1020 rpm - 3 piece thread-cutting units: SK 40 Intake; Working stroke 125 mm; RPM at 12 stages with 31.5 - 194 rpm; clockwise and counterclockwise - 6 piece opposing drill units: SK 40 intake Lsdpsu Idwbofx Affjhr Equipment: - coolant system with feed - operation through control panel - chip box - counting mechanism - elevated platform with stairs i.D. *

Condition: used, Technical details: spindle taper: SK40 spindle stroke: 175 mm number of spindles: 8 Stück number of stations: 5 Stück cycle time: 15-20 sec revolutions per minute: bohren/drill/taladrar 225...1037 U/min. revolutions per minute: gewinde/threading/roscar 50...316 U/min. feed: 0,2 m/min total power requirement: 30 (40PS) kW weight of the machine ca.: 9,0 t space requirements of the machine approx.: 3,9x2,4x2,5 m dimensions of machine: L:3,9xB:2,2xH:2,7 m dimensions L x W x H: +Anlage/plant/planta 2,7x2,52x2,25 m The machine will be on a General overhaul (pictures from original condition at the former Company) The machine has been constructed for the metal cutting process of workpieces in one clamping session. Especially blanks made of brass with a diameter 90mm x approx 100mm length would be machined with this machine. description: - workpiece support with switch plate with clamping station type round table with horizontal axis with 5 workpiece stations processing units: - drill spindle and thread cutting units - drill capacity up to 2 3/4" and 81,53mm in brass - thread cutting up to 2 1/2" und metric thread Machine is equipped with a feeding-and unloading unit for workpieces. ( feed capacity 3 -4 pieces/min and cycle time 15 - 20 sec.) Lhodpfju Idycsx Affjr furthermore incl. coolant device i.D. *

Condition: used, Technical details: clamping surface area: 1000 x 500 mm weight of the machine approx.: 530 kg Lhedpfx Aju Rd Nieffor dimensions L x W x H: 0,5 x 1,0 x 0,49 m Angle extension table - machine table - machine clamping table with 33 x clamping holes M24 vertical mounting side: W x H: 800 x 450mm with 4 clamping grooves Ø 30 x 75mm *

Condition: used, Technical details: number of spindles: 9 Stück total power requirement: 83,0 kW weight of the machine ca.: 17,0 t TRANSFERAUTOMAT with 9x drill-and mill spindles - right 3x drill-& mill spindle, 9 stages, driven, fixed and left 3x drill-& mill spindle 9 stages, driven, fixed such as radial 3x drill-& mill spindle with 9 stages, driven, fixed i.D. * Lsdpfx Aou Idvkjffjhr

Condition: used, Technical details: number of spindles: 9 Stück Lhedpfx Afou Idwnjfer weight of the machine ca.: 10,2 t Transfer machine with 9 Drill-& Mill spindles - right 2x drill -& mill spindle and 1x thread cutting spindle with 9 stages - left 2x drill -& mill spindle and 1x thread cutting spindle with 9 stages such as radial 2x drill-& mill spinlde flexible and 1x thread cutting spindle 9 stages, flexible i.D. *

Condition: used, Technical details: number of spindles: 15 Stück number of stations: 8 Stück control: PS 2000 total power requirement: 83,0 kW weight of the machine ca.: 17,0 t space requirement of the machine approx.: LxBxH: 5,0 x 6,2 x 3,8 m dimensions of machine: LxBxH: 2400x2800x2800 mm dimensions electric cabinet: Nr.1: LxBxH: 1000x850x2350 mm dimensions electric cabinet: Nr.2: LxBxH: 1250x650x2230 mm dimensions electric cabinet: Nr.3: LxB.H: 650x600x2300 mm dimensions electric cabinet: Nr.4: LxBxH: 1300x650x2350 mm TRANSFER MACHINE with 3 work station and 15 drill & mill spindles - for example the production of a high quantity of armatures Other technical information about the machine: - workpiece carrier: workpiece holding barrel Ø 800mm for 8 work piece - clamping station, clock cycle of 10 sec. - drilling and milling unit: SK 40 intake; spindle stroke 125 mm; standard feed rate 1m/min; rapid traverse feed rate 4m/min; RPM max. 2240 rpm - right 4x drill-& mill spindle with 18 stages and 1x thread cutting spindle hydr. 14 up to 224 U/min, left 4x drill and mill spindle with 18 stages and 1x thread cutting spindle hydr. from 14 up to 224 U/min such as radial 3x drill -and mill spindle from that 1x U-Axis and 1x thread cutting spindle 1.Thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 125mm; RPM 35.5 - 900 rpm; right/left 2.Thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 80mm; RPM 45 - 560 rpm; right/left Equipment: Lhodpfx Afju Idxrsfsr - 2 hydraulic aggregate - chip conveyor - belt filter produced by Filtertechnik Gera (fleece band 430mm) - control panel - manual switch i.D. *

Condition: used, Technical details: clamping surface area: 630x400 mm no. of flutes: 8 rotatability of the table - manual/mechanic: 360 v. Hand ° weight of the machine approx.: 175 kg Angular table - machine table- machine clamping table for milling machine TOS such as FNG or FNGJ The frame is swiveable via hand wheel 360° (scale 360°) T-slots according to DIN 650 and 508 a=14mm; h=24mm; b=25mm; c=9mm Lsdpfxju Nkrbs Affshr foot plate: size 380x300mm with 6 clamping slots WxL=14x20mm *
