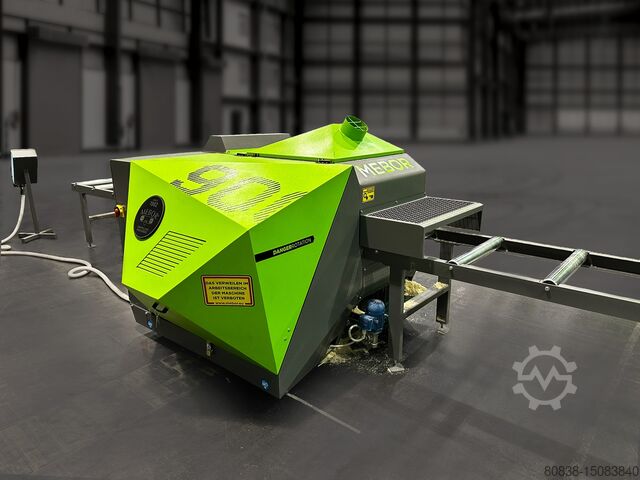

Multi blade saw

Mebor VR 800 / 900 / 900

Condition: like new (used), Year of construction: 2023, functionality: fully functional, overall weight: 9,000 kg, cutting height (max.): 1,200 mm, cutting width (max.): 1,100 mm, roll diameter: 1,400 mm, total width: 2,100 mm, total length: 2,400 mm, input voltage: 220 V, saw band length: 10,450 mm, saw band width: 206 mm, power: 90 kW (122.37 HP), empty load weight: 19,000 kg, cutting speed: 40,000 mm/min, Equipment: cabin, We are selling a complete sawmill line with a VTZ 1400 PLUS vertical band saw from Mebor. The offer includes: - VTZ 1400 PLUS vertical band saw by Mebor - Heavy-duty log conveyor with loading arms - Log edger/canter BM900 by Mebor - Operator cabin for the vertical band saw - Roller and chain conveyors Podpfjxq Rgyjx Adhjgw - Edging line VR800 S by Mebor with servo-driven, high-speed circular saw positioning - Twin-shaft multi-blade circular saw VC 900 D by Mebor - Waste conveyor line - Chipper shredder for waste TH200/500/3 by Rudnick & Enners - Sorting line 47-14 by Holzmatic

Condition: good (used), Year of construction: 2011, operating hours: 20,580 h, functionality: fully functional, pressing force: 48 t, filling opening width: 1,020 mm, filling opening length: 1,250 mm, bale length: 1,200 mm, bale width: 1,100 mm, bale height: 750 mm, bale weight: 450 kg, input current: 59 A, overall weight: 12,000 kg, transport height: 2,750 mm, oil tank capacity: 300 l, power: 30 kW (40.79 HP), transport width: 2,300 mm, transport length: 8,500 mm, tank capacity: 300 l, Good day, We hereby offer you a used baler from the manufacturer HSM, type VK 4812. Pgedpfxjt H Rcao Adhow The following technical data was taken from the manufacturer's operating instructions and brochures, for which we cannot accept any liability for correctness and completeness. Manufacturer HSM Type VK 4812 Year of manufacture 2011 Operating hours 20,580 hours Main press force 48 tonnes Drive power 30 kW Machine weight press 12 tonnes The machine documentation is available in German. A viewing is possible by appointment in our workshop. We would be delighted if this machine is of interest to you. Your service team Mertens & Frowein GmbH

Condition: excellent (used), Year of construction: 2020, Machine in very good condition, low hours – fully equipped. Additionally, 20 saw blades included in the set. SPECIFICATION: WRAVOR BAND SAWMILL Type 1225 AC (tilting edge cutting) Max. log width: 1250/1090 mm Max. cutting length: 8 m Main motor: 45 kW Cast wheels Wheel width: 130 mm Wheel diameter: 1200 mm Lift up/down – double screw TR60x9 (18) + 11 kW Danfoss inverter + Siemens 3-phase motor with brake Electric lifting/lowering motor: 11 kW Saw blade PV 45, length 8685 mm, thickness 1.2 mm, width 140/150 mm Feed drive with electronic controls: forward/reverse feed, SEW gearbox with flat asynchronous controller KA87 / GDRL100L 4BE5 / TF / ES7S / V Manual-sensor thickness adjustment with electric disengagement Digital thickness adjustment with Wravor V280 program Hydraulic unit 40 l, tank with two pumps 13+6 l, 3 kW motor Complete hydraulic system Hydraulic blade guide, left and right (linear HIWIN) Hydraulic debarker / bark cutter: 1 Pgsdpfx Asw E Ei Uodhsw Hydraulic board ejector: 1 Additional hydraulic board ejector and guide Side-mounted control panel Multifunction joystick with 2 positions: 1 Multifunction joystick with 4 positions: 1 Laser 15 mW: 1 Cameras: 3 Fan 2.2 kW + 15 m sawdust pipe + 4 brackets for pipe Water cooling – automatic hydrofor cooling system (Aki Tech high-pressure pump): 1 Preparation for ramp and automatic table + spreader: 1 Diesel lubrication system: 1 TRACK Welded frame, 14 m long Hydraulic clamp with two cylinders: 6 Hydraulic cant flipper: 6 Mechanical supports: 2 Hydraulic roller – forward: 6 Hydraulic log lifter with mechanical rollers: 4 Hydraulic log lifter with hydraulic rollers: 7 Set of lifting rollers: 7 hyd. + 4 m, 1 pc Hydraulic turner – new type: 3 Centering device – 1 set: 4 Hydraulic unit 120 l, tank with single pump 50 l, 15 kW motor + Danfoss inverter: 1 Cable carrier with energy chain: 14.5 m C-profile cable tray for ventilation – 4 double trolleys 4 m belt output conveyor with 1 m feed + 3 kW electric motor, front section with hydraulic lift

Condition: excellent (used), Complete saw line with infeed,ARI SKR 600 reducer, ARI KS 122 Saw, ARI BKR 600 2:nd reduser, ARI DS 70 multi rip and ARI KT 52 eding line with full scanner Psdpfx Ajikvl Rjdhsgw Full bottom floor for waste handling All electrical cabinets and hydraulics

Condition: used, Year of construction: 2007, No. 3177 Optimizing cross-cut system Grecon Dimter OptiCut 200-1 Used, year of construction 2007 For cross-cutting fixed lengths Wood dimensions to be processed: Input lengths min./max. 3000 - 5000 mm Input widths min./max. 80 - 200 mm Input thicknesses min./max. 38 - 80 mm Timber cross-sections max. 200 x 50 Final timber length min./max. 700 - 1000 mm Average number of cuts / board 5 Wood types: Softwood or hardwood Performance of the system: Feed speed max. 180 m/min, infinitely variable Time per cross-cutting process incl. brakes 0.7 - 1.2 s Position overview: Pos. 1: Infeed conveyor belt in front of saw Length 1.5 m coupled with feed motor of the saw Item 2: OptiCut 200-1 automatic cross-cut saw in left-hand design With built-in length measuring wheel and built-in blow-out device for waste Graphics-capable input terminal, 1 / 4 VGA display, with numeric keypad and function keys, with OptiCom software package for system control The machine is fed from the left Pos. 3: Outfeed conveyor belt / sorting station with drive unit, without ejector Belt length approx. 1.5 m Machine already dismantled and stored The infeed table was not used by the previous owner. 2 feed rollers were installed for the material feed. The conveyor table is there, only the rubber belt is missing. Sale on behalf of customer, ex location Austria, without transportation and assembly Errors in description and price excepted Transportation and loading by us optionally possible To avoid possible misunderstandings, an on-site inspection by appointment is possible and recommended Sold as is Technical details, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “purchased as seen” Pgsdpfx Asu Atmuodhew Images and videos serve as examples and do not represent the actual scope of delivery Terms of payment: Prices plus VAT, payment before collection or dispatch Terms of delivery: ex location

Year of construction: 1990, condition: refurbished (used), functionality: fully functional, machine/vehicle number: 647-230, Lid Punching machine without tools Type Hamba 647-230 Podpfx Asnr Ex Todhjgw foil width - 230 mm very good condition - with used embossing calender for worm structure - Power connection: 220/380V - three phases - Additional punching tools available - e.g. 1x 2-fold tool - diameter 80.50mm 2x 2-fold tool - diameter 75.50mm 1x 2-fold tool - diameter 59.54mm 1x 2-fold tool - diameter 93.80x120.90mm

Condition: new, Timber driers any capacity, own technology, more than 70 years experience. More than 500 machines all over the world. Machines for treatment ISMP-15. Pgjdpok D S Npefx Adhjw

Condition: as good as new (ex-display), Year of construction: 2018, Spindle tiltable: Yes -45 to 45° Height adjustment: Handwheel Pivot adjustment: Handwheel Stop adjustment: manual Height display: mech. counter display Swivel angle display: mech. counter display Milling stop display: mechanical counter display spindle diameter: 30 mm spindle speeds: 3000, 4500, 6000, 8000, 10000 rpm power input: 7 kW Motor brake: Yes, automatic Suction connection: 1 x 120mm, 2 x 80mm Psdpfx Ajgyzzmedhjgw Machine length: 2500mm Machine width: 1250mm Weight: 510kg

Condition: used, Year of construction: 1980, functionality: fully functional, machine/vehicle number: KME 2/750L, Tension carriage for saw frame Viewings are available by appointment. Pedpfev Umb Eox Adhegw

Condition: ready for operation (used), Technical characteristics En cours de vérification Double roller carriage length: 3000 mm 5.5 kW motor 4 rotation speeds : 3000, 4000, 5000 and 6000 RPM Pedpjuciqajfx Adhjgw Scoring unit 0.75 kW Parallel fence with fine adjustments 1200 mm Tilting blade ⌀ 350 mm (max 450 mm) Automatic centralized lubrication for blade pivoting Cutting height : 100 mm (max 150 mm with 450 mm blade) Cutting height at 45° : 70 mm (max 106 mm with 450 mm blade) Power and Motors Voltage: 400 V Pluging: Three-phased Power: 7 Kw Motor: 7,5 CV Overall dimensions
