Component

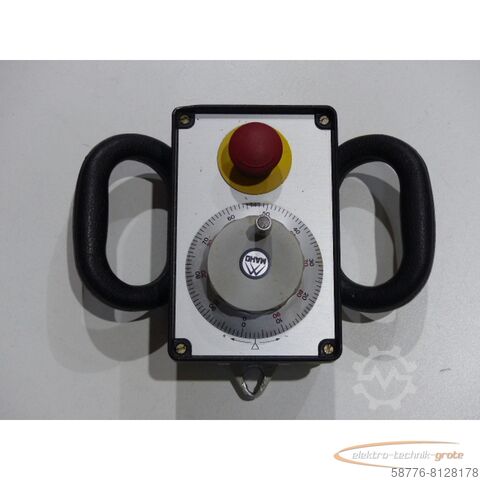

MAHO Maho Elektronisches Handrad

Condition: ready for operation (used), Maho Electronic handwheel with spiral cable,used, normal signs of wear, 100% functional, scope of delivery according to photos Iajdpfx Asi Ebz Esg Iot

Year of construction: 2004, condition: ready for operation (used), X-axis: 750mm, y-axis: 600mm, z-axis: 520mm, C-axis: 360°, B-axis: 180°, max. spindle speed: 18,000/min, control: Siemens SINUMERIK 840D powerline, connected load: 55kVA, length: 4603mm, width: 5250mm, height: 2785mm, weight: approx. 9t, operating hours power on: approx. 65,000h, spindle hours: approx. 19,000h. No defects known, internally maintained, without maintenance reports, with documentation, rotary table, high-pressure internal cooling and Bluhm spindle probe. An inspection on site is possible. Iajdpfx Agjylbq Hj Iet

Condition: used, CNC cycle controlled lathe HARRISON type Alpha 400 Plus Machine No. P30180/150 Year of construction 1998 center distance 1250 mm turning diameter over bed 400 mm center height 200 mm Swing diameter over cross slide 245 mm Swing diameter in the bend 585 mm bed width 313 mm face travel (X-axis) 250 mm Tailstock spindle diameter 73 mm Tailstock quill stroke 140 mm Tailstock quill mount MK 5 spindle bore 54 mm Iajdpfxoh Hvk Ao Ag Ist spindle head size Camlock D1 size 6 Spindle speed 20-2500 rpm. Spindle speed range (stage 1) 15-275 rpm. Spindle speed range (stage 2) 35-795 rpm. Spindle speed range (level 3) 110-2500 rpm. Feed rate X and Z 0.03 - 0.6 mm/rev. Rapid traverse speed X axis max. 2000 mm/min. Rapid traverse speed Z-axis max. 4000 mm/min. Threading function Metric / Inch / Diametral / Module Spindle drive power 7.5 KW Mains connection 400 Volt, 50 Hz, 23,5 kVA - cycle control Harrison Alpha / GE FANUC - language in French (France) - automatic gear range shifting in 3 steps (15-275, 35-795, 110-2500 rpm.) - electronic handwheels with different transmission ratios (1/10/100) - 3-jaw face spiral lathe chuck FORKARDT Ø 250 mm type CSN, 1 set of soft top jaws - quick-change tool holder MULTIFIX size B with 2 inserts - 1 piece of centering point running with the tool - 1 piece quick-action drill chuck RÖHM, 3-16 mm - hinged lathe chuck guard - hinged working area protection doors - chip tray with coolant device under the machine bed - Switch cabinet fixed to the machine - Interface RS 232 Space requirement L x W x H 2600 x 1450 x 1550 mm weight 1950 kg good condition

Condition: good (used), Used hydraulic band saw FMB Major +VHZ Blade dimensions: 3180x27x0.9mm Blade cutting speed: 20-100m/min Cutting angle up to 60° Ijdpfx Agswaauue Ieat Cutting capacity at 0° - round: 240mm - rectangle: 300x220mm

Year of construction: 1980, condition: good (used), A used very well preserved cycle controlled lathe from Weisser Heilbronn with SIEMENS control. centre distance 2000 mm centre height 295 mm Swing over bed 600 mm Swing over cross slide 260 mm Swing diameter in the bend 800 mm Total length of the crank 375 mm Bed width 450 mm Plan travel X-axis 350 mm Longitudinal travel Z-axis 1850 mm Spindle nose DIN 55022 size 8 Spindle speed Number 18 14 - 1400 rpm spindle bore 71,5 mm Diameter of front bearing 110 mm feed range 0,01 - 40,95 mm/rev rapid traverse 8 m/min Direct current drive 15 kW 400V 50Hz Max. permissible torque at the spindle 2500 Nm Tailstock quill 80 mm quill stroke 250 mm inner taper quill MK 5 Length x width x height Weight of the machine 5500 kg Accessories Tailstock Iedpfx Agjgyy I Ao Ieat Pneumatic three-jaw chuck with interchangeable jaws 315mm Quick change holder "MULTIFIX "in front of the center size "C Quadruple turret behind the center Tool holder Coolant device Pneumatic steady rest Technical data and dimensions: Errors excepted. Videoconference via whatsapp possible by appointment

Condition: excellent (used), Year of construction: 2006, FAMUP MCP 45 CNC machining center TECHNICAL DATA axes Number of axes: 3 X-axis: 450 mm Y-axis: 300 mm Z-axis: 400 mm Feed rate Work feed X,Y,Z: 10`000 mm/min Rapid feed X,Y,Z: 30`000 mm/min Working pressure force X,Y: 2000 N Working pressure force Z: 3300 N Pallet Iodpfx Aeq U Rm Hog Ieat Dimensions: 400 x 300 mm Number of grooves: 2 Groove width: 14 mm Groove spacing: 80 mm Max. Table load: 100 kg Changeover time: 9 sec. Spindle Spindle motor power: 5 kW Speed: 10`000 rpm Tool changer Magazine slots: 16 Max. Tool diameter: 63 mm Max. Tool length: 150 mm Max. Tool weight: 4 kg Tool change time: 1.7 sec Weight: Approx. 3000 kg No responsibility is taken for the correctness, completeness and up-to-dateness of the information.

Condition: used, x-travel 500 mm y-travel 400 mm Isdjv Td Elspfx Ag Ioat z-travel 400 mm Q U O T A T I O N We are pleased to offer you ex our stock, subject to prior sale, and error in technical data : DECKEL MAHO CNC Universal Milling Machine model DMU 50 M year 1998 Working range: Longitudinal stroke X Axis 500 mm Vertical stroke Z Axis 400 mm Cross stroke Y Axis 400 mm C-axis – table turning, manual 360 ° B-axis – table swivelling, manual ° Table area Ø 700 x 500 mm Inclination range of table (manually) + / - ° Rotation of table (manually) 360 ° Max. Table load approx. 200 kg Maximum distance table – spindle nose 550 mm horizontal distance machine – spindle nose 2 – 6 mm Tool holder Taper ISO 40 Spindle speeds 20 – 4,500 rpm Feed rate max. 5.000 mm/min AC main drive, 0% / 40% power-on time approx. 9 / 13 kW Total electrical load, approx. 15 kW - 400 V - 50 Hz Weight, approx. 3,000 kg Accessories / Special Features • 3 Axis HEIDENHAIN Point to Point Control Model TNC 124 with Monitor, direct programming and input of data and electronic handwheels. • All 3 axis are operated by the milling head, the table is stationary so also out of proportion workpieces can be machined. • Rotary Table can be manually rotated 360° and manually inclined + / -° (each with clamping). The digital read-out of the angles is integrated in the CNC control • Simple coolant unit with pump and tank, built-on switch cabinet (SIEMENS parts) • Pneumatic tool claomping, Some tool holders available, manuals, CE-Certificate, etc. Condition : very good condition ! Ideal for training center or single parts machining ! Please click here to view a video of the machine running : ! Delivery : immediately available, FCA Metzingen Payment : 0 % Net, after conclusion of contract, before loading We always have a large selection of milling machines - CNC or conventional - available. Please let us know your requirements.

Condition: good (used), Year of construction: 2002, operating hours: 18,000 h, CNC MULTITASKING LATHE MORI SEI MOD. MT 2000 SZ Main Spindle Kw 22 6,000 RPM X/y/z/b Travels: 565 - +/- 80 - 1077 - +/- 120° Milling Head Capto C6 6,000 RPM Motorized Lower Turret 12 Stations Isdpeu Sg Auefx Ag Isat Tool Magazine 40 Posts Year 2002

Condition: good (used), Year of construction: 2005, operating hours: 32,870 h, functionality: fully functional, machine/vehicle number: 6030578, turning diameter: 32 mm, spindle speed (max.): 8,000 rpm, bar diameter (max.): 32 mm, We offer for sale Traub TNL26K automatic cnc lathe. Machine is connected to power and can be inpected every time by prior appointment. Year of built: 2005 Spindle passage 32mm Main spindle: 6.7/10.7kW; 8000rpm Counter spindle: 6.7/10.7kW; 8000rpm Upper turret: 12pos. 12x12/16x16, driven tools 2/5.5kW, 0-6000 rpm, 6.4/21 Nm Lower turret: 12pos. 12x12/16x16, driven tools 2/5.5kW, 0-6000 rpm, 6.4/21 Nm Iaedpfxsvldx Ao Ag Ist Connected load: 24kW Barfeeder: FMB Turbo 5-42/4200mm Swarf conweyor: Knoll 240 S1/100 Coolant Kompaktbandfilter: Resy Machine is sold with a lot of toolholders not driven and driven - list on attached photo.

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, Working area Grinding length: 250 mm Centre height: 100 mm Workpiece weight: 30 kg Z-axis: 350 mm Table adjustment: 8 ° degrees X-axis: 190 mm Grinding spindle Grinding wheel diameter max.: 500 mm Grinding wheel width max.: 80 mm Grinding wheel bore: 127 (203) Ijdpfxevz Snks Ag Ijat Grinding wheel motor power: 5.5 kW Peripheral speed: 50 m/s Grinding wheel protection cover: D500 x 80mm Workpiece spindle Speed: 1 - 2,000 rpm Workpiece spindle mount: MK4 Tailstock Tailstock quill mount: MK3 Tailstock quill stroke length: 30 mm Cylinder fine adjustment range: ± 0.04 Equipment Paper belt filter system Rinse gun Mechanical fume extraction
