CNC latheHWACHEON
Hi-Tech 300
Machine data
- Machine type:
- CNC lathe
- Manufacturer:
- HWACHEON
- Model:
- Hi-Tech 300
- Year of construction:
- 2008
- Condition:
- good (used)
- Functionality:
- fully functional
Price & Location
- Location:
- Humboldtstraße 9, 32139 Spenge, Deutschland
Technical details
- Turning length:
- 1,240 mm
- Turning diameter:
- 380 mm
Details about the offer
- Listing ID:
- A21756133
- Update:
- 20.04.2026
Description
Manufacturer: Hwacheon
Model: Hi-Tech 300
Year of Manufacture: 2008
Control: Fanuc 18i-TB
Country of Origin: Korea
Delivery Time: available from stock
>> Extended turning length configuration
>> Driven tools
>> Includes tailstock with quill
>> Includes bar loading magazine
>> Includes additional accessories
This horizontal CNC lathe is in very good condition. The machine comes with a comprehensive equipment package, including a full-featured C-axis, touch setter, 3 spindle reduction sleeves, driven tools, tailstock with quill, 3-jaw hydraulic chuck, extended turning length (1240 mm), among others. The extensive features enhance machining capabilities and ensure tool break monitoring. The additional bar loading magazine further increases production productivity.
Machine Equipment

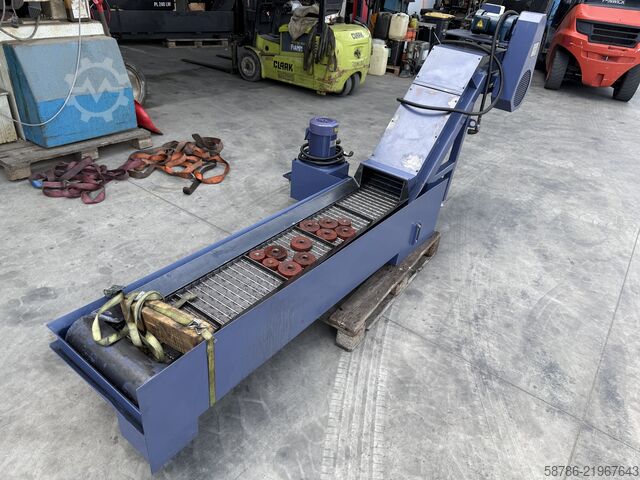

> Chip conveyor
> Bar loading magazine
> 3 spindle reduction sleeves
> Turning and milling spindle
> Driven tools (4 holders available)
> Tailstock with quill
> Boxways
> 3-jaw hydraulic chuck 250 mm (Seoam ACE CAH-10)
> Full-featured C-axis
> Touch setter
Technical Data
Performance
Swing diameter over bed: 600 mm
Max. turning diameter: 380 mm
Max. turning length: 1240 mm
Spindle
Main spindle power: 22 kW
Main spindle torque: 1030 Nm
Main spindle speed: 3200 rpm
Main spindle chuck diameter: 254 mm
Bar capacity: 76 mm
Rapid traverse
X/Z-axis travel speed: 20 / – / 20 m/min
Kodpfey D Tigjx Anxjdl
Turret
Number of tool stations: 12 positions
Driven tool speed: 3000 rpm
Drive power: 3.7 kW
Tool system (type): BMT
Direct drive: 6 powered stations
C-axis: 0.001°
Tailstock
Quill diameter: 100 mm
Quill stroke: 120 mm
Taper: MT5
Bar feed magazine
Type: Samsys Multisam 2000
Bar length: max. 1550 mm
The listing was translated automatically. Translation errors are possible.
