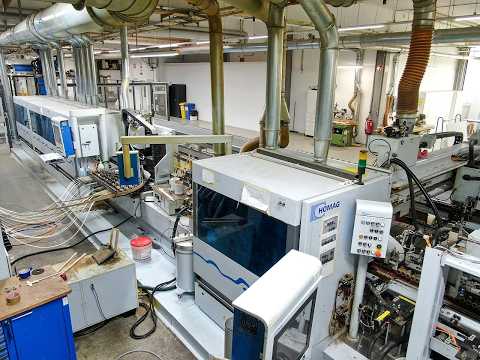

Production line edge banding machine

HOMAG + LIGMATECH + KUKA KFL10/24/PU/30+ZTR 100/30/26/S+KR 180-2

Condition: ready for operation (used), Year of construction: 2003, machine/vehicle number: 0-306-04-2737, functionality: fully functional, working width: 800 mm, conveyor belt length: 4,800 mm, feed rate X-axis: 37 m/min, working height: 1,400 mm, working length: 2,300 mm, No minimum price – guaranteed sale to the highest bidder! The machine must be collected between June 10, 2026, and June 30, 2026! TECHNICAL DETAILS Workpiece width max.: 800 mm Workpiece length max.: 2,300 mm Workpiece height max.: 1,400 mm Feed rate max.: 37 m/min MACHINE DETAILS Machine length: 4,800 mm EQUIPMENT Nsdpfxoy Uwmqs Ad Rolb Infeed conveyor Outfeed conveyor The machine is sold and delivered in its actual and legal condition (“as is, where is”) based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 8536

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 10720, working width: 1,300 mm, power: 3.2 kW (4.35 HP), table length: 400 mm, table width: 1,300 mm, number of rollers: 2, No minimum price – guaranteed sale to the highest bidder! The machine must be collected between June 10, 2026, and June 30, 2026! TECHNICAL DETAILS Working width max.: 1,300 mm Number of rollers: 2 Table width: 1,400 mm Table length: 400 mm MACHINE DETAILS Nledpfx Adjy Uv Adj Rob Total power: 3.2 kW EQUIPMENT CE marking The machine will be sold and delivered in its actual and legal condition (“as is, where is”) based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 8533

Year of construction: 2004, condition: ready for operation (used), functionality: fully functional, controller model: TLF POWERCONTROL, workpiece weight (max.): 250 kg, plate length: 2,200 mm, plate width: 4,300 mm, machine/vehicle number: 0-286-05-6067, No minimum price – guaranteed sale to the highest bidder! The machine must be collected between June 10, 2026, and June 30, 2026! TECHNICAL DETAILS Maximum plate width: 4,300 mm Maximum plate length: 2,200 mm Nsdoy Uvgiepfx Ad Relb Maximum lifting capacity: 250 kg Storage dimensions, length: 22,000 mm Storage dimensions, width: 12,000 mm MACHINE DETAILS Machine programming software: TLF POWERCONTROL The machine is sold and delivered in its actual and legal condition (“as is, where is”) based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 8523

Condition: ready for operation (used), functionality: fully functional, working width: 2,500 mm, controller model: PACKSIZE-BEDIENKONSOLE 3.9.4 - 58048, conveyor belt length: 5,000 mm, Equipment: CE marking, No minimum price – guaranteed sale to the highest bidder! The machine must be collected between June 10, 2026, and June 30, 2026! TECHNICAL DETAILS Working width max.: 2,500 mm Nsdpfjy Uv Dhox Ad Rjlb Number of stations: 3 Number of saws: 6 Conveyor belt length: 5,000 mm MACHINE DETAILS Machine programming software: PACKSIZE CONTROL PANEL 3.9.4 - 58048 EQUIPMENT Storage for cardboard CE marking

Condition: ready for operation (used), Year of construction: 2006, machine/vehicle number: BM0000029, functionality: fully functional, controller model: WINDOWS XP, number of spindles: 42, plate height: 60 mm, plate length: 2,800 mm, plate width: 1,300 mm, No minimum price – guaranteed sale to the highest bidder! Vertical CNC machining center for drilling, milling, and dowel insertion with an additional robotic arm for loading! The machine must be picked up between June 10, 2026, and June 30, 2026! The machining center consists of two machines as follows: 1. BIESSE BREMA VEKTOR 15-18 R Working area X-axis: 2,800 mm Working area Y-axis: 1,300 mm Number of controlled axes: 3 axes Total number of drilling spindles: 42 Total number of tool changer positions: 10 Maximum panel thickness: 60 mm Automatic panel loading system Automatic panel stacking system Drilling units Drilling unit 1: Horizontal drilling spindles in X Number of horizontal drilling spindles in X: 9 Drilling unit 2: Horizontal drilling spindles in Y Number of horizontal drilling spindles in Y: 9 Drilling unit 3: Vertical drilling spindles Number of vertical drilling spindles: 24 Milling spindle Number of milling spindles: 1 Number of controlled axes milling spindle: 3 Automatic tool changer: Yes Number of tool magazine slots: 10 Control and safety Control system: WINDOWS XP Machine programming software: BKEEPER Safety standard: EC marking Safety system: Safety light curtains 2. KUKA KR 180 L100-2 K 2000 Nsdpfx Adey Uvnae Rjlb Maximum panel width: 1,300 mm Maximum panel length: 2,800 mm Maximum payload: 100 kg Number of controlled axes: 6 Arm reach: 3,700 mm Number of panel stacking stations: 3 Control system: KR C 2 EQUIPMENT Automatic panel loading system Automatic panel stacking system Barcode scanner HONEYWELL Protective netting on the machine The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 8530

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 9830-01, working width: 1,300 mm, roller diameter: 250 mm, Equipment: CE marking, No minimum price – guaranteed sale to the highest bidder! The machine must be collected between June 10, 2026, and June 30, 2026! The coating system consists of several individual machines, which are composed as follows: Pos. 1 - MANFRED LAMPRECHT MASCHINENBAU BM 1300 - V (Brushing machine) Working width max.: 1,300 mm Total power: 4.2 kW Pos. 2 - BURKLE SAS 1300 (Coating machine) Working width max.: 1,300 mm Diameter of application roller: 250 mm Coating units: 3 Coating unit 1 Unit type: Metering unit Material: Steel Roller diameter: 180 mm Coating unit 2 Unit type: Application unit Material: Rubber Roller diameter: 250 mm Coating unit 3 Unit type: Filling unit Material: Steel Roller diameter: 250 mm Nlodpjy Uwnbefx Ad Rjb Pos. 3 - BURKLE UV SYSTEM Working width max.: 1,300 mm Drying system: Ultraviolet lamps - UV System type: Motorized feed rollers Pos. 4 - BURKLE SLC 1300 (Coating machine) Working width max.: 1,300 mm Diameter of application roller: 250 mm Coating units: 2 Coating unit 1 Unit type: Metering unit Material: Steel Roller diameter: 180 mm Coating unit 2 Unit type: Application unit Material: Rubber Roller diameter: 250 mm Pos. 5 - HACKEMACK KTR 3370 (Drying machine) Working width max.: 1,300 mm Drying system: Ultraviolet lamps - UV Number of lamps: 2 System type: Feed belt The machine is sold and delivered in its current and legal condition (“as is, where is”) based on photo documentation and technical/commercial documents with a descriptive character. The buyer has the right to inspect the goods before collection and is responsible for the installation, securing, and use of the machine at the destination. External reference: 8542

Condition: ready for operation (used), Year of construction: 2011, machine/vehicle number: 0-201-50-1289, functionality: fully functional, travel distance X-axis: 6,000 mm, travel distance Y-axis: 1,400 mm, controller model: POWERCONTROL PC 85, plate height: 300 mm, spindle speed (max.): 24,000 rpm, No minimum price – guaranteed sale to the highest bidder! CNC machining center for milling, drilling, and edge banding! The machine must be picked up between June 10, 2026, and June 30, 2026! TECHNICAL DETAILS Working area X-axis: 6,000 mm Working area Y-axis: 1,400 mm Maximum panel passage height: 300 mm Travel speed X-axis: 80 m/min Travel speed Y-axis: 80 m/min Travel speed Z-axis: 30 m/min Number of controlled axes: 5 axes Number of working stations: 4 Maximum edge height: 65 mm Number of drilling units: 1 Total number of drilling spindles: 21 Total number of vertical + horizontal spindles: 25 Number of milling spindles: 2 Total number of tool changer positions: 77 Barcode reader model: DATALOGIC Work table and workpiece clamping Number of rails: 12 Number of pumps: 1 Vacuum pump flow rate: 300 m³/h Positioning via NC Vacuum cups for workpiece clamping Positioning of vacuum cups via NC Drilling unit Drilling unit 1: Top Vertical drilling spindles: 21 Horizontal drilling spindles in X: 2 Horizontal drilling spindles in Y: 2 Total number of vertical + horizontal spindles: 25 Milling units Milling spindle 1: Top Number of controlled axes milling spindle 1: 5 Nljdpoy Uviwjfx Ad Rsb Motor power milling spindle 1: 15 kW Speed milling spindle 1: 24,000 rpm Automatic tool changer Milling spindle 2: Top Number of controlled axes milling spindle 2: 4 Automatic tool changer milling spindle 2: Yes Motor power milling spindle 2: 11 kW Speed milling spindle 2: 12,000 rpm Edge banding unit Number of edge banding units: 1 Maximum panel height: 60 mm Model: POWER EDGE 360° Position: Mounted on the main beam of the machine Number of positions edge roller magazine: 2 Gluing unit Glue pot for hot melt adhesive Pre-melter for hot melt adhesive Tool magazines Number of tool magazines: 4 Positions tool magazine 1: 72 Position tool magazine 1: On the rear of the machine Positions tool magazine 2: 2 Position tool magazine 2: On the rear of the machine Positions tool magazine 3: 2 Position tool magazine 3: On the rear of the machine Positions tool magazine 4: 1 Use tool magazine 4: Only for saw unit D: 350 mm MACHINE DETAILS Control system: WINDOWS 10 Machine programming software: POWERCONTROL PC 85 EQUIPMENT Work table pod and rail NC-positioned workpiece clamping Vacuum cups Vacuum pump Drilling unit on top 2 milling spindles POWER EDGE 360° edge banding unit Glue pot for hot melt adhesive Pre-melter for hot melt adhesive Edge roller magazine 4 tool magazines Barcode reader DATALOGIC Protective net Chip conveyor CE marking Safety mats The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photo documentation and technical/commercial documents, which are of a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 8527

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, cutting height (max.): 125 mm, cutting width (max.): 4,300 mm, cutting length (max.): 2,200 mm, table length: 2,500 mm, table width: 1,000 mm, No minimum price – guaranteed sale to the highest bidder! The machine must be collected between June 10, 2026, and June 30, 2026! TECHNICAL DETAILS Maximum plate width: 4,300 mm Maximum plate length: 2,200 mm Maximum saw blade overhang: 125 mm Number of grippers: 10 Number of work tables: 4 MACHINE DETAILS Programming software: CADMATIC 4 Control system: WINDOWS XP EQUIPMENT Swiveling unit Lift table Roller feed table Lift table (manufacturer: LAWECO, dimensions: 1,000 x 2,500 mm) Barcode label printer (model: ZEBRA ZT231) Scoring unit Njdpfjy Ur Dqjx Ad Rslb The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photo documentation and technical/commercial documents with a descriptive character. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at its destination. External reference: 8524

Condition: ready for operation (used), Year of construction: 2002, machine/vehicle number: 0-306-04-1262, functionality: fully functional, working width: 600 mm, conveyor belt length: 3,000 mm, feed rate X-axis: 40 m/min, working height: 1,300 mm, working length: 2,500 mm, No minimum price – guaranteed sale to the highest bidder! The machine must be picked up between June 10, 2026, and June 30, 2026! TECHNICAL DETAILS Workpiece width max.: 600 mm Workpiece length max.: 2,500 mm Workpiece height max.: 1,300 mm Workpiece width min.: 120 mm Workpiece length min.: 300 mm Workpiece height min.: 300 mm Feed rate max.: 40 m/min Conveyor belt length: 3,000 mm MACHINE DETAILS Control system: NC 16 EQUIPMENT Unloading conveyor belt CE marking Nedpfx Adjy Uv Iys Rolb The machine is sold and delivered in its actual and legal condition (“as is, where is”) based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at its destination. External reference: 8535

Condition: ready for operation (used), functionality: fully functional, total height: 1,600 mm, total length: 1,500 mm, total width: 800 mm, overall weight: 440 kg, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Nledpfx Adsy Uwq Aj Rob Trimming unit: yes Panel support guides: yes Number of edge processing units: 1 Processing unit: rough trimming on top and bottom Number of finishing motors: 1 MACHINE DETAILS Model: UF 362 / 2713 Type: Manual sanding machine EQUIPMENT Trimming unit Panel support guides
