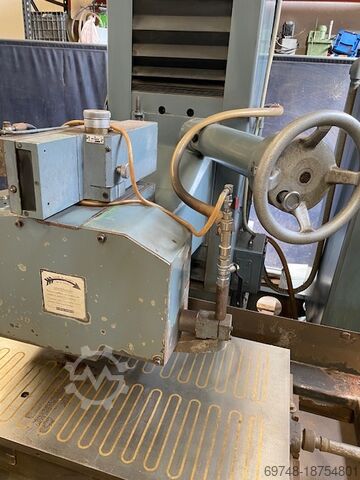

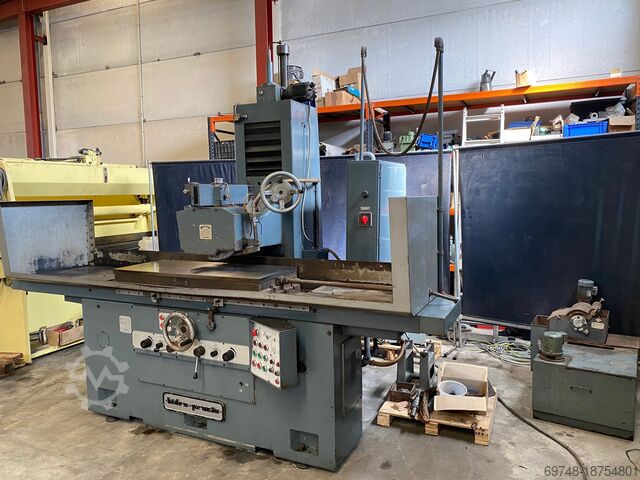

Surface grinding machine

Hidroprecis

Condition: used, Thread rolling machine ORT RP30U 2-roll 30 ton swiveling heads variable speed drive Iedpfx Ajt H Ty Uoktetg #1331 Under power in our warehouse in Gussago BS. Test run possible M i m u Machine Tools Italy Rolling is a mechanical process without chip removal that can be performed cold or hot, having as a purpose the improvement of the surface finish (therefore the fatigue behavior Power (Ton): 30 Number of rollers: 2

Condition: used, max. wheel diameter 180 mm gear width 45 mm max. module 4 Itodpfx Ajtycg Ssktog min. module 0,5 stroke length max. 0 - 52 mm spindle taper innen MK 4 table diameter 160 mm table bore diameter 75 mm no. of strokes 355 - 630 Hub/min feed range 0,008 - 0,4 mm/Hub dimensions of the machine ca. 2,30 x 1,50 x 2,36 m power capacity 6 kW weight of the machine ca. 2.500 kg With rack and pinion unit Change gear set Year of construction: Approx. 1981

Condition: good (used), Year of construction: 2007, Parts shown by hand not come. Iedpfxerpn Dvs Aktotg Technical details shown on picture.

Condition: reconditioned (used), functionality: fully functional, turning diameter over cross slide: 690 mm, spindle bore: 150 mm, turning diameter: 1,040 mm, turning diameter over top slide: 690 mm, center height: 500 mm, center width: 2,000 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 160 mm, travel distance Z-axis: 380 mm, bar passage: 55 mm, Center height: 500 mm Distance between centers: 2.000 mm Maximum turning diameter: Over cross slide: 690 mm Over bed: 1.040 mm Over gap: 1.070 mm Bed width (hardened guides): 670 mm Gap length: 480 mm Gap length in front of the faceplate: 320 mm CARRIAGE Length of bed guideways: 1.020 mm Isdpfx Akjyhhuwstotg Cross slide travel: 640 mm Compound slide travel: 360 mm SPINDLE Spindle nose: ASA 15’’ Spindle bore diameter: 150 mm Front bearing size (NN): 200 / 310 / 82 mm Rear bearing size (NNU): 190 / 260 / 69 mm Internal Morse taper reduction sleeve: No. 6 Number of spindle speeds: 24 Speed range: 4 ÷ 800 rpm THREADING Total number of threads: 398 Metric threads: 0.5 ÷ 224 mm Module threads: mod. 0.25 ÷ 11 Whitworth threads: 56 ÷ 1/8 TPI Diametral pitch threads: 112 ÷ 1/4 DP FEEDS Number of feeds: 108 Longitudinal, cross and compound feeds: 0.05 ÷ 22.4 mm/rev RAPID TRAVERSES Longitudinal, cross and compound: 2.500 mm/min Longitudinal return: 5.000 mm/min TAILSTOCK Quill diameter: 130 mm Quill Morse taper: No. 6 Quill travel: 420 mm STEADY RESTS Bed steady rest capacity: 140 ÷ 500 mm Carriage steady rest capacity: 40 ÷ 350 mm PERMISSIBLE LOAD Cantilever load: approx. 1.500 kg Between centers, without steady rest: approx. 5.000 kg Between centers, with steady rest: approx. 6.000 kg Machine weight: approx. 7.800 kg

Condition: excellent (used), GSP M 743 mortising machine Stroke (mm): X450 Y500 Slide travel (mm): 300 Max. table tool distance (mm): 450 Gooseneck (mm) : 590 Slot width 25 30 mn Table diameter (mm): 700 Itjdpfx Aeulfuzektsg Feed speed (mm/mm): 0.1-2.5mm/Cp Main motor power (HP): 6 Machine equipped with : Automatic feeds/Slide tilting Dimensions WxDxH (mm) : 2300x1700x2600 Machine weight (T) : 3.5 Overall dimensions 2500x 2200 height 2400

Condition: good (used), Year of construction: 2013, grinding diameter 140-355 mm grinding length 3000 mm centre height 260 mm weight of the machine ca. 8,3 t dimensions of the machine ca. 8500 x 3500 mm SA 6Ux3000 external cylindrical grinding machine Isdpsynmpyjfx Aktotg Year of manufacture: 1981 Retrofit: 1 x 2013 SERWEMA Maximum grinding diameter with tailstock: 140 mm Maximum grinding diameter without tailstock: 355 mm Maximum grinding length: 3,000 mm Center height 260 mm Workpiece weight max. 500 kg Machine footprint 8500 x 3500 mm Machine weight 8500 kg

Condition: used, Year of construction: 1992, spindle speed (min.): 7,500 rpm, spindle speed (max.): 24,000 rpm, 4 motorized grinding spindles (liquid-cooled, purge air / oil mist lubrication) including REFU HF frequency converter, e.g. for powering the spindles of a Voumard 400 CNC T4. Grinding spindle GMN TSSV 170-7500 7,500 rpm, 350V, 19.3A, 7.5kW, 250 Hz Grinding spindle Voumard BM15-170 15,000 rpm, 350V, 35A, 18kW, 250 Hz Grinding spindle Voumard BM18-15032 18,000 rpm, 350V, 28.5A, 12kW, 600 Hz Grinding spindle Voumard BM24-150 24,000 rpm, 350V, 27A, 12kW, 800 Hz REFU HF Converter 316/25 High-frequency converter (inverter, frequency inverter) Frequency converter / inverter for powering motor spindles GMN tool spindle, motorized grinding spindle The spindles are fully functional, sold as is – manufacturing year approx. 1992 A collection of various grinding spindle shafts / arbors for grinding wheels is available for these spindles and can be purchased separately. Price / details on request All technical data subject to error or omission. Itedpel Tn Afofx Akteg We sell exclusively to countries within the European Community.

Condition: used, Year of construction: 1974, max. wheel diameter 400 mm gear width 75 mm total power requirement 25 kW weight of the machine ca. 7 t L O R E N Z (Germany) High Performance Automatic Gear Shaper Model LS 400 Year 1975 Serial No. 12 592 _____ External gear, max. Ø 400 mm (possibly larger) Internal gear dia. 350 mm Gear width, max. 75 mm Module range 0.5 - 6 Length of stroke 82 mm Adjustment of stroke position 0 - 100 mm Distance between shaper spindle and machine body 250 mm Spindle taper MK 5 No. of strokes, roughing/finishing process 118 - 1,000 per min Table size 400 mm Table bore 125 mm Mounting height between table and shaper head 190 / 290 mm Axial travel of tool slide, approx. 295 mm Isdot Hww Dspfx Aktstg No. of teeth, approx. 12-150 Feed range, tooth depth 0.01 - 0.063 mm/stroke Feed range, rotary feed by Tool-Ø 125 0.125 - 3.15 mm/stroke Spindle drive, approx. 19 kW Total electrical load, approx. 25 kW - 380 V - 50 Hz Weight 7,000 kg Accessories / Special Features * Hydrostatic straight guides with separate hydraulic aggregate. * Built-in raiser plate approx. 100 mm to increase height of shaper head. * Hydraulic universal workpiece clamping device built by RINGSPANN to clamp ring shaped workpieces on the inner diameter with various inserts to accommodate different workpiece diameters. * Stepless Regulation of number of strokes for improving roughing and finishing process * Automatic changeover of number of strokes, and automatic feed changeover for roughing and finishing work in up to 3 cuts. * Automatic and motor-driven fixing of shaping stroke in the upper position after work is finished. * Separate switch and control cabinet. Two-hand start. * Coolant equipment with magnetic chip conveyor and chip collection container. * Various change gears, shaping tool holders, etc. Condition : Satisfactory to Good. Machine can be inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. Thank you for your interest. We always have a good selection of gear machines on stock. Please let us know what you need.

Condition: good (used), Year of construction: 1989, functionality: fully functional, feed length X-axis: 650 mm, feed length Y-axis: 400 mm, feed length Z-axis: 230 mm, spindle speed (max.): 3,000 rpm, For sale is a surface grinding machine of the brand Okamoto, type PSG 52 UDX The machine is well-maintained and ready for immediate use Technical data: Year of manufacture: 1989 Grinding area: X-axis: 650 mm (manual) Z-axis: 230 mm Y-axis: 47 mm – 400 mm Max. height movement lower edge of new wheel (with ¯ 205 mm) min./max. - table) Iodpfjwnnbrex Aktstg Grinding wheel ¯: Maximum ¯ 225 mm. Speed range: 3000 rpm (stepless speed control) Table feed: 0.3 – 25 m/min (hydraulic in X-axis) Table area ground: 550 x 200 mm Magnetic chuck: 500 x 200 mm (standard size) (Load incl. magnet max. 200 kg) Transport and loading can be arranged on request, for an additional charge, Europe-wide. Prices plus VAT Viewing possible by appointment. Contact us, our team looks forward to assisting you. Trade-in or exchange possible! Machinery purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but affordable metalworking machine for your production? Or do you want to sell yours? For more information or ways to contact us, visit our website

Year of construction: 1955, condition: used, Radial drilling machine, drilling machine, boom drilling machine -Outreach: 2055 mm -Max. Distance from machine table to spindle mount: 1700 mm -Cone mount: MK5 -Motor power: 7.5 kW -Speeds: 11.2-1400 rpm -Columns: Ø 450 mm -Spindle stroke: 540 mm -Thread cutting device -automatic feed: 0.037-2.0 mm/rev -Clamping area: 920 x 1600 mm -Dimensions: 2580/1110/H3450 mm -Weight: 6465 kg Ijdod Enr Ijpfx Aktetg
