Flanging/dishing HAEUSLER HBM-HY 7000x90

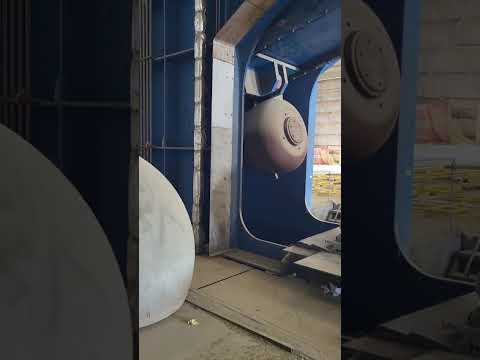

Haeusler HBM-HY 7000 x 90

Flanging and dishing machine
HAEUSLER - HBM-HY 7000 x 90
MACH-ID 9830
Make: HAEUSLER
Codpfx Aez Iw Rqefgohc
Type: HBM-HY 7000 x 90
Control: Bend Tronic
YOP: 2009
HAEUSLER FLANGING MACHINE HBM-HY 8700 x 90 mm


Forming and Flanging rollers:
inclines positon 0 - 25 Degrees
Rotation sopeed 0 - 200 M/Min
Rapid adjustment speed 2500 mm/Min
Crawling speed 0 - 1200 mm/Min
Sleeve hydro mechanical rapid speed 6000 mm/Min



Infeed carriage:
Work piece weight 42.000 Kg
Max. dished head 8300 mm
Min. dished head 1900 mm
Speed 20 M/Sec
Centering Automatic



Data of Workpiece:
Cold 360 N/mm2 45 mm
Hot 360 N/mm2 90 mm
Min Knuckel Radius 100 mm
Max. Knuckel Radius 1200 mm
Min thickness dished 10 mm
Head diameter without device 2600 mm
Head diameter with device       1900 mm
Length off straight flange at flanged head 3,5 x thicness = 140 mm



Hydraulic tank 2000 Liter
10 sets knuckel head up to R-7300 mm
Power 350 kW
Form roller changing device in combi with lifgting sleeve
Auxiliary device for flanging heads from 1900 - 2600 x 25 mm thickness
Measuring device outer diameter and knuckle radius of flanged head




Optional Dishing Dies (Gray GG-25)

RUW 925 with    1500 diameter x R   950 – 1300 mm
RUW 1205 with 1500 diameter x R 1305 – 1700 mm
RUW  1520 with 1500 diameter x R 1705 – 2200 mm
RUW 1905 with 1500 diameter x R 2205 – 2800 mm
RUW 2395 with diameter 1500 x R 2805 – 3500 mm
RUW 2885 with diameter 1500 x R 3505 – 4300 mm
RUW 3515 with diameter 1500 x R 4305 – 5200 mm
RUW 4215 with diameter 1500 x R 5205 – 6200 mm
RUW 4985 with diameter 1500 x R 6205 – 7300 mm
Max. workpiece: 8700Ø
Maximum sheet thickness:90mm
Max. dishing radius: 1250mm
Min. product Ø: 1900
Min. plate thickness: 6mm
Min. dishing radius: 2600mm
Length: 14075mm
Width: 2500mm
Height: 9725mm
Weight: 212000kg

This type of equipment is particularly suitable for demanding industries such as nuclear and power generation, oil & gas, petrochemical, chemical and fertilizer production, hydrogen and ammonia projects, industrial boiler manufacturing, offshore applications and heavy pressure-vessel construction.
Machines like these are built for decades of industrial service and very rarely reach the international used-equipment market as a complete available production package.
