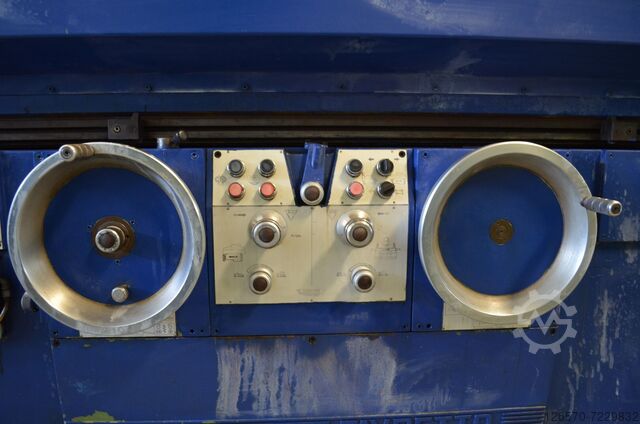

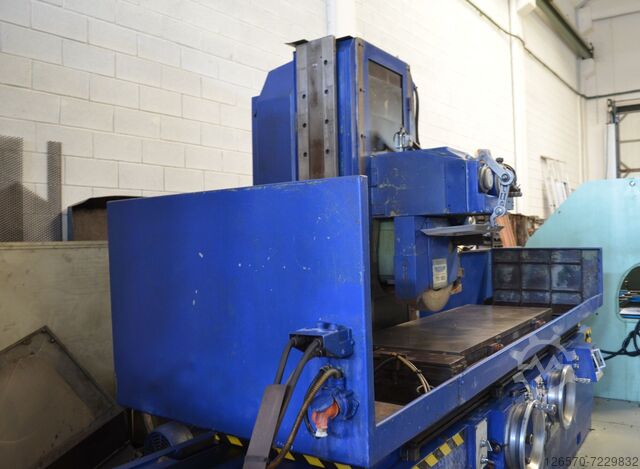

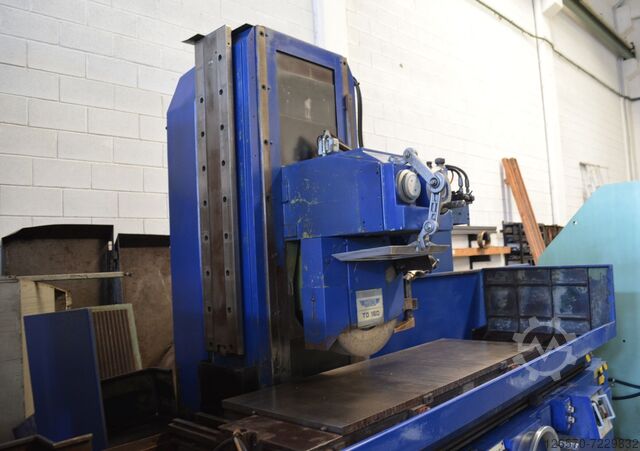

Tangential grinding Favretto TD-160

FAVRETTO TD-160

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 930088, Country of manufacture: CH Voltage: 400V / 50/60Hz / 3ph. Net weight (machine + control cabinet): 3,250 kg + 400 kg Customs tariff number: 8456.30 20 Dimensions: 260 x 281 x 225 cm Hedsw Ucyuspfx Adajh TECHNICAL SPECIFICATIONS Machining type: immersion Maximum workpiece dimensions: 1200 x 700 x 400 mm Maximum workpiece weight: 1,500 kg Table size: 900 x 600 mm Floor to table distance: 900 mm Total dielectric volume: 1,200 L Axes X, Y, Z, U and V Travel on X, Y, Z axes: 550 x 350 x 400 mm Travel on U, V axes: 550 x 350 mm Anti-collision protection: X, Y, Z, U, and V axes Taper cutting, max. taper: +/- 30° / 400 mm Available wire diameters: Ø 0.25 mm (options: 0.1/0.2/0.3 mm) Wire guide type: closed diamond, gapless Available spool weights and types (DIN standard): 1.6 kg (K 100) to 8 kg (K 160) Available spool weights and types (JIS standard): 3 kg (P3) to 5 kg (P5) Dielectric Paper filters: 2 cartridges Dielectric temperature: +/- 1°C Total deionization resin volume: 20 L Maximum injection pressure: 20 bar Generator: dual Isopulse source Power supply: 380/400V 3-phase Total power: 10 KVA Maximum cutting speed: 400 mm²/min Minimum surface roughness: 0.20 micron Ra Measuring system: glass linear scales Measurement resolution: 0.5 micron Servo motors: AC type Unless otherwise stated, technical specifications are provided without commitment and subject to error or omission.

Condition: used, Year of construction: 2009, Offered here is a used machining center from the manufacturer Deckel Maho DMG. The machine is powered up and can be inspected at our facility. Free loaded on truck Manufacturer: DMG Deckel Maho Model: DMC 125 H duoBlock Year of manufacture: 2009 Control: Siemens 840 D Solutionline (PCU 50) Technical data: Travel distances X-, Y-, Z-axis: 1250 x 1000 x 1000 mm Feed rate X-, Y-, Z-axis: 20 - 60,000 mm/min Rapid traverse X-, Y-, Z-axis: 60 m/min B-axis travel: 360 x 0.001° B-axis feed rate: 10,800 °/min Max. rotation of table plate: 30 rpm Hedew Ew T Sspfx Adaoh Spindle speed: 20 - 8,000 rpm Gear stages: 2 Max. workpiece diameter: 1250 mm Max. workpiece height: 1580 mm Clamping surface: 800 x 800 mm Max. workpiece weight: 1,500 kg Weight of pallet: 570 kg Max. permissible weight difference for pallet loading: 1,000 kg Tool holder: SK 50 according to DIN 69871 Max. tool length: 650 mm Tool magazine: 120 positions Transport dimensions: 6,500 x 3,000 x 3,200 mm Transport weight of machine (without magazine or other accessories): approx. 20,000 kg Space requirement: approx. 7,000 x 6,000 mm Total machine weight: 24,000 kg Accessories: Chip conveyor with coolant tank Coolant system 4x machine pallets Tool magazine Oil mist extraction Various new spare parts: 1x Length measuring system Y-axis (new) 1x Lubrication unit 230V 0.12 30 bar (new) 1x ZAHNRADP-AGG*MKF1-KW2-20036 (new) 1x Cyclo gearbox *F1C-A25 (new) 1x Conversion kit power module (new) 1x Lifting devices for the machine

Condition: as good as new (ex-display), Year of construction: 2013, operating hours: 1,265 h, functionality: fully functional, spindle speed (max.): 20,000 rpm, turning diameter: 4 mm, Equipment: documentation/manual, rotational speed infinitely variable, Citizen R-series of automatic lathes dedicated to small-diameter machining. This machine is used very little (15800 parts cut). model year 2013. With ASP-04 barfeeder. VAT is not needed if the sales happen outside of Turkey. Hedpovtancofx Adajh

Condition: good (used), Year of construction: 2001, grinding length: 650 mm, grinding width: 525 mm, total height: 350 mm, table length: 600 mm, table width: 350 mm, Manufacturer: Geibel & Hotz Type: FS 635-Z SA Control: Digital read out Year of construction: 2001 Magnetic table 600 x 350 mm Closed housing for CE Automatic vertical lubrication SA Automatic lubrication Coolant tank Specifications Metric US Standard X - axis 650 mm Y - axis 525 mm Z - axis 350 mm Table length 600 mm Table width 350 mm Table load 400 Feed X - axis 35000 mm/min. Feed Z-axis 1000 mm/min. Grinding stone dimensions 300 x 50 x 76.2 mm Power output 3.7 kW Speed 2800 ? rpm Dimensions (estimate) length 3200 mm width 2000 mm height 2870 mm weight 2300 kg Please note: The information on this page has been obtained from the manufacturer to the best of our knowledge and belief, and where possible, the information is given in good faith but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details. Hodpfjvdal Aox Adaoh

Condition: good (used), Year of construction: 2008, grinding length: 1,250 mm, table length: 1,250 mm, table load: 1,200 kg, table width: 500 mm, spindle speed (max.): 2,600 rpm, spindle speed (min.): 1,000 rpm, overall weight: 9,300 kg, travel distance X-axis: 1,400 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, power: 185 kW (251.53 HP), input voltage: 400 V, space requirement height: 2,870 mm, Equipment: rotational speed infinitely variable, X-axis: grinding length 1,250 mm, travel 1,400 mm Y-axis: distance from table to spindle center 700 mm, travel 600 mm Z-axis: grinding width see note, travel 600 mm Note: The grinding area in the transverse direction (Z-axis) depends on the travel path and the grinding wheel width. Example: Travel path across = 600 mm Grinding wheel width 60 mm = grinding width 660 mm Grinding wheel width 100 mm = grinding width 700 mm Hsdou Hiq Repfx Adaoh See pictures for more technical data

Condition: good (used), grinding diameter: 1,600 mm, grinding length: 6,000 mm, Manufacturer: CINCINNATI Type: 60 x 216 Year of manufacture: 1970 Covex and Concave grinding 6 steady rest included 2 steady rest hydrostatic Coolant system with magnetic filter Hsdpfx Ajvvvw Ejdaoh Measuring system with 5 arms caliber: Arm 1: Working area 1300 to 1600 mm Arm 2: Working area 1000 to 1300 mm Arm 3: Working area 700 to 1000 mm Arm 4: Working area 400 to 700 mm Specifications Metric US Standard Center height 787 mm Grinding diameter Ø 1574 mm Grinding length 5800 mm Grinding stone dimensions 914 x 101.6 x 304.50 mm Grinding stone speed 1800 rpm Dimensions (estimate) Length 15100 mm Width 5500 mm Height 3550 mm Weight 120000 kg Please note: The information on this page is correct to the best of our knowledge and belief and, where possible, has been obtained from the manufacturer. The information is given in good faith but accuracy cannot be guaranteed. Accordingly, it will not constitute a representation and terms of contract. We recommend that you check all important details.

Condition: ready for operation (used), Year of construction: 2018, travel distance X-axis: 470 mm, travel distance Z-axis: 876 mm, spindle motor power: 30,000 W, spindle speed (max.): 1,250 rpm, rapid traverse X-axis: 24,000 m/min, rapid traverse Y-axis: 24,000 m/min, turning diameter: 1,000 mm, total length: 2,375 mm, total height: 3,659 mm, total width: 4,558 mm, type of input current: three-phase, torque: 3,655 Nm, input voltage: 400 V, overall weight: 14,000 kg, Equipment: cooling unit, CNC Vertical lathe MAZAK Mega Turn 900 Hodew T Tmpopfx Adajh TECHNICAL CHARACTERISTICS: CNC control: MAZATROL SmoothG Max. turning diameter: 920 [mm] Max. cutting diameter: 1000 [mm] Stroke X axis: 470 [mm] Stroke Z axis: 876 [mm] Rapid traverse rate X axis: 24000 [mm/min] Rapid traverse rate Y axis: 24000 [mm/min] Spindle nose: A2-15 Max. spindle speed: 1250 [rpm] Spindle power: 30 [kW] Spindle torque: 3655 [Nm] Min. distance from spindle face to turret face: 154 [mm] Max. workpiece weight: 3000 [Kg] Max. distance from spindle face to turret face: 1030 [mm] Number of tool stations: 12 Turret indexing time: 0.4 [s/pos] Lubrication tank capacity: 516 [l] Total power required: 58.9 [kVA] Supply voltage: 400 [V] Dimensions: 2375 × 4558 × 3659 [mm] Weight: 14000 [Kg] More information available upon request.

Condition: good (used), Year of construction: 1988, voltage 380 V connected load 7,5 kVA dimensions 2725 x 1930 x 1773 mm weight of the machine ca. 2500 kg --> Technical data Main data: --> Table surface: 605 x 300 mm --> Table longitudinal movement max. (manual): 750 mm --> Table transverse movement: 340 mm --> Grinding height between table/new grinding wheel min/max: 22.5 / 322.5 mm --> Standard size of magnetic clamping plate: 600 x 300 mm --> Workpiece weight incl. magnet: 420 kg --> X-axis / longitudinal movement: --> T-slots (number x width): 3 x 17 mm --> Table feed, hydraulic: 0.3 - 25 m/min --> Travel per handwheel revolution: 47 mm --> Y-axis / height movement: --> Automatic vertical feed - coarse in 12 steps: 0.001 - 0.03 mm --> Automatic vertical feed - fine in 8 steps: 0.001 - 0.01 mm --> Distance per handwheel revolution (x1/x10): 0.1 / 1.0 mm --> Graduation on handwheel (x1/x10): 0.001 / 0.1 mm --> Trigger strokes: 0 - 5 --> Rapid traverse: 400 mm/min --> Z-axis / transverse movement: --> Automatic transverse feed intermittent: 0.5 - 20 mm --> Automatic transverse feed / rapid traverse continuous: 0.1 - 1.0 m/min --> Distance per handwheel revolution: 5.0 mm --> Scale mark on handwheel: 0.02 mm --> Standard grinding wheel: Hodpow Dvkaofx Adaoh --> Ø x width: Ø 355x38 (50) mm --> Bore: Ø 127 mm --> Speed: 1500 rpm --> Accessories Various grinding wheels --> Documentation

Condition: excellent (used), Year of construction: 2010, 7 axes Control FANUC 18i-TB Max. bar diameter 16 mm (main spindle) Max. bar diameter 16 mm (sub spindle) Max. spindle stock travel 205 mm Max. spindle speed 10,000 rpm Tools Hedpfjwnd Dpsx Adaoh 5-position turning tool holder on linear slide 4-position drilling unit incl. drill holders (front/rear) 3 driven tools for cross machining on linear slide 4 tools incl. drill holders for rear machining

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 52.693.00, feed length X-axis: 1,525 mm, feed length Y-axis: 1,525 mm, feed rate Y-axis: 1 m/min, feed rate Z-axis: 1 m/min, Welding Robot – Fully Equipped Vertical Bend Arm Robot 6 axes Reach: 1525 mm Equipped with automatic welding gun, type: DIX MALZ 520 Wire feed device, manufacturer: FRONIUS, type: ROB.VR1500 DINSE-ZA Includes 2 rotary welding tables Plate dimensions: each 1200 × 750 mm Pneumatically driven cleaning device Positioning and straightening station for the torch Current source, manufacturer: FRONIUS, type: welding device TPS 4000 Supplied with technical documentation Note: The machine can be transported on a standard truck. Technical Attributes Hjderl S Ufopfx Adaoh Dimensions (L × W × H): approx. 4700 × 3500 × 3800 mm Weight: approx. 5000 kg Year of construction: 2000
