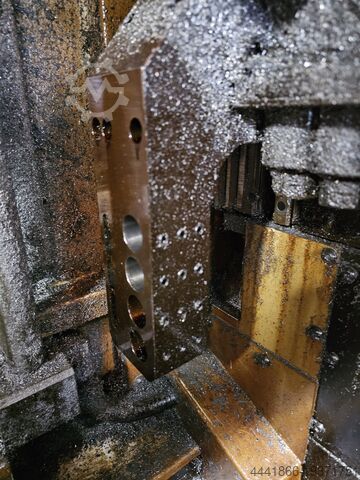

CNC turn-mill center

Doosan Puma ST20G

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] Pedpfeuhazmex Adnord - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3,7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 8000 [rpm] - Spindle power : 1.5 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 5000 [rpm] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 3 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 2.110 x 1.085 [mm] - Machine height : 1.832 [mm] - Machine weight : 2.200 [kg] MACHINE HOURS - Number of working hours : 44.325 [h] EQUIPMENT - CNC : Meldas - Rotating guide bush - Parts catcher - Parts conveying strip - Ejection of workpiece - Coolant tank : CoolBlaster * with high-pressure pump : 138 [bars] - Bar loader : LNS Alpha ST320 - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Electric transformer

Condition: used, Year of construction: 2012, grinding diameter max. 320 mm grinding length 1.500 mm centre height 160 mm Control Touch Jones & Shipman between centers max. 100 kg table: Traverse Z-Axis 1.645 mm traversing speed 0,0001 - 12 m/min swivable +5 / -5 ° x-axis: Predpfx Aetqmrpednjd Traverse X-Axis 260 mm traversing speed 0,0001 - 6 m/min grinding head: grinding wheel motor 7,5 kW cutting speed 45 m/s Grinding wheel Ø x width x bore 450 x 50 x 203,2 mm Tailstock: Swivel range -15 / +90 ° turning speed range 0 - 660 U/min Torque 27 Nm tool adaptor MK 3 total power requirement kW weight of the machine ca. 8,5 t dimensions of the machine ca. 5,5 x 2,5 x 2,0 m Cylindrical Grinding Machine JONES & SHIPMAN - Suprema Easy 1500 E - Replacement grinding wheel flange - Multi-grain diamond (for circumferential and lateral dressing, 10mm, 1 carat) - Tailstock with micro adjustment (max. adjustment range +-0.05mm) - Pneumatic quill retraction - Two-jaw bezel (range 8-75 mm)

Condition: excellent (used), Year of construction: 2018, Control Fanuc 32I-B, Podpjw Rct Hefx Adnord bar capacity 32mm, maximum cutting diameter 32mm, maximum cutting length 310mm, maximum drilling diameter 13mm, maximum tapping capacity M12, milling speed 5,000rpm, spindle speed 7,000rpm, Sub spindle C axis 0.001 degree, FMB Turbo 3-36/3200 barfeed, number of controlled axis Z, ZB, X, XB, C1, C2, Y. swarf conveyor,

Condition: used, Year of construction: 2006, functionality: fully functional, travel distance X-axis: 5,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,400 mm, spindle diameter: 100 mm, spindle speed (min.): 10 rpm, spindle speed (max.): 2,500 rpm, The machine is in good technical condition, currently disconnected. Heidenhain TNC 530i control system, chip conveyor, tool magazine 40 pcs. Predpsv Upbnsfx Adned

Condition: good (used), Year of construction: 2016, The machine can be inspected at our premises in Immendingen after consultation. Included is the original chip conveyor and a bar feeder from FMB 2-20 turbo Incl. Kraft and Bauer fire extinguishing system Prjdpfx Adju Rmy Rsnsd

Condition: good (used), Year of construction: 2009, CNC Machining Center Fanuc Robodrill α-T21iFa TECHNICAL SPECIFICATIONS Manufacturer: Fanuc Model: Robodrill α-T21iFa Year of manufacture: 2009 Control: Fanuc Series 31i-MODEL A5 Spindle speed: up to 24,000 rpm Travel X-axis: 500 mm Travel Y-axis: 400 mm Travel Z-axis: 330 mm Rapid traverse X, Y, Z: 54 m/min Tool magazine: 21 positions Max. tool weight: 2 kg Total tool weight: 23 kg Max. tool diameter at 150–12,000 rpm: 80 mm Max. tool diameter at 12,000–15,000 rpm: 60 mm Max. tool diameter at 15,000–20,000 rpm: 45 mm Max. tool diameter at 20,000–24,000 rpm: 40 mm Permissible table load: 300 kg SCOPE OF DELIVERY Pedexflr Hopfx Adnjrd Includes (not limited to): CNC machining center Fanuc Robodrill α-T21iFa Rotary unit for 4th and 5th axis Coolant pump and chip tray Exact scope of delivery according to photo series The Fanuc Robodrill α-T21iFa, built in 2009, is a versatile CNC machining center equipped with an additional 4th and 5th axis through the integrated rotary unit. This extension enables demanding multi-axis machining applications and significantly increases production flexibility. With a spindle speed of up to 24,000 rpm and travels of 500 x 400 x 330 mm, this machine provides ideal conditions for precise milling operations with high productivity. The 21-position tool magazine reduces setup times and allows for rapid tool changes. Thanks to its robust construction, a table load capacity of up to 300 kg, and the powerful Fanuc 31i control unit, this machine is perfectly suited for both series production and complex single parts. The integrated coolant system ensures process reliability and long tool life. No guarantee is given for the accuracy, completeness, or currency of the information provided.

Condition: used, turning diameter 3.200 mm turning diameter modified: 2.400 mm turning diameter over slide 3.000 mm turning length max. 15.000 mm control Sinumerik 840 D Siemens workpiece weight max. 80.000 kg work accuracy (up to) 0,01 mm turning speed range - main spindle max. 50 min/-1 weight of the machine ca. 154,4 t dimensions of the machine ca. 20,7 x 6,0 m Heavy Duty Lathe ZERBST - DXP 5 / W15x15000 - measurement precision: < 0,01 mm Retrofit 2009 / 2012: Pedpfswtrz Hsx Adnerd - 2009: Control system upgrade to Sinumerik 840D - 2012: - New main gearbox, incl. main spindle drive - Installation of holding brake, incl. electrical integration - Modification and optimization of cylindrical roller bearings/bearings - Modernization: Control and safety technology

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE Prjdpfxjwcg Tie Adned - Max. bar diameter : 20 [mm] - Max. machining length : 205 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 1 [°] - Number of guide bush holders : 1 GUIDE BUSH HOLDER 1 - Number of positions : 12 - Number of motorized positions : 8 - Live tools speed : 7000 [rpm] END ATTACHMENT - Number of positions : 7 SECONDARY OPERATION - Number of positions : 8 - Number of motorized positions : 8 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 7 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2334 x 1200 [mm] - Machine height : 1700 [mm] - Machine weight : 2600 [kg] MACHINE HOURS - Number of hours under power : 57342 [h] - Number of working hours : 31575 [h] - Number of spindle hours : 24829 [h] EQUIPMENT - CNC : Fanuc 31i-B - Rotating guide bush - Chips conveyor - Parts catcher - Parts conveying strip - Ejection of workpiece - Coolant tank - Bar loader : FMB turbo 3-26 - Electric transformer

Condition: good (used), Year of construction: 2008, functionality: fully functional, Control: OSP-P20L-R Swivel diameter over bed: 450 mm Swivel diameter over longitudinal slide: 350 mm Podpfx Ajvk Sqkednsrd Swivel diameter over cross slide: 300 mm Spindle bore: 43 mm Spindle speed range: 75 - 3,000 rpm X-axis feed: 0.00001 - 39.37 mm mm/rev X-axis rapid traverse: 20 m/min Z-axis feed: 0.00004 - 38.37 mm/rev Z-axis rapid traverse: 25 m/min Tool turret: 12-way Driven tools Tool holder: VDI30 Machine weight: approx. 3,800 kg Bar loader BREUNING IRCO

Condition: ready for operation (used), functionality: fully functional, HURON NU-4 is equipped with several buttons, switches and levers to control its operations. x-travel: 1100 mm y-travel: 700 mm z-travel: 500 mm spindle/table distance: 9-509 mm spindle head - swivelling: 360°. spindle taper: SK 40 Meziv spindle speed range: 30 - 2066 rpm spindle speed steps: 27 feed rates: 1.6 - 820 mm/min feed steps: 27 table surface: 1435 x 460 mm rapid traverse on X and Y axes: 2.8 m/min Prodpfxjriulgs Adnod rapid traverse on Z axis: 1.4 m/min total power requirement: 10 PS(HP) weight of the machine approx.: 3.1 t dimensions of the machine approx.: 2.36 x 1.65 x 1.45 m (w x h x d)
