Band saw machine 205mm

CORMAK BS712SW 20mm 230V

Professional, very powerful and efficient band saw for metal with 45° swivel arm. The perfect solution for ironwork, production and craft workshops. Unparalleled for many years, the design and solid construction make it a perfect solution.

Machine description

Professional, very powerful and efficient metal band saw with 45° swivel arm, CORMAK BS 712 SW is based on refined solutions making it unrivaled in its class.

Arm made of shaped spheroidal cast iron ensures rigidity during operation and absorbs all vibrations. Control panel is located on the arm of the cutter. It features high efficiency and simple handling. Provides cutting in vertical plane and in the plane perpendicular to the axis of the cut material, or at any angle in 45° – 90° range. Element cut can be fed manually or by any feeding device. The feed during cutting is gravitational on the principle of oil flow in a two-chamber hydraulic cylinder. Suitable speed of arm lowering is obtained thanks to the valve controlling oil flow between hydraulic cylinder chambers.
Dsdpfx Afjmtwktskjup

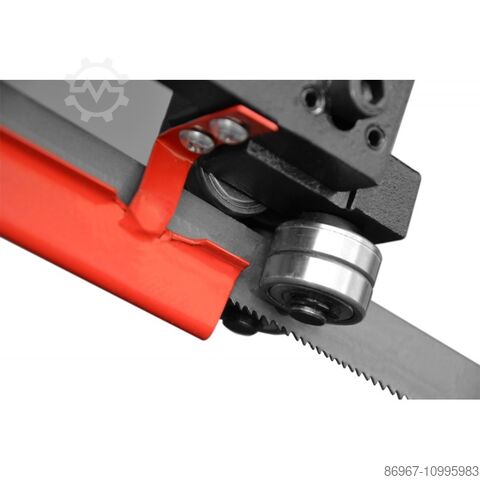

Rugged, stable and refined construction as well as the arm made of uniform cast iron provide high rigidity and stability while cutting, ensuring accuracy and long-term reliability. The design of the 20 mm saw blade used in the machine makes it possible to cut large quantities of elements. Required band linear velocity is obtained by changing the ratio on the belt pulley between the worm gear and the driving motor.
Technical data
Motor power 1.1 kW
Band speeds 22/33/45/65 m/min
Power supply 230V
Band dimensions 2360×20×0.9 mm

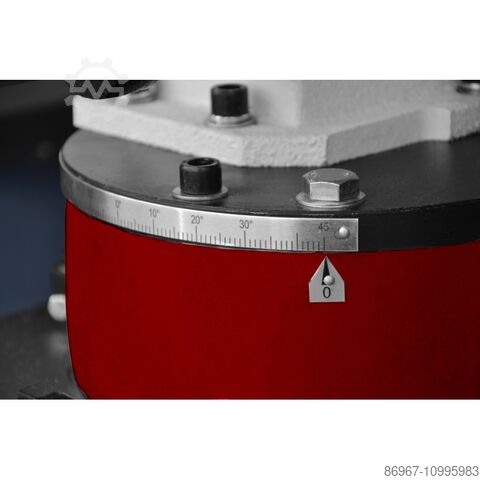

Cutting range 45°L – 45°R
Weight 145 kg
Dimensions 1280x575x1140 mm


Angle
0°.....Ø 205.....215×205.....205×205
45° L.....Ø 150.....100×200.....130×130
45° R.....Ø 140.....140×90.....90×90
