Surface Grindinding Machine 406x1020mm

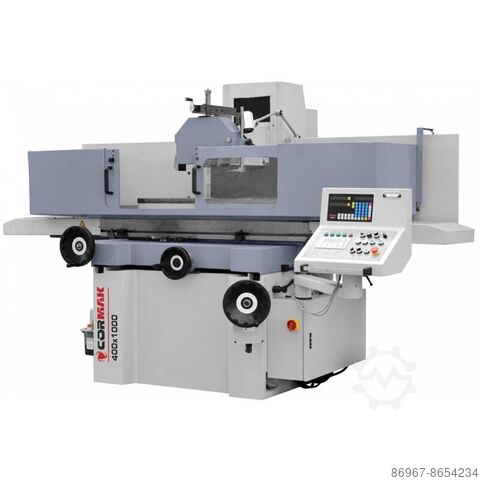

CORMAK 400x1000 automatic

Condition: new, Year of construction: 2026, grinding length: 700 mm, grinding width: 400 mm, COSMOS E 7040 NC Precision Surface Grinding Machine, grinding area 700 x 400 x 350 mm, spindle power 3.7 kW, grinding wheel 300 x 50 x 76.2 mm, Mitsubishi PLC control and drive technology, very user-friendly, incl. magnetic chuck 700 x 400 mm with adjustable holding force, grinding spindle with speed regulation, automatic grinding cycle with rough grinding, fine grinding, spark-out and retraction, dressing with size compensation, coolant system with paper band filter. 12 months warranty. Inspection under power and test grinding possible at any time. We are happy to provide on-site installation and training as well as subsequent service! Financing / leasing available upon request – we will gladly provide an offer! Gjdorwwt Sepfx Ad Iobp

Year of construction: 2013, condition: good (used),  Plasma cutting and extraction table, dimensions 2.500 x 6.000 mm.  Gantry bridge.  Carriage with servo-drives (to position the gantry bridge in X-direction).  Machine track, length 8 m.  HEB450 profiles for the foundation of the machine track, 8 m.  Plasma cutting unit Hypertherm HPR 400XD, 1 pcs.  Plasma bevel cutting unit, including automatic height control system.  Fume extraction unit Filtercube 4H for plasma cutting unit.  Oxy-fuel cutting torch, 3 pcs.  Automatic height control system IHT M4000 CAP for oxy-fuel cutting unit, 3 pcs.  Torch suspension for oxy-fuel torch (motor driven).  Torch suspension Single Drive for oxy-fuel torch, 2 pcs (automatic torch positioning).  Laser pointer (to align and position the torch).  Computer control system (consisting of an industrial PC and a control panel). Gbodpfotp Dhpsx Ad Iop  Control software 'VACAM Machine Edition' (including VaCad and VaNest software and online support).  Automatic nesting software Sigmanest "Powerpack" (including 3 days of training for max. 3 persons at Voortman Holland (excluding travel costs and board and lodging) and 1 day online-support).  Emergency stop with stop cord.  Year of build: 2013.

Condition: used, Year of construction: 2000, Year of manufacture: 2000 Control: Mazatrol 640 Documents included Chip conveyor TECHNICAL DATA – MAZAK INTEGREX 200SY Performance / Capacity Max. swing: Ø 540 mm Chuck size: 8" Max. machining diameter: Ø 540 mm Max. machining length: 1018 mm Max. outside diameter for bar material: Ø 51 mm Main spindle Spindle nose: JIS A2-6" Spindle bore diameter: Ø 61 mm Spindle speed: 35 – 5000 rpm (Standard) / 35 – 4500 rpm (Option: 5000)* Motor power (30 min. rating): 22 kW (18.5 kW*) Max. torque: 350 Nm (35.7 kgf·m) Sub spindle (counter spindle) Gedpsyh E Irjfx Ad Iebp Spindle nose: JIS A2-6" Spindle bore diameter: Ø 44 mm Spindle speed: 35 – 5000 rpm Motor power (10 min. rating): 7.5 kW Max. torque: 57 Nm (5.8 kgf·m) Turret / Tool data Turret type: With ATC, spindle turret External turning tool size: □ 25 mm Internal turning tool size: Ø 40 mm Milling tool: Max. Ø120 × 250 mm length Indexing time (90°): 0.5 s Milling spindle speed: 15 – 6000 rpm (Option: 10000) Milling spindle motor power: 7.5 kW Max. milling spindle torque: 62.29 Nm (6.35 kgf·m) Feed axes X-axis: Travel 530 mm / Rapid traverse 30,000 mm/min Z-axis: Travel 1065 mm / Rapid traverse 33,000 mm/min Y-axis: Travel 140 mm / Rapid traverse 15,000 mm/min Z2-axis: Travel 1005 mm / Rapid traverse 20,000 mm/min Media / Control Coolant tank volume: 250 L Power consumption (continuous): 32.7 kVA Machine dimensions / Weight Overall length: 3485 mm Overall width: 2105 mm Overall height: 2416 mm Weight: 73,575 N (7,500 kgf)

Condition: used, Year of construction: 1992, grinding length 0800 mm grinding width 500 mm workpiece height 400 mm table-size 800 x 400 mm table speeds 1 - 25 m/min cross feed autom. 0 - 60 mm/Hub grinding wheel size 400 x 100 x 127 mm grinding spindle speed 1400/2800 U/min Gsdpfx Adowgnz As Isbp total power requirement 10 kW voltage 380 V weight of the machine ca. 6 t Machine has cooling arrangement, auto. vert. feed, dressing arrangement and wheel flanges. Control doesn't work continuesly !!

Year of construction: 1984, condition: used, Large grinding wheel diameter: 40 mm Small grinding wheel diameter: 5 mm Weight: 0.9 t 2 grinding wheels with flange 8 collets 1 coolant tank Mechanical feed with fixed stop Gsdpecq Rv Usfx Ad Iobp The universal joint for the workpiece drive is worn.

Condition: excellent (used), Year of construction: 2012, Doosan MX 2600 ST, Year 2012, Location: 78176 Blumberg Turning diameter: 760 mm Turning length: 1540 mm Control: FANUC Chuck diameter: 254 mm Gbjdpfoywax Ijx Ad Iep Bar capacity: 76 mm Spindle bore: 86 mm Swing over bed: 1000 mm X-axis travel: 630 x 220 mm Z-axis travel: 1585 x 1515 mm Y-axis travel: 230 mm Spindle speed: 4,000 rpm Spindle nose: A2-8 Milling spindle speed range: 10,000 rpm Tool changer: 80 positions Turret: 12 stations Tool holder: BMT 65 P, Capto Drive power: 26/22 kW Total power requirement: 100 kVA Machine weight: approx. 15.5 t Space required: approx. 6.1 x 2.7 x 3.0 m Equipped with sub-spindle, lower turret, driven tools, and 80-position tool magazine. Hydraulic hollow chuck system 12-position lower tool turret with BMT 65 P Chuck air-blow system for spindle 1 and spindle 2 Automatic central lubrication Contour milling with B-axis incl. 4-axis simultaneous machining Internal coolant supply on the sub-spindle Automatic tool measuring arm Electronic tool breakage monitoring 2-stage clamping pressure for main and sub-spindle Automatic shutdown after production end Hinged belt chip conveyor 2 x power chucks 200 mm 1 x radial AGW 1 x axial AGW Extended high-pressure and paper band coolant system 80-position tool magazine Further information available upon request. Commissioning and training available on request.

Condition: new, Year of construction: 2025, functionality: fully functional, turning height: 1,400 mm, workpiece weight (max.): 8,000 kg, turning diameter: 1,600 mm, faceplate diameter: 1,250 mm, total height: 5,190 mm, total width: 4,875 mm, total length: 3,885 mm, rotational speed (max.): 360 rpm, torque: 17,880 Nm, table load: 8,000 kg, overall weight: 30,000 kg, Equipment: rotational speed infinitely variable, Vertical turret lathe in flat-guided design with extensive full equipment: WITH MILLING FUNCTION - Milling spindle 2000rpm SK50 22 KW - C - axis 0.001 degrees - Complete housing - Chip conveyor - Internal coolant supply - Fanuc control - 24 tools - 12 milling tools - Manual Guide I - Tool holder package - Electronic handwheel Gbedpfxjvtzc Ij Ad Isp - Signal light - Manual 3-jaw faceplate 1250mm - Renishaw tool measurement - Renishaw workpiece measurement - Glass scales in X and Z axes - 24 month guarantee

Condition: used, Year of construction: 2013, Punching capacity 220 kN laser capacity in Watt 4000 travel -x axis 2500 mm travel -y axis 1250 mm Cutting capacity structural steel 8 mm Cutting capacity stainless steel 8 mm Cutting capacity aluminum 6 mm workpiece weight 280 kg weight of the machine ca. 24.000 kg dimensions 10130 x 8898 x 2328 mm Includes DORNER 2200 Series conveyor belt Operating hours: - Approx. 7,880 h Standard equipment: - Travelling ball-bearing tables - Linear magazine for tool stations and clamping jaws - 22 tool stations, 3 clamping jaws - Foot switch for closing the jaws - Flap for stamped parts 500 x 500 mm incl. sensor - Chip container - 2 good parts containers (stamping and laser side) - Initial fill of hydraulic oil - FocusLine - NitroLine - FastLine - Additional Xp and Yp axes - Ejection cylinder for laser parts - High-speed flap for laser parts 500 x 500 mm incl. sensor - Liftable laser cutting table - Liftable laser cutting table - Slag cone detection TRUMPF Laser: - CO2 laser TruFlow 2700 incl. LensLine and optimized StandBy - Maintenance-free turbo radial blower - High-frequency excitation - TASC laser control Cutting head: Gbjdsy D T S Uepfx Ad Ijp - Lens cutting head with 170 mm lens - Universal quick-change device (UTI) with bus connection - ControlLine Punching head: - Electro-hydraulic punching head - Hydraulic single-tool holder with 360° rotation - Programmable hold-down device (active/passive/re-adjustment) - Tool length compensation - Spray lubrication for punch - Punching scrap extraction - Level monitoring for thread forming and tool lubrication Control system: - Open control system based on Rexroth IndraMotion MTX - 15" TFT color screen - Teleservice via the Internet - Automatic shutdown - Production plan Data transfer - USB interface - RJ45 network connection Safety: - CE marking - Dual-beam safety light curtains - Emergency stop

Condition: good (used), Year of construction: 1998, thread length: 65 mm, Treading machine ORT Italia - RT 10 MACH-ID 9322 Make: ORT Italia Type: RT 10 Control: Siemens SIMATEC Year: 1998 Maximum pressure: 10T Max. workpiece: 30Ø Min. workpiece: 2Ø Min. Threading lenght:2mm Max. Threading length:65mm Gjdpfxjx H Rmus Ad Isbp Pitch / lead: 30mm Shaft Ø: 85 - 135mm Length: 1600mm Width: 1400mm Height: 1800mm Weight: 2300kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, grinding length 1000 mm grinding width 300 mm workpiece height 230 mm table surface area 1000 x 240 mm x-travel 1000 mm y-travel 270 mm z-travel 350 mm grinding wheel diameter 240 mm grinding spindle speed 2180 U/min table speed -stepless- 3 - 30 m/min total power requirement 4,5 kW weight of the machine ca. 2,8 t Godpfx Aeu Dn Txsd Iebp dimensions of machine L x W x H 2,36 x 1,37 x 2,0 m Accessories: magnetic plate 680 x 200 mm, grinding wheel with flange (ø 240 x 25 mm), wet grinding attachment
