CHIRON Mill 800

CHIRON Mill 800

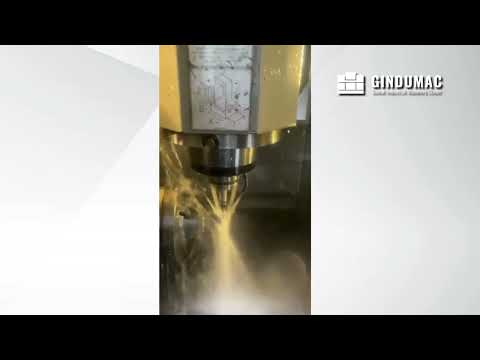

This 5-axis CHIRON Mill 800 was manufactured in 2007, featuring a swivel head, bar loader, internal cooling, and a Knoll paper belt chip conveyor. Equipped with a Fanuc 310i-model A5 and HSK-a-63, it includes about 20 tool holders. Consider the opportunity to buy this CHIRON Mill 800 turn-mill centre. Contact us for more information about this machine.

Additional equipment


• Approx. 20 tool holders included

• Bar loader short

• Knoll paper belt chip conveyor HL450/900

Machine Benefits

Technical Machine Benefits


• Swivel head

• Internal cooling supply

• Hsk-a-63

• Maximum diameter would be: 65 mm / collets are available up to 50 mm

Extra Information

Machine still under power //
Main spindle drive with AC motor/
Power: 7.5 kW (100 % ED), 22.5 kW (10 % ED)/
Speed range: 20 - 9,000 min-¹/
Torque: 140 Nm/

Tool changer:
24 tool positions (expandable to 92 with background magazine)/
Tool shank: steep taper 40 DIN 69871/72/
Tool ø max.: 75 mm (160 mm with free adjacent positions)/
Tool change time: approx. 1.5 s (chip-to-chip time: 5.0 s)/

Work area:
Start table with chip tray (clamping area: 1,400 × 550 mm²)/
Maximum table load: 1,200 kg/

Control system/
Control type: FANUC 18i MB5 (5-axis path control)/
Program memory: 256 KB (expandable to 512 KB)/
Functions: Drilling and milling cycles, 3D interpolation, tool radius compensation, macro programming/

Interfaces: RS232C, PCMCIA memory card/

High-speed package (optional)/
Rapid traverse speed: 60 m/min (X/Y/Z)/
Speed range: 20 - 12,000 min-¹/
Chip-to-chip time: approx. 2.9 s/
5-axis swivel head (optional)/

Motor spindle:
Power: 25 kW (100 % ED), 40 kW (10 % ED)/
Speed range: 20 - 20,000 min-¹/
Tool holder: HSK-A 63/

Swivel axis:
Range of movement: ±100°/
Partial accuracy: ±10"/
Drive torque: 280 Nm/

Coolant and chip delivery/
Standard coolant system:
Tank capacity: 200 l/
Pump capacity: 80 l/min at 1.5 bar/
HP coolant option (70 bar):
Flow rate: 20 l/min (30 bar) to 11 l/min (70 bar)/
Chip conveyor (option): Scraper belt with container (150 l)/

Measuring technology
Renishaw measuring probe (OMP 40):
Automatic workpiece measurement and machine compensation/
Ruby ball Ø 4 mm/

Mains connection & environment/
Power supply: 400/230 V ±10%, 50 Hz/

Compressed air: min. 6 bar/
Ambient temperature: 10-40 °C/

Optional equipment:
Background magazine: 92 tool positions/

Bar machining:
Turning spindle for bars up to Ø 65 mm/
Nkodpfx Adsx D Enrj Net
NC slide for bar feed (60 m/min)/

Automatic grease lubrication/
Automatic loader for short bars (ILS-RBK-10012)/
