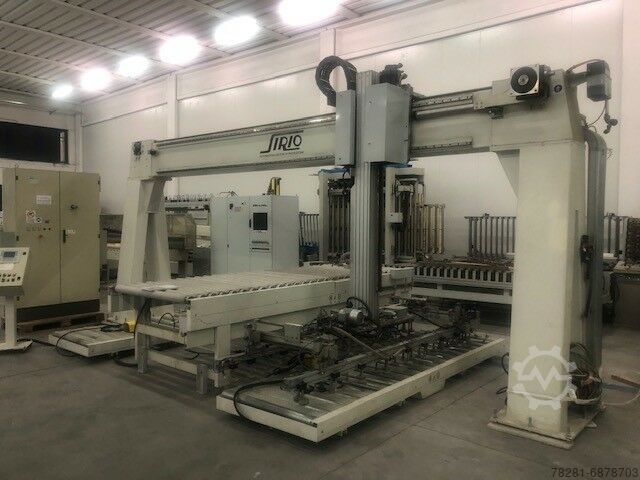

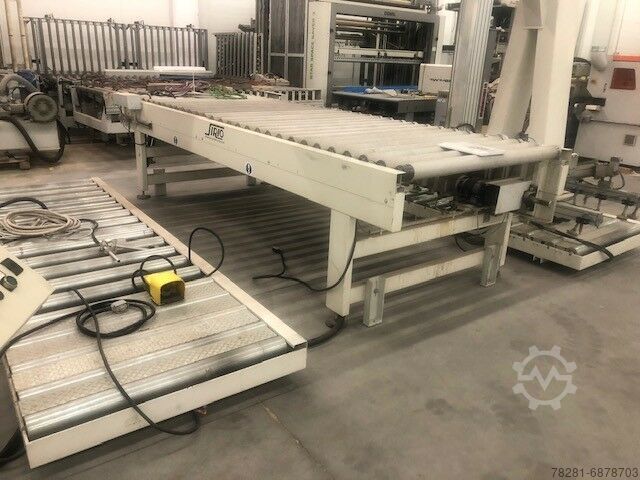

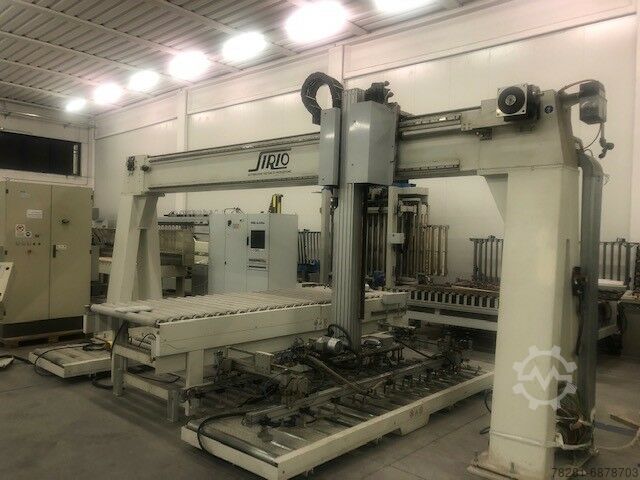

SIRIO Panel Loading - Loader

SIRIO

Condition: excellent (used), O04024) AUTOMATIC BOARD STORAGE SYSTEM for PANELS - SIRIO Total Space Required (with panel saw) mm 10000 x mm 47000 (ca.) Mobile upper bridge (on X-axis), with mobile carriage (on Y-axis) and relative vacuum suction cup assembly (mobile on Z-axis) max. speed Mobile upper bridge (on X axis) 150 m/min (ca.) moving carriage speed (on Y axis) 150 m/min (ca.) vacuum suction cup group speed (mobile in Z axis) 60 m/min (ca.) Vacuum suction cup group, 90° rotating Automatic management system (by scanner) of the cut panels (but remaining in the warehouse) O04025) PANEL SAW WITH REAR LIFTING TABLE Mod. FH 6 430 Numerical Control MCS Evolution. Software SIEMENS WinAC RTX Rear pushers (N.) 1 Twin Pusher - DUPLUS2. With No. 12 clamps / grippers Max. cutting width (mm) 4300. Useful stroke of the pushing system (mm) 4300 Max. blade projection (mm) 135 Scoring Unit (max. diameter saw) mm 200 Main Sawing Unit (max. diameter saw / power) mm 460 / Kw 21 Nodpfowrz Dbsx Ad Nscl Turning device (rotating unit) at 90° Adjustable speed of the saw carriage (m/min) 1 - 150 No. 5 Front supporting tables with Air blowing system Total power (Kw) 33 (ca.)

Condition: good (used), Year of construction: 1982, functionality: fully functional, type of input current: three-phase, MCS Jigger High Temperature 144ºC. Type COMBY-JIGGER JP70. Year 1982. It underwent a complete renovation in 2002 Pressure: 3kg/cm2 Capacity: 9170 l Roller width 2,000 mm. Diameter of fabric 1100 mm. Nodpfx Aofqmx Tsd Njcl Diameter of rollers 324 mm. Additives tank.

Condition: excellent (used), FLEXIBLE SYSTEM OF SINGLE-SIDE SIZING-EDGEBANDING (BATCH SIZE ONE) Composed of the following machines: M.01) PANELS HANDLING and RETURN SYSTEM "SIRIO" BATCH SIZE ONE M.02) SINGLE-SIDE RIGHT-HAND SIZE-EDGE BANDER "IMA" Novimat /I/R75/690/R3 Panels thickness (min/max) mm 8 / 60 - Working width (min/max) mm 200 / 1300 Edges (tape) thickness in rolls (min/max) mm 0,3 / 3 Numerical Control / Software ICOS Open (Batch Size One) Adjustable feeding speed (m/min ) 6 - 30 Panels in-feed system A1 / 15 Nodskt Uuajpfx Ad Nocl N° 2 Pre-milling Unit (vertical joint trimmers) adjustable by N.C. 08.378 (4 motors x Kw 4,5) Glueing Unit (Hot Melt + Quick Melt Unit) VTG + 283.205 Edge coils supporting unit (No. 24 reels) Snipping (end-cutting) unit 08.42 / 30 / B / LS1 (2 x Kw 0,2) 0°-25° Rough Trimming unit 08.055.0.1680 (1 x Kw 0,85) Fine Trimming unit (Multi-profile, adjustable by N.C.) 08.0587 HS/LS1 (2 x Kw 1) Multi-Profile Copying unit by N.C. (fine and contour trimming) KFA x20 (1 x Kw 0,5) 20 m/min Profile Scraping unit (Multi-profile, adjustable by N.C.) 08.516 HS/LS1 Glue scraping unit 08.521 Buffing unit 08.617-2 (2 x Kw 0,18) N° 3 Milling grooving unit 08.190 (3 x Kw 4,5) Controlled by N.C. - (90°/180°/270°) M.03 ) PORTAL BRIDGE (UNLOADING/LOADING) "SIRIO"

Condition: used, machine/vehicle number: 008301, Position 1: edge bander batch 1 IMA - SIRIO-NOVIMAT/I/R75/1000/R3 Position 2: Panel Stacking and Offloading IMA - SIRIO-NOVIMAT/I/R75/1000/R3 Ncsdpfjx A Tmmox Ad Nel

Year of construction: 2009, operating hours: 214 h, condition: like new (used), functionality: fully functional, Thin-Cutting Frame Saw DSG Sonic – Wintersteiger Model / Type: DSG Sonic Year of Manufacture: 2009 Condition: EXCELLENT, only 214 operating hours Technical Specifications 🔹 Cutting and Block Parameters: - Feed speed: approx. 1.7 m/min - Saw frame stroke: 210 mm - Stroke frequency: approx. 550 strokes/min - Cutting heights depending on saw length: - Saw length 380 mm: Cutting height 30–88 mm (with Air Jet and magazine), 45–88 mm (with double planer) - Saw length 420 mm: Cutting height 30–128 mm, 45–128 mm Ncsdpfx Asw Dp Ufsd Njl - Saw length 500 mm: Cutting height 80–210 mm, 45–210 mm - Saw length 550 mm: Cutting height 80–254 mm, 45–254 mm - Block lengths: - Basic machine: +185 mm - With magazine: 250–1700 mm - With double planer: +250 mm - Block height variation: ±0.5 mm - Cutting width with side fence: 140 mm 🔹 Additional Technical Data: - Cutting width with center fence: 2 × up to 60 mm - Optional channel width: 2–4 × 15–60 mm - Minimum lamella thickness (depending on wood type and cutting height): >1.5 mm - Kerf thickness (material loss): from 0.9 mm Blade lifespan (depending on wood): approx. 40 hours 🔩 Machine Weight: Basic unit: 3000 kg 🔉 Noise Levels (hearing protection required): At 1 m from the machine: - Idle: 97 dB(A) - Cutting: 99 dB(A) At the operator's workstation: - Idle: 85 dB(A) - Cutting: 88 dB(A) 🌬️ Extraction and Compressed Air Requirements: Dust extraction: Two connections: Ø 120 mm and Ø 150 mm Capacity: 3200 m³/h (30 m/s) Compressed air: - Minimum pressure: 6 bar - Consumption: 200 l/min Lubrication: Centralized system with guide monitoring ⚡ Electrical Data: - Power supply: L1, L2, L3 + PE - Power cable cross-section: up to 16 mm² - Control cable: 2 × 1.5 mm²

Condition: used, functionality: unexamined, Ferwood Code: RU0008671 - Dimensions: 6500X1100X250 mm - Rollers L=600 mm - Condition: Used - Functionality: Not tested - Compatible machine: AUTOMATED LOADING AND UNLOADING HOMAG - BIESSE - SCM - IMA. If interested, we offer an overhauling service. Contact us. Ncedpfsv Hglzsx Ad Nel

Year of construction: 2006, condition: used, Ultrasonic and electrolyte cleaning, wire cleaning line, wire cleaning plant, wire treatment plant Manufacturer: Sirio-Wire Type: M0209 Number of wires / cores: 12 (6+6) Wire thickness: 1,0 - 5,5 mm; but also stronger wires were run over the line and the achieved cleaning result was very satisfying. Year of construction: 2006 Ncsdpof Nku Rofx Ad Nol The plant was only in operation for about three years, then the production was moved to another location. Process: Ultrasonic and electolytic cleaning in a hot bath. On the manufacturer's website siriowire you will find a detailed description of the process under "Ultrasonic and Electolytic Cleaning". The unit is in good working condition and is complete except for the pumps. On the photos the catwalk for the operator and the collecting basin in which the plant stands are missing, these photos are still supplemented. On the last three photos you can see plants of this design in operation.

Condition: excellent (used), Year of construction: 2012, Set for finger jointing in medium and mass production. The machine is technically efficient and in good condition. Several sets of tools are included. Characteristic: – industrial set with one tenoning machine. Loading the package under the supervision of the operator enables the processing of inferior raw material, – sensitivity controlled by microprocessors /automatic control/, – turning the package after 1 treatment on the turntable (sharp connection) or turning the package on the back (furniture joint with a line; unique GOMA solution), – the set includes an automatic station for loading the press, – the possibility of using cuts on the press, Tenoner with feed table Data Values Milling spindle fi 50x210 mm Spindle speed 6000 rpm 18.5 kW motor Tool dimensions fi 250x160 mm The saw spindle aligns the face Special chipper fi 300x8 mm 6 kW / 3000 rpm motor Stepless feed table Working width x working height 600 x 30-160 mm Ncodpfolu D Tfox Ad Nsl Glue nozzle outline by tool PRESS FC-10 PZ6/2 Data Values Board width 30-160 mm Jufefe Board thickness 20-70 mm The length of the finished board is 6000 mm Pressing force 3 - 7.5 - 10 T Hydraulic power pack 3 kW / 140 bar

Year of construction: 1995, condition: excellent (used), TROLLEY with idle rollers width : 2500 mm Ncedpfjff Hf Eox Ad Njl rollers width : 600 mm Distance between the rollers : 100 mm Heigth from the floor : 250 mm Very good conditions

Year of construction: 2015, condition: ready for operation (used), A CNC double-spindle lathe Traub overhauled in 2025 is available. Turning length: 450mm, spindle clearance: 65mm, speed: 4000rpm, main spindle/counter spindle power: 18.5kW/11kW, tool positions: 10, driven tools: 10, hydraulic capacity: 150l, hydraulic pressure: 60bar, connected load: 39kW. Rapid traverse X1/X2: 15m/min, feed force: 5000N, feed path: 140mm. Rapid traverse Z1/Z2: 30m/min, feed force: 8000N, feed path: 450mm. Rapid traverse Y1: 6m/min, feed force: 8000N, feed path: +/-35mm. Machine dimensions X/Y/Z: approx. 4150mm/2000mm/1800mm, weight: approx. 4750kg, control: Traub System TX 8F, operating hours: 12938h. Including chip conveyor and bar loader LNS Quick Load. Documentation available. On-site inspection is possible. Nsdpfx Adsv Scrbo Necl
