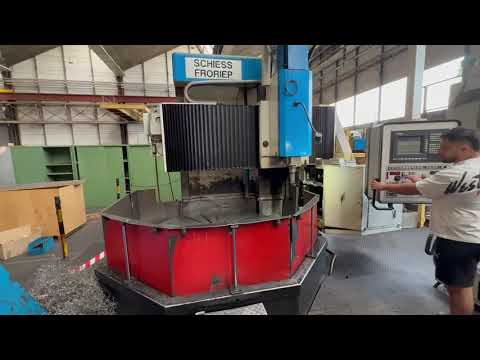

CNC vertical lathe

SCHIESS FRORIEP DKE 180

Condition: good (used), Year of construction: 2009, Control: Heidenhain iTNC 530 Spindle * Diameter: 180 mm * Taper: ISO 50 * Power: 51 kW Prjdsy R N Ilopfx Apdsc * Speed: 2,000 rpm (2-speed gearbox) * Torque: 2,668 Nm * Spindle support: 550 mm * Internal high-pressure coolant Travel distances * X: 5,000 mm * Y: 3,500 mm * Z: 2,350 mm * W: 1,000 mm (quill permanently extended 200 mm, at maximum travel – total reach 1,200 mm) Table * Size: 2,000 × 2,500 mm * Load capacity: 28 tons * Hydrostatically supported * B-axis positioning: 0.001° (double pinion, backlash-free) Other features * Tool changer: 60 positions * Siemens axis and spindle motors * Linear scales on all axes + rotary encoder on rotary axis * Handwheel HR 410 * Chip conveyor

Condition: like new (used), functionality: fully functional, Year of construction: 2018, MACCHI COEXTRUSION LINE FOR 7-LAYER EVOH BLOWN FILM Complete line for the production of 7-layer EVOH blown film 4 Macchi extruders with 65 mm screw diameter 3 Macchi extruders with 55 mm screw diameter Innoplast gravimetric dosing units 7-layer die head, 450 mm diameter with IBC, 2.4 mm GAP K-Design cooling ring Double thickness control IR+XRay Maximum width 2400 mm Calibration basket Rotating haul-off Cason corona treater Prjdpfx Apey Nk Haedsc Macchi BO-Plus double back-to-back automatic winder Web guide Year 2018

Condition: good (used), functionality: fully functional, Year of construction: 1998, control type: NC control, degree of automation: semi-automatic, actuation type: hydraulic, controller manufacturer: Siemens, controller model: Simatic OP7, number of rollers: 4, roller (bottom) diameter: 470 mm, roller (top) diameter: 530 mm, side roll diameter: 400 mm, roller diameter: 530 mm, roller length: 3,100 mm, working width: 3,000 mm, working height: 2,000 mm, sheet thickness (max.): 50 mm, sheet thickness steel (max.): 65 mm, sheet thickness stainless steel (max.): 50 mm, overall weight: 40,000 kg, total length: 6,000 mm, total width: 2,900 mm, total height: 2,900 mm, power: 55 kW (74.78 HP), input voltage: 380 V, input frequency: 50 Hz, number of digital displays: 4, Equipment: cone bending device, documentation/manual, emergency stop, hardened rollers, swiveling upper roller, plate bending roll capacity 3000x50 mm Davi modelMCB3053 Hydraulic 4 roll plate bending machine, year 1998 plate width 3000 mm thickness rolling 50 mm pre-bending 40 mm width on the rolls 3100 mm upper roll size 530 mm lower roll 470 mm side rolls 400 mm Power electric 70Hp on hydraulic unit voltage 380/50 - Installed configuration Prodpfsy D Ngzjx Apdsc Hardened surface of the 4 rolls conical bending attachment – hardened cone bending Console electric with digital position readout of the rolls Controller Siemens Simatic OP7 NC programmer for automatic rolling Hydraulic power driven the central rolls with axial gearbox Pre-pinch pressure adjustable plate edge pre-bend. Drop-end open front for unloading closed shells Rerolling system for calibration roundness of welded shells. Safety and emergency system installed. Manuals original for operation and maintenance Dimension 6000x2900 x h 2900 mm weight 40000 kg

Condition: excellent (used), Year of construction: 1985, functionality: fully functional, pressing force: 4,000 t, 5. Forging hammer SMERAL type KJH 4 Weight of the ram, kg: 1’800 Ram impact rated energy, kgm: 4’000 Number of ram strokes,1/min: 48 Ram stroke, mm: 500 Podpfx Aewbginopdsrc Die camping area, mm: 286 x 600 Min. Die Height, mm: 350 Output of main motor, kW: 45 Lenght of the machine, mm: 3’100 Widht of the machine, mm: 1’900 Height of the machine, mm: 3’900 Weight of the machine, kg: 27’000

Condition: good (used), Year of construction: 1984, max. wheel diameter 250 mm gear width 275 mm max. module 6 weight of the machine ca. 5,5 t The gear hobbing machine ZFWZ 250 is suitable for the economical production of all hob-processable cylindrical gear types, such a: - spur and helical gear, wormgears and worms, splined shafts, keyed shafts, serrated profiles, chain wheels and ratchet wheels,as well as conical and crowned spur and helical gears. Interchangeable wheels and milling accessories Technical data: - Workpiece diameter (max): 250 mm - Module (max): 6 mm - Axial feed travel (max): 275 mm - Tangential feed travel (max): 100 mm - Tooth helix angle (max): 45 degrees Prjdpfx Apov T Nqaodoc - Milling cutter diameter (max): 145 mm - Milling cutter length (max): 170 mm - Table clamping surface (min): 195 mm - Table clamping surface (max): 470 mm Power Milling cutter speeds - Stepped in 2 ranges: 56 ... 250 rpm - (Standard version): 90 ... 400 rpm - Infinitely variable in 2 ranges: 63 ... 180 rpm - (special version DC motor): 140 ... 400 rpm Weights - Machine net: approx. 5000 kg - Electrical cabinet: approx. 800 kg - Hydraulic unit + coolant tank + chip transport: approx. 700 kg Overall dimensions (with oil mist filter) - Length: Standard version: 3950 mm DC drive: 3450 mm (or 3350 mm according to table) - Width: 3300 mm - Height: Machine: 1980 mm Machine with DC drive: 2150 mm Electrical cabinet: 2200 mm

Condition: good (used), Year of construction: 2002, Ref. -No.: 10633 Manufacturer: ANAYAK Type: VH Plus 2000-MG Year of construction: 2002 Predpfxezc D Enj Apdec Type of control: CNC-Steuerung Control: Heidenhain Storage location: Halberstadt Country of origin: Germany serial number: M200XXX X-Travel: 2000 mm Y-Travel: 1500 mm Z-Travel: 1500 mm No. Of Working Stations: 90 Control: 106.253 H machine: 93.170 H Program run: 41.859 H Head and turntable: 1600 x 1450 mm

Year of construction: 2007, condition: ready for operation (used), Cutting range round: 560mm, cutting range flat (W x H): 620/560mm, material feed length, single: 900mm, multiple feed: 9999mm, shortest cut length: 6mm, minimum diameter to be cut: 15mm, minimum remnant in single cut: 15mm, shortest remnant length in automatic mode: 80mm, saw motor power, frequency-controlled: 5.5kW, cutting speed, stepless: 13-127m/min, saw blade dimensions: 7400/54/1.6mm, material support height: 700mm, total drive capacity in basic configuration: 12kW, length: 2370mm, width: 3610mm, overall dimensions with chip conveyor (L/W): 2370/3610mm, machine table height lowered: 2230mm, weight: approx. 5.2t with chip conveyor. An inspection on site is possible. Prodpfoxg Rhvox Apdsc

Condition: used, Year of construction: 2004, functionality: fully functional, turning length: 1,000 mm, turning diameter over cross slide: 350 mm, TECHNICAL DATA Turning diameter: max. 465 mm Turning length: 1050 mm Diameter when turning: 680 mm Chuck diameter: 325 mm Podpfx Aov Epzvspdsrc X-axis travel: 300 mm Z-axis travel: 1050 mm Control system: Fanuc Series 21I-TB Spindle speed range: Max. 3500 rpm Drive power: 33 kW Torque: max. 630 Nm Bearing diameter in the spindle: 120 mm Max. bar diameter: 90 mm Tailstock stroke: 850 mm Tool post stroke: 150 mm Rapid traverse X/Z: 30 m/min Number of tool positions: 12 positions Tool holder: VDI 40 Accessories: Chip conveyor Tool holders, chuck jaws

Condition: used, Year of construction: 2000, centre height 400 mm centre distance 3.000 mm max. swing over bed 810 mm max. swing over facing slide 510 mm max. swing-dia. in gap 850 mm control WEILER max. workpiece weight 3.800 kg spindle diameter in front bearing 150 mm spindle bore 106 mm faceplate diameter 630 mm worktool system Parat tailstock quill taper MT 6 dia. of quill 115 mm spindle turning speed range 1 - 1.800 U/min Lathe - cycle-controlled | WEILER - E80 x 3000 equipped with 630mm faceplate, 400mm SCHUNK ROTA-S plus chuck, boring bar attachment, PARAT tool system as well as a chip conveyor. A comprehensive tool package is included in the scope of delivery. The machine video from the production plant will be shared on request. The machine is in good condition. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Podpfx Asy Ty Ihjpderc #Tags: E-80 | E 80 | E80 x 3000 | E80x3000 | E 80 x 3000

Year of construction: 2010, condition: ready for operation (used), - USED - CNC DOUBLE RAM VERTICAL LATHE MAX ROTATING DIAMETER: 3000 mm MAX TURNING HEIGHT: 800 mm MAX TURNING DIAMETER: 2800 mm SPINDLE: 1-160 rpm; 71-114 kW; 68500 Nm; 2500 mm X-AXIS TRAVEL: -150+1780 mm Z-AXIS TRAVEL: 900 mm RAPID FEEDS X-Z: 8 - 10 m/min TOOL MAGAZINE: BASKET-TYPE ; TYPE CAPTO C5; 24 POS. POS CONTROL UNIT: SIEMENS 840D MAX ADMITTED LOAD: 15000 Kg WEIGHT: 54000 Kg ACCESSORIES: SWARF CONVEYOR ; TOOL SETTER ; AUTOMATIC DOOR ; HEAD COOLING SYSTEM ; TOUCH PROBE ; Predpjyyrh Hofx Apdoc PORTABLE HANDWHEEL
