POREBA TR 135 B1 x 5000
Poreba TR 135 B1 x 3000

Name: Poreba TR 135 B1 x 3000
Brand: Poreba
Availability: InStock

Condition

Used (fully functional)

Location

Poręba

POREBA TR 135 B1 x 5000 Poreba TR 135 B1 x 3000

Machine data

Machine type:: POREBA TR 135 B1 x 5000

Manufacturer:: Poreba

Model:: TR 135 B1 x 3000

Condition:: reconditioned (used)

Functionality:: fully functional

Price & Location

Location:: Zakładowa 2, 42-480 Poreba, Polska

Call

Technical details

Turning diameter over cross slide:: 1,000 mm

Spindle bore:: 130 mm

Turning diameter:: 1,350 mm

Turning length:: 3,000 mm

Details about the offer

Listing ID:: A21194580

Update:: 20.05.2026

Description

Status: during general overhaul.

The PORĘBA TR series lathe is a universal machine tool intended for both roughing and finishing operations. It is particularly suitable for machining shafts as well as heavy, large-size workpieces.

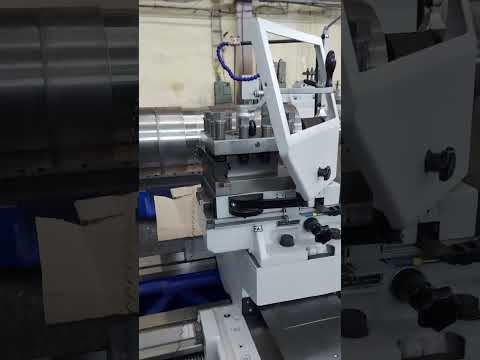

The offered machine is currently undergoing a general overhaul – the last photo presents its current stage of refurbishment. The remaining photographs show TR series lathes after general overhauls performed by our company and delivered to end users. They serve as a reference for the final quality standard and workmanship.

Scope of the general overhaul:
Nodpfx Aoyh H Iyehkjda
- Complete dismantling of the lathe
- Regeneration and replacement of worn components
- Calibration of trapezoidal lead screws and manufacturing of new bronze nuts
- Replacement of bearings and sliding bushings, including new spindle bearings
- Grinding of bed, carriage and top slide guideways, followed by scraping of mating surfaces (with application of anti-friction materials)
- Regeneration of the tailstock quill
- Regeneration of the tool post
- Overhaul and modernization of lubrication and coolant systems
- Electrical scope: manufacturing of a new electrical cabinet, complete new machine wiring, and replacement of all electrical components with new ones
- Inspection of electric motors together with replacement of bearings
- New painting
- After completion of the overhaul: trial assembly, preliminary acceptance at our workshop, positioning on the foundation, levelling and final acceptance
- Adaptation of the lathe to minimum safety requirements in accordance with applicable EU Directives
