Used Traub Tnl 12 for sale (98)

Condition: good (used), Year of construction: 2004, Traub TNA 400 Y, year of manufacture 2004, TX 8 H control, X/Z travel 285/750 mm, Y-axis travel +/-50 mm, C-axis 0.001°, V-axis – programmable tailstock, spindle speed up to 3,150 rpm, 12-position turret, driven tools, VDI 40 mounting, 4,360 spindle hours, machine from prototype production, ATC measuring optics, lots of accessories. Ijdpfx Afsxyyn Eofeik

Condition: used, Year of construction: 2001, turning diameter 340 mm turning length 750 mm control SYSTEM TX 8H spindle passage 80 mm swing over plan sled 530 mm greates pass round over bed 665 mm turning speed range - main spindle 3.150 min/-1 drive capacity - main spindle 22 kW number of tool places 12 Pos. In our assessment, the machine is in good used condition and can be inspected under power by appointment. Two machines are available. Price per unit. Machine 1: - Images 1-5 - Operating hours approx. 55,790 h Machine 2: - Images 6-10 - Operating hours approx. 54,347 h Technical Features & Accessories: - Y-axis - Accessory package with rigid and driven tool holders Iodpfoxwdw Eex Affoik - Chip conveyor Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Condition: good (used), Year of construction: 2004, control TRAUB SYSTEM TX8H weight 3500 kg range L-W-H 3960 x 1640 x 1800 mm output 11 kW number of spindle speeds 5600 / 4000 min-1 Torque 200 / 280 Nm The TRAUB turning machine TNA 300 was designed for the following machining of workpieces with a turning length of 450 mm. --> for machining metal and plastics with a defined cutting edge using suitable tools. --> for mounting in jaw chucks of sizes 160 to approx. 250 --> for machining material bars up to a Ø of 42 or 65 mm --> with EHS special version Workpiece removal device --> chip conveyor 800 mm long -> Technical data Working range Spindle diameter: 42 mm --> Spindle head DIN 55026, size: A5 --> Clamping fixture diameter: 160-175 mm / 200-250 mm --> turning diameter max: 275 mm --> Distance over turning centre: 35 mm --> max. turning length: 450 mm --> Swing diameter over cross slide: 395 mm --> Swing diameter over bed: 520 mm --> Tool carrier Tool holders for cylindrical shank DIN 60880: 12 pcs. --> Shank diameter: 30 mm --> Chisel cross-section: 20x20 mm --> Switching time 1 station: 0.5 sec. --> Switching time each additional station: 0.15 sec. --> Feed drives X-axis: --> Slide travel: 210 mm --> Feed force: 5000 N Ijdpfx Aswwl Iuoffsik --> rapid traverse/path speed: 15 m/min --> Z-axis: --> Slide travel: 450 mm --> Feed force: 6000 N --> rapid traverse/path speed: 18 m/min --> Y-axis: --> slide path: +- 35 mm --> Feed force: 6000 N --> rapid traverse/path speed: 10 m/min --> C-axis: --> Speed: 100 min-1 --> Torque: 140 / 196 Nm --> electrical resolution: 0.001 degree --> tailstock quill diameter: 70 mm --> quill stroke: 60 mm --> Stroke of the quick retraction: 280 mm --> quill setting force at 55 bar: 8600 N --> Mounting according to DIN 228: Mk 4 --> Steady rest Clamping range: 8 - 95 mm --> Workpiece removal device Max. part length: 250 mm --> Max. part weight: 3 kg

Year of construction: 1989, condition: ready for operation (used), Spindle bore: 42mm, max. workpiece diameter: 115mm, speed: 3150rpm, power: 9kW, bar length: 5200mm. Machine dimensions X/Y: approx. 2100mm/1000mm, weight: approx. 1500kg. Including bar feeder Stamag D 5000 and various accessories such as collets and feed collets. Documentation available. An on site inspection is possible. Iiodpfjxwn Ihsx Affjk

Condition: good (used), Year of construction: 2001, TNK 36, year of manufacture 2001 including chip conveyor, Resy filtration system Iiedpfoxv Sr Iox Affok In good condition, operated without loader, not under power

Condition: used, Year of construction: 2005, Technical details: turning diameter: 275 mm turning length: 900 mm spindle passage: 65 mm power capacity at 100 % load: 25/20 kW spindle turning speed range: 1 - 5000 U/min spindle diameter in front bearing: 110 mm c-axis: 1 - 500 U/min. number of workpiece supports: 4 tool turret: 1 x-axis: 290 mm y-axis: 165 mm z-axis: 360 mm b-axis: 360 ° rapid speed: 18/30 m/min number of tools: 2x2 + 2x2 number of driven tools: 2x2 + 2x2 mm toolpiece turning speed range: 8000 / 2000 U/min power capacity: 25% ED 5,8 kW tool taper: TRAUB 60 tool turret: 2/3/4 x-axis: 170 mm z-axis: 600/950 mm y-axis: +/- 60 mm rapid speed: 18/15/30 m/min number of driven tools: 10 mm toolpiece turning speed range: 1 - 6000 U/min power capacity: 25% ED 5,8 kW tool taper: DIN 69880 40 x 63 total power requirement: 95 kW weight of the machine ca.: 16 t dimensions of the machine ca.: 10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and Sub spindle with C-axis 1 support with B-axis 3 turret supports dust exhauster, coolant attachment with coalescence-seperator and chip conveyor 2 pc. 3-jaw chuck SMW KNCS-N 170-43 2 pc. HAINBUCH Spanntop chuck 40 pc. various tool holder non-driven Isdpfx Ajwp D Nbeffsik 6 pc various tool holder driven Spare parts package *

Condition: used, Year of construction: 2005, turning diameter 275 mm turning length 900 mm control TRAUB TX8i spindle passage 65 mm power capacity at 100 % load 25,20 kW power capacity at 40 % load 30,20 KW max. torque at 40% / 100% load 180 / 135 Nm spindle turning speed - stepless 1 - 5.000 U/min spindle diameter in front bearing 110 mm C-axis 1 - 500 U/min worktool support No. 1 x-axis 290 mm y-axis 165 mm z-axis 600/950 mm B - axis 360 ° rapid traverse X/Y/Z 18 / 18 / 30 m/min feed capacity X/Y/Z 10 / 10 / 7 kN number of tools 2x2 + 2x2 number of driven tools 2x2 + 2x2 mm toolpiece turning speed range 8.000 / 2.000 U/min power capacity at 25 % load 5,80 kW max. torque at 25% load 4x18,6 / 4x74 Nm tool taper TRAUB Ø60 worktool support No.2 / No.3 / No.4 x-axis 170 mm z-axis 600/950 mm y-axis +/- 60 mm rapid traverse X/Y/Z 18 / 15 / 30 m/min feed capacity X/Y/Z 10 / 10 / 7 kN tool turret - number of stations 10 number of driven tools 10 mm toolpiece turning speed range 1 - 6.000 U/min power capacity at 25 % load 5,80 kW max. torque at 25% load 18,60 Nm Isdpfxsw E Nnbj Affeik tool taper DIN 69880 Ø40x63 bar loader DNH61 / 3000 Bar length 1.000 - 3.200 mm bar material dia. 18 - 63 mm hexagon max.45 mm total power requirement 95,00 kW weight of the machine ca. 16,00 t dimensions of the machine ca. 10,00 x 3,50 x H3,00 m With TRAUB TX 8i control unit, main and counter spindle with C-axis, 3 turrets, 1 vertical-tool-carrier with B-axis, dust exhauster, chip conveyor, coolant system with coalescence-separator. Barfeeder TRAUB Stamag DNH61 /3000 2 pc. 3-jaw chuck SMW KNCS-N 170-43 2 pc. HAINBUCH Spanntop chuck 40 pc. various tool holder non-driven 6 pc various tool holder driven Spare parts package Machine can be inspected under power.

Condition: used, Year of construction: 1988, Technical details: turning diameter over bed: 360 mm turning dia. over face-slide: 160 mm turning length: 800 mm longitudinal traverse (z-axis): 810 mm facing movement (x-axis): 205 mm control: TX-8 spindle passage: 60 mm Ijdou Rqabspfx Affoik revolution per minute: 63 - 3150 / 2 step U/min feed:: 10.000 mm/min. tool turret - number of stations: 8 operating hours - idle run: 8834 h tailstock taper ISO: SK30 DIN 2080 tailstock quill stroke: 105 mm operating pressure: 40 bar total power requirement: 38 kW Weight approx.: 3,1 t dimension machine xH: 1,8 x 3,3 x 1,8 m dimensions of hydaulic: 580 x 400 x 750 mm Equipment: Lathe chuck Ø 200 mm, hydraulic Feed force Z-axis = 8 kN and X-axis = 5 kN Coolant system control panel Accessories Fine adjustment device for tool set-up *

Condition: not inspected (used), Year of construction: 1996, operating hours: 46,282 h, functionality: unexamined, machine/vehicle number: 18770, controller model: TX 8F, clamping diameter: 65 mm, counter spindle speed (max.): 4,000 rpm, workpiece diameter (max.): 56 mm, No minimum price – guaranteed sale to the highest bidder! Payment deadline for the machine is 20.11.2025! Bidding obligates the buyer to collect within the collection period from 01.12.2025 to 05.12.2025! TECHNICAL DETAILS Max. workpiece diameter: 56 mm Max. clamping diameter: 65 mm Max. counter spindle speed: 4,000 rpm Counter spindle power: 11 kW Counter spindle constant power range: 1:8 Counter spindle torque: 210 Nm Tool drive Max. tool drive speed: 4,000 rpm Tool drive power at 100% duty cycle: 1.5 kW Tool drive power at 15% duty cycle: 4 kW Tool drive torque at 15% duty cycle: 12.4 Nm (4 Nm) Number of tool stations: 10 (14) Cylindrical tool holder: ∅ 30 x 55 mm (25 x 48 mm) Tool shank cross section: 20 x 20 mm (16 x 16 mm) Chip-to-chip time: 1.2 s Indexing time per station: 0.6 s Indexing time over 5 stations: 1.5 s Positioning unit X/Z: 0.001 mm Positioning unit C-axis: 0.001° Fine interpolation increment: 0.34 ms Max. thread pitch: 999,999 mm Max. radius: 99,999.999 mm Max. speed (C-axis): 80 rpm Torque (main spindle C-axis) at 100% duty cycle: 100 Nm Accuracy (main and counter spindle C-axis): ± 3 min Rapid traverse and path speed: 30,000 mm/min Rapid traverse: max. 15 m/min Thrust at 100% duty cycle: 6,000 N Travel distance: 520 mm Ball screw size (∅ x pitch): 32 x 10 mm Feed override: 0 – 200% Rapid traverse override: 0 – 100% Spindle speed override: 50 – 120% MACHINE DETAILS Control: TX 8F Dimensions & Weight Dimensions (L x W x H): 11,000 x 2,000 x 2,600 mm Weight: 6,000 kg Electrical Data Operating voltage: 400 V Frequency: 50 Hz Control voltage: 230 V Nominal current: 85 A Connection rating: 54 kW Power consumption: 39 kW Noise emission at operator position: 71 dB(A) Temperature range: 5 – 40 °C Iiodjxpgl Aepfx Affok Max. humidity: 70% System hydraulic pressure: 60 bar Hydraulic tank capacity: 150 l Coolant pump pressure: 5/12 bar Tank capacity without chip conveyor: 300 l Tank capacity with chip conveyor: 280 l Input Spindle speed input: 5 digits Cutting speed input: 4 digits Tool input: 4 digits Program number: 8 digits Subprogram number: 8 digits Block number: 4 digits M-codes: 3 digits B-codes: 6 digits Memory capacity: 32,000 characters Operating hours: 46,282 h (as of 17.10.2025) EQUIPMENT Two 10-station tool turrets with driven tool stations HAINBUCH chuck system Counter spindle Bar feeder from STAMAG Chip conveyor

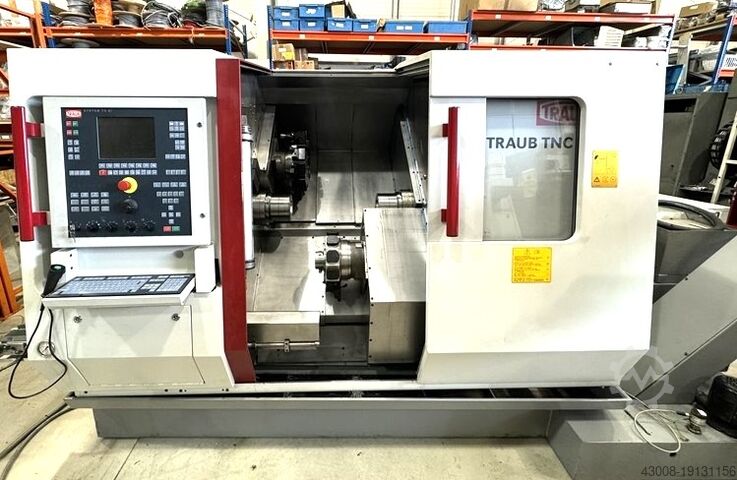

Condition: used, Year of construction: 2003, max. bar material dia. 65 mm max. bar length 3.000 mm control System TX 8H CNC lathe | TRAUB - TNC 65 equipped with bar loader . Ijdpfx Aexbtp Esffsik The machine is in a well-maintained condition and can be inspected at any time under power. The machine videos from the production plant will be shared on request. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: TNC65 | TNC-65

Condition: used, Year of construction: 1994, functionality: limited functionality, spindle bore: 42 mm, spindle speed (max.): 4,000 rpm, spindle motor power: 7,500 W, The machine is in continuous operation, producing hydraulic fittings from hexagonal 22 (automatic steel). It is a very rigid and efficient machine for simple components. The machine is equipped with a FETTE tangential thread cutting attachment. Two such machines are available; one is additionally fitted with a side drilling unit and a thread milling attachment with a large set of milling cutters. Both machines come with a large set of tool holders and collets. Price for both machines is negotiable. Iiodpfx Asxq Rz Deffsk

Condition: used, Year of construction: 2004, controller manufacturer: Mitsubishi, controller model: TX-8i, _____ Description: Year of manuf. : 2004 Control : Mitsubishi TX-8i Turning length : 450 mm Mainspindle: Technology:Belt-driven spindle Speed:4.000 rpm Iiedpfx Afexhbfnjfsk Power:18,5 kW Torque:230 Nm Barcapacity:65 mm Workpiececlamping:Collet chuck, Hainbuch Spanntop Gr. 65 Subspindle: Technology:Belt-driven spindle Speed:4.000 rpm Power:11 kW Torque:210 Nm Workpiececlamping:Collet chuck, Hainbuch Spanntop Gr. 65 Ejector:Hydraulic with flush Movement in Z:520 mm Rapid travers in Z:30 m/min Toolcarrier I (X/Y/Z): Technology:Turret with 10 stations Taper:VDI30 Tooldrive:4.000 rpm, 4 kW, 16 Nm Movement in X/Y/Z:140/70/450 mm Rapid travers in X/Y/Z:15/6/30 m/min Toolcarrier II (X/Z): Technology:Turret with 10 stations Taper:VDI30 Tooldrive:4.000 rpm, 4 kW, 16 Nm Movement in X/Y/Z:140/450 mm Rapid travers in X/Y/Z:15/30 m/min Equipment/Accessory: Chipmanagement:Chip conveyor Coolingmanagement:Cooling unit with Paperbeltfilter Rawmaterialfeed:Barlaoder, FMB SL80S Finished part removal:Hydraulic part catcher with coneyor belt Oilmistseparation:Electrostatic extraction, LTA AC3001 Further Accessory:Misc. Toolholder, Rinsing pistol

Condition: ready for operation (used), Year of construction: 1996, operating hours: 15,001 h, functionality: fully functional, machine/vehicle number: 462, controller model: Traub TX8F, number of axes: 7, Equipment: bar feeder, chip conveyor, CNC lathe with 7 axes, bar feeder & additional equipment! TECHNICAL DETAILS Bar length: 3000 mm Number of axes: 7 Control: Traub TX8F MACHINE DETAILS Spindle 1 operating hours: 50,318 h Spindle 2 operating hours: 32,922 h Iiodow Uiqyspfx Affjk EQUIPMENT Main spindle Counter spindle 2 turrets 2x C-axis 1x Y-axis Bar feeder: IEMCA CNC BOSS 542 Enclosure Coolant system Chip conveyor

Condition: used, Year of construction: 1987, Technical details: turning diameter over bed: 180 mm turning length: 490 mm swing diameter: 450 mm cross travel: Z-Weg: 168 mm control: Traub TX8D revolution per minute: 20 - 4000 U/min spindle passage: Ø 60 mm operating hours - idle run: 23.495 h tool turret: 12 tools total power requirement: 38 kW Weight approx.: 4,2 t dimension machine xH: 3,6 x 2,5 x 2,2 m Tool holder straight shank DIN 69880 (VDI 3425) Ø 40x63 Röhm lathe chuck Ø 200mm hydraulic clamping Operation via double foot switch and control panel/operating panel. Coolant device Isdeu Ix N Sspfx Affoik The Traub carries an integrated chip conveyor with an ejection height of 1,100mm (currently without function). Accessories: multiple small parts 8 x machine feet without tailstock i.D. *

Year of construction: 1978, condition: used, Article: Programme-controlled automatic lathe Manufacturer: Traub Type: TF60 / 140 Yob: 1978 Bar automat Please, contact us for getting more information and pictures on mail(at) or Iiedpfx Ajl Rmqtoffok *

Condition: used, Year of construction: 1996, max. bar material dia. 65 mm max. swing diameter 175 mm max. bar length 3.000 mm control System TX 8F travel -x axis 140 mm travel -z axis 520 mm Iijdpfx Afsxbtq Njfek CNC lathe | TRAUB - TNC 42/65 DG equipped with bar loader. The machine is in a well-maintained condition and can be inspected at any time under power. The machine videos from the production plant will be shared on request. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: TNC65 | TNC-65 |TNC 42-65 DG | TNC 42/65DG

Condition: excellent (used), Year of construction: 2001, operating hours: 47,600 h, machine/vehicle number: 325, System: TX8H Spindle passage: 80 mm Turning length max: 750mm Turning diameter: 340mm Power: 22kw Number of tool holders: 12 Shaft diameter: 40 Powered tools in all positions X axis Z axis C axis Automatic tailstock chip conveyor Iodpfsh Dzqlox Affsik

Condition: new, 3 safety windows suitable for CNC lathe TRAUB TNA 300 TNA 400 TNA 500 TNC 42 TNC 65 Size: 660 x 480 mm Price: €500.00 / unit net Iisdpfx Asw Edq Doffjk Delivery time: immediately, subject to prior sale Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: ready for operation (used), Year of construction: 1996, operating hours: 38,433 h, functionality: fully functional, machine/vehicle number: 489, bar diameter (max.): 65 mm, controller model: TRAUB TX8F, bar length: 3,000 mm, number of axes: 7, Equipment: bar feeder, chip conveyor, CNC automatic lathe with seven axes as well as main and counter spindle! TECHNICAL DETAILS Axes and spindles Number of axes: 7 Main spindle: present Counter spindle: present Number of turrets: 2 C-axes: 2 Y-axis: 1 Control: TRAUB TX8F MACHINE DETAILS Operating hours: 38,433 hours EQUIPMENT Iodpow Uiktofx Affjik Bar loading magazine Stamag DN61 (bar diameter 65 mm, bar length 3 m) Coolant system Parts discharge Chip conveyor Air filter

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 - Number of axes : 12 - Number of turrets : 3 MAIN SPINDLE - Spindle nose : A2-6 - Spindle power : 24 [kW] - Spindle speeds : 5.000 [rpm] - Max. bar diameter : 65 [mm] - Max. chuck diameter : 175 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 28 [kW] - Spindle speeds : 7.000 [rpm] Iedpfx Asuhadzeffoik - Max. bar diameter : 42 [mm] - C axis indexing precision : 0,001 [°] - Travel : 700 [mm] UPPER LEFT TURRET - Number of positions : 10 - Number of motorized positions : 10 - X/Z stroke : 175 / 650 [mm] - Y stroke : +/- 40 [mm] - Tool type : VDI 30 - Live tools speed : 6.000 [rpm] - Live tools power : 5,5 [kW] LOWER LEFT TURRET - Number of positions : 10 - Number of motorized positions : 10 - X/Z stroke : 175 / 650 [mm] - Y stroke : +/- 40 [mm] - Tool type : VDI 30 - Live tools speed : 6.000 [rpm] - Live tools power : 5,5 [kW] LOWER RIGHT TURRET - Number of positions : 10 - Number of motorized positions : 10 - X/Z stroke : 175 / 650 [mm] - Y stroke : +/- 40 [mm] - Tool type : VDI 30 - Live tools speed : 6.000 [rpm] - Live tools power : 5,5 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 95 [kW] WEIGHT & DIMENSIONS - Machine floor space : 5.450 x 2.318 [mm] - Machine height : 2.258 [mm] - Machine weight : 10.000 [kg] MACHINE HOURS - Number of working hours : 50000 [h] EQUIPMENT - CNC : Traub TX8i-S - Electronic handwheel - 3 colors status lamp - Coolant tank : RESY * with high-pressure pump * with paper filtering unit - Chips conveyor - Parts catcher - Parts conveying strip - Number of turning tool holders : 6 - Number of fixed tool holders : 33 - Collet chuck : 2 HAINBUCH

Condition: good (used), Year of construction: 2007, Traub TNX 65/42 Milling and Turning Center Mfd. 2007 Serial #7060107 Commissioned in 2010 TX 8i-S control (Mitsubishi/Traub based control with Mitsubishi drives and motors) 15 CNC axis’s (4) X-Y-Z turrets with 10 positions each. Up to 20 tools per turret 65 mm thru hole main and sub spindle (sub spindle has coolant flush) Foot pedal control for clamp/unclamp of spindle chucks Servo driven gantry receiver Hydraulic swivel w/ pneumatic finished part and bar remnant gripper Iiedoq Npqmepfx Affek Finished part conveyor belt RESY paper band coolant filter Knoll Coolant tank with BKW refrigerated coolant temperature control 20 Bar High pressure and 8 Bar Low pressure coolant pumps Knoll chip conveyor FMB Turbo 5-55 magazine bar feeder (new in 2010) 2) Single stick turning tool holders 2) Double stick turning tool holders 1) Cut-off tool holder 1) Overdriven double radial live ER Collet tool holder 1) Overdriven radial live ER Collet tool holder 4) Radial live ER Collet tool holders 1) Radial live End Mill tool holder 1) Angle adjustable live ER Collet tool holder 2) Radial live Shell Mill tool holders 2) Axial live End Mill tool holders 6) Axial live ER Collet tool holders 43) Additional tool holders on separate list (see supplemental attachment) Hainbuch main spindle collet chuck Rohm sub spindle 2 jaw chuck 2 Spare sets of spare Z-axis ball screws and bearing packs.

Condition: used, Year of construction: 1996, spindle passage 80 mm max. turning diameter 395 mm Max. Turning length 750 mm control System TX 8H max. Spindle speed 3.150 U/min. CNC lathe | TRAUB - TNA 400 Iisdjxbtqvopfx Affsk The machine is in a well-maintained condition and can be inspected at any time under power. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags:TNA400 | TNA-400

Condition: good (used), Year of construction: 1994, TRAUB TNS 65 D / 5-axis CNC turning and milling machine - TX8 D control - Complete technical data see photos - Year of manufacture: 1994 - Hydrobar bar feeder magazine - Various driven tool holders - Tool holder Iiodpfx Afew D Df Esfsk - Three-jaw chuck - Complete documentation Subject to errors and input mistakes.

Condition: ready for operation (used), Year of construction: 1993, functionality: fully functional, machine/vehicle number: 364, controller model: Traub TX8F, number of axes: 7, Equipment: bar feeder, chip conveyor, CNC lathe with 7 axes, bar feeder & additional equipment! Iisdow Ec Aljpfx Affjk TECHNICAL DETAILS Bar length: 3000 mm Number of axes: 7 Control: Traub TX8F MACHINE DETAILS Spindle 1 operating hours: 50,318 h Spindle 2 operating hours: 32,922 h EQUIPMENT Main spindle Counter spindle 2 turrets 2x C-axis 1x Y-axis Bar feeder: IEMCA CNC BOSS 542 Enclosure Coolant system Chip conveyor

Condition: used, Year of construction: 1997, spindle passage 80 mm Iiedpfx Afjxbtpxofek max. turning diameter 460 mm Max. Turning length 1.000 mm control System TX 8F max. Spindle speed 2.800 U/min. CNC lathe | TRAUB - TNA 500 The machine is in a well-maintained condition and can be inspected at any time under power. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags:TNA500 | TNA-500
