Used Spring Grinding Machine for sale (69,256)

Condition: used, Horizontal surface grinding machine Type/Model: ELB Star 2 Condition: Used Technical data: Grinding length max. 630 mm Grinding width max. 250 mm Workpiece height max. 300 mm, installation height above table Magnetic table standard 600 x 250 mm Total power requirement approx. 8.5 kW Weight approx. 3200 kg Note: Automatic workpiece feed system is defective. Iaedpfxozdrgns Aquou

Condition: used, Year of construction: 1986, HK Orion surface grinding machine Condition: Used Year of manufacture: 1986 Technical data: Magnetic clamping table: 500 x 1,000 mm Automatic alignment system Ijdpfx Aqjzdq Nbsusau Automatic feed function Electronic handwheel Machine light

Condition: used, Year of construction: 2008, Technical details: batch weight: - total volume: 600 l external diameter: 1716 mm Effective volume: 345 l Work tank width: 1616 mm max. workpiece size: 270 mm revolution per minute: 980 - 1460 U/min total power requirement: 6 kW weight of the machine ca.: 1600 kg dimension machine xH: 2,4 x 1,7 x 1,44 m height: 3,42 m This machine was never operated with abrasive grinding media and therefore shows very little wear. The polyurethane lining is in excellent condition. The Walther Trowal CB 600 offered for sale was used exclusively for the treatment of stamped metal parts. The parts were processed in a dry finishing process using corn cob granulate, whereby they were conveyed through the media. The purpose of this process was to condition the surface of the stamped parts in such a way that sticking together during subsequent stacking was reliably prevented. The machine was used exclusively for this application and operated only in dry mode with corn cob media. Walther Trowal CB 600 The Walther Trowal CB 600 is an industrial circular vibratory finishing machine with a gross capacity of 600 liters. Suitable for: ·Deburring ·Edge radiusing ·Grinding ·Surface smoothing ·Polishing ·Descaling ·Cleaning metal parts Typical workpieces: ·Turned parts Iasdpfozdnlaex Aquou ·Milled parts ·Stamped parts ·Cast parts ·Forged parts ·Gears Machine can be demonstrated under power. i.D. *

Condition: used, Year of construction: 2017, functionality: fully functional, SCHIATTI FPS SME 8 – Year 2017 STRAIGHT GRINDING MACHINE, 8 Wheels Iajdpfezbrkijx Aqusu Minimum workable size: 80 x 80 mm Thickness: 3–30 mm Speed: 0.5 – 5.5 m/min Power: 14 kW Variable angle: 0–45° 180,000 linear meters processed

Condition: used, Year of construction: 2007, functionality: fully functional, BATTELLINO FP5 – Year 2011 Straight Line Edging Machine Number of wheels: 5 Min. glass thickness: 3 mm Max. glass thickness: 20 mm Min. glass dimensions: 80 x 80 mm Max. glass weight: 200 kg Speed: 0-4 m/min Machine dimensions: 5458 x 811 x 2087 h mm Worktable height: 830 mm Machine body: 2037 x 811 mm Input arm length: 1707 mm Output arm length: 1707 mm Weight: 1600 kg Power: 8.3 kW Water tank capacity: 200 lt Air pressure requirement: 6 bar Iaodpfx Aqezb Dzaousu Glass linearity: 0.1 mm per 2 meters of glass

Condition: used, Cylindrical Grinding Machine: Schaudt Model: RFH 500 Condition: used Centre height: 100 mm Centre distance: 500 mm Spindle speeds: 2225 / 2500 / 2825 rpm Grinding wheel diameter min./max.: 200 - 300 mm Weight, approx.: 1900 kg Equipment: - Manual & automatic operation - Coolant system Iajdpfxjy R Dlfe Aquou - Machine lamp - Emergency stop button - Machine leveling feet

Condition: ready for operation (used), Year of construction: 1996, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 130 mm, workpiece weight (max.): 500 kg, total height: 2,750 mm, table width: 630 mm, table length: 770 mm, distance table to spindle center: 585 mm, type of input current: three-phase, overall weight: 4,500 kg, travel distance W-axis: 500 mm, distance between stands: 750 mm, Equipment: documentation/manual, CNC JIG GRINDING MACHINE HAUSER S40-400 TECHNICAL CHARACTERISTICS : Iajdpfezdiurex Aqueu Stroke X axis: 650 [mm] Max. Stroke speed X axis: 4000 [mm/min] Working feed X axis: 0 - 1800 [mm/min] Stroke Y axis: 450 [mm] Working feed Y axis: 0 - 1800 [mm/min] Stroke Z axis: 130 [mm] Min. Stroke speed Z axis: 0.5 [mm/min] Max. Stroke speed Z axis: 12000 [mm/min] Stroke frequency Z axis: max. 4 [Hz] Stroke W axis: 500 [mm] Planetary speed C axis: 5 - 250 [rpm] Max. Stroke speed W axis: 800 [mm/min] Stroke U axis (radial feed): 5.5 [mm] Distance between columns: 750 [mm] Table length: 770 [mm] Table width: 630 [mm] Clearance between grinding motor and table: 585 [mm] Max. load on table: 500 [Kg] Supply voltage: 400 [V] Weight: 4550 [Kg] ADDITIONAL INFORMATION : x1 HI-CUT pack including: -work area protection -exhaust system with electrostatic air filter -fire protection system (to be assessed by a qualified body) -HTG-RWS-60 automatic belt filter cooling unit x1 MSS (Multi-Sensoric System) tool detection device x1 CBN dressing unit with HF drive for automatic dressing of CBN grinding wheels (ceramic bond and synthetic resin) x1 T16 grinding turbine - speed: 160,000 rpm - reference: 164225 x1 turbine support with filter for use with T10 and T16 turbines - reference: 166497 x1 60S-TC grinding motor, speed 9000 - 60000 [rpm], for SK20 collets - part number: 208450 x1 intermediate plate for aligning motors and urbines - reference: 192940 x1 centring watch holder for grinding motor rotor - reference: 191790 x15 wheel holder cleats x1 cable for grinding motor Various tools Full documentation Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. The HAUSER S40-400 is a high-precision CNC coordinate grinding machine. This machine excels in tight tolerance environments such as contouring applications in the aerospace, automotive and medical industries. Thanks to its robust design and advanced capabilities, the HAUSER S40-400 is comparable to machines from well-known brands such as Moore. It can be integrated into workshops comprising Mägerle (Magerle), Studer, Moore, Kellenberger, Okamoto, Jones & Shipman, and ELB machines. In addition to its performance, the HAUSER S40-400 integrates perfectly into workshops equipped with lathes, machining centres or CNC milling machines, offering a complete solution for high-precision grinding and machining of complex parts.

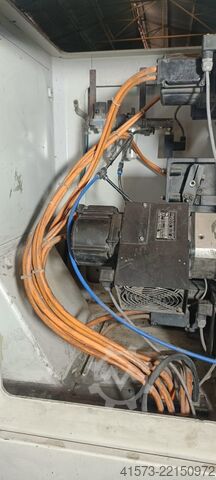

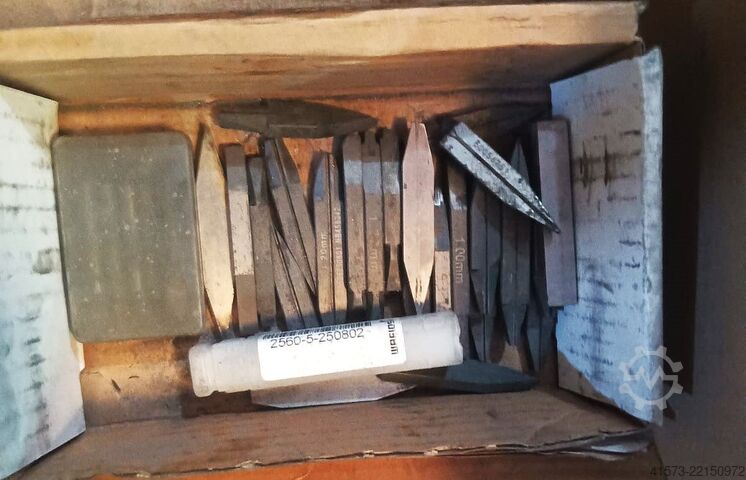

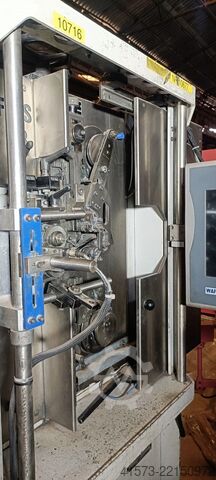

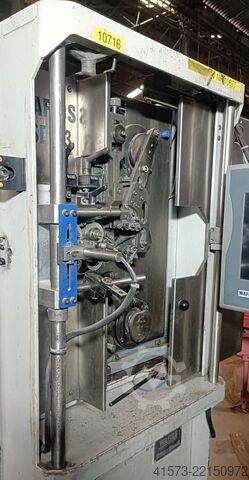

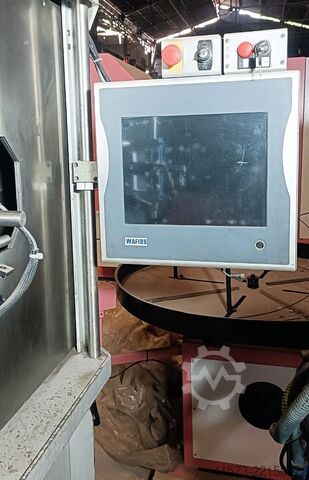

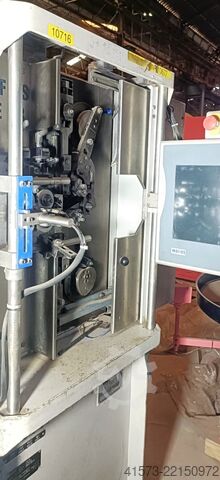

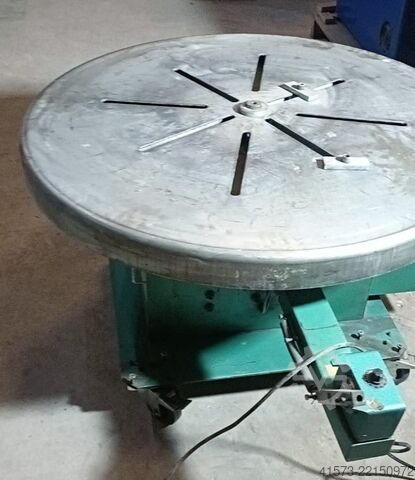

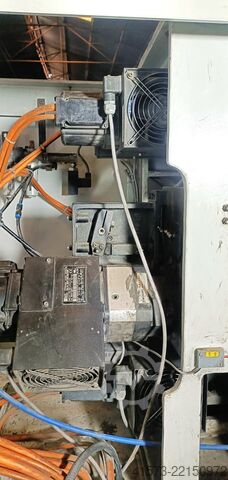

Condition: used, Year of construction: 2001, functionality: fully functional, machine/vehicle number: D32U/8477, Offer Number: D32U/8477 Machinetype: spring coiling machine Make: WAFIOS Type: FSE 23 Constr. year: 2001 wire diameter: 0,35-1,6 mm spring diameter: 35 mm output pieces/min: 500 Iasdpfx Aezd U H Requou Location: Outside of Europe

Condition: new, Year of construction: 2026, functionality: fully functional, grinding length: 500 mm, grinding width: 250 mm, total height: 1,700 mm, total length: 1,800 mm, total width: 1,600 mm, feed length X-axis: 560 mm, feed length Y-axis: 280 mm, feed length Z-axis: 400 mm, workpiece weight (max.): 200 kg, grinding height: 400 mm, feed rate X-axis: 25 m/min, feed rate Y-axis: 5 m/min, feed rate Z-axis: 1 m/min, grinding wheel diameter: 200 mm, distance table to spindle center: 450 mm, table speed: 25,000 mm/min, table length: 520 mm, table load: 200 kg, type of input current: three-phase, table width: 250 mm, grinding wheel width: 20 mm, spindle speed (max.): 2,850 rpm, spindle speed (min.): 2,850 rpm, overall weight: 950 kg, distance stand to spindle center: 300 mm, table height: 700 mm, grinding spindle motor power: 1,500 W, rapid traverse X-axis: 25 m/min, rapid traverse Y-axis: 5 m/min, rapid traverse Z-axis: 1 m/min, travel distance X-axis: 560 mm, travel distance Y-axis: 280 mm, travel distance Z-axis: 400 mm, rotational speed (min.): 2,850 rpm, grinding spindle speed: 2,850 rpm, distance table to quill: 450 mm, warranty duration: 12 months, grinding wheel speed: 2,850 rpm, input voltage: 400 V, disc diameter: 200 mm, control cabinet length: 600 mm, control cabinet width: 400 mm, control cabinet height: 1,200 mm, space requirement height: 2,500 mm, space requirement length: 3,000 mm, space requirement width: 2,500 mm, Equipment: documentation/manual, SURFACE GRINDING MACHINE SGA-2550AHD WITH PLC CONTROL The professional SGA-2550AHD Surface Grinding Machine has been designed for precision machining of flat surfaces in tool rooms, manufacturing facilities, and metalworking workshops. Equipped with a PLC control system, electromagnetic chuck, and high-quality components, the machine delivers excellent grinding accuracy, high repeatability, and outstanding operator comfort. The robust machine structure ensures stability during operation, minimizes vibration, and allows for superior surface finish quality. The grinder is ideal for machining tool steel, structural steel, cast iron, and other materials requiring precision grinding. MAIN ADVANTAGES • PLC Control System • Electromagnetic Chuck • High Grinding Accuracy • Rigid Machine Construction • Professional Coolant System • Easy Operation and Programming • Excellent Process Repeatability • CE Certified PRECISION MACHINING The SGA-2550AHD is equipped with a 250 × 520 mm working table and a 250 × 500 mm electromagnetic chuck. This configuration provides secure workpiece clamping and excellent machining accuracy. PLC CONTROL SYSTEM The modern PLC control system improves grinding efficiency, increases productivity, and allows easy adjustment of machining parameters. It is suitable for both single-piece and serial production. STANDARD EQUIPMENT • Coolant Tank • Electromagnetic Chuck • Balancing Arbor • Wheel Flange • Wheel Extractor • Leveling Wedges and Bolts • Tool Box and Service Tools • Standard Grinding Wheel • Working Lamp • Wheel Dresser Stand OPTIONAL EQUIPMENT INCLUDED • Full Working Area Protection • Magnetic Separator • Dust Collection System • 2-Axis Digital Readout (DRO) • Built-in Electromagnetic Chuck Controller • Wheel Balance Stand • Diamond Dresser SAFETY The machine is equipped with all necessary safety systems in accordance with European standards. The robust construction, protective guards, and CE marking ensure safe and reliable operation. TECHNICAL DATA Model: SGA-2550AHD Iaedpszd U Eyefx Aqueu Working Table Size: 250 × 520 mm Electromagnetic Chuck Size: 250 × 500 mm Control System: PLC APPLICATIONS • Tool Rooms • Manufacturing Plants • Mechanical Workshops • Tool Steel Grinding • Structural Steel Machining • Cast Iron Machining • Precision Machine Component Production DELIVERY AND SUPPORT We organize machine transportation throughout Europe. We provide technical support, commissioning assistance, process consulting, and access to spare parts and after-sales service. CONTACT US If you require additional information or a customized quotation, our specialists will be pleased to assist you. We also invite you to explore our full range of metalworking machinery available on our website.

Condition: used, Cylindrical Grinding Machine TSCHUDIN type HTG 400 Between points: 400 mm Ijdozd Ui Eepfx Aqueau Centre height: 100 mm Cone: CM4 Spindle speed: from 70 to 500 RPM Max table travel: 420 mm Table orientation at 15° Grinding wheel: Ø 300 mm Retractable tailstock CM3 Machine rebuilt by REWITECH SA (Switzerland) in 1995 Equipped with one settling tank PHILIPS Voltage: 380 V Dimensions (L x W x H): 2000 x 1400 x 1600 mm Weight: approx 1,5 T

Condition: used, Year of construction: 1983, Surface Grinding Machine MONOPRECIS 1DR Travel X: 400 mm Travel Y: 150 mm Iaodjzd Txfopfx Aquou Maxi grinding height (Z): 220 mm Year of construction: 1983 Manuel Magnetic chuck dimensions: 2500 x 130 mm Max Grinding wheel dimensions: Ø 170 mm Diamond system Manual movement Voltage: 380 V Dimensions (L x W x H): 1300 x 1200 x 1800 mm Weight: approx 800 kg

Condition: used, Surface Grinding Machine BURDETT type No 70 - 18" x 6" Travel X: 350 mm Travel Y: 150 mm Maxi grinding height: 180 mm Manual magnetic chuck Magnetic chuck dimensions: 350 x 150 mm Grinding wheel dimensions: Ø 210 mm x thickness 25 mm X and Y Axes: auto pass taking Iaedpszd Szxofx Aquou Z Axe: manual Lubricant tank Voltage : 380 V Dimensions (L x W x H): 1300 x 1200 x 1700 mm Weight: approx 1 T

Condition: excellent (used), Year of construction: 2014, 4-axis mitre grinding machine with water tank and pump. Width: 8300 mm Height: 3260 mm Depth: 1000 mm Iodpfjzd Sm Usx Aqusau Condition: very good, second-hand

Condition: like new (used), Year of construction: 2023, functionality: fully functional, 11 cup wheels vertical glass edging machine condtion as new with only 39536 mtrs with variable angle : 0-45° glass thikness : 3 - 30 mm min. glass size : 65 x 65 mm ( till 12 mm glass) min. glass size with variable angle 45° : 150 x 150 mm max. arris width : 5 mm work height : 895 mm max. glass weight : 600 Kg / m machine sizes : L = 8385 x W : 1200 x H : 2900 mm weight : 4800 Kg Iodoy D T Ayspfx Aqujau Available : from stock .

Condition: ready for operation (used), Year of construction: 1972, functionality: fully functional, grinding length: 4,000 mm, grinding width: 500 mm, spindle speed (max.): 1,400 rpm, overall weight: 11,000 kg, TECHNICAL DETAILS Max. grinding length: 4,000 mm Max. grinding width: 500 mm Max. distance between table and spindle center: 900 mm Table speed: 3 - 25 m/min Spindle speed: 1,400 rpm Grinding spindle motor: 11 kW MACHINE DETAILS Weight: approx. 11 tons EQUIPMENT Including complete electrical system Permanent magnet table Cast iron bed (overhauled in 2011) New hydraulics and digital Z-axis Swiveling spindle Iasdpfxozd Rqle Aqueu

Condition: good (used), Year of construction: 1987, Ref. -No.: 10635 Manufacturer: TOS HOSTIVAR Type: BHU 32 Year of construction: 1987 Max. Grinding length: 630 mm Iodpfx Aqozc D Ezsusau Grinding Diameter: 320 mm

Condition: good (used), Year of construction: 2004, Ref. -No.: 10629 Manufacturer: MICHAEL DECKEL Type: S20 Turbo Year of construction: 2004 Type of control: CNC-Steuerung Storage location: Halberstadt Country of origin: Germany Workpiece Diameter: 250 mm Max. Grinding length: 340 mm Max. Workpiece Weight: 50 kg Grinding wheel diameter (max.): 150 mm Turning Speeds: 8000 RPM Workpiece holder: SK 50 Further information: Iedpfx Ajzc D Ehjqujau The machine can be viewed while powered up.

Condition: good (used), Year of construction: 1997, Ref. -No.: 10619 Manufacturer: KELLENBERGER Type: 600 U Nr. 35 Year of construction: 1997 Type of control: Konventionell Control: n/a Storage location: Halberstadt Country of origin: Switzerland Distance between center: 600 mm Center height (standard): 125 mm Height of centers by lifting work blocks head and tailstock: 175 - 250 mm Ijdpfx Aszc D Dqjqueau Swing diameter with lifting blocks max.: 350 - 500 mm Table swivel / each side: 10 ° Dwell time of the table reversal: 0- 5 Sec Diameter / width / hole: 250 x 13 x 76 mm Speeds of the grinding wheel spindle: 1500 / 1700 / 2200 / 3600 Swiveling grinding wheel head: 360° ° Cross movement of the grinding wheel head: 285 mm Quickly pulling the wheel head back and forth: 40 mm Intermittent injection for each reversal of the table: 0,001 - 0,03 mm / dia Working speeds continuously adjustable (normal / special): 20-400 / 10-400 Max. Grinding length: 900 mm Further information: The machine can be viewed while powered up.

Condition: good (used), Year of construction: 2001, Ref. -No.: 10617 Manufacturer: KELLENBERGER Type: 600 U Nr. 36 Year of construction: 2001 Type of control: Konventionell Control: n/a Storage location: Halberstadt Country of origin: Switzerland Distance between center: 600 mm Center height (standard): 125 mm Height of centers by lifting work blocks head and tailstock: 175-250 mm Swing diameter with lifting blocks max.: 350 - 500 mm Table swivel / each side: 10 ° Dwell time of the table reversal: 0 -5 Sec Diameter / width / hole: 250 x 13 x 76 mm Speeds of the grinding wheel spindle: 360° Cross movement of the grinding wheel head: 285 mm Quickly pulling the wheel head back and forth: 40 mm Intermittent injection for each reversal of the table: 0,001 - 0,03 mm / dia Iedpfszc D Dkox Aqusau Micro-corrector of the feed, 1 division of the dial: 0,001 mm / Ø Working speeds continuously adjustable (normal / special): 20 - 400 / 10-400 Max. Grinding length: 900 mm Further information: The machine can be viewed while powered up.

Condition: ready for operation (used), Year of construction: 1988, Horizontal surface grinding machine Okamoto Type PSG 63 – UAN Year of manufacture: 1988 Grinding length: 600 mm Grinding width: 320 mm Max. workpiece height: 500 mm Table travel (longitudinal): 750 mm Table travel (cross): 340 mm Iedpezd N N Tefx Aqujau Grinding wheel diameter: 350 mm Grinding wheel width: 40 mm Spindle speed: 1500 rpm Rapid vertical feed: 400 mm/min Power: 3.7 kW Automatic feed Magnetic chuck Coolant system Weight: 2500 kg Price: EUR 2,000—plus VAT, ex location

Condition: good (used), Year of construction: 1982, 1 used surface and guideway grinding machine Manufacturer: ELB Model: SWDE 30 U CNC Year of manufacture: 1982 / 1999 Control type: CNC Control: Mitsubishi 520 Location: NRW Country of origin: Germany Delivery time: short notice Delivery terms: ex stock TECHNICAL DATA Grinding length: 3000 mm Grinding width: 900 mm Workpiece height: 600 mm Iaodpfeynglbex Aqueu Electromagnetic chuck: 3000 x 900 mm Pole pitch: 18 mm Grinding wheel dimensions: Ø 500 x 100 mm Control: Mitsubishi 520 Total power requirement: 18.5 / 5.5 kW Machine weight approx. 19 t Space requirement approx. 9 x 4.5 x 3.5 m Shipping dimensions approx. 13 x 2.5 x 3.5 m

Condition: good (used), 1 used twist drill grinding machine Isdpfx Asyl Idajqujau Manufacturer: Darex Model: XT 3000 Technical data Motor: 230 Volt – 0.2 kW – 50 Hz Speed: 2850 rpm Grinding type: Conical surface, cross grinding Point angle: 118°–150°, steplessly adjustable Grinding range: 3–21 mm Dimensions (W x D x H): 410 x 410 x 260 mm Weight: 25 kg Equipped with: Grinding attachment and cross table for grinding countersinks

Condition: good (used), Year of construction: 2019, 1 used horizontal reciprocating roller grinding machine Manufacturer: Granlund Type: 650 XB Year of manufacture: 2019 Iaedpfey Nxd Tsx Aqueu Operating hours: 2905 Control: Fanuc Series 31i - B Technical data Max. workpiece length (mm): 300 Outer diameter of ring grooves (mm): 120-650 Grinding wheel diameter (mm): 356 Grinding wheel thickness (mm): 75 Tailstock quill stroke (mm): 45 Equipment: automatic grinding wheel dressing device, 2 x tailstock, paper band filter system, oil mist extraction, control cabinet with cooler, grinding wheel balancing stand Dimensions: 3800 x 2800 x 2200 mm Weight: 4500 kg Technical features It is possible to perform deep grinding on soft workpieces. This means that no pre-milled blank parts need to be manufactured or purchased, as the machine performs the entire process. The machine is equipped with an automatic grinding wheel dressing cycle, including automatic compensation for wheel diameter and cutting speed.

Condition: good (used), Year of construction: 1990, 1 used surface grinding machine make Rosa type ER 10 Ijdpfx Aqjuuik Ssuoau year of construction 1990 Technical data Travel 1000 x 600 mm Magnetic plate 1000 x 600 mm maximum sanding height 400 mm longitudinal speed 2-30 m/min Transverse speed infinitely variable 0-3 m/min Sanding spindle speed 1450 rpm Grinding wheel diameter 400 x 60 x 127 mm Grinding wheel motor power 7.4 KW Dimensions 3900 x 20 50 x 2400 mm Weight 6 tons

Condition: good (used), Year of construction: 1987, Twist drill grinding machine Make: SCHANBACHER Type: S 3-50 Year of manufacture: 1987 Technical data: - simple operation - grinding by means of gear motor - twist drill dimensions 3 - 50 mm - point angle 90 - 140 ° - adjustable clearance angle - grinding motor 400 V / 0,25 kW - geared motor for swiveling movement 400 V / 0,12 kW - grinding wheel dimensions Iasdpfsmnntmsx Aquou - 175 x 22 x 20/90 x 20 mm - space requirement approx. W 810 x D 570 x H 1260 mm - weight approx. 120 kg - with - clamping device - presetting device
