Used Spindle Drilling Head for sale (21,390)

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox Njdpfob A R Rbsx Ahkowk -Number: max. 21 drill bits -Recording: M8 -right/left: rotating alternately -Spacing between rows of drill bits: 32 mm -Drill bit spacing: 96 mm -Number: 2 drill heads available Price: per piece -Dimensions: 415/220/H90 mm -Weight: 12 kg/piece

Condition: good (used), Year of construction: 1987, Multi-spindle head, multi-spindle drilling head, drilling gearbox -Multi-spindle head -Number of drill spindles: 5 (adjustable spacing) -Drill bit diameter: max. 11 mm -Cardan shafts: 5 pieces -Largest drilling pattern; Drill dimensions: 100 x 230 mm -Weight: 27 kg -Multi-spindle heads are: variable tools -for various machining operations such as: drilling, thread cutting, countersinking, reaming, -with which multiple holes can be machined at once -Dimensions: 450/190/H660 mm Nwsdob A Ifkspfx Ahkok -Weight: 27 kg

Condition: good (used), Alzmetall AC 32 Turret Twin-Head Gang Drill An extremely robust and rare twin-head gang drill based on two Alzmetall AC 32 drilling units. This system is a high-quality industrial machine designed for highly efficient serial or progressive machining operations. Instead of standard spindles, this machine is equipped with two separate tool turrets. This enables fully automated machining cycles (e.g., centering, drilling, countersinking, tapping) without the need for manual tool changes. Technical Data & Equipment (per head / entire system): Drilling unit manufacturer: Alzmetall (Germany) Model: AC 32 (Electronically controlled with digital display) Drilling capacity: max. 32 mm in steel Tapping capacity: max. M 24 / M 30 Tool changer: 2x swiveling multi-station turret heads Machine table: Solid, ground cast-iron table with T-slots for flexible setup Safety: Full enclosure of the working area (safety cabin) with viewing windows for optimal protection against chips and coolant spray Additional features: Integrated coolant system, compressed air blow-off gun, central counterweight system for easy height adjustment of the entire crossbeam Nwjdpfsznic Uox Ahksk You can find more items—both new and used—in our shop! International shipping costs available upon request!

Condition: good (used), Year of construction: 1984, Multi-spindle head, multi-spindle drilling head, drilling gearbox -Multi-spindle drill head with: drive -Drive geared motor SEW Eurodrive type: RF40DT80K4B -Power: 0.55 kW Nwedpfxedz A Tpj Ahksk -Speed: 165 rpm -max. x: drill bit -4x built-in drill bits Collet: mm -Drilling pattern can be adjusted -Dimensions: 1115/150/H300 mm -Weight: 55 kg

Condition: good (used), Year of construction: 1984, Multi-spindle head, multi-spindle drilling head, drilling gearbox -Multi-spindle drill head with: drive -Drive geared motor SEW Eurodrive type: RF40DT80K4B -Power: 0.55 kW -Speed: 165 rpm -max. x: drill bit Nwsdpfxodz A Tro Ahkek -4x built-in drill bits Collet: mm -Drilling pattern can be adjusted -Dimensions: 1115/150/H300 mm -Weight: 55 kg

Condition: good (used), Year of construction: 1984, Multi-spindle head, multi-spindle drill head, drilling gear Nsdpfjdym D Tjx Ahkjwk -Joint multi-spindle head -Max. x drill -7x drill built-in collet: mm -min. Distance drill: mm -Weight: 11.3 kg Articulated multi-spindle heads are: variable tools for various machining operations such as drilling, thread cutting, countersinking, reaming, milling, turning, with which several holes can be machined at once.

Condition: used, Year of construction: 1998, machine/vehicle number: 18109, 2-Spindel-Papierbohrmaschine - 2-head spindle paper drilling Nagel Citoborma 280bYear 1998 Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Available Immediately - Can be inspect On Stock Emskirchen / Nürnberg - Can be test Nwodpfx Ahoh Axrkjkek

Condition: used, Multi-spindle head, drilling beam, multi-spindle drilling head, articulated multiple-spindle head, row drilling machine, dowel drilling head, dowel drilling machine, drilling gear, drilling head -Manufacturer: Grotefeld, multi-spindle head max 3 drills Njdpfx Ajhh Tk Eehkswk -Admission: M8 -Spindle drive: dimensions see photo techn. drawing -Spindles: 2x clockwise / 1x counterclockwise rotating -Distance drill: see photo -Dimensions: 132/85 / H82 mm -Weight: 3.1 kg

Condition: used, Year of construction: 2009, Used Machine Year of manufacture: 2009 Condition: Overhauled by a Hirzt specialist Description: The machine’s design is very simple. The workpiece is loaded into the machine. A quickly adjustable stop with pneumatic locking centers the workpiece in the machine. After a foot switch is activated, the workpiece is pneumatically clamped and automatically fed to the drilling unit (30 m/min). Nwodpfx Ajzwg Tiehkok The vertical spindles drill from below, so that the resulting chips do not remain on the workpiece, as they would in a machining center. The horizontal spindles operate on two sides of the workpiece. The workpiece can be of any length, as it is guided to the drilling unit (= X-axis). The drilling spindles can be freely programmed individually or in groups and move along the Y-axis. The drilling depth and the horizontal drills are controlled by the Z-axis. After all holes have been drilled, the workpiece is conveyed back to the infeed side or, if desired, to the outfeed side. While in conventional machining centers the workpiece is clamped using a vacuum and the vacuum clamps must be adjusted to the workpiece size, this step is completely eliminated with the 3-axis-controlled point-to-point drilling machine. Advantages: - High machining speed - Good value for money - Compact footprint All drilling operations can be performed in a very small space: - Row drilling - Structural holes - Hardware holes - Cabinet joint holes Features: - Welded machine frame - Drilling head with 7 vertical drilling spindles and 1 horizontal double drilling spindle - 3-axis control: - X: NC-controlled plate feed via “overlapping” pneumatic clamping jaws - Y: NC-controlled drill head movement - Z: NC-controlled drilling spindle depth adjustment - TRK precision guides - Pneumatic split pressure beam above the drilling unit - Pneumatic roller hold-down devices in the feed area - Pneumatic clamping jaws for transport - Pneumatically lockable side stop with rollers - Control via Windows XP-based PC (1 GB flash memory) - 8?? color screen - Alphanumeric multifunction keyboard including mouse - Network card - USB interface Technical Specifications: - Number of controlled axes: 3 - Maximum panel width: 1,000 mm - Maximum drilling width: 800 mm - Maximum feed rate (X-axis): 30 m/min - Drill speed: 3,400 rpm - Maximum drill bit diameter: 35 mm - Maximum total drill bit length: 70 mm - Drill bit chuck: 10 mm shank with clamping surface - Power rating: 2.5 kW - Exhaust port diameter: 100 mm - Required pressure: 6 bar - Working height: 900 mm - Fold-out roller support on the feed side, 500 x 750 mm Dimensions: 1,650 x 1,920 mm Availability: available shortly Location: North Rhine-Westphalia

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 5x drill bits -Recording: M8 -right/left: rotating alternately Nedpfx Aob A R Itshkowk -Drill bit spacing: 32/58 mm -Dimensions: 250/90/H100 mm -Weight: 6 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 5x drill bits -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm -Drill bit spacing: 48 mm -Number: 2 drill heads available -Price: per piece -Dimensions: 185/80/H80 mm Nwjdpfx Aob A R Rnehkok -Weight: 6 kg

Condition: used, Multi-spindle head, drilling beam, multi-spindle drilling head, articulated multi-spindle head, row drilling machine, dowel drilling head, dowel drilling machine, drilling gear -Number: max. 3x drill Nwodpof S T Iwofx Ahkjk -Admission: M8 -right/left: rotating alternately -Distance drill: 25 mm, offset (see photo) -Number: 3 drill heads available -Price: per piece -Dimensions: 90/85/H70 mm -Weight: 1.6 kg/piece

Condition: used, Multi-spindle head, multi-spindle drill head, drilling gear Njdpfjd Nkrwjx Ahkjwk -Multispindle head -Spindles: 7 -Socket: Ø 20 x 30 mm -Number: 2x built-in drill -Dimensions: Ø 120/290 mm -Weight: 2.2 kg

Condition: used, Multi-spindle head, multi-spindle drill head, drilling gear -Piece multi-spindle head: 3 -Spindles: 2, 3 4 -Socket: Ø 20 x 28 mm -Price: complete Nwodpod Nzg Dsfx Ahkek -Dimension: see pictures -Weight: 7 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 7x drill bits -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm Nwsdpfeb A R Rrox Ahkjk -Number: 2 drill heads available -Price: per piece -Dimensions: 240/70/H80 mm -Weight: 6 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 7x drill bits -Recording: M8 -right/left: rotating alternately Nwodpfsb A R R Isx Ahkjk -Drill bit spacing: 32 mm -Number: 2 drill heads available Price: per piece -Dimensions: 245/70/H90 mm -Weight: 8 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 6x drill bits -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm Nwsdpfx Ajb A R Rxohkjk -Dimensions: 210/60/H100 mm -Weight: 8 kg

Condition: good (used), Code: 0318 Brand: BIESSE Model: F 39 E - CE Standard Electronic multiple boring machine with 39 spindles for furniture, carpentry, custom-made furnishings, panels, kitchens, bathroom furniture, doors,window frames, and various - CE Standard Suitable for horizontal and vertical drilling, any intermediate drilling between 0 and 90° can be performed thanks to a gear motor and handwheel. Electronic control Technical data: N° 39 spindles Spindle rotation speed 4000 rpm Center distance between spindles 32 mm Max drilling center distance 1216 mm Drilling depth 65 mm Drilling head motor power 2,3 + 2,3 Hp Nodpfx Ajy Tt Rpshkowk Air operating pressure 6 bar Installed electrical power 4,1 Kw Overall dimensions mm 1800 x 1140 x 1600 h Weight kg 700 MACHINE SOLD UNDER THE CONDITIONS IN WHICH IT IS FOUND NOT RECONDITIONED

Condition: used, Multi-spindle head, multi-spindle drill head, drilling gear -Multispindle head -Spindles: 4 Nwsdpfxod Nkrxj Ahkok -Socket: Ø 20 x 30 mm -Dimensions: Ø 120/165 mm -Weight: 2.2 kg

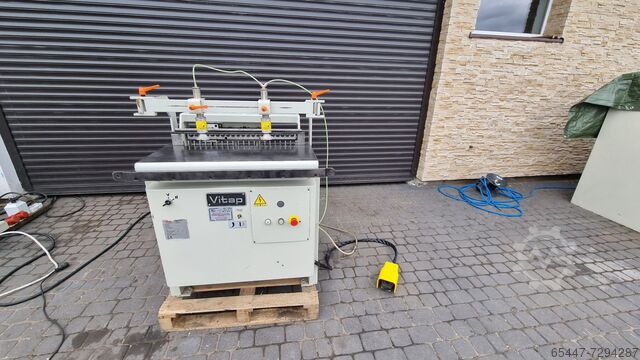

Condition: like new (used), operating hours: 20 h, functionality: fully functional, TECHNICAL DATA Number of spindles: 21 Distance between first and last drill bit: 640 mm Distance between centers of individual spindles: 32 mm Maximum workpiece size: 50 x 915 x 3000 mm Maximum drilling depth: 65 mm Number of pneumatic hold-downs: 2 Working table height of the drilling machine: 860 mm Maximum hold-down height above table: 70 mm Operating pressure: 6–7 bar Air consumption: 10 l/cycle Motor power: 1.5 kW Noise level: 76.1 dB Speed: 2800 rpm Dimensions L/W/H: 1030/1030/1285 mm Weight: 275 kg PRODUCT FEATURES Main features of the machine: - Single-head drilling machine for drilling operations from 0 to 90° - Pneumatically adjustable drilling head angle Nwjdpfoy At Ndjx Ahksk - Cast-iron stops - Spindles suitable for quick couplings - Patented pneumatic workpiece clamps - Cast-iron worktable - Fast and precise adjustment - Accurate drilling - Made in Italy Standard equipment of the machine: - 2 aluminium measuring scales, each 1.5 m (right and left) with two stops - 5 quick couplings - Wooden transport box for machine protection during transport ADVANTAGES - Drilling vertically/horizontally/at an angle - Multi-spindle drilling machine - New machine - CE certificate - Robust - Professional Net price €2,950.- Machine shipping not included Packaging included Net prices apply to international transactions and EU customers with a valid EU VAT ID No.

Condition: ready for operation (used), Year of construction: 2002, Professional, heavy-duty version by HANG (German quality) in neat, complete condition. Highly suitable for binderies, printing shops, and print departments. ⸻ Specifications • Brand / Model: HANG 107-30 electronic • Serial number: 102553 • Year of manufacture: 2002 • Number of drilling heads: 4 pieces, individually adjustable • Electronic control, automatic drilling cycle • Power connection: 400V – 50Hz – 6A • CE certification present • Cast iron frame, extremely robust construction • Manual and automatic operation • Adjustable stops with fine adjustment • Machine is mounted on swivel casters (easily movable) ⸻ Condition • Removed from production in working order • Drill spindles and guides run smoothly • No damages, normal signs of use • Immediately ready for operation • Complete, as shown in the photos ⸻ Description The HANG 107-30 is one of the most robust paper drilling machines on the market. Heavier-duty and more professional version than the standard models, thanks to the sturdy drilling heads, automatic drilling cycle, and reliable electronic control system. Perfect for calendar production, book blocks, brochures, index tabs, and more. ⸻ Price 👉 € 3,250 net (0% VAT export possible) Nsdjx A Izlspfx Ahkewk

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 5x drill bits -Recording: M8 Nwedjb A R Ibspfx Ahkjk -right/left: rotating alternately -Drill bit spacing: 32 mm -Number: 7 drill heads available -Price: per piece -Dimensions: 190/75/H90 mm -Weight: 3 kg/piece

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 7x drill bits Nwjdpfx Asb A R Rgjhksk -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm -Drill bit spacing: 15 mm -Dimensions: 190/80/H110 mm -Weight: 8 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 5x drill bits -Recording: M8 Leuco Type 010 Li -Center: clockwise rotation Outer: counterclockwise rotation Nwjdeb A R Hcopfx Ahkok -Drill bit spacing: 32 mm -Dimensions: 95/160/H105 mm -Weight: 4 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 5x drill bits -Recording: M10 -right/left: rotating alternately -Drill bit spacing: 32 mm -Number: 2 drill heads available -Price: per piece Njdpfx Aob A R Ivehkowk -Dimensions: 170/80/H105 mm -Weight: 3 kg/piece
