Used Reishauer Rz 150 for sale (69)

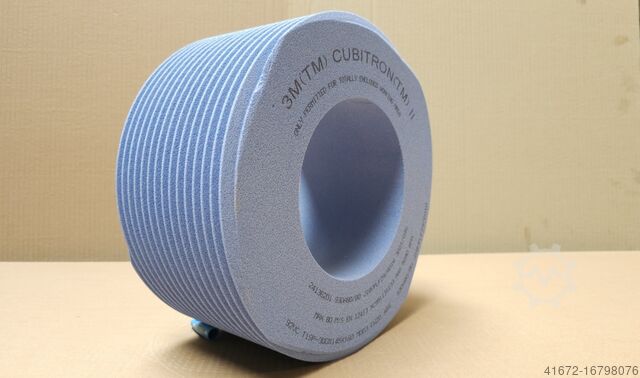

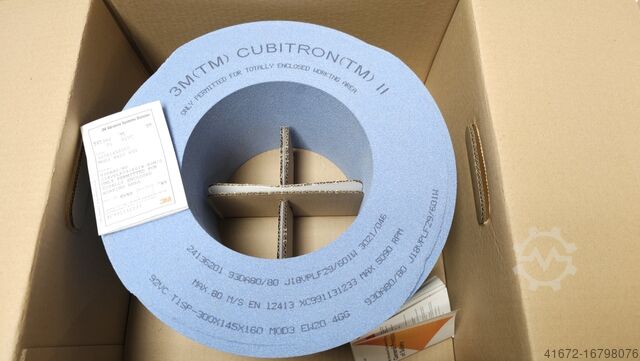

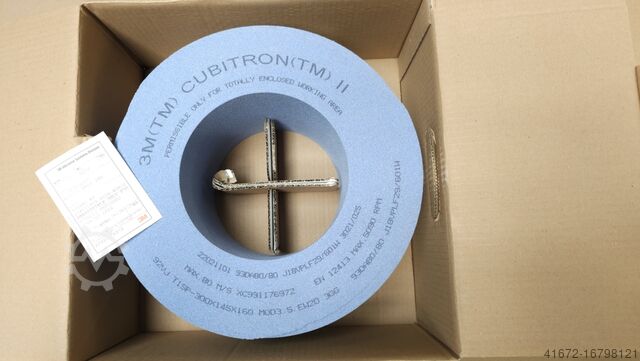

Condition: new, Year of construction: 2023, grinding wheel size 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M2 EW20° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance Ledpfsul Enbex Anusac - Significantly higher sanding parameters than with standard tools

Condition: new, Year of construction: 2023, grinding wheel size 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M2,5 EW20° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Ledsuaym Topfx Anueac

Condition: new, Year of construction: 2023, grinding wheel size 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M2,5 EW20° 2GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs Lasdpfsuaym Hjx Anusc - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools

Condition: new, Year of construction: 2023, grinding wheel size 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M2.25 EW20° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance Laedpfx Aoul Emwsnuec - Significantly higher sanding parameters than with standard tools

Condition: new, Year of construction: 2023, grinding wheel size 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M2,5 EW20° 5GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle Laodpfx Aeuayk Esnusc EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools

Condition: new, Year of construction: 2023, grinding wheel size 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M1.5 EW20° 4GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero Ljdpfx Aoul Ef Hjnusac - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools

Condition: new, Year of construction: 2023, grinding wheel size 300x145x160 mm Laodpsul Eadefx Anujc Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M2 EW15° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 Lodpfevc Apbox Anuoac module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t dimensions of machine: 1800x1850x2500 mm dimensions electric cabinet: Nr. 1: 1930x400x1920 mm dimensions electric cabinet: Nr. 2: 800x230x1950 mm dimensions:: Abluftanlage: 1400x700x560 mm dimension cooling device LxWxH: 1,2 x 1,0 x 0,45 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 77x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t machine dimensions LxWxH: 1,8 x 1,9 x 2,5 m dimensions electric cabinet LxWxH: Nr. 1: 1,95 x 0,4 x 1,95 m dimensions electric cabinet LxWxH: Nr. 2: 0,8 x 0,23 x 1,95 m Ljdpfx Ansvc An Doueac dimensions:: Abluftanlage: 1,4 x 0,7 x 0,55 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 69x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Condition: excellent (used), REISHAUER US is a thread grinding machine designed for precision, high accuracy and reliability. Capacities: max grinding length 450 mm, clamping length 1055 mm, max workpiece Ø 250 mm, thread Ø 2–250 mm, spindle bore 45 mm, weight on centres 200 kg, pitch up to 100 mm, max module 10, wheels Ø 280–350 mm width 4–40 mm. Specs: wheel speeds 6 steps 1700–2540 t/min; work spindle 27 steps up to 160 t/min; 3x380 V 50 Hz; grinding spindle 4 kW; total 15 kVA; machine ≈4700 kg; dims 3300×1930×1800 mm. Accessories: coolant, wheel and flange sets, automatic profile/wheel trueing, rayon redressing device, travelling steady, set of gears, centers, oil-mist extractor, lamp. Achieves tight tolerances; suited to automotive, watchmaking, machine tools, aerospace, medical. Laodjy Emg Iepfx Anusc

Condition: good (used), Gear cutters, module cutters, hob cutters, tooth form cutters, module milling heads, end mill cutters, roller cutters, milling cutters, hob cutters, splined shaft hob cutters, gear hob cutters, slotted hob cutters, rack cutters -Manufacturer: Reishauer, hob cutters, 3 pieces Lsdpfx Asy D Ntzsnuoac -Type: Ø 50 mm / Ø 55 mm / Ø 62 mm -Hole: Ø 27 mm -Price/Fee: complete -Transport dimensions: 115/65/H70 mm -Weight: 1.3 kg

Condition: good (used), End mill, end mill, cutter, shell cutter -Manufacturer: Reishauer, end mill with longitudinal groove, 2 pieces -Type: 75 x 75H Sp 5000 KHSS-E 75x75x27 -Hole: Ø 27 mm -Cutting material: HSS-E -Price/Fee: complete Ledjy A Embspfx Anujac -Transport dimensions: 150/75/H75 mm -Weight: 2.9 kg

Condition: used, Balancing machine for Reishauer grinding worms with flanges * Lsdpfx Aoya Rhqjnusac

Condition: good (used), Wedge bar chuck, power chuck, three-jaw chuck, three-jaw lathe chuck Laedpjb E N Txjfx Anusc -Mouth size: Ø 290 mm -Recess inlet: Ø 268 mm -Bolt circle: Ø 168 mm -Mounting hole: Ø 21/31 mm -Mounting hole spacing: 148 mm -Through hole: Ø 70 mm -Weight: 43.5 kg

Condition: used, change gear bolt Lajdpfx Asd Ihbmsnujc

Condition: used, used grinding spindle with wear marks. Lsdod Ihbljpfx Anujac

Condition: used, max. width of grinding wheel 104 mm diameter / bore of grinding wheel 160 mm Flange taper Laedpfx Anju Sbdyoujc compatible with NZA, AZA, RZ301E etc.

Condition: good (used), Key bar chuck, power chuck, three-jaw chuck, three-jaw lathe chuck -Manufacturer: Reishauer, wedge bar chuck Chuck size: Ø 165 mm -Recess mounting: Ø 268 mm -Bolt circle: Ø 140 mm -Through hole: Ø 40 mm -Dimension: Ø 165 x 120 mm -Weight: 11.7 kg Laedpfewn Eaxox Anuec

Condition: used, Year of construction: 1972, Technical details: grinding wheel diameter: 400 mm total power requirement: 3 kW weight of the machine ca.: 1,5 t dimensions of the machine ca.: 1,5 x 1,4 x 1,3 m Dressing Grinder for gears REISHAUER AM max. width of grinding wheel 104 mm max. dia. of grinding wheel 400 mm max. module 7 min. module 0,5 pressure angle 10 - 30 ° grinding worm dia. 270 - 400 mm width of grinding worm 62/84/104 mm Laedpfx Anewi Ni Teuec grinding worm turning speeds: at profiling 18/35/70 U/min electrics - voltage/frequency 380 / 50 V/Hz long. movement of crowning device 156 mm *
