Used Mag Drill for sale (8,187)

Condition: used, machine/vehicle number: 005446, X axis working area: 3000 mm Y axis working area: 1300 mm Number of controlled axes: 3 axes Itsdpfx Aswuciqoh Neb Total number of drilling spindles: 112

Condition: used, Year of construction: 1997, Used machine Year of manufacture: 1997 Equipment and technical data: Itodpfx Aeyaddfjh Neb smooth operation Spindle MK 3 Motor: 400 V, 0.55 kW Availability: approx. mid-April 2026 Storage location: Hesse

Condition: used, Radial drilling machine with plate field WEBO type HRH 100 / 3000 Machine. No. 10009555/7 -- 1110185 -- 6046 Year of manufacture 1979 Drilling capacity Ø 100 mm in ST 60 at feed rate 0.5 mm/rev. Nominal throat depth 3000 mm Max. throat depth max. 3100 mm Spindle holder MK 6 Spindle speed 22.4 - 1600 rpm 36 steps Feed rate 0.05 - 2.5 mm/rev 18 steps Spindle - base plate distance 970 - 2335 mm Pinol stroke 325 mm Swivel range of the arm 360 movable on bed, bed length 7500 mm Clamping area panel field 8000 x 2100 mm - Electrical central clamping Itodpfjfbt Husx Ah Nsb - Drilling unit can be moved lengthwise on the machine bed by electric motor - Panel field consisting of 2 clamping plates with 7x T-slot, (length 4000 x width 2100 x panel thickness 360 mm) Space requirement L x W x H 8000 x 4550 x 4300 mm Maximum height 4300 mm Transport height (bed with drilling machine) approx. 3150 mm Transport weight (bed with drilling machine) approx. 20 tons Transport dimensions of panel section L x W x H 4000 x 2100 x 900 mm (2 panels stacked on top of each other) Transport weight panel field approx. 14 ton. good condition

Condition: used, Column drilling machine ALZMETALL type AB 4 SV Machine no. No. 14805 Year of construction approx. 1980 drilling capacity 40 mm Spindle holder MK 4 - short quill throat 340 mm Quill stroke 180 mm Table size 710 x 560 mm Column diameter 160 mm Spindle speed 30 - 765 rpm infinitely variable Motor power 2.3 and 3.4 kW pole-changing Mains connection 380 Volt, 50 Hz - Spindle speed via 2 motor speeds and infinitely variable via variator gearbox - Reduction gear with 2 gear stages for high torque at low speeds - Spindle on/off via rotary switch or electric foot switch - Automatic feed 0.1 - 0.2 - 0.3 mm/rev - Table height adjustment via hand crank - Machine base with machined workpiece support surface - LED lighting device Space requirement L x W x H 1200 x 725 x 2050 mm Iedpfx Aen N Ekcjh Nstb Weight 615 kg good condition

Condition: used, Radial drilling machine CSEPEL type RFh 75 / 1500 Machine no. No. 13704 Year of construction 1985 Itodjlhwr Ropfx Ah Nsb Drilling capacity in steel Ø 75 mm Drilling capacity in cast iron Ø 90 mm Spindle holder MK 5 Nominal throat depth 1500 mm Largest projection of the spindle 1500 mm (to the column) Smallest projection of the spindle 440 mm (to the column) Distance spindle nose - clamping surface 370 - 1700 mm Cantilever height adjustment 950 mm Table size / clamping surface 1800 x 1100 mm Column diameter 450 mm Pinol stroke 380 mm Spindle speed 19-1900 rpm 21 steps Feed rate 0.047-2mm/rev. 12 steps Motor power 11 kW Mains connection 380 Volt, 50 Hz, 15 kW - Clockwise/anticlockwise rotation of the drilling spindle via hand lever switch - Hydr. gear shift for spindle speed and feed speed - Hydro-mechanical central clamping - Motorized boom height adjustment - Without coolant device - Machine light - Operating instructions Space requirement: Length 2720 mm x width 1170 mm x height max. 3770 mm Transport height with motor on the column: 3500 mm Transport height without motor on the column: 3250 mm Weight: 6.3 tons good condition

Condition: used, Box column drilling machine WEBO Series- No 132 Machine No: 9 Drilling capacity 50 mm Spindle cone MK 5 - long quill throat 430 mm spindle stroke 280 mm Height adjustment of drill head 500 mm Table size Ø 725 mm Iodpfx Ahsqa Txqe Netb Distance between drill spindle and table max. 740 mm Distance between drill spindle and clamping surface on machine base max. 1240 mm Spindle speed 55-820 rpm Feed rate level 1 0.13 - 0.2 - 0.27 - 0.4 mm/rev. Feed rate stage 2 0.6 - 0.83 - 1.17 - 1.8 mm/rev. Column diameter 300 mm Motor power 2.8 / 3.6 kW pole-changing Mains connection 380 Volt, 50 Hz - Spindle speed via 2 motor speeds and infinitely variable via variator - Manual drill head height adjustment via hand crank, clamping with clamping screws - Rotatable drill table with mechanical clamping - Table height adjustment via hand crank - Clamping surface on machine base 600 x 550 mm Top height of drill head 3020 mm Overall height drill head bottom 2520 mm Space requirement L x W x H 1400 x 780 x 2520 mm Weight 1600 kg good condition

Condition: used, Line boring machine WEBO with 4 stations type B 20 make no. 376/13; 376/14; 376/27; 376/36 year of construction approx. 1970 drilling capacity 20 mm spindle adaptor MK 2 - long spindle sleeve drilling head distance 335 mm throat 260 mm pinol stroke 190 mm table size 350 x 1500 mm distance drilling spindle/table min.30 mm / max. 700 mm Spindle speed drill head 376/13 355, 500, 710, 1000, 1400, 2000, 2800, 4000 rpm. Spindle speed drill head 376/14 355, 500, 710, 1000, 1400, 2000, 2800, 4000 rpm. Spindle speed drill head 376/27 250, 355, 500, 710, 1000, 1400, 2000, 2800 rpm. Spindle speed drill head 376/36 180, 250, 355, 500, 710, 1000, 1400, 2000 rpm. Motor power 1,1 / 1,3 kW Mains connection 380 Volt, 50 Hz - Spindle speed via 2 motor speeds and 4 V-belt steps - drill head height adjustment via toothed rack and hand crank approx. 300 mm Ijdsihmwtspfx Ah Netb - height adjustable drilling table approx. 350 mm space requirement L x W x H 1750 x 1100 x 1900 mm weight 1900 kg good condition

Condition: used, CNC Universal Coordinate Drilling and Milling Machine FEHLMANN type PICOMAX 100-CNC 3 CNC control HEIDENHAIN TNC 155 make no. 16186651 year of construction 1986 Iodpfxshik Ezs Ah Netb spindle holder FEHLMANN SF32 drilling capacity Ø 30 mm in steel threading up to M20 in steel travel X: 850 mm, Y: 435 mm pinol stroke Z: 210 mm vertical movement milling head 580 mm Feed X and Y 1 to 8000 mm/min. Feed Z 1 to 4000 mm/min. Rapid traverse X and Y 8 m/min. rapid traverse Z 4 m/min. Table clamping surface 1570 x 500 mm distance spindle nose - table 130 - 720 mm projection spindle - column 450 mm Spindle speed 50 - 7100 rpm. Stepless spindle drive 10 kW Total connected power 20 kW Mains connection 400 Volt, 50 Hz - CNC control HEIDENHAIN TNC 155 with TFT monitor - 3 axes controlled, X, Y and Z pinol adjustment - hydro-mechanical tool clamping FEHLMANN SF32 - thread cutting device - cable remote control for machine operation and axis movements - motorized vertical movement of the milling head with shut-off via adjustable cams - 3D probe RENISHAW, type MP 11F with holder Fehlmann SF32 - 20 tool holders FEHLMANN SF32 - swivelling tool holder with 21 tool places - Coolant device in the machine column - control cabinet fixed to the machine - Documentation Operating manual, control manual and E-circuit diagrams space requirement L x W x H 2350 x 2000 x 2300 mm weight 3,2 ton. very good condition

Condition: used, Column Drilling Machine ALZMETALL Type AB 3 ESV Machine No. 15967 Year of manufacture 1977 Drilling capacity: 32 mm Spindle taper: MT 3 – short quill Distance spindle nose – table: 545 mm (short quill) Distance spindle adapter – table: 395 mm (MT adapter) Throat: 290 mm Quill stroke: 160 mm Isdpfx Aeharwvsh Nstb Table size: Ø 545 mm Column diameter: 220 mm Spindle speed: 55 – 1450 rpm, stepless Motor power: 1 / 1.6 kW Supply voltage: 380 Volt, 50 Hz - Spindle speed via 2 gearbox stages, 2 motor speeds and stepless through variable-speed drive - Intermediate gear stage for high torque at low speeds - MT adapter from MT3 to MT4 - Automatic feed 0.1 – 0.2 – 0.3 mm/rev - Swiveling drill table - Table height adjustment via hand crank - Heavy machine base with machined workpiece support surface (not original Alzmetall) - Work area lighting Space required (L x W x H): 1150 x 650 x 2000 mm Weight: 850 kg Good condition

Condition: used, Vertical milling head, milling head with motor drive THIEL Tool holder: MK 5 (Morse taper size 5) Quill stroke, spindle travel: 80 mm Spindle speed at motor speed 1410 rpm = 490 / 780 / 1200 rpm. Spindle speed at motor speed 2950 rpm = 970 / 1530 / 2380 rpm. Spindle bore: 37 mm Motor power: 1.4 / 1.8 kW Motor speed: 1410 / 2850 rpm Power connection: 400 Volt, 50 Hz - Spindle speed via 2 motor speeds and 3 belt stages - Mounting flange milling head Ø 215 mm with 2 bores Ø 15 mm, hole spacing 180 mm - suitable for tools with drawbar thread (ejector tang interferes with clamping) Required space L x W x H: 450 x 400 x 350 mm Net weight: 61 kg Good condition Iodpexddwrofx Ah Netb

Condition: good (used), Year of construction: 1999, Drill grinding machine, drill grinding device, tool grinding machine, twist drill grinding machine -Manufacturer: CUOGHI AFFILATRICI, drill grinding machine type APE60 with point thinning device -Drill chuck: up to Ø 60 mm -Grinding discs: Ø 200 x 45 x 32 -Coolant system: present -Accessories: incl. tools (see photo) -Dimensions: 860/880/H1300 mm -Weight: 275 kg Itedeyab Syspfx Ah Njb

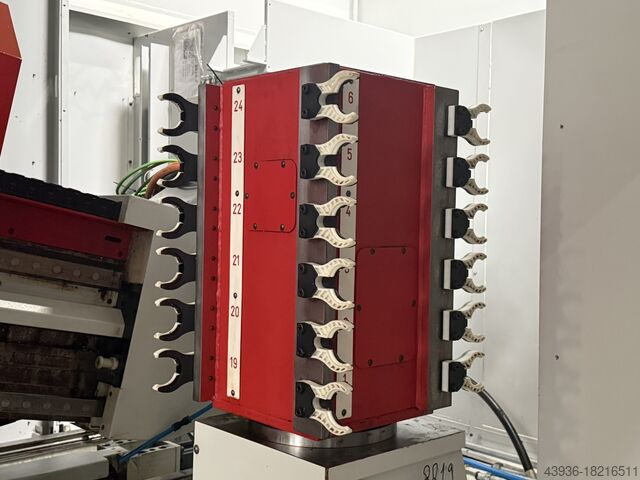

Condition: good (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 310 mm, rapid traverse X-axis: 75 m/min, rapid traverse Y-axis: 75 m/min, rapid traverse Z-axis: 75 m/min, nominal power (apparent): 17 kVA, total height: 2,300 mm, total length: 1,500 mm, total width: 2,600 mm, overall weight: 3,400 kg, spindle speed (max.): 30,000 rpm, spindle nose: HSK40, number of slots in tool magazine: 40, input voltage: 400 V, type of input current: three-phase, CNC machining center CHIRON FZ08 KS Magnum High Speed Plus (HSP) TECHNICAL CHARACTERISTICS: Year of manufacturing: 2007 CNC control : FANUC 18i-MB5 Number of axes : 7 Stroke X axis : 450 [mm] Stroke Y axis : 270 [mm] Stroke Z axis : 310 [mm] Traversing feeds X, Y and Z axes : 75000 [mm/min] Max. bar diameter in turning spindle : 32 [mm] Main spindle max. speed : 8000 [rpm] Main spindle max. power : 12 [kW] Isdpfex U U Hbjx Ah Nstb Angular A axis stroke : 360 [°] A axis indexing precision : 0.001 [°] B axis swivelling stroke : -20° / +115 [°] B axis indexing precision : 0.001 [°] Spindle type : HSK40 Max. spindle speed : 30000 [rpm] Tool changer magazin number of stations : 40 Part turnaround by robot (6th side machining) : Yes RS232 Interface : Yes Total power required : 17 [kVA] Supply voltage : 400 [V] Dimensions : 1500 x 2600 x 2300 [mm] Weight : 3400 [Kg] More information available upon request.

Condition: good (used), Table size: Itodpfx Ahjd Tticj Neb - horizontal: 500 x 600 mm - vertical: 310 x 600 mm Tiltable: 90° Dimensions LxWxH, approx.: 700 x 520 x 520 mm Weight, approx.: 280 kg Item no.: WW12214

Condition: used, Year of construction: 2018, 1 x CNC-CONTROLLED DRILLING, GLUING AND DOWEL INSERTING MACHINE GANNOMAT "INDEX 130 PRO" (with options as Index 180 Pro) 400V, 3Ph, 50Hz complete in standard design with: - Support with linear guide consisting of: 1 x single-spindle horizontal drilling unit, 1.1 kW motor, tool speed selectable via operator software (3000/5000/8000 rpm) 1 x blow-out, gluing and dowel inserting station in reinforced design for dowels Æ 8 mm, dowel length 30 mm - fully automatic, electronically controlled central lubrication - X-axis NC controlled, with working length 1300 mm, travel speed max. 78 m/min. - Z-axis, position via support table 5-40 mm programmable with NC-controlled Z-axis option - Dowel driving overhang of 7-20 mm, programmable with NC-controlled Y-axis option, drilling depth of 0-35 mm (with drill length GL 70 mm) is automatically set with driving overhang - Closed glue system with 6 bar glue pressure via glue nozzle, for glues with a viscosity of 150 to 350 mPas - Glue quantity continuously adjustable via operator software - GL/WATER selector switch for rinsing the glue system, 1 stainless steel container each for 5 kg glue and 5 l water - Control lamp for residual glue quantity display in the glue container - 1 side stop left, 1 side stop right and 1 center stop (all removable) - 4 start buttons for individual working with 1-4 workpieces - 4 pcs. Pneumatic inclined clamping cylinder 10° for workpiece thicknesses up to max. 80 mm, workpiece length (Y) min. 70 mm - 1 pc. suction funnel, connection Æ 80 mm - 1 pc. TCT control with: built-in industrial PC, incl. Soft PLC type Beckhoff TWINCAT, operating temperature range 0-50°C, TFT industrial display 15" resistive touchscreen, resolution 1024 x 768, CPU 2 GHz, 256 MB RAM, 2x network interface adapters, IDE hard disk, 4x USB rear, 1x USB front, operating system: WINDOWS 7 - programming via menu-driven user software, drilling distances freely programmable with ABSOLUTE, RELATIVE or GRID dimensioning, automatic workpiece mirroring and work step optimization, 4 work fields can be assigned with different programs, graphic workpiece display, parametric programming, 0-point shift, programmable work lists, error diagnosis with plain text OPTIONS: 1 electronic, optical glue monitoring system G.I.C. (Glue Insert Control) for 1 glue nozzle 4 vertical inclined clamping cylinders 10° with holder, additionally, (total 8 clamping cylinders) 1 surcharge for machine bed length 1800 mm with working length 1800 mm 1 surcharge for: 1 horizontal drilling unit, motor 1.5 kW, with multi-spindle drilling head with 3 individually controllable drilling spindles, pitch 32 mm arranged in X-axis, tool speed 3000 rpm. (The standard working length is not reduced) 1 Y-axis NC-controlled, with recirculating ball screw and dynamic traversing speed of 300 mm/sec. The dowel driving overhang 7-30 mm and the drill hole depth 0-42 mm can be programmed via software. (with drill length GL 77 mm) for vertical drilling unit drilling from TOP, Y-axis position 5-42 mm 1 surcharge Y-axis NC-controlled position 5-62 mm instead of 5-42 mm 1 surcharge for: 1 vertical drilling unit drilling from TOP, motor 1.5 kW, with multi-spindle drilling head with 3 individually accessible drilling spindles, 32 mm pitch arranged in X-axis, tool speed 3000 rpm. Y-axis position 5-42 mm, workpiece length (Y) min. 130 mm, (the standard working length is not reduced) 1 Z-axis NC-controlled, with K Iedpsxwaz Hjfx Ah Notb

Condition: used, Year of construction: 2024, Dowel Hole Drilling Machine GANNOMAT "DB 21400V, 3Ph, 50Hz / 1.5 kW" complete in standard configuration, equipped with: - Fully automatic electronic control with pulse operation via foot pedal for clamp-drill-release sequence, including electrical skip operation. - Automatic return of the drilling unit after reaching the preset drilling depth. - Automatic drilling depth extension for end-face drilling. This saves the need to adjust the drilling depth when switching from flat-face to end-face drilling (+10 mm, e.g., with dowel length 35 mm, flat-face drilling depth 14 mm, end-face drilling depth 24 mm). - 1 drilling beam with 21 spindles, 32 mm pitch, 1.5 kW motor (drilling feed 0-70 mm). Includes 21 quick-change chucks (Ganner system) for easy drill bit changeover. - Easy pivoting of the drilling unit from 0° to 90°, assisted by gas cylinders. - 1 clamping beam movable on Y-axis with 3 pneumatic clamping cylinders, for workpieces up to max. 80 mm height. Ideal fence system consisting of: - 1 stop ruler, 1800 mm, for shelf drilling (aluminum profile 40x40 mm) with 3 drop-in stops. - Quick-change system, easily switchable from right to left stop for mirrored drilling of shelves in carcass construction; also suitable for line boring in system 32. - Side stops and position adjustments, as well as drilling height position, via mechanical digital counters on the support table. - Side stops can be easily folded away for fastest set-up change from carcass to frame or line drilling. - Clamping arms for the clamping beam enable line boring positions up to max. 300 mm. - Optimized three-stage tool system. Includes 1 set of dowel drill bits: - 5 carbide dowel bits, Ø 8x77 mm, right - 4 carbide dowel bits, Ø 8x77 mm, left Basic machine Dowel Hole Drilling Machine GANNOMAT "DB 21400V, 3Ph, 50Hz / 1.5 kW" complete in standard version, equipped with: - Fully automatic electronic control with pulse operation via foot pedal for clamp-drill-release, electrical skip operation. - Automatic return of the drilling unit after reaching the preset drilling depth. - Automatic extension of drilling depth for end drilling saves the need to adjust depth when switching from flat to end drilling (+10 mm, e.g. for dowel length 35 mm, flat-side depth 14 mm and end-side depth 24 mm). - 1 drilling beam with 21 spindles, 32 mm pitch, 1.5 kW motor (drilling feed 0-70 mm). Includes 21 quick-change chucks (Ganner system) for easy drill changeover. - Easy pivoting of the drilling unit from 0° to 90°, gas spring assisted. - 1 clamping beam, Y-axis adjustable, with 3 pneumatic clamps for workpieces up to max. 80 mm high. - Ideal stop system comprising: - 1 stop ruler, 1800 mm, for shelf drilling (aluminum profile 40x40 mm) with 3 drop-in stops, quick-change system, easily switched from right to left for mirrored shelf drilling in carcass constructions, also usable for line boring in system 32. Itjdpsxnlflofx Ah Neb - Side stops and adjustable positions, as well as drill height position, via mechanical digital counters on the support table. - Side stops can be folded away easily for shortest retool time from carcass to frame and line boring operations. - Clamping arms for the clamp beam suitable for line-boring positions up to max. 300 mm. - Three-stage optimized tool system. Extraction funnel, dust tested, Ø 120 mm 1 set for line boring in system.

Condition: used, Year of construction: 1978, number of spindles 3 Isdpfx Aed Ih S Ssh Njtb bore capacity in steel (diameter) 40 mm bore stroke 180 mm weight of the machine ca. 2,3 t

Condition: good (used), WMW BR 40/2 x 1250 radial drilling machine Drilling capacity in steel (diameter): 60 mm Arm reach: 1250 mm Max. workpiece height: 820 mm Spindle speed: 20-1200 rpm Spindle taper: MK 5 Spindle stroke: 400 mm Feed rate: 0.063-0.63 m/min Vertical arm adjustment: 950 mm Electrical connection: 380 / 50 V / Hz Clamping surface of base plate: 1400x800 mm Total power requirement: 5 kW Machine weight approx.: 3 t Isdpfxex U Ecto Ah Njtb Floor space required approx.: 2.2 x 1.0 x 2.8 m

Condition: used, Year of construction: 1995, Technical details: bore capacity in steel (diameter): 32 mm throat: 293 mm Iodpfx Aex U Dkcoh Nstb bore stroke: 120 mm bore capacity in St 60 - full boring: 40 mm bore capacity in cast iron: Ø 38 mm spindle taper MT: MK 3 spindle throat: 293 mm spindle speed:: 160 - 2250 / seples U/min feed: 0,10 - 0,20 / manuell+automatisch mm/U Distance spindle/table max.: 55 - 642 mm table clamping surface:: 300 x 300 mm drill table adjustment: ja mm column diameter: 115 mm distance spindle center to floor plate:: 1207 mm total power requirement: 1,9 kW weight of the machine ca.: 280 kg dimension machine xH: 0,7 x 1,0 x 1,9 m

Condition: good (used), Year of construction: 2000, 6 bar pressure with insertion device for cup hinges with 5-hole row, 1.6 kW, 380 Volt. Includes 3 drills for cup hinges and foot switch. Ijdpfjx U Di Eox Ah Nstb

Condition: used, Year of construction: 1974, 414312067 voltage 380 V Itedpfjx U A T Njx Ah Nsb frequency 50 Hz rated capacity 13 kVA

Condition: used, Year of construction: 1980, voltage 50 V frequency 50 Hz ampere 3,7 A 21882 speeds: 3 Iodpfox U A Slsx Ah Netb

Year of construction: 2000, condition: used, core boring STIHL number 2 Stück 1 Stück 4 Stück +++++ Please note: Itjdjx U A Ndjpfx Ah Njb The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++

Condition: used, Year of construction: 1978, 40 1008 rated current 20 A voltage 24 V weight of the machine ca. 3,5 t Iodjwg Hunspfx Ah Netb

Condition: used, Year of construction: 1962, arm length 1250 mm taper MK 5 Ijdpfx Aex Edwzsh Nstb Bohrwürfel

Condition: used, Year of construction: 1970, taper MK 4 feeds: ja weight of the machine ca. 1,5 t Iedpoxzu Dqofx Ah Netb
