Used Gear Deburring Machine for sale (69,695)

Condition: used, Year of construction: 2002, Technical details: max. wheel diameter: 40-200 mm total power requirement: 31,3 kW weight of the machine ca.: 4 t Hsdpfx Ajxc E Icsahep dimensions of the machine ca.: 1,8 x 2,2 x 1,8 m

Condition: used, Year of construction: 2002, Technical details: max. wheel diameter: 300 mm gear width: 100 mm max. module: 5 workpiece turning speeds: min work piece - max.: 1100 mm workpiece clamping: auto. tension device number of spindle speeds: 1/min. spindle bearing diameter: 100 mm diameter of spindle flange: 120 mm Hedpfoyzh Raox Aahop tailstock travel: 80 mm weight of the machine ca.: 3500 KG dimensions: 1200 x 1450 x 2250 mm total power requirement: 10 kVA The Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility. *

Condition: used, Year of construction: 2015, Technical details: Hedpfxol Ha Ubo Aahep weight of the machine ca.: 4 t

Condition: used, max. wheel diameter 300 mm gear width 200 mm max. module 12 min. module 0,5 total power requirement 2 kW Hsdexu Nttjpfx Aahjp weight of the machine ca. 1 t dimensions of the machine ca. 0,8 x 1,2 x 1,5 m

Condition: good (used), Year of construction: 1982, max. wheel diameter 600 mm gear width 500 mm max. module 15 min. module 1 total power requirement 2 kW weight of the machine ca. 2 t dimensions of the machine ca. 2x1,5x2 m The rounding of the teeth is obtained by coordinating alternative movement of the cutter and rotary movement of the piece. The alternative movement of the cutter is obtained by rotating a cam, shaped in order to obtain radius or cusp rounding. A series of 4 cams allows to work modululus from 1 and 16 included. An regulation device allows change the modulus between the minimum and maximum value of every cam. The rotation of the piece is controlled by a three-stage gear wheel which forms the dividing system. The piece lock and the movement of Hedpjwftuxefx Aahep the rapid entry of the cutter to the piece is controlled by pneumatic servo devices. The practicality and rapidity of the equipment, as well as the wide range of profiles available on the cams and the ability to process internal gears, make the machine a universal machine suitable for machining small and large series. --> technical features Max module: 15 --> Max diameter: 600 mm --> Spindle/head speed: 1450 - 2100 - 2800 rpm --> Production output teeth per minute: 35 - 50 - 75 --> Motor output spindle: 2800 rpm - 1.5 HP --> Motor power piece rotation (self-braking): 1.5 HP --> Motor power automatic (self-braking): 0.35 HP --> Motor power cooling system: 0.25 HP --> Dimensions: 2000 x 1500 mm --> Total weight: 2000 kg Accessories Cam x 5 Indexing wheels Tools Serial no. 152/0589/94 Machine with full enclosure Counter support

Condition: good (used), Year of construction: 2006, functionality: fully functional, PRAWEMA 2005 204 HS-W Hjdevm Efaspfx Aahep PRAWEMA 2006 SYNCHROFINE 205 HS

Condition: used, Year of construction: 2001, Technical details: Hedpfx Ajxxl Sgeahjp max. wheel diameter: 50 mm gear width: 20 mm max. module: 4 mm min. module: 0,1 mm total power requirement: 12,5 kW weight of the machine ca.: 4000 kg dimensions of the machine ca.: 2,2 x 2,5 x 2,3 m workpiece length - max.: 300 mm

Condition: new, Year of construction: 2025, Working width: 380 mm Working height: 250 mm 1st unit, rotor group: Group of two oscillating rotor brushes, Ø 200 mm, one 1.5 kW motor per brush, variable speed drive 2nd unit, rotor group: Group of two oscillating rotor brushes, Ø 200 mm, one 1.5 kW motor per brush, variable speed drive Both units with oscillation: yes Height adjustment: handwheel Height indicator: mechanical counter Feed speed: 1 - 6 m/min Hedev R U Ifopfx Aahep Feed motor power: 0.37 kW Vacuum carpet: yes Machine length: 1400 mm Machine width: 900 mm Weight: 500 kg

Condition: new, Year of construction: 2024, Working width: 380 mm Working height: 150 mm 1. Unit, rotor group: Group of 5 oscillating rotary brushes, Ø 115 mm, each with a 3 kW motor 2. Unit, brush: Scotch Brite Hard / diameter 210 mm, variable drive Height adjustment: handwheel Height display: mechanical counter Feed speed: 4 - 12 m/min Feed motor power: 0.37 kW Vacuum conveyor belt: yes Machine length: 1400 mm Hedpfx Aotnf Rrsahsp Machine width: 900 mm Weight: 500 kg

Condition: used, Year of construction: 1996, functionality: fully functional, machine/vehicle number: 804, We offer this used Sumitomo NPG-2×1000 gear grinding machine, year of manufacture 1996. Model: NPG-2×1000 Serial number: 804 Hjdozgqzcepfx Aahsp Manufacturing year: 1996 Manufacturing month: 7 month If you have any questions or need more information, feel free to send us a message or give us a call.

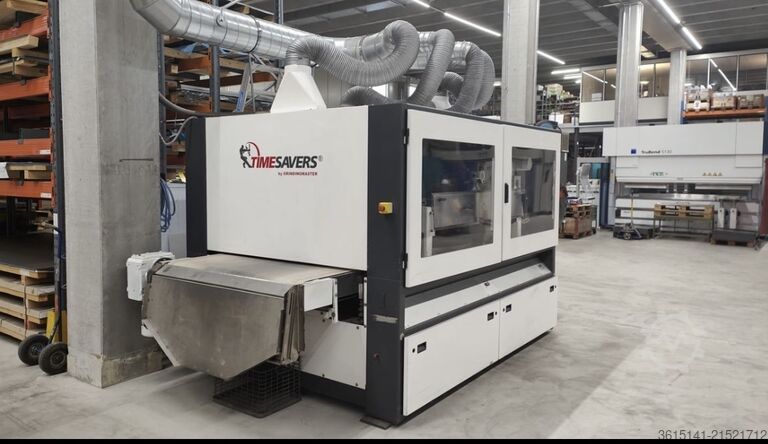

Condition: good (used), Year of construction: 2011, Used deburring machine from TimeSavers with a return conveyor belt. Type 42-series-1350-RB Rotary brush deburring machine Width 1350 mm Equipped with a return conveyor belt to the operator Hodjzhbigspfx Aahep Includes dust extraction system.

Condition: used, Year of construction: 1997, Technical details: max. module: 7 weight of the machine ca.: 5 t worm grinding diameter: 280-350 mm width of grinding worm: 84-104 mm min. number of teeth: 6 max. number of teeth: 600 max. top circle diameter: 360 mm max. workpiece weight: 60 kg without filter Hodpfex Aq Egex Aahjp *

Condition: used, Year of construction: 1998, Technical details: max. module: 7 weight of the machine ca.: 5 t worm grinding diameter: 280-350 mm width of grinding worm: 84-104 mm min. number of teeth: 6 max. number of teeth: 600 max. top circle diameter: 360 mm max. workpiece weight: 60 kg with Turbo Separator, loading unit, latest-generation balancing and dressing unit and various accessories Hodpfx Aaszgw I Nohop *

Year of construction: 2017, condition: used, functionality: limited functionality, machine/vehicle number: 2017038, Technical characteristics: ⚙️ Core Specifications Attribute Value Technology: High-pressure water-jet deburring Max Pressure: Up to 1000 bar Materials Processed: Cast iron, aluminum, steel Machine Type: Rotary table or tunnel with step feed Automation: Robotic arm with programmable sequence: Staubli TX60 newly retrofitted!!! Nozzle Material: Long-life alloy Construction: AISI 304 stainless steel Workpiece Handling: Mechanical clamping on custom pallets Water Treatment: Integrated deoiling and filtration system 🧰 Features & Capabilities Hedpfx Aoxx Nq Tsahep Deburring & Flushing: Removes loose burrs and embedded swarf, even in intersecting holes. Flexible Programming: Supports various part geometries and production volumes. Robotic Integration: Nozzles mounted on anthropomorphic robots for precision targeting. Modular Design: Configurable for different layouts and productivity goals. Eco-Friendly Operation: Water-based cleaning with extended bath life via filtration. Loading/unloading manual table: with the option of 2 work stations running in parallel, equipped with Poka Yoke devices. Machine status: WORKING – High pressure pump needs to be retrofitted to achieve 1000 Bar (currently 350 bar).

Condition: repair required (used), Year of construction: 2008, functionality: not functional, machine/vehicle number: 06-13633, Technical characteristics: Hsdpfx Aasxwl Tzohsp Work Area - Elevation: 160 mm - Minimum center distance between table axis and spindle: -30 mm - Maximum center distance between table axis and spindle: +150 mm - Minimum distance between table surface and cutter spindle: 275 mm - Maximum distance between table surface and cutter spindle: 345 mm - Manual transverse movement of the column: ±20 mm - Maximum workpiece external diameter: 250 mm - Bore diameter: 100 H7 mm Workpiece Specifications - Maximum nominal module (for steel with an approximate tensile strength of 600 N/mm²): 3 mm - Minimum pitch diameter (internal gearing): 60 + d0s mm, where d0s is the external diameter of the cutter (in mm) - Maximum external diameter (internal gearing): 280 mm - Maximum band (toothed area) width: 42 mm - Maximum stroke length for toothing: 50 mm - Maximum spindle travel: 70 mm Load Capacity - Maximum load supported by the table (including fixtures): 150 kg - Maximum force exerted by the tailstock: 1,500 kg - Maximum attainable helix angle (with hydrostatic guide): ~45° Cutter Spindle - External diameter: 85 mm - Cutter holder bore: 45 H3 mm Electrical Equipment - Operating voltage: 400 - 480 V - Control voltage: 24 V - Magnetic voltage: 24 V - Cable cross-section: 16 mm² - Connected power: 15 kW - Protection: 50 A Dimensions - Overall dimensions: Length = 2980 mm, Width = 1650 mm, Height = 2165 mm - Weight: 5700 kg Main Features and Capabilities: - Vertical Design: Optimized for chip evacuation and easy loading/unloading - Control: Siemens Sinumerik 810D/840D - High Precision: Positioning accuracy via Heidenhain linear scales - Measurement system: Marposs T25 (for angle alignment or zero-point rotation definition) - Oil filtration and cooling system - Magnetic chip conveyor Machine Status: NOT WORKING: NC does not start

Condition: good (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 06-13796, Technical characteristics: Work Area - Elevation: 160 mm - Minimum center distance between table axis and spindle: -30 mm - Maximum center distance between table axis and spindle: +150 mm - Minimum distance between table surface and cutter spindle: 275 mm - Maximum distance between table surface and cutter spindle: 345 mm Hjdexwl N Aspfx Aahjp - Manual transverse displacement of the column: ±20 mm - External diameter: 250 mm - Bore diameter: 100 H7 mm Workpiece - Maximum nominal module (in steel with a tensile strength of approximately 600 N/mm²): 3 mm - Minimum pitch diameter (internal gearing): 60 + d0s mm - Maximum external diameter (internal gearing): 280 mm - Maximum width of the toothed band: 42 mm - Maximum stroke length for tooth cutting: 50 mm - Maximum spindle travel: 70 mm Load Capacity - Maximum load on the table (including fixtures): 150 kg - Maximum force applied by the tailstock: 1,500 kg - Maximum achievable helix angle (hydrostatic guide): approx. 45° Cutter Spindle - External diameter: 85 mm - Cutter holder bore: 45 H3 mm Electrical Equipment - Operating voltage: 400 - 480 V, Control voltage: 24 V, Magnetic voltage: 24 V, Cable cross-section: 16 mm² - Connected power: 15 kW, Protection: 50 A Dimensions - Overall dimensions: Length = 2980 mm, Width = 1650 mm, Height = 2165 mm - Weight: 5700 kg Main Features and Capabilities: - Vertical design: Ensures optimal chip evacuation and easy loading/unloading. - Control: Siemens Sinumerik 810D/840D - High Precision: Positioning accuracy by Heidenhain linear scales - Measuring system: Marposs T25 (for angular alignment or zero-point rotation definition) - Oil filtration and cooling system - Magnetic chip extraction conveyor

Condition: good (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: 06-13795, Technical characteristics: Work Area: - Elevation: 160 mm - Minimum center distance between table axis and spindle: -30 mm - Maximum center distance between table axis and spindle: +150 mm - Minimum distance between table surface and cutter spindle: 275 mm - Maximum distance between table surface and cutter spindle: 345 mm - Manual transverse displacement of the column: ±20 mm - External diameter: 250 mm - Bore diameter: 100 H7 mm Workpiece: - Maximum nominal module (in steel with tensile strength approx. 600 N/mm²): 3 mm - Minimum pitch diameter (internal gearing): 60 + d0s mm - Maximum external diameter (internal gearing): 280 mm - Maximum width of the toothed band: 42 mm - Maximum stroke length for tooth cutting: 50 mm - Maximum spindle travel: 70 mm Load Capacity: - Maximum table load (including fixtures): 150 kg - Maximum force exerted by the tailstock: 1,500 kg - Maximum achievable helix angle (hydrostatic guide): ~45° Cutter Spindle: - External diameter: 85 mm - Cutter holder bore: 45 H3 mm Electrical Equipment: - Operating voltage: 400 - 480 V - Control voltage: 24 V - Magnetic voltage: 24 V - Cable cross-section: 16 mm² - Connected power: 15 kW - Protection: 50 A Dimensions: - Overall dimensions: Length = 2980 mm, Width = 1650 mm, Height = 2165 mm - Weight: 5700 kg Main Features and Capabilities: - Vertical design: Optimal chip evacuation and easy loading/unloading Hsdpfx Aasxwlmuohop - CNC control: Siemens Sinumerik 810D/840D - High precision: Positioning accuracy via Heidenhain linear scales - Measuring system: Marposs T25 (for angular alignment or rotation zero-point definition) - Oil filtration and cooling system - Magnetic chip extraction conveyor Machine status: Operational (WORKING)

Condition: used, Year of construction: 1969, max. wheel diameter 160 mm gear width 355 mm max. module 4,5 min. module 0,5 centre distance 450 mm total power requirement 11 kW weight of the machine ca. 3,8 t dimensions of the machine ca. 2x17,1,6 m Wheel diameter - max. 160.175 mm Wheel width 355 mm Module - max. 4.5 Spindle bore 75 mm Center distance 410 mm Hsdsvz Ec Iopfx Aahop Number of teeth - min. 2, 3 Cutter diameter max. 115 mm Cutter length max. 105 mm Center distance between milling cutter and workpiece - max. 138 mm Center distance between milling cutter and workpiece - min. 30 mm Milling head - swivels 120 ° Milling cutter speeds 70 - 400 rpm Axial feeds 0.25 - 4.0 mm/rev Radial feeds 0.09 - 1.5 mm/rev Total power requirement approx. 9.5 kW Machine weight approx. 3.5 t Space requirement approx. 1730x1400x1440 mm Equipment/accessories: - Changing wheels - milling arbors - Clamping device Dra8M7 - documentation

Year of construction: 2026, condition: new, working width 1000 mm workpiece width - max. 0,5 - 50 mm sandingbelt width -- mm weight of the machine ca. 2,5 t With the SBM-L 1000 G1S2, which works in the dry process, in alternating operation Steel, stainless steel and aluminum can be machined. She deburrs and rounds the edges on the outer and inner contours of punched, laser, fine plasma or water jet cut workpieces with a thickness of up to 50 mm on both sides in just one operation. * Two sanding units, 1 each on the top and bottom, remove spatter and slight burrs on outside and inside edges of sheet metal. * A total of four sanding belts, 2 each on the top and bottom Hsdpfxjuia Dqe Aahjp Underside, process the sheets on both sides at the same time. here All edges are softened or rounded, depending on the tool settings. * Machining on both sides saves time-consuming turning of the workpieces and edit twice. * All pairs of aggregates can be switched on/off separately depending on the application as well as to be set. * Including Siemens S7 control: - Easy and comfortable operation through intuitive user interface - High operating security through 3 password-protected user levels - Integrated program memory - USB / RJ 45 interface for data exchange or connection of external Components (e.g. barcode scanner) - Direct entry of material thickness via touch panel - All axes automatically adjust to preselected material thickness - Standby position for deactivated aggregates - Service-friendly (e.g. plain text error messages) consisting of: - Grinding machine SBM-L 1000 G1S2 (kit) - 4x sanding belts SBM 1000 with bar P60 SiC - Sanding belt SBM-L 1000 L=3125 B=70 P80 Cubitron 2 784F - SBM-L tool wear compensation Siemens S7 - DDE 3002 dry suction - Standard piping DDE 3002 / WDE 3002 for SMD 123, SMD 133 Further detailed technical data on request. The machine is in stock Niederlangen available immediately.

Year of construction: 2026, condition: new, working width 950 mm workpiece width - max. 1,0 - 50 mm sandingbelt width 970 mm sandingbelt length 1900 mm weight of the machine ca. 1,8 t The SMD 123 RE is a universal entry-level machine for all-round deburring Uniform edge rounding and surface grinding of sheet metal dry process. * Suitable for processing steel, stainless steel and aluminium. * The non-slip conveyor belt enables safe transport and the Machining even of small workpieces. * The two rotor heads ensure an all-round uniform Edge rounding and a directionless finish. * The intuitive operation via touch panel allows every employee get to grips with the machine quickly. * The SMD 1 models are installed and ready for operation in a short time. * The compact design saves valuable production space. * Low acquisition and operating costs lead to short amortization periods and guarantee economical processing of your workpieces. Hedpfx Aaovfhm Dehsp consisting of: - Grinding machine SMD 123 RE (kit): - SMD 123 RE conveyor belt cleaning - SMx xx3 - sanding belt +120 Cubitron II, W=970, L=1900 - SMD 1x3 set grinding flap roller 3-piece. P120 - DDE 3002 dry suction - Standard piping DDE 3002 / WDE 3002 for SMD 123, SMD 133 Further detailed technical data on request. The machine is in stock Niederlangen available immediately.

Condition: good (used), Deburring machine, pipe deburrer, bore deburrer, deburring device, brush deburring machine, wire brush -Manufacturer: wrt, deburring machine with base -Drive: 3.0 kW / 2800 rpm -Brush: Ø 250 mm -Shaft: Ø 80 x 110 mm -Dimensions: 660/430/H1200 mm -Weight: 101 kg Hedpfoy R Rkzox Aahjp

Condition: used, functionality: fully functional, Maximum diameter with counter support Maximum tooth width for axial milling Hedozhhcaopfx Aahop Straight-tooth gearing Outer diameter 250 mm Outer diameter 50 - 100 mm Outer diameter 100 - 250 mm Helical gearing up to 45° Tooth helix angle Outer diameter 35 - 100 mm Outer diameter 100 - 250 mm Maximum tooth width for radial-axial milling Maximum module Maximum tooth helix angle Smallest number of teeth to be milled 190 mm 200 mm 140 mm 200 mm 240 mm 5 mm Any Tool Maximum diameter Maximum length Max. tangential feed movement of the milling cutter Max. vertical feed movement of the milling cutter Indexing table Distance between the center of the milling cutter and the center of the indexing arbor Diameter of the indexing table 140 m 165 mm 100 mm 260 mm 50 - 250 mm 300 mm 110 mm 350

Condition: used, weight of the machine ca. 90 kg Hsdpfx Aaszhcihohjp

Condition: used, Year of construction: 2016, Operating hours of the machine: 1271 h Maximum feed width: 600 mm Processable sheet thickness: 1-120 mm Working height, constant: 850 mm Voltage: 400 V (50 Hz) / 480 V (60 Hz) Rated current: 30 A Rated power: 17 kW Protection class: IP 42 Feed rate, continuously adjustable: 1-4 m/min Depth: 1930 mm Width: 1600 mm Height: 1550 mm Machine weight, approx.: 2200 kg Hsdjzg U Slspfx Aahjp With the Pluto, you are opting for a compact machine for deburring parts cut with oxy-fuel and plasma processes. Features: - Tolerance and distortion compensation up to 6 mm - Durable steel wire brushes for edge finishing - Magnetic clamping system across the entire working width - Heat-resistant conveyor belt made of chrome leather - Incl. extraction system

Condition: good (used), Timesavers Series 42 WRB Machine technically refurbished, functions perfectly. 1. Station: Grinding unit for removing raised burrs and spatter; surface finishing with Scotch-Brite also possible. 2. RB brush unit, 8 deburring rollers for all-round, uniform edge rounding. Working width of 1350 mm. Vacuum belt. Conveyor belt speed, continuously adjustable via potentiometer. Brush speed, continuously adjustable via potentiometer. Part thickness from 0.8 to 100 mm. Includes wet separator. Hodoxl A D Tepfx Aahsp Please feel free to contact us directly if you have any further questions.
