Used Dmg Milling for sale (380)

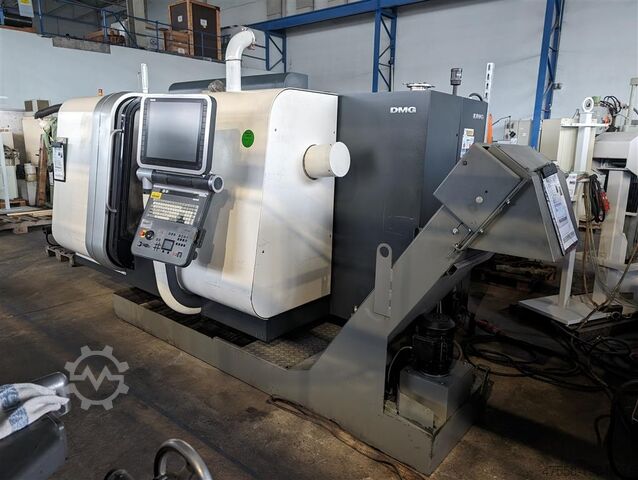

Condition: ready for operation (used), Year of construction: 2008, controller manufacturer: FANUC, controller model: Fanuc 310, This 4-axis DMG Gildemeister SPEED 32/10 linear was manufactured in 2008. It features a CNC Fanuc 310iS control, a main spindle with a bar capacity of 33 mm, and a maximum speed of 8,000 rpm. The machine offers robust multitasking capabilities with a total of 16 driven tool stations and a turret for efficient processing. If you are looking to get high-quality turning capabilities, consider the DMG Gildemeister SPEED 32/10 machine we have for sale. Contact us for more information. • CNC: Fanuc 310iS • Panel type: SlimLine • Screen: 15" TFT Color • Controlled spindles (including C axes): 2 • Controlled axes: 8 • Channels: 3 • Bar capacity: 33 mm (36 mm max) • Draw tube inner diameter: 46 mm • Maximum speed: 8000 rpm • Nominal torque (S1): 24 Nm • Nominal power (S1): 5.5 kW • Draw tube inner diameter: 38 mm • Maximum speed: 8000 rpm • Nominal torque (S1): 9.4 Nm • Nominal power (S1): 3.7 kW • Axis X1 • Travel: 50 mm • Maximum speed: 40 m/min • Maximum acceleration: 10 m/s² • Nominal thrust (S1): 1200 NAxis Y1 • Travel: 350 mm • Maximum speed: 30 m/min • Maximum acceleration: 5 m/s² • Nominal thrust (S1): 5000 NAxis Z1 • Travel: 320 mm • Maximum speed: 40 m/min • Maximum acceleration: 5 m/s² • Nominal thrust (S1): 2500 NAxis X2 • Travel: 310 mm • Maximum speed: 40 m/min • Maximum acceleration: 5 m/s² • Nominal thrust (S1): 2500 NAxis Z2 Crodszvvp Ropfx Albeg • Travel: 320 mm • Maximum speed: 40 m/min • Maximum acceleration: 5 m/s² • Nominal thrust (S1): 2500 NAxis X3 • Travel: 80 mm • Maximum speed: 40 m/min • Maximum acceleration: 5 m/s² • Nominal thrust (S1): 1200 NAxis Y3 • Travel: 60 mm (±30 mm) • Maximum speed: 18 m/min • Maximum acceleration: 5 m/s² • Nominal thrust (S1): 5000 NAxis Z3 • Travel: 150 mm • Maximum speed: 40 m/min • Maximum acceleration: 5 m/s² • Nominal thrust (S1): 2500 NTurret • Total stations: 16 • Fixed external tools: 8 • Tool shank size: 16×16 mm • Driven tool stations: 16 • Collet type: ESX/ER 20 • Maximum driven speed: 5000 rpm • Nominal torque (S1): 4.8 Nm • Nominal power (S1): 1.5 kWToolsToolholder Slide 1 • Total stations: 10 • Fixed external tools: 6 • Tool shank size: 16×16 mm • Driven tools: 4 • Collet type: ESX/ER 20 • Maximum driven speed (GEO 7–9): 5000 rpm • Nominal torque (S1): 2.19 Nm • Nominal power (S1): 0.55 kW • Secondary driven speed (GEO 8–10): 3333 rpm • Nominal torque (S1): 3.28 Nm • Nominal power (S1): 0.55 kWBack Working Slide • Total stations: 4 + 2 • Internal fixed tools: 3 • Toolholder diameter: 25 mm • External fixed tools: 1 • Driven stations: 2 • Collet type: ESX/ER 16 • Maximum driven speed: 6000 rpm • Nominal torque (S1): 1.75 Nm • Nominal power (S1): 0.55 kWMediaLubrication System • Tank capacity: 2.9 L • Operating pressure: 30 bar • Stop time: 7 minutes • Operating cycle time: 30 seconds • Lubricant type: Castrol Magna BD 68Pneumatic System • Minimum operating pressure: 5 bar • Maximum operating pressure: 6 bar • Consumption: 60 NL/min

Condition: used, Year of construction: 2007, turning diameter 65 mm Crodpfx Aszdk Evjlbjg turning length 150 mm control Siemens 840D spindle passage 75 mm turning length 150 mm c-axis 2x 0,001 ° gripping station 65 mm speeds 5000 U/min rapid traverse 30 m/min turret (x-stations) 3x12 Number of axles 10 St. number of toolholder-holes 36 chip conveyor ja / yes kW coolant filtering unit ja / yes kW Number of working hours 35000 h total power requirement 22 kW weight of the machine ca. 9 t dimensions of the machine ca. 4,4 x 2 x 2,3 + Iemca m DMG Sprint 64 Linear CNC lathe, built in 2007, 10 axes, 2 spindles, 3 turrets with Iemca Master 880 loading magazine Accessories: a large number of tool holders in total 104 off, 24 of them are driven tool holder

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, Universal Machining Center DMG DMU 80 U, 5-Axis Simultaneous Travel (X/Y/Z): 800/700/600 mm Spindle speed: 12,000 rpm Tool holder: SK 40 • B-axis: automatically swiveling milling head • C-axis: NC rotary table 900 x 630 mm • Tool magazine: 120 positions • Heidenhain control: 530 iT Additional equipment: • Double pallet changer • Coolant temperature control system • Chip conveyor • Internal coolant supply 40 bar • Paper band filter • Rotatable inspection window • Cleaning gun • Total power requirement: 59 kW ° Addition: 4th pallet ° Machine weight: approx. 14,000 kg Csdpfxjypaqmj Albjrg

Condition: excellent (used), Year of construction: 2009, operating hours: 8,000 h, functionality: fully functional, travel distance X-axis: 730 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, controller manufacturer: Heidenhain, controller model: iTNC 530, rotational speed (max.): 12,000 rpm, spindle motor power: 12,000 W, number of slots in tool magazine: 60, Equipment: chip conveyor, documentation/manual, Available: End of October/Beginning of November Manufacturer: DECKEL MAHO (DMG MORI) Model: DMU 60 monoBLOCK Year of manufacture: 2009 Operating hours: approx. 30,000 h Spindle hours only: approx. 8,000 h Control system: HEIDENHAIN iTNC 530 Axes: 5-axis simultaneous machining Technical data & spindle: Travels: X = 730 mm | Y = 560 mm | Z = 560 mm 4th axis (B-axis – swivel head): +30° to -120° (NC swivel milling head with hydraulic clamping) 5th axis (C-axis – rotary table): 360° (endlessly rotatable NC rotary table, resolution 0.001°) Main spindle: max. 12,000 rpm (high-torque version) Tool interface: SK 40 Tool changer: 60-position chain magazine (large expansion stage) Equipment & accessories: Cooling: Internal coolant supply (IKZ) including paper band filter system Chip conveyor Measuring probe available - DMG TS 649 Documentation and key available Cjdpozwx Aijfx Albjrg Videos available

Condition: used, Year of construction: 2013, operating hours: 10,322 h, functionality: fully functional, machine/vehicle number: NL254130510, We are offering this used DMG MORI NLX 2500 SY/700 CNC turning and milling center, manufactured in 2013, complete with a short bar loader magazine ILS-MKU 70/100, manufactured in 2015. Turning diameter max. 366 mm Turning length 705 mm Swinging diameter over bed 920 mm Swinging diameter over cross slide 742 mm Spindle speed range - main spindle 3,500 rpm Drive power - main spindle 18.5 / 15 kW Spindle nose JIS A-8 Spindle bearing diameter 140 mm Spindle bore 90 mm Max. usable bar diameter 80 mm Spindle speed range - counter spindle 6,000 rpm Drive power - counter spindle 11 / 7.5 kW Spindle nose JIS A2-5 Spindle bearing diameter 85 mm Spindle bore 43 mm Max. usable bar diameter (-) mm X-axis travel 260 mm Z-axis travel 795 mm Y-axis travel +/- 50 mm Rapid traverse (X / Y / Z) 30 / 10 / 30 m/min Number of tool positions 12 Tool holder BMT 60 Spindle speed range - driven tools max. 10,000 rpm Drive power - driven tools 5.5 / 3.7 kW Total power consumption 40 kVA Machine weight approx. 6.4 t Short bar loader magazine ILS-MUK 70/100 Type: MUK 10016-II Year of manufacture: 2015 Material diameter: 6-100 mm Material length: 250-1650 mm Length: 2400 mm Cjdpfx Ajzwvv Tjlborg Width: 1600 mm Outreach: 330 mm Weight: approx. 680 kg If you have any questions or require further information, please feel free to send us a message or call us.

Condition: good (used), Year of construction: 2006, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 920 mm, travel distance Z-axis: 820 mm, controller manufacturer: Heidenhain, controller model: iTNC530, total height: 2,950 mm, total length: 6,000 mm, total width: 3,800 mm, table width: 900 mm, table length: 3,100 mm, rotational speed (min.): 20 rpm, rotational speed (max.): 18,000 rpm, overall weight: 25,000 kg, spindle speed (min.): 20 rpm, spindle speed (max.): 18,000 rpm, coolant supply: 40 bar, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, X-axis travel: 2500 mm Y-axis travel: 920 mm Z-axis travel: 820 mm Table size: 3100 x 900 mm Spindle nose: SK/ISO40 Spindle speeds: 20 - 18.000 rpm Toolchanger: 30 pockets Controller: Heidenhain iTNC 530 Featured with: - Chipconveyor - Cooling through spindle 40 Bar - ISO40 tools - Machine manuals Country of origin: Germany Motor power: 35 KW Machine LxWxH: 6000 x 3800 x 2950 mm Machine weight: 25.000 kg Crjdpfeyac Tlex Albeg

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, Technical details turning diameter 400 mm turning length - mm control DMG Mori SLIMline Crsdpfx Aozu Nxpelbog z-axis ca. 750–755 mm x-axis 276 mm y-axis +/-60 mm greates pass round over bed 700 mm Additional information The machine is in very good condition and has recently been inspected and measured by a service technician. The lathe was primarily used to manufacture turned plastic parts. CNC lathe with driven tools, C-axis, Y-axis, and counter-spindle CNC control: DMG Mori SLIMline multi-touch control (19"/Operate 4.7 on Siemens) Screen language: German/English Main spindle: A2-8 with AC motor Drive power 25.5/17 kW (100/40% duty cycle) Spindle speed 4000 rpm Hollow clamping system, max. bar capacity 80 mm Counter-spindle: A2-6 designed as a built-in motor spindle ISM 52 with hydraulic clamping device Drive power 14/13 kW (100/40% duty cycle) Spindle speed 5000 rpm 12-station servo tool turret: VDI 40 mount with 12 driven tool stations Equipment: Y-axis +/- 60 mm Direct position measuring system (X and Y axes) Bar package & interface IEMCA KID80/16 short bar loader, bar capacity 80 mm Differential pressure clamping for main spindle Chuck flushing for main spindle Reduction tube for main spindle Hainbuch SPANNTOP nova Combi G80 Axzug collet chuck Differential pressure clamping for counter-spindle Chuck flushing for counter-spindle Automatic workpiece ejector Counter-spindle with internal coolant supply for workholding flushing SMW BB-D210 hydraulic 3-jaw chuck for counter-spindle SMW BB-D250 hydraulic 3-jaw chuck High-pressure pump 12 bar Coolant spray gun bar Dual cartridge filter for coolant, filtration fineness 60 µm Manual tool measuring device in the workspace, Marposs make Tool monitoring system, Easy Tool Monitor 1.0 technology cycle Alternating Speed ??technology cycle 3D data model in STEP format DMG MORI Messenger V2 DMG MORI Netservice – client Finished part discharge conveyor Chip conveyor with right-hand discharge External electronic handwheel Tool holder package

Condition: used, CNC Turning and Machining Cente: Gildemeister/DMG Mori CTX2500/700 Year: 2019 Serial No.: 02620000651 Credpfozwn Sgsx Albjg 2 driven spindles, rated speed 4,000/5,000 rpm, net weight 6,360 kg, accumulated operating hours 44,087 h, spindle hours: 27,832 h, cooling unit, chip conveyor, coolant treatment system, control system model: Ergoline, tool turret, 14 positions, for driven tools

Condition: excellent (used), Year of construction: 2012, machine/vehicle number: 11920000463, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, number of slots in tool magazine: 60, table length: 8,000 mm, table width: 1,000 mm, spindle motor power: 35,000 W, rapid traverse Z-axis: 60 m/min, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, spindle nose: HSK-63, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, ACCESSORIES Chip conveyor Oil mist collector 60 positions in tool changer 980 liter high pressure coolant through the spindle system with paper band filter Infrared measuring sensor Tool measurement with BLUM Laser 3D Quick Set preparation Crjder Npvlopfx Albeg Cooling unit Air blast through the spindle

Condition: used, Year of construction: 2008, turning diameter / mm centre distance / mm swing diameter / mm Manufacturer: DMG GILDEMEISTER Model: CTX 510 eco Year of manufacture: 2008 Machine type: CNC lathe / turning center Control system: Siemens SINUMERIK 810D Powerline Max. spindle speed: 3,250 rpm Spindle speed range: approx. 500–3,250 rpm Spindle power: 33 kW at 40% duty cycle / 22 kW at 100% duty cycle Spindle torque: 630 Nm at 40% duty cycle / 420 Nm at 100% duty cycle X-axis travel: 300 mm Z-axis travel: 1,050 mm Max. turning diameter: 465 mm Max. swing / turning diameter: 680 mm Spindle bore / bar capacity: approx. 76–92 mm (depending on configuration) Front spindle diameter: 140 mm Turret: 12-station Driven tools: Depending on equipment Driven tool speed: up to 4,000 rpm Driven tool power: approx. 8.4 kW Chuck: 250 mm or 315 mm Max. workpiece weight between centers: 350 kg Total power requirement: approx. 50 kVA Power supply: 400 V, 50/60 Hz Credpozu A Ukjfx Albeg Machine weight: 7,500 kg Incl. chip conveyor Note: All technical specifications are for guidance only and are subject to change. Actual machine data may vary due to different equipment variants and subsequent modifications. No warranty or guarantee is provided regarding the accuracy or completeness of the technical specifications. The specifications and actual condition of the offered machine are the sole determining factors.

Condition: used, Year of construction: 1999, turning diameter / mm turning length / mm Cjdjzu A Ttopfx Albsrg control /

Condition: used, Year of construction: 2018, turning diameter max. 356 mm Cjdpfovy Ig Hox Alborg turning length 705 mm control M730 UM Mapps CELOS greates pass round over bed 920 mm Swing dia. over traverse guideway 742 mm turning speed range - main spindle 4.000 min/-1 power capacity - main spindel 18,5 / 15 kW spindle nose JIS A2-8 spindle bore 80 (91) mm C-Axis 0,001 ° Spindle speed range subspindle 6.000 min/-1 power capacity - Sub spindle 11 / 7,5 kW spindle bore 43 mm C-Axis 0,001 ° x-travel 260 mm z-travel 795 mm Y - Axis +/-50 mm rapid traverse ( X / Y / Z ) 30 / 10 / 30 m/min number of toolpositions 12 pos. Schank height for square tool 25 mm Drill shank diameter 50 mm turret change time 0,27 sec. Spindle speed - driven tools max. 10.000 min -1 power capacity - driven tools 5,5 / 4,2 kW total power requirement 41 kVA weight of the machine ca. 6,4 t dimensions of the machine ca. 5,0 x 3,0 x 2,3 m CNC - Turning- and MillingCenter DMG MORI - NLX 2500 SY / 700 - Subspindle - Tool-Drive - C, Y-Axis - approx. 12,000 operating hours

Condition: ready for operation (used), Year of construction: 2005, operating hours: 7,500 h, spindle motor power: 18,500 W, spindle speed (max.): 3,500 rpm, travel distance Y-axis: 120 mm, overall weight: 5,800 kg, number of axes: 4, This 4-axis DMG Mori Seiki SL 2500 Y was manufactured in 2005. It features a maximum swing diameter of 755 mm and a machining diameter of 390 mm, with a maximum machining length of 655 mm. The machine includes a 12-station turret and a programmable hydraulic tailstock. If you are looking to get high-quality turning and milling capabilities, consider the DMG Mori Seiki SL 2500 Y turn-mill centre we have for sale. Contact us for further details. • Capacity & working area: • Max. swing diameter: 755 mm • Max. machining diameter: 390 mm • Max. machining length: 655 mm • Bar capacity: 75 mm • Rapid traverse: 18 m/min (X) / 24 m/min (Z) • Guideways: Box ways on all axes • Main spindle & headstock: • Spindle torque: 640 Nm • Spindle nose: A2-8 Cjdezuymqjpfx Alberg • Chuck: 250 mm Kitagawa B-210 (metric) • Cooling: Daikin spindle oil chiller • Turret & live tooling: • 12-station turret (all stations motorized) • Turret indexing time: 0.2 s • Live tooling speed: 4,000 RPM • Live tooling motor: 5.5 kW • Tooling system: Sandvik Capto quick change tooling system (valued at €22,000–€24,000) • Tailstock & axes: • Axis configuration: 4-axis (X, Z, Y, C) • Tailstock: Programmable hydraulic tailstock • Tailstock taper: MT5 Morse taper • Control, software & measuring: • 3D graphic simulation via proprietary CAM software • Cycle time verification • Automatic load control & tool wear monitoring • Tool measurement: Automatic Renishaw tool presetter arm • Connectivity: USB, PCMCIA, RS-232 Additional equipment • Bar feeder interface (machine prepared) • Interface for Autoblok hydraulic steady rest (ready for installation) • Automatic parts catcher • Hinge-type side chip conveyor • Large assortment of static and live tool holders • Dual foot pedal (main chuck & tailstock operation) • Electrical transformer • Complete documentation: Parts list, electrical schematics, programming & operating manuals Technical Specification Counter Spindle No Driven Tools Yes

Condition: ready for operation (used), Year of construction: 2003, operating hours: 10,975 h, functionality: fully functional, spindle speed (max.): 5,000 rpm, center width: 600 mm, center height: 340 mm, controller model: Siemens Sinumerik 840D SL, TECHNICAL DETAILS Maximum turning height: 340 mm Turning diameter over bed: 680 mm Turning diameter over slide: 565 mm Distance between centers: 600 mm Spindle bore: 65 mm Codpfjzuwx Dox Alborg Spindle speed: 0–5,000 rpm Travel in X-axis: 260 mm Travel in Y-axis: 635 mm MACHINE DETAILS Control system: CNC Controller: Siemens Sinumerik 840D SL Power: 25 kW Dimensions & Weight Dimensions (L x W x H): 4,500 x 2,500 x 2,300 mm Weight: 6,500 kg Operating hours: 10,975 h EQUIPMENT Documentation CE marking CE certificate

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, collet bore: 38 mm, turning diameter over cross slide: 60 mm, spindle bore: 38 mm, feed length X-axis: 300 mm, feed length Z-axis: 286 mm, spindle speed (max.): 6,000 rpm, overall weight: 1,900 kg, Precision lathe DMG MORI WASINO G 100 / 300 Year of manufacture: 2017 Control system: Fanuc (DMG Compact line) Travel distances: X-axis: 300mm Z-axis: 285mm Main spindle speed: 0 - 6,000 rpm Bar diameter: 38mm Accessories: - Electronic handwheel - Coolant system - Fire extinguisher - 3x driven tool holders Crjdpfx Alszwcqwobjg Machine has only been operated under oil lubrication. Accuracy as when delivered!

Condition: used, Year of construction: 2022, functionality: fully functional, DMG MORI DMF 360/11 linear – Universal machining center, year of manufacture 2022, in excellent condition, always maintained on schedule, available for inspection at any time. Key technical data: Codjzv U N Nopfx Alberg Control system: Heidenhain TNC 640 Celos, 5 controlled axes Travel ranges: X 3,600 mm / Y 1,100 mm / Z 900 mm Rapid traverse rate X/Y/Z: 80/60/60 m/min Spindle: 20–10,000 rpm, 44/32 kW, 288/187 Nm, SK 50 NC rotary table: 4,200 x 1,100 mm, max. table load 1,200 kg Tool magazine: 120 positions Equipment: Internal cooling 40 bar, chip conveyor, measuring probe Heidenhain TS 460, automatic doors

Condition: used, Year of construction: 2010, operating hours: 62,569 h, functionality: fully functional, machine/vehicle number: 00410001121, spindle speed (max.): 5,000 rpm, overall weight: 5,695 kg, Equipment: documentation/manual, We are offering this used DMG CTX beta 500 V6 CNC turning and milling center, year of manufacture 2010. Serial number: 00410001121 Year of manufacture: 2010 Max. main spindle speed: 5000 rpm Max. counter spindle speed: 6000 rpm Credpfx Alszv Tbqobsg Weight: 5695 kg If you have any questions or require further information, please feel free to send us a message or call us.

Condition: like new (used), Year of construction: 2022, operating hours: 3,955 h, functionality: fully functional, travel distance X-axis: 550 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 510 mm, nominal power (apparent): 13 kVA, torque: 83 Nm, controller manufacturer: SIMENS 828D OP, workpiece weight (max.): 600 kg, spindle speed (max.): 12,000 rpm, operating hours of spindle: 3,955 h, number of spindles: 1, number of slots in tool magazine: 24, We are selling a very well preserved DMG MORI M1 CNC milling center, year 2022, with only 3111 hours of operation. The machine is in excellent condition and can be tested before purchase. Credpfxjwl N Tqj Albog Technical details: X-Travel 550 mm Y-Travel 550 mm Z-Travel 510 mm table-size 790 x 560 mm spindle taper ISO SK 40 turning speed range 12000 1/min Feeds longditudinal/cross/vertical 1 - 30000 mm/min Rapid Motion -Longitudinal/Cross/Vertical 30 m/min No. of tools in magazine 20 Workpiece diameter at full load 80 mm Workpiece diameter with 2 vacant positions 140 mm Workpiece length 300 mm Weight of tools max. 7 kg Table load 600 kg spindle drive 9 / 11 kW control SIEMENS 828D total power requirement 30 kVA Additional information cnc SIEMENS 828 D Chip conveyer Cooling throug the spindle 20bar RENISHOW Measuring probe Tool taster

Condition: excellent (used), Year of construction: 2007, CTV 160 in very good condition. See photo. The machine can be inspected while running. Crjdpfx Alszv N Efsbsg

Condition: used, Year of construction: 2016, operating hours: 18,071 h, functionality: fully functional, machine/vehicle number: 06960000941, spindle motor power: 25,000 W, spindle speed (max.): 5,000 rpm, rapid traverse Y-axis: 30 m/min, torque: 280 Nm, input voltage: 400 V, overall weight: 6,000 kg, power: 25 kW (33.99 HP), input frequency: 50 Hz, controller manufacturer: Siemens, controller model: Sinumerik 849D sl, input current: 63 A, tool type: VDI 40, number of axes: 3, DMG MORI CTV 250, 2nd Generation – Vertical Turning Center (Pick-up), Year of Manufacture 2016 For sale is a well-maintained DMG MORI (Gildemeister) CTV 250, 2nd Generation, manufactured in 2016, with only 18,071 spindle hours. The machine is fully equipped for automated series production of chucked parts and is currently still powered on – inspection and demonstration possible by arrangement. Control System & Drive Siemens Sinumerik 840D sl (Slimline) including ShopTurn option AC main drive 25 / 32 kW, torque 280 / 360 Nm Spindle speed up to 5,000 rpm, duty cycle 100 % / 40 % Hollow cylinder, programmable clamping pressure via NC program Axes & Tools 12-station turret (disc diameter 340 mm), all stations powered (UDI 40) C-axis with powered tool system Y-axis +90 / -65 mm Linear guides, ball screws, glass scales, AC servomotors with absolute encoder Rapid traverse 30 m/min Automation & Metrology Workpiece transport system SRA 160 (drag chain, NC-controlled) including drag chain set Storage capacity: 30 parts (Ø 30–70 mm, max. 7 kg) or 18 parts (Ø 30–100 mm, max. 15 kg), max. total weight 320 kg including pallets Workpiece diameter 30–160 mm, workpiece height max. 160 mm Robot interface Profinet (electrical interface for 6-axis robot) Workpiece probe Renishaw LP2DD at the loading/unloading station, measuring accuracy 10 µm, with air blow cleaning Cedpjzi R R Nefx Albsrg Coolant & Peripherals Coolant system 8 / 20 bar, tank 600 l, high-pressure pump 20 bar / 40 l/min Coolant supply via turret disc to all stations Band filter system 40 µm with forced indexing, coolant level monitoring Hinged belt chip conveyor with extended discharge chute (+300 mm), enlarged chip container, modified sludge pump Aluminum machining package Integrated work area extraction max. 400 m³/h, work area flushing with 3 flushing nozzles Cabinet cooling up to 40 °C, hydraulic oil cooler Air blower via main spindle, 4-color signal light Remote diagnostics via the internet Connection values: 400 V / 50 Hz, 40 kVA, 63 A · Weight: approx. 6,000 kg Sale from current location, dismantling/loading/transport by arrangement or by the buyer. Sale is subject to the exclusion of all warranties (commercial sale of used machines, sold as seen). Please contact us if you have any questions or would like to arrange a viewing.

Condition: excellent (used), Year of construction: 2015, X-axis 850 mm Y-axis 520 mm Z-axis 475 mm Spindle speed 10,000 rpm Spindle mount HSK 100 Tool changer 40 positions Control SIEMENS 840 Dsl Power 33 kVA Including internal coolant (IKZ) Cedpfewvr Tnjx Albsrg Including various tool holders Including measuring probe TS 649 Including Rotoclear Spindle hours: 10,730 h

Condition: used, Year of construction: 2017, Technical details: x-travel: 560 mm y-travel: 560 mm z-travel: 660 mm control: Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds: 20 - 20.000 1/min spindle drive: 25/ 35 kW max. torque on the spindle: 86 / 130 tool taper: HSK-A63 Number of tool station: 60 diameter of tools max.: 70 mm Tool diameter with no neighbouring tools: 170 mm tool length - max.: 450 mm weight of tools max.: 12 kg numbers of pallets: 2 Pallet dimension: 400 x 400 mm max. workpiece diameter: 630 mm Credpsyqybbjfx Albjg workpiece height max.: 900 mm table load: 400 kg rapid travel x/y/z: 60 m/min Feed x/y/z: 60 m/min internal coolant system feed: 70 bar weight of the machine ca.: 8,5 t dimensions: 3200 x 4800 x 2900 mm Accerories Rotoclear window Signal lamp 4 colours Electronic handwheel Probe for tool breakage and length measuring Coolant shower Renishaw probe (spindle) Vorbereitung / preparation only HSK cone cleaning station with brushes Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar. The machine has just received a new milling spindle. *

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, DMG Deckel Maho DMC 1035 V Vertical Machining Center. The machine is in very good optical and technical condition. Inspection while powered on is possible at any time. Technical data: Year of manufacture: 2008 Control system: Heidenhain iTNC530 Travel distances: X: 1,035 mm Cedpfozun Snjx Albsrg Y: 560 mm Z: 510 mm Clamping area: 1,200 mm x 560 mm Spindle speed: 10,000 rpm Tool changer: 20-position Tool holder: SK40 Coolant/air blast switchover Electronic handwheel Operating mode 4 Coolant tank free on truck ex works Hagen

Condition: used, Year of construction: 2001, turning diameter 390 mm centre distance 1850 mm swing diameter 610 mm control SINUMERIK 840D turning speeds 20-4000 U/min spindle bore 79 mm bar capacity 65 mm weight of the machine ca. 18000 kg total power requirement 33 kW Control System Siemens Sinumerik 840D Bed Design: 4-rail bed Guideways: Roller guides Working Area Maximum swing diameter: 610 mm Standard turning diameter: 390 mm Distance between spindles: 1850 mm Traverse travel cross/longitudinal – Slide 1: 605 / 1470 mm Y-axis – Slide 1: 210 mm B-axis – Slide 1: 240° Traverse travel cross/longitudinal – Slide 2: 227 / 1440 mm Longitudinal travel – Slide 3: 1460 mm Turning and Milling Spindle – Slide 1 Number of tools: 80 Tool holder: HSK-A63 Max. spindle speed: 12,000 rpm Max. drive power 40/100% duty cycle: 10 / 15 kW Indexing unit: 1.0° Clamping torque (locking): 500 Nm Spindle 1 – Left Max. bar capacity: 65 mm Spindle nose faceplate: 220 h5 Spindle bore: 79 mm Internal draw tube: 68 mm Front bearing diameter: 140 mm Spindle 2 – Right Max. bar capacity: 65 mm Spindle nose faceplate: 220 h5 Spindle bore: 79 mm Internal draw tube: 68 mm Front bearing diameter: 140 mm Codpfx Ajx Tu Suslbjrg Main Drive 1 and 2 – Left / Right Max. drive power 40/100% duty cycle: 25 / 33 kW Speed range: 20 – 4000 rpm Rated speed: 700 rpm Max. torque 40/100% duty cycle: 840 / 460 Nm Drive type / design: AC / 1 Design: Integrated spindle motor C-axis speed (rapid traverse): 100 rpm C-axis torque (holding torque): 350 Nm C-axis indexing accuracy: 0.025° Slide 1 Rapid traverse speed X/Ys/Z: 46 / 24 / 60 m/min Feed force X/Ys/Z: 11 / 16 / 11 kN Position resolution X/Y/Z: 0.001 mm Ball screw X (d × p): Ø40 × 15 mm Ball screw Ys (d × p): Ø40 × 10 mm Ball screw Z (d × p): Ø50 × 25 mm Slide 2 Rapid traverse speed X/Z: 24 / 60 m/min Feed force X/Z: 7.5 / 11 kN Position resolution X/Z: 0.001 mm Ball screw X (d × p): Ø32 × 15 mm Ball screw Z (d × p): Ø50 × 25 mm Slide 3 Rapid traverse speed Z: 60 m/min Feed force Z: 12 kN Position resolution Z: 0.001 mm Ball screw Z (d × p): Ø50 × 25 mm Tool Changer – Turret Head Gripper type: Double gripper Control type: Cam-controlled Tool change time G1/G2: 1.3 / 2.6 s Tool Spindle Speed 4000 rpm Coolant Unit 180 liters

Condition: used, DMG Mori Panel 85-240VAC 0,3A 2386389 ( 110498 ) ID-No.: 2386389 Suppl.: 110498 Credeymqu Rspfx Albsg
