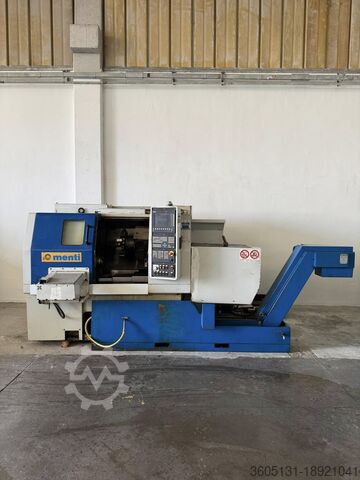

CNC LATHE

menti 250rp

Condition: ready for operation (used), Year of construction: 2021, spindle speed (max.): 2,800 rpm, travel distance X-axis: 260 mm, travel distance Y-axis: 105 mm, travel distance Z-axis: 830 mm, spindle motor power: 22,000 W, total height: 2,163 mm, total width: 2,005 mm, overall weight: 7,500 kg, product length (max.): 4,438 mm, number of axes: 4, This 4-axis DOOSAN Puma 2600 LYB II was manufactured in 2021. It features a maximum turning diameter of 376 mm and a turning length of 1,350 mm. The machine includes a 12-station turret, a live tailstock, and a steady rest with a diameter range from 40 mm to 200 mm. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma 2600 LYB II horizontal turning machine we have for sale. Contact us for further details. • Capacity • Swing over bed: 780 mm • Swing over carriage: 630 mm • Recommended turning diameter: 315 mm • Max turning diameter: 376 mm • Max turning length: 1,350 mm • Bar capacity: 102–103 mm • Main spindle • Nose: ASA A2-11 • Bearing diameter: 160 mm • Through-spindle bore: 115 mm • C-axis indexing accuracy: 0.001° • Turret • Stations: 24 (option installed; standard 12) • Tool size: 25 mm • Boring bar capacity: 50 mm • Indexing time: 0.15 s • Live tool speed: 5,000 rpm • Axes • C rotation: 360° Isdpfx Ageytt A Ro Ioat • Rapid traverse • X: 30 m/min • Z: 30 m/min • C: 10 m/min • Tailstock • Type: Live tailstock • Quill diameter: 100 mm • Taper: MT5 • Quill stroke: 100 mm • Motor / Power • Live tool motor: 7.5 / 1.5 kW • Feed motor: 3.0 / 4.0 / 3.0 kW • Coolant pump motor: 0.4 kW • Electrical capacity: 46.40 kVA Additional equipment • 315 mm chuck • MORARI steady rest, 40–200 mm diameter range • Three motorized radial Eppinger live toolholders/spindles • Tool presetting system (tool presetter) Technical Specification Counter Spindle No Driven Tools Yes

Condition: good (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 163341, Country of manufacture: UK Voltage: 400V 3-phase AC 50/60Hz, max 58A Dimensions: 200x260x250 cm Net machine weight: 5010 kg TECHNICAL SPECIFICATIONS Capacities Table dimensions: length 900 mm / depth 410 mm X-axis: 560 mm Y-axis: 410 mm Z-axis: 510 mm Distance from spindle nose to table surface: min. 150 mm, max. 660 mm Distance from spindle center to column: 540 mm Maximum table load: 500 kg Spindle Speed: 40 – 12,000 rpm Power (5 min): 18.5 kW Power (10 min): 15 kW Power (30 min): 10 kW Continuous power: 7.5 kW Feed Rapid traverse: 36,000 mm/min Cutting feed rate: 1 to 8,000 mm/min Table Dimensions: 900x410 mm T-slot size (ISO R299): 18 mm / Number: 3 / Spacing: 125 mm Permissible load: 500 kg Distance from floor to table surface: 780 mm Iajdpfx Agjw T Tp Rj Iot ATC Tool Magazine Number of tools: 30 pcs Tool selection: free choice of station number; automatic bi-directional search Tool holder: MAS BT-40 Max. tool diameter in magazine: Ø 80 mm (without adjacent tool: Ø 125 mm) Max. tool weight: 8 kg Max. magazine load: 120 kg Max. tool length: 350 mm Tool change time: 2.9 s (chip-to-chip) Lubricant tank: 1.8 L Feed lubricant tank: 260 cm³ Spindle coolant tank: 16 L Hydraulic pressure tank: 460 cm³ Coolant tank: 200 L Compressed air: 0.5 to 0.9 bar Capacity: 200 L/min Subject to errors or omissions, all technical specifications are provided without guarantee.

Condition: excellent (used), Year of construction: 2019, CNC lathe DOOSAN Puma 2600SY II with Siemens control; Thermal sensors for highest precision; Y-axis; Sub-spindle with collet chuck; Spindle bore 80 mm (main spindle); All axes are flat guideways – suitable for heavy-duty machining; Chip conveyor, tool setter, parts catcher with belt, coolant gun, extraction system; 70 bar high-pressure coolant system; Various fixed and driven tool holders. Iodpfoy Amflox Ag Ijat

Condition: good (used), Year of construction: 2003, Good condition,live tools, measuring arm. Parts shown by hand not come. Technical details shown on pictures. Iodpfxowybg Ss Ag Ioat

Condition: good (used), Year of construction: 1998, Parts shown by hand not come. Ijdpfx Agewb Aqnj Ieat Technical data are shown on picture.

Year of construction: 2004, condition: ready for operation (used), X-axis: 750mm, y-axis: 600mm, z-axis: 520mm, C-axis: 360°, B-axis: 180°, max. spindle speed: 18,000/min, control: Siemens SINUMERIK 840D powerline, connected load: 55kVA, length: 4603mm, width: 5250mm, height: 2785mm, weight: approx. 9t, operating hours power on: approx. 65,000h, spindle hours: approx. 19,000h. No defects known, internally maintained, without maintenance reports, with documentation, rotary table, high-pressure internal cooling and Bluhm spindle probe. An inspection on site is possible. Iaedpfx Agjylbq Ho Ijt

Condition: used, CNC cycle controlled lathe HARRISON type Alpha 400 Plus Machine No. P30180/150 Year of construction 1998 center distance 1250 mm turning diameter over bed 400 mm center height 200 mm Swing diameter over cross slide 245 mm Swing diameter in the bend 585 mm bed width 313 mm face travel (X-axis) 250 mm Tailstock spindle diameter 73 mm Tailstock quill stroke 140 mm Tailstock quill mount MK 5 spindle bore 54 mm spindle head size Camlock D1 size 6 Spindle speed 20-2500 rpm. Spindle speed range (stage 1) 15-275 rpm. Spindle speed range (stage 2) 35-795 rpm. Spindle speed range (level 3) 110-2500 rpm. Iasdpfx Ageh Hvk Aj Ijt Feed rate X and Z 0.03 - 0.6 mm/rev. Rapid traverse speed X axis max. 2000 mm/min. Rapid traverse speed Z-axis max. 4000 mm/min. Threading function Metric / Inch / Diametral / Module Spindle drive power 7.5 KW Mains connection 400 Volt, 50 Hz, 23,5 kVA - cycle control Harrison Alpha / GE FANUC - language in French (France) - automatic gear range shifting in 3 steps (15-275, 35-795, 110-2500 rpm.) - electronic handwheels with different transmission ratios (1/10/100) - 3-jaw face spiral lathe chuck FORKARDT Ø 250 mm type CSN, 1 set of soft top jaws - quick-change tool holder MULTIFIX size B with 2 inserts - 1 piece of centering point running with the tool - 1 piece quick-action drill chuck RÖHM, 3-16 mm - hinged lathe chuck guard - hinged working area protection doors - chip tray with coolant device under the machine bed - Switch cabinet fixed to the machine - Interface RS 232 Space requirement L x W x H 2600 x 1450 x 1550 mm weight 1950 kg good condition

Year of construction: 2020, condition: ready for operation (used), General Data Machine weight 3850 kg Measurements height 1921 mm Control Unit Brand SIEMENS Model SINUMERIK 828D Dimensions Machine Length 2880 mm Main Drive Number of axis 3 Spindle Speed 6000 RPM Spindle motor power 15 kW Iodpfx Agex D Dkrs Isat Movement X-Axis Movement 205 mm Z-Axis Movement 560 mm Y-Axis Movement 105 mm Technical Specification Driven Tools yes This 3-axis DOOSAN LYNX 2100LYA was manufactured in 2020, featuring a chuck size of 6 inches, a maximum turning diameter of 300 mm, and a length of 510 mm. It boasts rapid traverses of 30 m/min on the X-axis and 36 m/min on the Z-axis, with a high spindle speed up to 6000 rpm. Consider the opportunity to buy this DOOSAN LYNX 2100LYA horizontal turning machine. Contact us for more information about this machine. Application Types Turning

Condition: good (used), Used hydraulic band saw FMB Major +VHZ Blade dimensions: 3180x27x0.9mm Ijdpfxjwaauus Ag Ioat Blade cutting speed: 20-100m/min Cutting angle up to 60° Cutting capacity at 0° - round: 240mm - rectangle: 300x220mm

Year of construction: 1980, condition: good (used), A used very well preserved cycle controlled lathe from Weisser Heilbronn with SIEMENS control. centre distance 2000 mm centre height 295 mm Swing over bed 600 mm Swing over cross slide 260 mm Swing diameter in the bend 800 mm Total length of the crank 375 mm Bed width 450 mm Plan travel X-axis 350 mm Isdpfxegyy I Ao Ag Isat Longitudinal travel Z-axis 1850 mm Spindle nose DIN 55022 size 8 Spindle speed Number 18 14 - 1400 rpm spindle bore 71,5 mm Diameter of front bearing 110 mm feed range 0,01 - 40,95 mm/rev rapid traverse 8 m/min Direct current drive 15 kW 400V 50Hz Max. permissible torque at the spindle 2500 Nm Tailstock quill 80 mm quill stroke 250 mm inner taper quill MK 5 Length x width x height Weight of the machine 5500 kg Accessories Tailstock Pneumatic three-jaw chuck with interchangeable jaws 315mm Quick change holder "MULTIFIX "in front of the center size "C Quadruple turret behind the center Tool holder Coolant device Pneumatic steady rest Technical data and dimensions: Errors excepted. Videoconference via whatsapp possible by appointment
