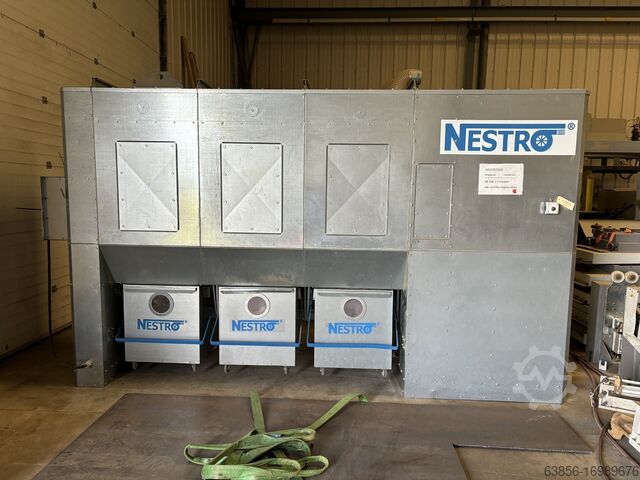

Vacuum filter

NESTRO NE 350 J

Condition: ready for operation (used), Slab recovery line with below machines: One 2-blade board edger One single blade horisontal resaw Conveyors system between the machines included. Gjdpfjgwqk Sox Ag Dskf

Condition: ready for operation (used), Technical characteristics Cutting dimensions: 4300 x 4400 mm Max. blade projection from work surface (cutting height): 95 mm Main blade max. diameter 320 mm, motor 7.5 kW Scoring blade max. diameter 200 mm, motor 2.2 kW Blade carriage speed adjustable from 5 to 120 m/min Pusher feed up to 60 m/min Gkedpfxsucirkj Ag Djf Automatic lateral alignment device 4 air-cushion unloading tables with rounded profile 9 pneumatic clamps Windows PC-based control Remote-controlled Start cycle pusher, including emergency pusher QUICK CHANGE device (quick blade release) Printer for labelling Power and Motors Voltage: 400 V Pluging: Three-phased Overall dimensions

Condition: ready for operation (used), Technical characteristics Power and Motors Godpfsucir Rsx Ag Djkf Voltage: 400 V Pluging: Three-phased Power: 4,4 Kw Overall dimensions Lenght: 6620 mm Width: 3035 mm Height: 1741 mm Weight: 1200 Kg

Condition: good (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 181206, cutting length (max.): 3,100 mm, cutting width (max.): 520 mm, MONGUZZI AFD S35/3000 Godpfx Agsumwb Nj Dskf

Condition: new, Year of construction: 2024, functionality: fully functional, cutting height (max.): 160 mm, cutting width (max.): 450 mm, cutting length (max.): 6,200 mm, power: 15 kW (20.39 HP), saw blade diameter: 550 mm, total length: 8,100 mm, overall weight: 2,700 kg, table width: 450 mm, height adjustment type: mechanical, type of input current: three-phase, input voltage: 400 V, input frequency: 50 Hz, hole diameter of the disc: 80 mm, extraction nozzle diameter: 160 mm, working height: 850 mm, compressed air connection: 6 bar, warranty duration: 12 months, The basic model of the FLS technology is the FLS ECO 120. The saw is mainly used in small and medium-sized operations focused on various wood processing, but also non-wood materials. The FLS ECO 120 single-spindle saw significantly increases work efficiency and material yield (by 10-15%) and can process prisms, beams, prisms and large-area material. The input material can be plastered, dimensioned, formatted, cut to length and slats can be produced. The maximum cutting height is 120 mm, optionally 160 mm. The saw can be operated by one worker. The machine complies with the stringent occupational safety requirements of the relevant EC regulations and directives. The infinitely variable blade feed and stroke control guarantees a clean cut and high cutting performance. Thanks to the "ProLock" quick-release system, saw blade replacement is easy and, above all, safe. The saw carriage is equipped with guide and side rollers that ensure optimal guidance of the floating unit during cutting without unnecessary vibrations. The upper pressure plate and the wooden adjustable stop ensure a firm fixation of the material during cutting and thus eliminate unwanted movement. Gkodeubbubopfx Ag Dsf The FLS technology is unique in its quick and easy adjustment via ergonomically positioned touch panel controls. Cut width values are entered manually or by using the basic Absolut program or the optional Chain and Optim programs. The cutting path is displayed on the material by a laser beam and then guided longitudinally by a sliding saw blade. The FLS can be used to cut prisms, squares, beams and large-area material. The input material can be plastered, dimensioned, formatted, mitred and mitre cut, grooved or cut into sections and slats. Manufacturers of grout and solid furniture or staircases will find their own. The machine can also be used for cutting non-wood materials such as PUR/PIR panels, plastic materials, sandwich, aluminium or cement board.

Condition: ready for operation (used), Year of construction: 2007, Brand: Holz Her Model: PRO-MASTER 7123K Serial no: 527/0-705 5010147 Year of manufacture: 2007 - 2 HSK cones included + various drills for drill box - Comes with a number of suction cups and some spare parts Tech. info: 4-axis (c-axis) 6 beams Motor-controlled adjustment of beams Number of vertical boring bits: 24 Number of vertical boring bits in X axis: 10 Number of vertical boring bits in Y axis: 8 Centres distance: 32 mm Horizontal double spindle in X axis: 2 Horizontal double spindle in Y axis: 1 Centres distance: 64 mm Working area: 3200x1260 mm Maximum travel path: X= 3866 mm Y= 1650 mm Z= 325 mm Godpfsrz Irrex Ag Dskf Workpeice pass height for tool change spindle with HSK 63F tool connection: 345 mm Max. machining thickness/ feed-in height (rear stop): 175 mm Max. workpiece size for vertical bores: X=3730R/ 3460L mm Y=1570 mm Max. workpiece size for horizontal bores X: X=3450R/ 3370L mm Y= 1315 mm Max. workpiece size for horizontal bores Y: X=4760R/ 3300L mm Y= 1385 mm Max. workpiece size for edge milling, less cutter radius (tool 25 mmdiameter x 125 mm, HSK): X=3510R/ 3525L mm Y=1445 mm Z=280 mm Max. workpiece size for grooving in X (dim. centre grooving tool approx. 120 mm): X=3300R/ 3760L mm Y=1585 mm Max. workpiece size for grooving in Y (dim. centre grooving tool approx. 120 mm): X=3200R/3860L mm Y=1485 mm Max. travel speed X axis: 100 m/min Max. travel speed Y axis: 100 m/min Max. travel speed Z axis: 25 m/min Max. travel speed C axis: 60 m/min Motor power of boring unit: 3 kW Motor power of saw: 1,5 kW Motor power of electro spindle unit with clamping system: 6 kW Speed electro spindle 1000-18000rpm Power: 22 kW, 50 Hz, 400 V, 3-phase Compressed air: operating pressure 6,0 bar permissible limit pressure 8,0 bar Air requirement: 300 l/min Extraction capacity: approx. 5300 m3/h Dust nozzle diameter: 250 mm Size: Length with control cabinet: 6420 mm Overall width: 3760 mm Height with extractor hood: 2475 mm Weight: 4200 kg Program Campus NC-HOPS Operating system Microsoft Windows Graphic variants system with HOP and CAD/CAM properties For the creation of parts variants with macro technology Program operation Windows-conform surface configuration and operator guidance Macro / variant programming Indication and simulation modes Export and import facility to the various branch programs Interaction possibilities with a variety of branch programs Stock no: 2002061BXA with reservation for incorrectly presented technical data

Condition: used, Year of construction: 2012, CNC machining centre SCM Morbidelli M-600 5-axis machine Year of construction 2012 Machine no. AA2/002032 Working distance X-axis 5020 mm Working distance Y-axis 1680 mm Working distance Z-axis 250 mm Tool positions 36 Vertical drilling spindles 24  Software SCM XILOG MAESTRO SCM PRISMA K SCM TTS system Milling spindle liquid-cooled SCM TecPad MORBIDELLI TV Matic SCM PRO-SPACE SCM RAPID 12 SCM RAPID 24 Gjdpfx Aswnhcceg Djkf Including vacuum pump Capacity 250 m3/h Disassembled for transport Weight 7450kg - Year: 2012 - Documentation available: No - CE certificate present: No - Serial number: AA2/002032 - Drilling unit present: Yes - └ Vertical drilling spindles [pcs.]: 24 - Tool changer positions [pcs.]: 36 - System/software: SCM Maestro - Vacuum pump present: Yes - └ Capacity [m³/h]: 250 - Working range X [mm]: 5020 - Working range Y [mm]: 1680 - Z-axis working range [mm]: 250 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets

Condition: like new (used), Year of construction: 2022, The Felder profit H80 is a professional CNC machining center suitable for high-volume furniture production and other woodworking applications. The machine enables precise machining with high speed and efficiency. Thanks to its gantry design and advanced vacuum system, stable and safe machining of even the largest parts is ensured. Technical information Godpfjv I Sxpox Ag Dekf Machining area: X = 3090 mm, Y = 2100 mm, Z = 85 mm Power transmission: Rack in X and Y axes, ball screw in Z axis Feed speed: X = 25 m/min, Y = 25 m/min, Z = 15 m/min Vacuum table: 10 vacuum fields with Smart Zoning function Milling spindle: 12 kW (S6) HSK F63, 24,000 rpm Power supply: 3 x 400V / 50 Hz Software: Compact Control - supports ISO Code and WoodFlash Extraction: Central suction nozzle with slide valve distribution Safety features: Light barrier system, optical operation indication Machine composition Robust gantry construction with double drive in X axis Fully automated central lubrication of all os Control panel with 24" LED display and USB interface Green Line energy package for energy saving Drilling head DH 16 4H 2S – 12 vertical and 4 horizontal spindles Loading unit with lifting table for efficient handling Conveyor belt on the machine output side for smooth workpiece removal

Condition: like new (used), Year of construction: 2023, operating hours: 800 h, functionality: fully functional, machine/vehicle number: SN3128158, turning diameter over cross slide: 533 mm, turning length: 572 mm, spindle bore: 63 mm, spindle speed (max.): 4,000 rpm, New condition + tooling + bar fender Gjdpfx Agevwz T Uj Dokf

Condition: used, Holz Her STREAMER 1057 XL FÜ + PU Edge thickness: 0.4 - 6 mm Gkodpfx Aex Aqx Teg Def Modern control system with selector switch for aggregate adjustment Fully automatic edge magazine for roll and strip material GLU-JET cartridge glue application station + PU gluing Adhesive application via nozzle technology Sensing nozzle Workpiece height: 6-60 mm Automatic glue height adjustment High-quality 3-roller pressure unit, 1st roller motorized Pneumatic end trimming unit for roll and strip material up to 6 mm edge thickness With pneumatic tilt adjustment from 0-10° for the trimming saws Milling unit: flush trimming 6 mm, radius trimming, bevel trimming - 15° Corner copying unit - 3 mm edge thickness Scraper unit for bevels and radii with 2 scraper holders Flat scraper unit - finish Buffing unit Spraying device in infeed and outfeed area as well as for PU Machine comes with all processing tools Machine is WORKSHOP TESTED Available ex stock Lieboch
