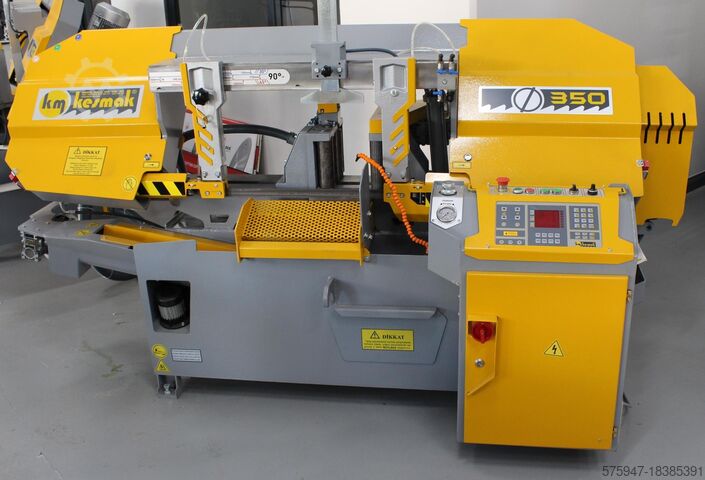

KESMAK KME 350 BAND SAW

KESMAK KME 350

Condition: new, 900 mm 900 mm 900x900 mm saw band length 9300 x 67 x 1,1 mm table height 790 mm band speed 14 - 60 m/min total power requirement 11 kW weight of the machine ca. 8,45 t dimensions 4,485 x 1,68 x 3,15 m The semi-automatic, hydraulic saws from the X-tech line offer the best Saw technology and best performance when cutting special steels • The electro-welded machine frame and the steel saw frame meet requirements all cutting needs and eliminate vibration and noise. • The chip conveyor is hydraulically driven and the speed is adjustable • All movements of the machine (saw frame, vice, feed, Saw band guides) are carried out thanks to modern linear guides with high static and dynamic load performance, which also has very low sliding friction to guarantee. • Another characteristic feature is the roles for the Positioning of the material by a hydraulic motor are driven. They move at right angles to the material, and thus allowing optimal clamping of the material. • Thanks to the height control of the saw band position, the operator can place the band in place near the top edge of the material. After the cut is finished, the tape automatically raised back to the previous position. Alternatively you can also “Remain” can be selected in the lower position. During the The software compares the cutting load with the cutting cycle Default. This means that the sawing system can be stopped in the event of irregularities become. • The saw band is cleaned by two adjustable steel brushes. The drive takes place hydraulically. • The hydraulic unit including filter and pressure gauge guarantees one particularly quiet operation at constant pressure. • Finely ground carbide inserts that clamp the saw blade, complete with lateral, hardened and adjustable guide rollers. The adjustable one The tape guide automatically moves as close as possible to the material. • The saw band is tensioned via a hydraulic cylinder, which is carried out by the Machine software is controlled. The voltage is set according to a given Fgodpfx Asfg E Hpsb Tjk Time automatically delimbed when the machine is idle or after a cycle has been carried out. • Automatic version with CNC control in the X-TECH 900 / 1200 models a feed length of 500 mm for the series for high production rates. • The material is carried by a table with seven rollers. These will driven by a hydraulic orbital motor through which the material can be placed precisely even under maximum load. • All guided movements are carried out by four recirculating ball guides with one high capacity for static and dynamic loading; strong reduced feed friction. Tempered and ground prismatic Guides. Price on request.

Condition: new, Year of construction: 2025, CORMAK HBS320 band saw for metal provides cutting at any angle from -45° to + 60°. The element cut can be fed manually or by any feeding device. The feed during cutting is gravitational on the principle of oil flow in a two-chamber hydraulic cylinder. Band saw perfect for cutting tubes, profiles and other materials. Machine characteristics CORMAK HBS320 band saw for metal provides cutting at any angle from -45° to + 60°. The element cut can be fed manually or by any feeding device. The feed during cutting is gravitational on the principle of oil flow in a two-chamber hydraulic cylinder. Band saw perfect for cutting tubes, profiles and other materials. Operator starts the machine by pressing the START button and sets cutting speed. After the cycle is finished the machine automatically stops and the operator lifts the arm to the starting position. The band saw arm is made of massive, uniform cast iron, and together with 27 mm wide cutting band enables high quantity cutting of structural steel, stainless steel and tools. The vice is located in an adjustable bed and equipped with a quick clamp. Blade guides are equipped with a ball bearings system and cemented carbides, ensuring excellent cutting precision and straight cut. It has a huge impact on the band guiding, its durability, accuracy and cutting quality. The carbide guiding drastically reduces the wear of both the machine and the blade. The base is enclosed, constituting a rigid welded body of steel sheets. A separate flood coolant container with an electropump is inside. The shape of the base upper part constitutes a tank for flood coolant draining and chips produced during cutting. Cast iron workbench is attached to the base, with a double-sided swivel arm and a control panel. The feed speed is controlled by the control panel. There are 2 cutting band speeds: 44 and 88 m/min. In rest arm position (after the cutting process) the cutting band drive is switched off automatically. Safety is ensured with cutting band guards and microswitches stopping the motor after cutting cycle is finished or after any of the guards are opened; additional protection consists of automatic switch-off of the band saw in case the cutting band breaks. Technical data Ø max 260 mm /perpendicular cutting H×B max 320×160 mm /perpendicular cutting Power supply - 3–phase, 400V Total power - 2.1 kW Arm lowering control - hydraulic cylinder Band dimensions - 2740×27×0.9 mm Cutting speed - stepless 0–50 m/min Band speed - 44 / 88 m/min Vice base height - 920 mm Fgodpfji D Dgwsx Ab Tek Dimensions - 1400×880×1550 mm Weight - 330 kg Cutting parameters Angle 0º ---- ø260 320×160 255×255 45º R ø210 210×200 210×210 60º R ø135 135×130 130×130 45º L ø160 220×130 160×160 The price is a net price. Price does not include shipping costs. For more information, please contact us by phone or e-mail. We invite you to familiarize yourself with the offer on our website.

Year of construction: 2015, condition: excellent (used), functionality: fully functional, Slitting and cut to lenght line for steel and aluminium – producer Barović Serbia Fsdpfoxb Twcox Ab Tjgk Decoiler: 12.000kg Maximum coil width: 1.550mm Inside coil diameter: from 480mm to 620mm Foiling station for apliying PVC folil. Cut to lenght – working speed is betwenn 20 – 50m/min: Cylinder: for straigthening of the steel 5+4 pcs Maximum width: 1.550mm Sheet thikness: 0,3 to 3,0mm Lengh acuracy: +/- 0,5mm Electric scissors for straightened steel (sheet): max thikness 3mm Pneumatic – hydraulic receiving table with working dimensions of 1.550 x 3.000mm Slitting – working speed is ca 20 m/min: Strips: from 32mm to 1550mm Maximum width: 1.550mm Sheet thikness: 0,3 to 3,0mm Electric scissors for strips: max thikness 3mm End winder: 10.000kg Maximum coil width: 1.550mm Inside coil diameter: 508mm

Condition: good (used), Year of construction: 1992, Automatic band saw JAESPA Type:W400 AZ Control Minipos 807 year 1992 Cutting diameter round material max. 400mm Sägebandlänge:5500X32X1,1mm Feed automatic cut length min.20mm Chip conveyor Total power requirement 4 Kw Fgsdpfxogf H Sae Ab Tjk Weight approx.2500kg Accessories 2X saw blades, roller table 6m motor drive, machine documentation available. Footprint : 2,8X2,8X2m

Condition: new, Year of construction: 2025, saw band length: 3,920 mm, saw band width: 34 mm, Double column bandsaw fully automatic Everising H-260 HB Cutting range round: 0 - 260mm Cutting range square: 300 x 260mm Bundle tension: Width: 145 - 190mm Bundle tension height: 30 - 130mm Drive power: 3.7 kW Saw blade dimensions: 3920 x 34 x 1.1mm Weight: 1759 KG Machine dimensions: 2170 x 2100mm The standard equipment of the machines is as follows: Solid steel construction in double column principle - NC feed system - Frequency-controlled cutting speed (infinitely variable, inverter-controlled) - Digital cutting speed display - Hydraulically controlled double horizontal clamping vices Fgedpfxoq Ulxys Ab Tok - Hydraulic saw band tensioning - Saw band guides (incl. band back guide) made of carbide - Hydraulically pre-tensioned band guides - Precise PLC control (SPS) for all hydraulic and electrical components. - Cutting counter with automatic switch-off - Automatic out-of-stock switch-off - Multi-job function - Bundle clamping device - Driven chip brush - Automatic belt breakage control incl. emergency stop - Chip flushing gun - Flexible work light - 2 meter roller conveyor - Tool box - Carbide function Special equipment included: - Variable clamping pressure reduction - Cutting process control Extensive complete German documentation.

Condition: new, capacity 90 degrees: round 250 mm capacity 90 degrees: square 210 mm 290 x 210 mm saw band length 2.965 x 27 x 0,9 mm mm Fjdpfsfgyh Rox Ab Togk table height 940 mm band speed 25 - 90 m/min total power requirement 1,1 / 1,3 kW weight of the machine ca. 0,35 t dimensions of the machine ca. 1,3 x 0,8 x 1,5 m ATTENTION SPECIAL PRICE!!! (20347) Double miter metal band saw with: - Belt speed 25 - 90 m/min - Miter cuts up to 60° left and 45° right - Ball-bearing rotary table for quick miter adjustment - Quick-action clamping stick can be moved - Quick release lever - Automatic cooling

Condition: used, Year of construction: 2001, functionality: fully functional, Year: 2001 - technically efficient, ready to work (directly from the client) - corner cleaning machine SV 494 CNC - for-head welding machine AKS 6110 - turning station - cooling station - flash limitation: 0.2 - 2 mm Fsdpfx Abetr Dukj Togk

Condition: new, 355 mm 350 x 350 mm saw band length 4640 x 34 x 1,1 mm band speed 15 - 115 m/min total power requirement 5,5 kW Fsdofm T Hbjpfx Ab Tsgk weight of the machine ca. 2,8 t dimensions 3,2 x 2,2 x 2,7 m Automatic electromechanical band saw machine in two-column design for 0° Cuts on solid material and profiles made of steel, stainless steel and Steel alloys up to a maximum of 350x350 mm. The standard equipment includes: Powered chip conveyor, to be mounted on the right or left of the machine. Clamping pressure regulation of the vices. Feeder with vertical rollers for lateral material support. Sensors for initial material detection. Clamping pressure regulation. 300 programs can be saved. The machine is available with a 34 or 41 band - at no extra charge. Price on request.

Condition: new, Year of construction: 2024, cutting range round steel at 45°: 108 mm, cutting range round steel at 90°: 108 mm, cutting height (max.): 150 mm, BERG+SCHMID GBS 218 Eco AutoCut double mitre bandsaw Speed: 25-80 m/min - Mitre left 60° - For cutting steel, stainless steel and aluminum profiles - Quick-clamping vice with quick-clamping device a. - Built-in blade tension control b. - Saw blade guide made of carbide c. - Electric automatic cooling system - Machine base (supplied disassembled) Fgodpfx Aet I R Edeb Tek The AutoCut system consists of: - Hydraulic cylinder, feed control, spring assembly, limit switch and enables three work sequences: 1. automatic lowering of the saw frame via hydraulic cylinder with infinitely adjustable feed control valve and limit switch at the end of the cut 2. high-speed lowering of the saw frame from the rest position up to the workpiece, then switching to normal saw feed 3. manual operation - hydraulic cylinder works as a brake cylinder Saw blade dimensions: 2455x27x0.9mm Further accessories such as saw bands, roller conveyors, measuring stops, minimum quantity lubrication etc. available on request! Delivery time: ex stock Waiblingen Beinstein

Condition: new, Year of construction: 2025, saw band length: 4,420 mm, saw band width: 34 mm, Double-column bandsaw, fully automatic Everising H-360 HB Cutting range round: 0 - 360mm Cutting range square: 360 x 360mm Bundle tension: Width: 180 - 280mm Bundle tension height: 50 - 160mm Drive power: 3.7 kW Saw blade dimensions: 4420 x 34 x 1.1mm Weight: 2310 KG Machine dimension 2500 x 2200mm The standard equipment of the machines is as follows: Solid steel construction in double column principle - NC feed system - Frequency-controlled cutting speed (infinitely variable, inverter-controlled) - Digital cutting speed display - Hydraulically controlled double horizontal clamping vices - Hydraulic saw blade tensioning - Saw band guides (incl. band back guide) made of carbide - Hydraulically pre-tensioned band guides - Precise PLC control (SPS) for all hydraulic and electrical components. - Cutting counter with automatic switch-off - Automatic out-of-stock switch-off - Multi-job function - Bundle clamping device - Driven chip brush - Automatic band breakage control incl. emergency stop - Chip flushing gun - Flexible work light - 2 meter roller conveyor - Tool box - Carbide function Fgsdpfx Aboq St U Ns Tek Special equipment included: - Variable clamping pressure reduction - Cutting process control Extensive complete German documentation.
