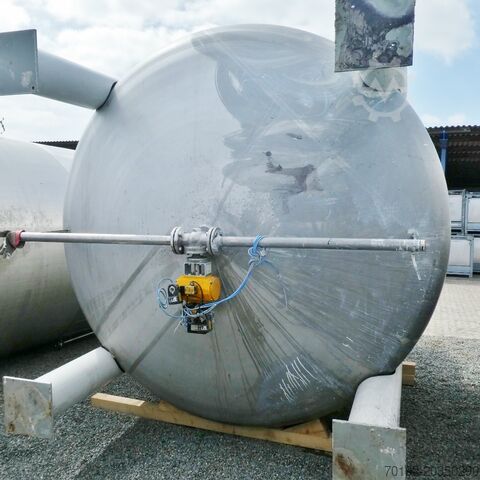

17,300 liter mixing tank made of V2A with 27 kW beam agitator (explosion-proof)Hagemann
7081
17,300 liter mixing tank made of V2A with 27 kW beam agitator (explosion-proof)
Hagemann
7081
fixed price plus VAT
€16,900
Condition
Used
Location
Bremen

Show images
Show map
Price & Location
fixed price plus VAT
€16,900
- Location:
- Bremen

Call
Technical details
- Tank capacity:
- 17,300 l
Details about the offer
- Listing ID:
- A20350290
- Reference number:
- 7081
- Update:
- 25.01.2026
Description
GENERAL
Design: vertical
Remarks: 1 vessel (internal no. 7081-3) with a minor dent and a cut-off connection on the top head
Speed: 47 / 95 rpm
Internal diameter: 2,900 mm
Explosion protection: Motor is explosion-proof (compliance with the applicable ATEX directives must be verified under local conditions)
Total height: 5,100 mm
Power: 17 / 27 kW
Agitator: beam agitator
Location: Bremen
Technical documentation: drawing, TÜV papers
Nameplate:
Volume: 17,300 litres
Cylinder wall thickness: 8 mm
Product-contact material: V2A 1.4301 (AISI304)
Condition: used
Cylindrical height: 1,800 mm
Former application: paint industry
VESSEL
Max. permissible operating temperature: 100 °C
Specific gravity of medium: 1.2 (t/m³)
Support type: on legs
Number of legs: 4
EQUIPMENT
Manhole / Dome: on top head (DN 600), handhole
Outlet: 50 mm
Note: minor residues
MATERIAL SPECIFICATION
Leg material: steel
AGITATOR
Voltage: 400 Volt
Agitator position: centrally on the top head
Nsdoxqbmwopfx Ad Nocl
TECHNICAL DATA / DIMENSIONS
Bottom wall thickness: 4 mm
The listing was translated automatically. Translation errors are possible.
Design: vertical
Remarks: 1 vessel (internal no. 7081-3) with a minor dent and a cut-off connection on the top head
Speed: 47 / 95 rpm
Internal diameter: 2,900 mm
Explosion protection: Motor is explosion-proof (compliance with the applicable ATEX directives must be verified under local conditions)
Total height: 5,100 mm
Power: 17 / 27 kW
Agitator: beam agitator
Location: Bremen
Technical documentation: drawing, TÜV papers
Nameplate:
Volume: 17,300 litres
Cylinder wall thickness: 8 mm
Product-contact material: V2A 1.4301 (AISI304)
Condition: used
Cylindrical height: 1,800 mm
Former application: paint industry
VESSEL
Max. permissible operating temperature: 100 °C
Specific gravity of medium: 1.2 (t/m³)
Support type: on legs
Number of legs: 4
EQUIPMENT
Manhole / Dome: on top head (DN 600), handhole
Outlet: 50 mm
Note: minor residues
MATERIAL SPECIFICATION
Leg material: steel
AGITATOR
Voltage: 400 Volt
Agitator position: centrally on the top head
Nsdoxqbmwopfx Ad Nocl
TECHNICAL DATA / DIMENSIONS
Bottom wall thickness: 4 mm
The listing was translated automatically. Translation errors are possible.
