Surface grinding machine

ABA Z&B SCHLEIFMASCHINEN GMBH ECOLINE 1206A

Condition: excellent (used), Year of construction: 2014, 1000mm Swing, 760mm max. machining diameter, 1540mm max turning length, 4000rpm main spindle, 76mm bar capacity, Kjdpfx Ajw I Tnijg Aedw 12000rpm milling 18.5kW, C axis 0.001 degrees, Y axis -/+115mm, 40 station ATC, 12 station lower turret, milling speed 4,000rpm, 22kW spindle motors, FANUC 31i control, 3 Jaw Power Chuck, Swarf Conveyor, Coolant

Condition: refurbished (used), functionality: fully functional, machine/vehicle number: 844 12 64, turning diameter over cross slide: 215 mm, spindle bore: 40 mm, turning diameter: 380 mm, center height: 190 mm, center width: 1,250 mm, quill stroke: 120 mm, total length: 3,020 mm, total width: 950 mm, total height: 1,500 mm, spindle speed (max.): 2,800 rpm, spindle speed (min.): 14 rpm, overall weight: 1,850 kg, quill mount: MK 3, workpiece weight (max.): 300 kg, Trade show lathe, available from stock. After Trens filed for bankruptcy, we made an effort and had TOS and later Trens lathes completely overhauled. All machines were disassembled down to the last screw. Here is a run-through of a general overhaul at our company: 1. Machine cleaning, disassembly of the individual machine components 2. Grinding: bed, slide, cross support, spindle, tailstock quill 3. Grinding + scraping of the upper support guideways, replacement: trapezoidal screw with nut and V-ledge 4. Scraping of the guide surfaces: spindle, slide, cross support, and tailstock to geometric positions according to the accuracy report 5. Replacement: screw with nut, V-ledge, and Multifix base body for the cross support (including 2 turning tool cartridges) 6. Complete disassembly and replacement of the necessary spare parts in the lock case, threaded housing, headstock, gear box, tailstock, cross support, and upper support 7. Installation, replacement if necessary, of racks, repair of the lead screw and feed screw 8. Complete bearing replacement in all machine assemblies 9. Complete replacement of machine plates 10. Priming of the machine, sealing, sanding, polyurethane topcoat, and painting of the machine accessories - white RAL 9003, anthracite RAL 7016 11. New control cabinet with electrical components, replacement: main motor, rapid traverse motor, hydraulic pump, cabling, and LED lighting of the work area 12. Preparation of the accuracy report and the electrical test report 13. Inspection and machine acceptance at the factory All refurbished machines have a CE certificate and a 12-month warranty. CE version: - Chuck guard with limit switch - Front chip guard mounted on slide - Rear chip guard - Lead screw and feed screw covers - Brakes after emergency stop within 2 seconds Kdsdpfx Ajv Hzqxjg Aew Special accessories (used): - Three-jaw lathe chuck Ø 190 mm - Four-jaw lathe chuck Ø 190 mm - Three-jaw lathe chuck Ø 240 mm - Four-jaw faceplate Ø 320 mm - Support center for bed slide - Various chuck jaws (10 pieces) - Collet set Ø 2 - 25 mm with collet chuck + drawbar - Special collet set (10 pieces) with collet chuck - 4-way tool holder

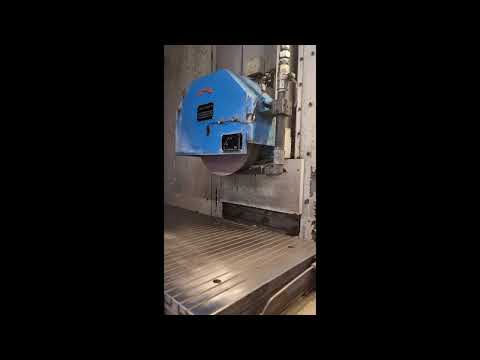

Condition: used, Year of construction: 2001, grinding length 4200 mm grinding width 1300 mm workpiece height 550 mm Control Siemens 840D passage width 1300 mm electro-magnetic table 4200 x 1300 mm grinding height 550 mm grinding motor 306 kW grinding motor turning speeds up to 370 U/min grinding motor feed, infinitely variable 0,5-35 m/min coolant flow rate 2000 l/min weight of the machine ca. 50 t dimensions of the machine ca. 11,21 x 5,25 x 3,85 m Equipment / Accessories: Kjdpfxethumuj Ag Aedw - segment head - diameter 1400 mm - for segment dimensions 120/106 x 41 x 250 mm - number of segments: 1 set = 26 pieces - grinding motor adjustment - in steps: 0,002 - 1 mm - continuous: up to 5 mm/min stepless

Condition: excellent (used), Year of construction: 2000, DESCRIPTION Hermle C 800 V CNC vertical machining center was built in 08.2000 in Germany. The milling center operates in three axes and the maximum X / Y / Z travels are 800, 600 and 500 mm. The machine is equipped with a Sinumerik 840D numerical control with a LAN cable to an external computer. In addition, the lathe is equipped with, among others: Chip conveyor, Hydraulic clamping, Magazine for 87 tools, Turning finder and Control cabinet air conditioning. The spindle rotates at a maximum speed of 15,000 rpm. Spindle hours approx. 4500 h. The total weight of the milling center is approx. 7 tons. Technical data of the Hermle C 800 V CNC milling center - Travel X / Y / Z axis: 800/600/500 mm - rapid traverse: 35 m/min - maximum spindle speed: 15.000 rpm oil mist extraction - spindle power: 19 kW - operating voltage: 400V; 3PH; 50Hz - control voltage: 220V AC; 24V DC - machine dimensions (L x W x H): 2,3 x 3 x 2,65 m - Total weight: 7000 kg Equipment of the Hermle C800V CNC milling center - CNC control: Sinumerik 840D - Tool magazine capacity: 87 pieces - Lamp sockets: SK40 - cooling pump through the tool: 40 bar - control cabinet air conditioner - rotating viewfinder - chip conveyor Kdodpoiva Dkofx Ag Ajw Separately additionally available with to see on the photos! tool presetter Various SK40 holders Touch probe Heidenhain TS32 Neuwetig

Condition: new, Year of construction: 2024, Machine is brand new and factory packed. Loading available in our warehouse and can be quickly delivered. ADDITIONAL EQUIPMENT on machine: - automatic lubrication - side suports for long workpieces - Aditional USB key for ''Maestro CNC'' software DRILLING UNIT TECH. DATA: - 8x vertical drilling spindles - 6x horizontal drilling spindles (2+2 on ''X'' and 1+1 on ''Y'') - drilling speed 4200 min-1 - sawing unit with 125 mm diameter MOULDER TECH. DATA - Motor power: 5,5 KW - spindle speed: from 1000 - 18000 rpm OTHER DATA: Kdsdpfxsip Dh Ie Ag Aew - maks/min workpiece length: 3050 / 200 mm - maks/min width: 900 / 80 mm - maks/min thickness: 60 / 10 mm - movement speed: 40 m/min - exhaust outlet: 1x 150 / 1x 120 / 1x 80 mm

Condition: new, capacity 90 degrees: round 510 mm capacity 90 degrees: square 480 mm 610 x 450 saw band length 5320 x 34 x 1,1 mm band speed 15 - 100 m/min table height 820 mm total power requirement 3,0 kW weight of the machine ca. 2,3 t dimensions of the machine ca. 2,65 x 2,8 x 2,2 m For miter cuts up to 45° left in fully automatic Operation and up to 60° left in semi-automatic operation Material height sensor (automatic cut start detection) Automatic feed unit via ball screw with incremental feed automatic length compensation Button on the saw band for automatic adjustment of the saw stroke Fully automatic control of the saw frame and clamping device Hydraulic unit with automatic pressure shut-off when idling Mechanical chip clearing brush feed vice opening on both sides Remaining piece length 100 mm Modern CNC control freely programmable for multiple sawing jobs with various Ksdpfxsfu Nbbj Ag Ajdw Cutting lengths and quantities. Automatic feed unit 500 mm via ball screw incremental feed with automatic length compensation. Adjustable for section lengths of 25 – 9,999mm. Fully hydraulic control of saw frames and clamping devices Preselection of 3 different material feed speeds Visualization of the entire workflow with simple data entry

Condition: like new (used), Year of construction: 2019, pressure:400 t stroke:900 mm Table dimensions:1200 x 1200 mm Deep-Drawing Pillow:150 t Kdedpefh Izmofx Ag Ajw travel away deep-drawing pillow:280 mm Daylight Opening:1100 mm

Condition: excellent (used), functionality: fully functional, turning length: 530 mm, turning diameter over cross slide: 620 mm, turning diameter: 260 mm, spindle motor power: 15,000 W, spindle speed (min.): 35 rpm, spindle speed (max.): 3,500 rpm, spindle bore: 80 mm, travel distance X-axis: 195 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 590 mm, rapid traverse X-axis: 12 m/min, rapid traverse Y-axis: 10 m/min, rapid traverse Z-axis: 15 m/min, Mori Seiki SL-25Y/500 CNC LATHE With 1.5m LNS bar feeder Control: Mori Seiki MF-T6 Tool holders: (2) Radial live tolls (2) Axial live tools (4) inside tool holders (4) outside tool holders Swing over bed: 815 mm (32.1″) Swing over cross slide: 620 mm (24.4″) Distance between centers: 620 mm (24.4″) Max. turning diameter: 260 mm (10.2″) Max. turning length: 530 mm (20.9″) X-axis travel: 195 mm +130 +65 (7.7″ + 5.1″ + 2.6″) Z-axis travel: 590 mm (23.2″) Y-axis travel: 100 mm ±50 (3.9″ ± 2.0″) Spindle speed range: 35 – 3,500 RPM Spindle nose: JIS A-8 Through spindle hole diameter: 80 mm (3.1″) Spindle bearing inner diameter: 130 mm (5.1″) Number of tool stations: 12 Shank height for square tool: 25 mm (1.0″) Shank diameter for boring bar: 50 mm (2.0″) Turret indexing time: 0.25 sec Rotary tool spindle speed: 100 – 2,000 RPM Rotary tool cutting capability: End mill max Ø20 mm, Face mill max Ø50 mm, Tap max M12 Rapid traverse rate:   X-axis: 12,000 mm/min (472.4 IPM)   Z-axis: 15,000 mm/min (590.6 IPM)   Y-axis: 10,000 mm/min (393.7 IPM) Feed per revolution:   X-axis: 0.001 – 342 mm/rev Kjdpfx Agow Ett Ij Ajdw   Z-axis: 0.001 – 342 mm/rev   Y-axis: 0.001 – 500 mm/rev Jog feedrate: 6,000 mm/min (236.2 IPM) Tailstock travel: 403 mm (15.9″) Tailstock spindle diameter: 110 mm (4.3″) Tailstock spindle travel: 100 mm (3.9″) Tailstock taper: MT-5 (Live center) Spindle motor power (30 min/cont): 15/11 kW (20/15 HP) Rotary tool spindle motor: 3.7/2.2 kW (5/3 HP) Electrical power supply: 44 kVA Coolant tank capacity: 100 liters (26.4 gal) Machine height: 2,060 mm (81.1″) Floor space: 3,183 × 1,799 mm (125.3″ × 70.8″) Machine weight: 5,400 kg (11,900 lbs)

Condition: used, Year of construction: 2014, turning diameter over bed 0508 mm turning length 724,5 mm control Ultimax Hurco Kdodpfx Ajv T Np Aog Aow turning diameter over bed slide 336 mm spindle turning speed - stepless 0- 4500 U/min- rpm spindle bore 65 mm feeds 0-30 m/min rapid power traverse in X-and Z direction 30 m/min voltage 400 V connected load 30 KVA face slide travel 203,2 mm longitudinal travel 580/640 mm dimensions of the machine ca. 4,3 x 2,1 x 2,6 m toolpiece turning speed range 0- 5000 U/min work piece power 5,5 kW main drive motor 15/22 kW weight of the machine ca. 5,6 t c-axis 360 x 0,001 ° With 12 position turret head with live tooling (C- axe), sub spindle, power chuck, cooling arrangement and chip conveyor. Control: Hurco Ultimax. With many accessories.

Year of construction: 1998, condition: excellent (used), functionality: fully functional, machine/vehicle number: 389101016885, Bulgarian forklift from Balkancar .Capacity 3.5 tons disel drive ..Year of production 1989 ..Unladen weight 4800 kg. Kdsdpfx Agstz Td As Aew Lifting height 3300 mm... Torque 79/27,5 kN. Serviced .Very good condition .Trolley operational ready to use .Net price vat invoice. Cart with access to spare parts .
