Universal machining center

Z-MaT Power V10 New Design 3+2 Achs

Z-MaT Power V10 New Design Vertical CNC Machining Center
Siemens 828D, Shop Mill 15" Touch
with 5 axes (3+2, table diameter 255mm)

X-axis travel: 1050 mm
Y-axis travel: 650 mm
Z-axis travel: 600 mm
Spindle nose/table: 120-720 mm
Worktable
Table size: 1400 x 650 mm
Max. table load: 1000 kg
T-slot size: 18x5x100 mm
Spindle specifications
Spindle: SK 40, 12,000 rpm DDS, incl. oil cooler
Spindle motor: 18.5/15 kW
Tool changer
Double-arm gripper, 30 stations / 8 kg
Feed rates
Cutting feed rate: 0–12,000 mm/min
Cjdpfx Abeww A Dyousrh
Rapid traverse (X/Y/Z): 30 m/min

Dimensions: 3200 x 2500 x 2450 mm
Total weight: 8,200 kg

Standard equipment
- Full enclosure
- Electronic handwheel (MPG)
- Spindle oil cooler
- LED workspace lighting
- Air blast through spindle
- LED status indicator (3 colors)
- Automatic central lubrication system
- Coolant system with nozzles around the spindle
- Chip flushing unit with coolant
- Tapping without compensation chuck
- 3-axis linear roller guides
- Heat exchanger in the control cabinet
- Ethernet, CF card, USB interface
- Leveling screws and machine mounts
- Toolbox
- Coolant gun
- Air gun
- Operating manual
- CE compliant

including special accessories:
Chip conveyor (spiral type)
Through-spindle coolant, 30 bar
3+2 axis rotary table, 255mm diameter

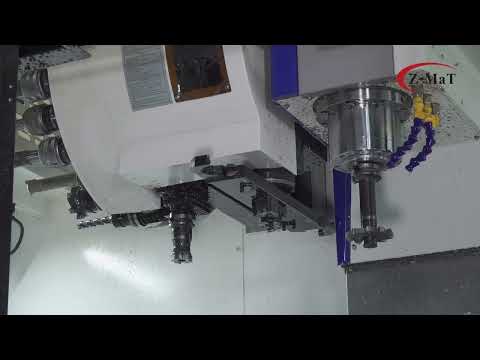

The video shows a machine of a different series with a 3+2 axis rotary table.

The machine will be exhibited at EMO, Hall 12/D10, and will be available immediately after the show.
