Used Toolroom Lathe for sale (5,533)

Condition: used, Year of construction: 2006, functionality: fully functional, Turning diameter: 650 mm Turning length: 1,500 mm Total power requirement: 33 kW Center distance: 1,500 mm Swing diameter over bed: 650 mm Swing diameter in recess: 670 Turning diameter: 650 mm Turning length: 1,500 mm Total power requirement: 33 kW Center distance: 1,500 mm Swing diameter over bed: 650 mm Swing diameter in recess: 670 mm Swing diameter over face slide: 260 mm Face slide travel: 380 mm Main drive Drive power AC motor - 40/60/100% duty cycle: 33/27/22 kW Spindle box Spindle bore diameter: 106 mm Spindle diameter in front bearing: 140 mm Speed range (V constant): 1 - 2,000 rpm Cross slide Feed range, face: 0.001 - 1,000 mm/rev Feed range, face, optional up to: 5,000 mm/rev Feed range, longitudinal and thread pitch: 0.001 - 2,000 mm/rev Feed range longitudinal and thread pitch, optional up to: 13,000 mm/rev Feed force flat: 9,000 N Feed force longitudinal: 12,000 N Automatic tool turret Number of tool stations: 12 With tool drive for 6 stations Tool holder system (DIN69880) VDI40 Ffodpfx Adoyrrk Rjpjw Equipment SIMENS SINUMERIK 840D sl (Shop Turn with manual functions) COMBI control station C-axis with drilling, milling, and engraving cycles Residual material detection and machining – during roughing and contour pockets MULTIFIX C forne setup Three-jaw chuck SMW AUTOBLOK: HI-GRIP HGF260-81-3 Oil emulsion mist filter for work area extraction: MAHLE LTA600 4 driven axial tool holders 2 driven radial tool holders

Condition: used, Year of construction: 2016, Technical details: turning diameter over bed: 402 mm turning dia. over face-slide: 245 mm turning length: 1000 mm centre distance: 1000 mm centre height: 200 mm Fedpfx Adovav Sdepefw swing diameter: in Kröpfung: 560 mm throat: Breite: 120 mm revolution per minute: 40 - 345 / 345 - 1015 / 1015 - 2800 U/min feed: längs: 0,05 - 0,752 + quer: 0,025 - 0,376 mm/U spindle diameter: Ø 42 mm tailstock taper ISO: MK4 tailstock quill stroke: 180 mm total power requirement: 4,1 kW Weight approx.: 1,2 t dimension machine xH: 2,4 x 1,0 x 1,7 m Die Drehmaschine verfügt über keinen Eilgang. Positionierung über 2-Achsen Anzeige über Pinacho Lathe Controller Multifix-Stahlhalter mit Drehmeißel Kühlmittelanlage Fußtaster Gewindeschneiden möglich (metrisch, Whitworth, Modul, Pitch) *

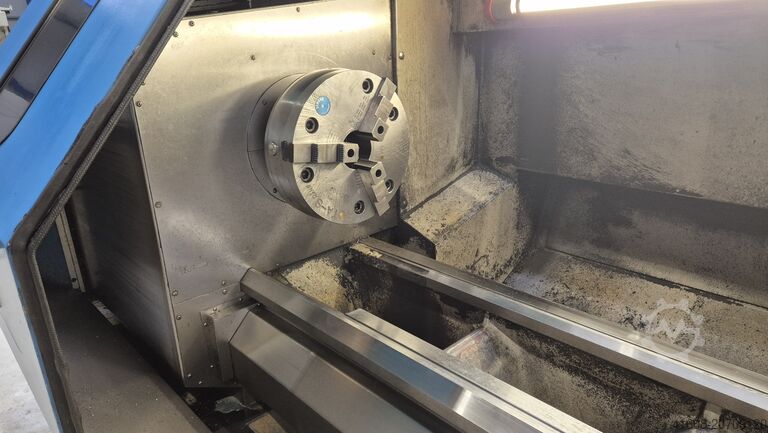

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, Technical details swing over bed 730 mm centre distance 3000 mm control Heidenhain MANUALplus4110 weight of the machine ca. 6,5 t dimensions of the machine ca. 7400 x 2100 mm Additional information Very well-maintained cycle lathe with only 15652 operating hours. Working area: Center distance 3000 mm Swing diameter over bed 730 mm Swing diameter over cross slide 450 mm Bed width 480 mm Main spindle: Spindle mount according to DIN 55027 size 11 Spindle bore 130 mm Spindle diameter at front bearing 170 mm Spindle taper 1:20 Tap in center sleeve MT 6 Fedjyrqdiepfx Adpsfw Main drive: AC drive with 2-stage ZF gearbox (automatic shifting gearbox) Drive power (100/60% duty cycle) 22/28 kW Total speed range 1 - 2200 rpm Maximum spindle torque: approx. 2200 Nm X-axis (cross slide) performance data: Maximum travel: 400 mm Feed force: 14 kN Speed: 4 m/min Z-axis (bed slide) performance data: Feed force: 18 kN Speed: 7 m/min Max. workpiece weight: Between centers without steady rest: 2000 kg With one steady rest: 2200 kg With two steady rests: 2500 kg In the chuck: 750 kg Tailstock: Quad diameter: 115 mm Quad stroke: 225 mm Quad taper: MK 6 Equipment and accessories: Heidenhain MANUALplus 4110 CNC control SCHUNK ROTASplus 400-102 3-jaw manual chuck 2 steady rests PARAT tool holder Chip conveyor Coolant system Work area enclosure with two sliding doors. Machine length 5700 mm, with swarf converyor 7400 mm Machine width 2100 mm

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, Technical details faceplate diameter 1800 mm Ffodoyrpyvspfx Adpew swing diameter 2000 mm turning height 1270 / 1120 mm Control SIEMENS 840 D workpiece weight max. 5000 kg ram head dimension 250 x 250 mm table turning speeds 1 - 320 U/min cross rail - adjustment 400 mm ram head - cross travel (X) -2770 / +2275 mm ram head - vertical travel (Z) 1250 mm c-axis 360° (0,001°) deg milling drive 37 kW turning speed range - milling 10 - 3000 U/min power capacity - table 100 kW Torque 31784 Nm feed range (X/Z) 0,1 - 15000 mm/min weight of the machine ca. 55 t Additional information Used CNC vertical lathe for turning, drilling and milling First machine installation in the year 2011. Max. workpiece diameter: 2040 mm Max. workpiece height: 1270 mm Ram stroke: 1250 mm Max. workpiece weight: 5000 kg (per pallet/chuck) Table speed range: 1.0 - 320 rpm Table drive motor: 100 kW Drilling and milling spindle: 37 kW Crossbar travel: 2 steps of 200 mm each Total electrical connection value: 218 kVA CNC control: Siemens 840 D Number of NC axes: 4 (X, Z, C, crossbar adjustment) Travels: X-axis: -1650 to + 2165 mm Z-axis: 1250 mm Rapid traverse X- Z-axis: 15 m/min Number of tool magazine spaces: 80 spaces in the chain magazine, of which 60 x HSK 100 and 20 x Capto C6 Disc magazine 12-pos. for rotary holders and attachment heads Coolant system with filter and circulation unit Chip conveyor Oil-mist-extractor 1 pallet with jaws, diameter 1800 mm 1 hydraulic chuck with base jaws, diameter 1800 mm Various drilling and milling heads 2 measuring probes Several turning tool holders Special feature: Pallet changer with two stations, equipped with a face plate Ø1800 mm and a six-jaw lever compensation chuck with mechanical centrifugal force compensation Ø1800 mm. Note: The machine is in a pit. Condition description: The cross roller bearing on the Carnaghi was replaced about half a year ago. The Siemens components in the control cabinet were also completely replaced at the end of 2023. The machine also has a measuring probe for tool measurement and an external Renishaw measuring probe for workpiece measurement. As a special feature, the machine also has a measuring probe installed on the Z-axis (Z1-axis). This brings an advantage in terms of accuracy and time, as the tool does not have to be put down for measuring. However, it is currently shut down and should be overhauled when it is put back into operation. The machine also has a Rotomors six-jaw lever compensating chuck with centrifugal force compensation, which was completely overhauled in 2020/21.

Condition: used, L + Z Lathe WEILER Type Condor 81 A Mach. No. 36553 Year of manufacture approx. 1985 Centre distance 750 mm Swing over bed 330 mm Centre height over bed 165 mm Swing over cross slide 180 mm Centre height over cross slide 90 mm Spindle bore 40 mm Chuck mounting: Short taper DIN 55027 size 5 Tailstock quill taper MK 3 Quill travel 110 mm Spindle speed 45 - 2800 rpm, 16 steps Drive power 3 kW Power supply 400 Volt, 50 Hz - Spindle speed through 16 gear steps - 3-jaw chuck Ø 160 mm RÖHM with hard and soft jaws - Multifix quick-change tool post size B with 3 holders - Automatic longitudinal and cross feed - Electro-mechanical spindle brake - Emergency stop - Coolant tank with pump integrated in the machine base, without feed hose to working area - Hinged chuck guard - Splash guard - 1 live center - Electric diagram and operating manual Space requirements L x W x H 1850 x 950 x 1400 mm Ffjdsk S Ht Aepfx Adpjw Weight 1100 kg Good condition

Condition: used, L + Z Lathe WEWAG Model 250 / 1500 make no. 20953 year of construction approx. 1975 center distance 1500 mm nominal turning diameter over bed Ø 500 mm turning diameter over bed max. Ø 510 mm Center height over bed 255 mm Ffedpfjlzm Eqex Adpew turning diameter over support Ø 300 mm Center height over support 150 mm spindle bore Ø 56 mm Spindle speed 18 - 1800 rpm. 24 steps lathe chuck support short taper DIN 55022 tailstock inner taper MK 5 drive power 4 kW and 6,7 kW pole-changing - 3-jaw lathe chuck BISON, Ø 250 mm - steel holder 4-fold for turning - fixed lynette - control cabinet fixed on the back of the machine weight 2500 kg

Condition: used, CNC cycle controlled lathe HARRISON type Alpha 400 Plus Machine No. P30180/150 Year of construction 1998 center distance 1250 mm turning diameter over bed 400 mm center height 200 mm Swing diameter over cross slide 245 mm Swing diameter in the bend 585 mm bed width 313 mm face travel (X-axis) 250 mm Tailstock spindle diameter 73 mm Tailstock quill stroke 140 mm Tailstock quill mount MK 5 spindle bore 54 mm spindle head size Camlock D1 size 6 Spindle speed 20-2500 rpm. Spindle speed range (stage 1) 15-275 rpm. Ffjdpfxjh Hvk As Adpjw Spindle speed range (stage 2) 35-795 rpm. Spindle speed range (level 3) 110-2500 rpm. Feed rate X and Z 0.03 - 0.6 mm/rev. Rapid traverse speed X axis max. 2000 mm/min. Rapid traverse speed Z-axis max. 4000 mm/min. Threading function Metric / Inch / Diametral / Module Spindle drive power 7.5 KW Mains connection 400 Volt, 50 Hz, 23,5 kVA - cycle control Harrison Alpha / GE FANUC - language in French (France) - automatic gear range shifting in 3 steps (15-275, 35-795, 110-2500 rpm.) - electronic handwheels with different transmission ratios (1/10/100) - 3-jaw face spiral lathe chuck FORKARDT Ø 250 mm type CSN, 1 set of soft top jaws - quick-change tool holder MULTIFIX size B with 2 inserts - 1 piece of centering point running with the tool - 1 piece quick-action drill chuck RÖHM, 3-16 mm - hinged lathe chuck guard - hinged working area protection doors - chip tray with coolant device under the machine bed - Switch cabinet fixed to the machine - Interface RS 232 Space requirement L x W x H 2600 x 1450 x 1550 mm weight 1950 kg good condition

Condition: excellent (used), Year of construction: 2014, Machine in very good condition, after repair in 2014. Swing over bed 1250 mm Swing over cross slide 770 mm Ffedpfxjyrn Hue Adpow Distance between centers 7000 mm

Condition: good (used), Year of construction: 2003, functionality: fully functional, Technical details working diameter max. 32 mm spindle passage 36 mm turning length 320 mm Control MITSUBISHI MELDAS 635LC travel max. (X1) 108 mm travel max. (Y1) 275 mm travel max. (Z1) 325 mm travel max. (X3) 238 mm travel max. (Z3) 410 mm main spindle speeds: 200 - 8000 U/min c-axis 0,001° deg. Subspindle spindle speeds 200 - 7000 U/min c-axis 0,001° deg. rapid traverse 20 m/min main drive 3,7 / 5,5 kW Subspindle motor 1,5 / 2,2 kW dimensions of machine 2,77 x 1,24 x 1,79 m weight of the machine ca. 2850 kg Additional information CNC Swiss-Type Lathe First put into operation December 2005 The machine was used for a single shift and is in good condition with no maintenance backlog. Equipment: FMB Turbo 5-42/3200C bar loader, built 2004 High-pressure pump Many collet chucks for main spindle Various collets Drive unit for synchronously driven guide bush Synchronously driven guide bush Drive unit for transversely driven spindle on linear support Pick-up spindle Collet chuck for pick-up spindle Blow-out device for pick-up spindle Five fixed tool holders on the rear Ffsdpfx Aoyrn I Sjdpew Workpiece removal device Coolant tank Central lubrication system Door lock Ejection device for workpieces with through holes Machine documentation The machine will be sold without tools and extraction system.

Condition: used, Year of construction: 2000, Technical details: turning diameter: 1600 mm turning length: 3000 mm centre height: 800 mm turning diameter over bed: 1600 mm turning diameter over bed slide: 1400 mm turning dia. over face-slide: 1200 mm max. workpiece weight between centers: 20 to speeds: 5,6 -800 1/min transmission ratio: 3 spindle bore: 112 mm turret (x-stations): 8 / VDI 60 travel -x axis: 850 mm travel -z axis: 3020 mm rapid power traverse in X-and Z direction: 6 / 10 m/min power maindrive: 46 kW weight of the machine ca.: 22 to. dimensions of the machine ca.: 7,2 x 4 (3,11) x 2,7 m tech-in lathe, flatbed, tailstock, 8-pos. BARUFFALDI turret with 4 live tools, power 9kW, 4-pos. BARUFFALDI square-headed turret horizontal, C-axis, 3-jaw hydr. chuck SMW Autoblock KNCS 800/165, dia. 800mm, quick adjustment, power cylinder with 2 pressure clamping system, chipconveyor, coolant device, accessories Fedshutpvjpfx Adpofw *

Condition: used, Make: Schiess Control: Conventional Fodpfx Adsxpd Emjpefw Location: Germany Major overhauls: 2009 new electric with new AC main motor, 2022 overhaul of the gearbox. Condition: under power, in good condition Chuck Ø: 9500 mm Swing Ø: 10500 mm Max. Workpiece Weight: 150 T Max. Working Height: 4500 mm Ram Vertical Travel: 2250 mm Chuck Speed: up to 7.35 rpm Machine Weight: aprox. 400 T Left ram is currently dismantled but will be supplied together with the machine.

Condition: excellent (used), Year of construction: 1998, turning diameter 410/ 440 mm turning length 950 mm control Siemens / Weiler D2 workpiece weight max 900 kg spindle head Gr 6 MK 6 spindle bore 54 mm Ffodpfxeyrh Apj Adpsw face stroke 230 dia. of quill MK 4 mm quill stroke 120 mm centre height 200 mm thread pitch max. in mm 0,1 - 250 mm spindle turning speed - stepless 1 - 3000 U/min total power requirement 12 kW weight of the machine ca. 2,1 t dimensions of the machine ca. 2,3 x 1,5 x 1,8 m

Condition: good (used), Year of construction: 2018, rated current 60 A voltage 3 - 400 V control voltage 24 V DC --> BUDERUS, type: U-Grind 800 --> Control system: Rexroth, type IndraControl V --> Workpiece diameter max. 250 mm Fjdeyrhnrepfx Adpofw --> Workpiece length max. 800 mm --> (External grinding, internal grinding, hard turning, measuring) --> Speed max. C-workpiece spindle: 1,000 rpm --> High-performance external grinding spindle: 5,100 rpm --> Internal grinding spindle: 30,000 rpm --> Feed rates max. Z 30 m/min, X 60 m/min Translated with (free version)

Condition: good (used), Year of construction: 2018, rated current 60 A Fedpfx Asyrhnfedpsfw voltage 3 - 400 V control voltage 24 V DC --> BUDERUS, type: U-Grind 800 --> Control system: Rexroth, type IndraControl V --> Workpiece diameter max. 250 mm --> Workpiece length max. 800 mm --> (External grinding, internal grinding, hard turning, measuring) --> Speed max. C-workpiece spindle: 1,000 rpm --> High-performance external grinding spindle: 5,100 rpm --> Internal grinding spindle: 30,000 rpm --> Feed rates max. Z 30 m/min, X 60 m/min Translated with (free version)

Condition: used, Year of construction: 1995, turning diameter 570 mm turning length 2000 mm control num + CNC Keller centre height 280 mm turning dia. over face-slide 365 mm Ffodpfxeyrhm Uo Adpew spindle bore 62 mm spindle turning speed range 3 - 2500 U/min spindle head DIN 55 027 Gr. 8 cutting speed Konstant 1 - 9999 m/min feed in x - axis 0,01 - 50 mm/U feed range Z-direction 0,01 - 50 mm/U rapid travel - longitudinal/face 10 / 5 m/min feed power x-Achse 7100 N feed power z-Achse 12.500 N travel of cross-slide 345 mm upper slide travel 125 mm bed width 360 mm tailstock quill diameter 80 mm tailstock quill stroke 190 mm tailstock taper MT 5 max. workpiece weight -without tailstock 400 kg max. workpiece weight between centres 1000 kg kpiece weight:each extra steadyrest 300 kg threading metric 0,1 - 400 mm/Stg. dimensions of machine L x W x H 3,98 x 1,87 x 1,81 m Accessories: 3-jaw chuck RÖHM, 250 mmø; MULTIFIX-toolpost, solid steady, coolant

Condition: used, Year of construction: 2000, turning diameter 500 mm turning length 1500 mm control MONFORTS CONTROL control SYSTEM MTC-K turning diameter over bed slide 290 mm spindle bore 70 mm spindle turning speed range 3 - 2800 U/min spindle power 15 kW max. torque on the spindle 1530 Nm spindle head DIN 55027 Gr. 8 feed power X/Z axis 11300 N rapid travel - longitudinal/face 10 / 5 m/min bed width 360 mm travel of cross-slide 265 mm Fedpfx Ajvh Ncrodpsfw upper slide travel 140 mm turning tool - shaft cross cut 32 x 25 mm tailstock quill diameter 80 mm tailstock quill stroke 160 mm tailstock taper MT 5 weight of the machine ca. 3,3 t dimensions of machine L x W x H 3,45 x 1,65 x 1,93 m Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, Further information will follow. Fodpfjyrg Iwex Adpsfw

Condition: used, Year of construction: 2007, Technical details: faceplate diameter: 1600 mm power requirement: 80 kW weight of the machine ca.: 25 t dimensions of the machine ca.: 4,4 x 4,62 m max. workpiece diameter: 2000 mm max. diameter of face turning: 1800 mm tool taper: ISO50 Fedpjx Aq E Hjfx Adpjfw The machine has been regularly serviced and is in good technical condition. With C-Axis *

Condition: used, Year of construction: 2010, DMG CTX alpha 500 CNC Universal Lathe Condition: Used Year of manufacture: 2010 Specifications: Working area: Swing diameter over bed: 500 mm Max. turning diameter: 200 mm Centre distance: 700 mm Turning length: 500 mm Axis travels: X-axis travel: 190 mm Y-axis travel: 80 mm Z-axis travel: 525 mm Fjdpoyrgzqsfx Adpofw Main spindle: Spindle bore diameter: 73 mm Spindle speed (S1, 100% duty cycle): 5,500 rpm Spindle speed (40% duty cycle): 5,500 rpm Electrical connection: Rated apparent power: 25 kVA Dimensions: With chip conveyor (LxWxH): 4450x2510x1825 mm Weight incl. control cabinet: approx. 4,300 kg

Condition: used, Year of construction: 1993, Weiler Condor B conventional lead and feed screw lathe Condition: Used Year of manufacture: 1993 Specifications: Distance between centres: 750 mm Centre height: 165 mm Swing diameter over bed: 330 mm Swing diameter over cross slide: 170 mm Spindle bore: 40 mm Speed range: 22 - 2800 rpm Drive power: 3.2 kW Weight: approx. 1200 kg Dimensions (LxWxH): 1900 x 1000 x 1400 mm Equipment: Lead and feed screw 3-axis digital readout Spindle brake (switchable) Multifix quick-change tool post Fjdeyrgx Aopfx Adpjfw

Condition: used, Year of construction: 1997, Weiler Condor B Conventional lead and feed screw lathe Condition: Used Year of manufacture: 1997 Specifications: Centre distance: 750 mm Centre height: 165 mm Swing over bed: 330 mm Swing over cross slide: 170 mm Spindle bore: 40 mm Ffsdpsyrgw Eofx Adpjw Speed range: 22 - 2800 rpm Drive power: 3.2 kW Weight: approx. 1200 kg Dimensions (LxWxH): 1900 x 1000 x 1400 mm Equipment: Lead and feed screw 3-axis digital readout Spindle brake (switchable) Multifix tool holder

Condition: used, Year of construction: 2003, Lathe DMG Type NEF 320 K Condition: Used Year of Manufacture: 2003 Control: SINUMERIK 810DE-L CCUO Cycles for taper turning and thread cutting Technical Data Swing over bed: 320 mm Swing over cross slide: 150 mm Chuck: 200 mm Cross travel: 150 mm Fjdpjyrggmefx Adpjfw Feed drive AC: 4 m/min Main spindle: Size 6 Spindle bore: 52 mm Spindle mounting: MK 6 Spindle front bearing diameter: 85 mm Drive power: 7 kW Max. torque: 320 Nm Speed range: 14 - 3550 rpm Gear stages: 2 Tool post: Multifix size B Quill: 70 mm Quill stroke: 120 mm Quill mounting: MK5 Dimensions Length / Width: 2600 mm / 1440 mm Weight: approx. 1440 kg

Condition: used, Year of construction: 1996, Spinner TC 32 MC CNC Lathe Condition: Used Year of manufacture: 1996 Control: Siemens 810D Conversational programming: Siemens Machine Description: C-axis for spindle with software option Transmit for face machining, and Tracyl (cylindrical interpolation) for outer surface machining. Hydraulic hollow clamping cylinder with three-jaw chuck D125 mm and various set jaws (hard and soft) Fully enclosed splash guard, coolant system, work area lighting Technical Data Turning length: max. 245 mm Chuck: 125 mm Fedpjyrgbqsfx Adpjfw Longitudinal travel: 245 mm Spindle bore: 42 mm Spindle motor power: 5.5 kW Tailstock available Swing over cross slide: 120 mm Cross travel: 96 mm Spindle nose as face flange: 110 mm Spindle speeds: max. 6000 rpm Rapid traverse: X: 15 m/min Z: 24 m/min Probe for internal tool measurement available Dimensions: approx. 2000 mm x 2000 mm x 2200 mm Weight: approx. 1,400 kg

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, bar passage: 34 mm, controller model: Fanuc 21T Modell B, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Bar capacity: 34 mm MACHINE DETAILS CNC control: Fanuc 21T Model B EQUIPMENT Fedpoyrf Ensfx Adpefw CS axis left CS axis right

Condition: used, Year of construction: 2020, Lathes Travel distance X: 293 mm Travel distance Y :130 mm Travel distance Z: 1350 mm Fodpsyrfl Uefx Adpofw turning length: 1285 mm max. turning diameter: 850 mm max. circulation diameter: 420 mm spindle boring: 102 mm input Power: 26 kW max. turning moment: 1123 NM range of revolutions till: 2800 rpm Control: Fanuc I-series powered tools control Fanuc The machine offers a maximum turning length of 1,285 mm, a maximum turning diameter of 420 mm, and a maximum swing over bed of 850 mm. The main spindle provides a spindle bore of 102 mm and a speed range up to 2,800 rpm, delivering high torque and stable machining performance. Equipped with a 12-station turret, driven tools, and a FANUC i-Series control, the machine is well suited for complex turning and milling operations in modern production environments.
