Used Swarf Conveyor for sale (10,008)

Condition: used, Year of construction: 2007, Technical details: Kdjdpfovu Uwbox Ahvsi voltage: 50/60 V / Hz dimension machine xH: 2,4x1,1x1,6 m

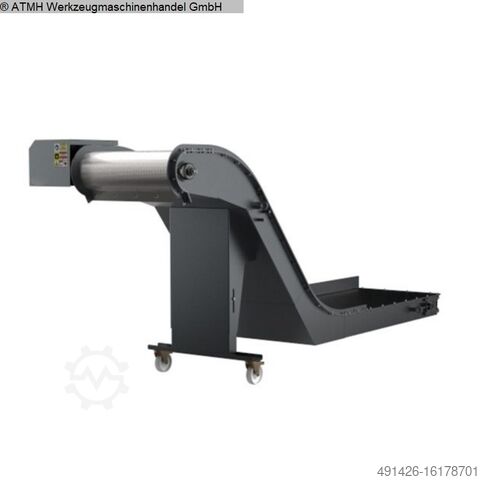

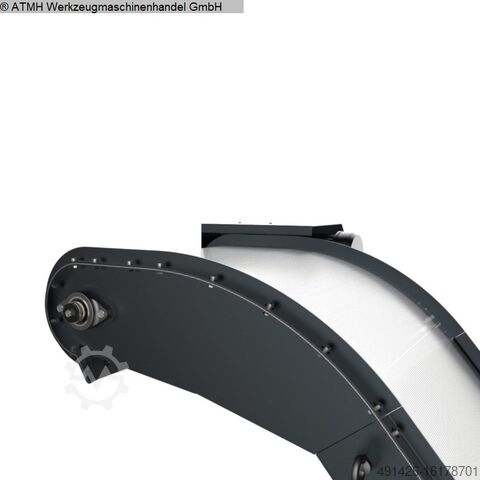

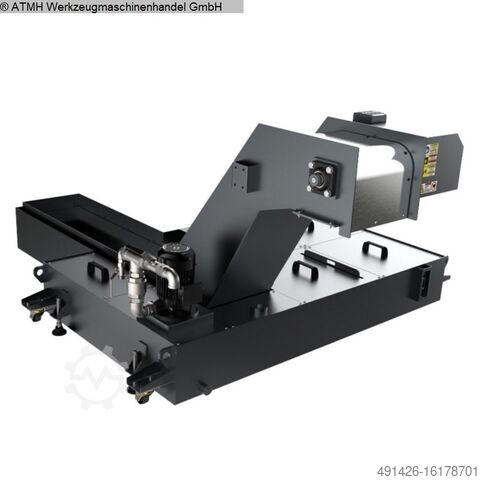

Condition: new, Year of construction: 2025, length in total 7969 mm band width 700 mm conveying height 2500 mm total power requirement 0,75 kW Please complete the attached form and return it to us by email for quotation preparation. Hinged Belt Conveyors – Overview & Features General - Hinged belt conveyors can be manufactured according to purpose and dimensions. - The design and belt system are robust and durable, provided regular maintenance is carried out. - Most commonly used type of chip conveyor. Applications Transport of: - Long, coarse, corrugated, and crumbly chips - Materials such as transmission steel, tool steel, aluminum alloys, Teflon, Delrin, etc. - Designed for conveying chips from the production process. - Separation of cutting oil/coolant from the chips. Kjdpfxsymf Tnj Ahvedi Versions - Available with or without a tank for returning cutting oil/coolant to the system. - Four standard chain pitches: 31.75 mm, 38.10 mm, 50.80 mm, 63.50 mm. - Chain pitch selected according to the amount of chips to be conveyed. - Conveyor width, length, motor, and gearbox are matched to the hourly conveying capacity. - Coolant recycling is taken into account during the design. Control - Operation via control panel or CNC control of the machine tool. - Control via plug-in connection possible. Note: Images are for reference only and are not to scale.

Condition: new, length in total nach Maß mm band width nach Maß mm conveying height nach Maß mm Our magnetic conveyor systems from the GERD WOLFF brand are a versatile solution for the efficient and damage-free transport of materials, including dust, shredded iron chips, and metal particles. - Contact-free transport – no direct contact between the magnetic carrier and the product or chips, preventing damage to the pallet and the conveyed material - Higher manufacturing costs due to permanently installed, high-performance neodymium magnets on the pallets Kdsdpfx Aoymf Hushvji - Flexible control options – via integrated, user-friendly control unit or connection to a CNC machine through a plug-in interface - High adaptability – can be tailored to specific requirements such as conveying angle, dimensions, and chip-carrying capacity - Particularly suitable for delicate or easily damaged materials - Robust construction for long service life in continuous industrial operation - Low maintenance requirements – rare and straightforward servicing - Ideal for industries requiring clean, gentle, and reliable material transport

Condition: new, length in total / mm band width / mm conveying height / mm Control / Please complete the attached form and return it to us by email for quotation preparation. Hinged Belt Conveyors – Overview & Features General - Hinged belt conveyors can be manufactured according to purpose and dimensions. - The design and belt system are robust and durable, provided regular maintenance is carried out. - Most commonly used type of chip conveyor. Applications Transport of: - Long, coarse, corrugated, and crumbly chips - Materials such as transmission steel, tool steel, aluminum alloys, Teflon, Delrin, etc. - Designed for conveying chips from the production process. - Separation of cutting oil/coolant from the chips. Versions - Available with or without a tank for returning cutting oil/coolant to the system. - Four standard chain pitches: 31.75 mm, 38.10 mm, 50.80 mm, 63.50 mm. - Chain pitch selected according to the amount of chips to be conveyed. - Conveyor width, length, motor, and gearbox are matched to the hourly conveying capacity. - Coolant recycling is taken into account during the design. Control - Operation via control panel or CNC control of the machine tool. - Control via plug-in connection possible. Ksdpfjymf Hnsx Ahvsdi Note: Images are for reference only and are not to scale.

Condition: used, length in total 8000 mm band width 200 mm dayligth 220 mm dimensions of the machine ca. 8,5x0,39x0,22 m 2 x available, price is for 1 piece Ksdpfjyqtixjx Ahvedi The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 2010, Technical details: weight of the machine approx.: 1400 kg dimension machine xH: G= 6,6 x 0,9 x 3,8 m Kdjdpfx Ahju Nun Hjvoi total power requirement: 0,75 kW Made of sturdy sheet steel construction. This is a scraper belt conveyor. Drop-in width: F1= 480mm; Drop-in length: 750mm Ejection: height H = 3200mm Infeed (underfeed to the machine): height = 300mm + superstructure B= 370mm = 670mm and width F= 580mm and length A= 2230mm The chip conveyor is to be positioned stantionary. *

Condition: used, Year of construction: 2013, Technical details: band width: 600 mm voltage: 460 / 60 V / Hz total power requirement: 3,5 kW weight of the machine approx.: 2300 kg Ksdpfxou Nupde Ahvsdi dimension machine xH: ca. 9,0 x 1,4 x 3,0 m hinged type chip conveyor, as good as new With coolant tank incl. pump (submersible centrifugal pump) Delivery rate 250 l/min. = sufficient for a conveying height of 25m Chip insertion length (A) 3000mm (attachment with sheet metal tray with rubber coating 3000 x 1100mm) Total insertion length 5000mm Belt width (H) 600mm Discharge height (C) above floor 1800mm The chip conveyor has 4x swivel wheels underneath and can be fixed to the floor with bolts. *

Condition: used, Year of construction: 2007, Technical details: conveying height: C=900 mm total power requirement: 2,8 kW dimension machine xH: ca. G 8,4 x 2,1 x 1,3 m Kedpfx Aju Nup Rshvjdi Slat-band conveyor very good, little used condition. Cooling water tank 1300 x 2050 x 260mm discharge length D=500mm Total chip intake length approx. AX= 4120mm with sheet metal tray with rubber coating, width 230mm each (plus chip intake extension approx. 1720mm covered with profiled sheet metal). Chip intake width F1=620mm Insertion height approx. B=380mm The chip conveyor has 3x pivoting wheels underneath and can be bolted to the floor. *

Condition: used, Technical details: Kodsu Nuqhjpfx Ahvedi band width: F1 = 350 mm conveying height: C = 1200 mm weight of the machine approx.: 1050 kg dimension machine xH: ca. G 5,25 x 1,2 x 1,6 m total power requirement: 2,5 kW Belt conveyor hinged type This chip conveyor can be repositioned using the 3x swivel wheels. It is fixed to the floor with the 4x adjusting screws. Chip inlet: open (not covered) L: 880 x W: 500mm; total inlet approx. 2000mm x 480mm (incl. cover) Insertion data: A 2,500 x F 530 x W 350mm Cooling water tank 600 x1200 x 200mm with pump and two measuring sensors Very good, in rarely used condition. *

Condition: used, Year of construction: 2013, Technical details: band width: 600 mm conveying height: C= 1800 mm voltage: 460 / 60 V / Hz total power requirement: 3,5 kW weight of the machine approx.: 2300 kg dimension machine xH: ca. G= 8,45 x F= 1,35 x 3,0 m Slat-band chain conveyor With coolant tank incl. pump output 250 l/min. sufficient for a conveying height of 25m. Very good little used condition. Kdjdeu Nupqepfx Ahvji Chip intake length Ax= 3000mm (attachment with sheet metal tray with rubber coating 3000 x 1100mm) Total infeed length 5000mm The chip conveyor has 4x pivoting wheels underneath and can be bolted to the floor. *

Condition: used, Year of construction: 2018, length in total 3000 mm band width 200 mm Kodpfx Ajv Sdymohvodi conveying height 1900 total power requirement 1 kW weight of the machine ca. 1 t dimensions of the machine ca. 3x1x2 m

Year of construction: 1991, condition: used, length in total 11000 mm Kdjdpjntcugefx Ahvei band width 200 mm Total height 630 mm length in width 400 mm ca.10 mm

Condition: used, band width 450 mm Kodevdx I Njpfx Ahvsdi conveying height 1100 mm belt length 2000 mm required space ca. 2500 m

Condition: used, Year of construction: 1986, length in total / mm band width / mm conveying height / total power requirement / kW weight of the machine ca. / t required space / m Conveying height: 2610mm belt width: 240mm Conveying length: 6900mm Kodpfxeuddb Aj Ahvjdi

Condition: used, Year of construction: 2004, Technical details: voltage: 400 V / Hz total power requirement: 0,37 kW dimension machine xH: L:2,7 x B: 0,7 x H: 2,0 m Scraper belt conveyor combined with cooling water system and torque shut-off Kodpfxev N Ekbj Ahvodi Discharge length D=280mm Chip infeed width F=325mm Insertion height B=approx. 160mm Insertion height B+I=220mm Chip infeed width F1=300mm Chip infeed length=700mm Floor clearance I=60mm Discharge height above floor C+I=950mm Equipment 2x support feet *

Condition: used, Technical details: band width: 135 mm conveying height: 1020 control voltage: 380 V weight of the machine approx.: 165 kg dimension machine xH: 3,3 x 0,5 x 1,5 m Scraper belt conveyor made of sheet steel construction Further technical details: -profile height (B1) 160mm -Profile width (F) 300mm -Chip inlet width (F1) 160mm -Chip length (A) 1700mm -Bottom clearance (I) 20mm -Discharge length (D) 200mm -Discharge height above floor (C) 1020mm -Discharge width 200mm Kdedpfx Aou Nuquehvei -Insertion length/underfeed length (A) approx. 2000mm -Insertion height (B) 180mm Operation via manual switch Rotating scraper brushes at the discharge and on the left/right side of the infeed beam *

Condition: used, Year of construction: 1997, Technical details: length in total: 1200 mm band width: 500 mm Kdsdpfx Ahovb Drzovoi conveying height: 1200 weight of the machine ca.: 1 t dimensions of the machine ca.: 4,0 x 1,5 x 2,2 m swarf conveyor with coolant attachment *

Year of construction: 1989, condition: used, length in total ca. 3500 mm band width ca. 700 mm conveying height ca. 1200 ejection height approx. 1200 mm weight ca. 800 kg dimensions of the machine ca. ca. 3500 x 1300 x 1650 m Kjdpjra Rrtefx Ahvjdi

Condition: ready for operation (used), Year of construction: 1996, I am selling the conveyor belt shown in the photos. Please feel free to contact me for more information. Kedpfoxlaa Sox Ahvsdi

Condition: used, Optical separator scheider Titech Tomra Kjdpfx Aeyv A Enjhvedi

Condition: ready for operation (used), The subject of my auction is a conveyor belt, 15 meters long with a belt width of 0.65 meters. Kjdpfsyvqv Uex Ahvjdi Possibility of transport.

Condition: ready for operation (used), Year of construction: 1996, The item of my auction is a 180-degree bend roller conveyor, BELT width 52 cm. Ksdpfxjyvqhdj Ahvjdi

Condition: ready for operation (used), For sale: Conveyor belt as shown in the photos, length 2.6 m. Belt width: 0.2 m. Possibility of transport. Kdedjyvg Aqopfx Ahvji

Condition: ready for operation (used), Year of construction: 1996, The subject of my auction is a 180-degree roller conveyor with rollers 57 cm long and a conveyor width of 2 m. Kdodpfxjyvftmo Ahvji

Condition: ready for operation (used), Year of construction: 2024, The subject of my auction is a conveyor belt with a length of 1x3 m and a belt width of 0.4 m. Possibility of transport. Ksdpfx Ahet R R T Tjvsdi
