Used Gmx 400 Linear for sale (18,594)

Condition: good (used), Year of construction: 2003, turning length: 1,505 mm, Turning & Milling Center GILDEMEISTER GMX 400 linear Year of manufacture: 2003 Control: Sinumerik Power line Technical Specifications: Main spindle drive power ISM 90: 36/45 kW (100/40%) Main spindle speed: Main spindle torque: Bar capacity: 90 mm Number of magazine positions: 120 pcs Rodpswzbq Tofx Aafon Milling spindle tool holder: HSK 63 Counter spindle drive power ISM 90: 36/45 kW (100/40%) Counter spindle speed: Counter spindle torque: Bar capacity: 90 mm B-axis / Milling spindle: Drive power: Speed: Torque: Tool holder: HSK z3 Lower turret: X-axis: Z-axis: Speed, driven tools: Number of turret stations: 12 pcs Tool holder: VDI 40 Accessories: - Chip conveyor - High-pressure unit with 20 bar - Preparation for 3D measuring probe - Tailstock function on counter spindle - Automatic sliding doors

Condition: ready for operation (used), Year of construction: 2004, operating hours: 18,504 h, General Data Machine weight 20000 kg Control Unit Brand SIEMENS Model Sinumerik 840D Powerline Main Drive Spindle speed range 4000 Number of axis 7 Movement X-Axis Movement 550 mm Y-Axis Movement 110 mm Rodpex D S Dgofx Aafsn Turret Number of turrets 1 Tools Number of index 60 Number of station 12 Max tool length 350 mm Type of tool holder HSK-A63 Additional Equipment Oil mist extraction Coolant tank with belt filter system Internal coolant system with 80 bar pressure Approx. 30 tool holders This 7-axis DMG Gildemeister GMX 400 linear was manufactured in 2004, featuring a maximum turning diameter of 640 mm and a turning length of 1,585 mm. It includes a Sinumerik 840D Powerline control, a milling spindle with a max speed of 12,000 rpm, and a tool magazine with up to 120 positions. If you are looking to get high-quality turn-mill capabilities, consider the DMG Gildemeister GMX 400 linear machine we have for sale. Contact us for more information. Application Types Turning

Condition: reconditioned (used), Year of construction: 2005, operating hours: 53,500 h, functionality: fully functional, turning length: 1,500 mm, turning diameter over cross slide: 640 mm, turning diameter: 400 mm, spindle speed (max.): 4,000 rpm, spindle bore: 107 mm, travel distance X-axis: 550 mm, travel distance Y-axis: 220 mm, travel distance Z-axis: 1,500 mm, total height: 3,100 mm, total length: 10,000 mm, total width: 5,000 mm, overall weight: 20,000 kg, Equipment: documentation/manual, rotational speed infinitely variable, Manufacturer: DMGMORI Type: GMX 400 linear Year of manufacture: 2005 Redev Euhnopfx Aafon Operating hours: 53,500h Spindle hours: 22,000h Control: Siemens 840D powerline Equipment: - 7 axes - automatic tool changer (60 positions) - swivel head as B-axis - 12-way tool turret as additional axis, VDI40 with 12 driven tools - belt filter system with internal cooling and chip conveyor Condition: - machine fully functional - geometry within the manufacturer's tolerance for new machines - all wear parts replaced

Condition: ready for operation (used), Year of construction: 2008, controller manufacturer: HEIDENHAIN, controller model: Plus IT 3D CNC Pilot 4290 plus it, number of axes: 7, This 7-axis DMG GILDEMEISTER GMX 250S Linear was manufactured in 2008. A turn-mill centre featuring the advanced Heidenhain Plus IT 3D CNC Pilot 4290 control unit, it represents the pinnacle of turning and milling capabilities. Contact us for more information. • Control unit: Heidenhain Plus IT 3D CNC Pilot 4290 plus it • 4th axis with tailstock (special feature) Rsdpfx Aeyfv Rbeafen • Tool magazine with 22 tool positions (optional) • Description: The pinnacle of turning and milling! Additional equipment • Chip tray

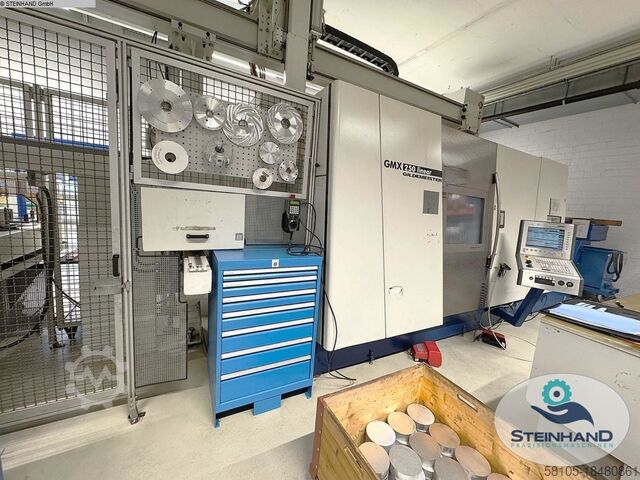

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, We offer you: Manufacturer: DMG Gildemeister Model: GMX 250 linear Year of manufacture: 2006 Control: Siemens 840 D powerline Technical Data: Max. turning diameter: 640 mm Turning length: 1,185 mm Draw tube inner diameter: 67 mm Travels: x1-axis: 550 mm y-axis: +/- 90 mm z1-axis: 1,185 mm b-axis: +/- 120° x2-axis: 180 mm z2-axis: 1,050 mm Rjdpeyfmibsfx Aafjn Main spindle: Max. speed: 5,000 rpm Drive power: 21/28 kW Counter spindle: Max. speed: 5,000 rpm Drive power: 21/28 kW Milling spindle: Speed range: 0 – 12,000 rpm Indexing: 1° Tool holder: HSK63A Number of tool pockets: 46 positions Turret: Number of tool holders: 12 positions Holder: 40 mm Hollow clamping device: Ø 67 mm Operating hours: approx. 92,100 h Spindle hours: approx. 47,800 h Technical features and accessories: - Main and counter spindles ISM 76 - C-axis and spindle brake, hydraulic - B-axis interpolating and with hydraulic clamping - Tool magazine with 4 additional loading stations - Absolute, direct measuring systems on all linear axes - Coolant tank 600 l with lifting pump and level regulator - Coolant filtration with belt filter, coolant pump 8 bar, 20 l/min - Chip conveyor - Preparation for work area extraction - USB and Ethernet interfaces - Tool monitoring system, manufacturer Artis, type CTM - Star turret with driven tools, including direct measuring systems - Counter spindle with partial hollow clamping device, C-axis and spindle brake (hydraulic), holding brake and direct measuring system - Automatic sliding safety door - Coolant spray gun - Electrical cabinet lighting and socket outlet - Signal lamp, 4 colors - Tailstock function for the counter spindle - 2x three-jaw power chucks, manufacturer Forkardt 30QLC 250-72 - Turret-mounted steady rest, range 8 – 101 mm Accessories, tools, and clamping devices shown only included if specified in the additional information. Subject to changes and errors in technical data and specifications, as well as prior sale!

Condition: good (used), Year of construction: 2008, operating hours: 72,899 h, functionality: fully functional, machine/vehicle number: 07510001241, turning length: 1,185 mm, turning diameter: 640 mm, spindle speed (max.): 12,000 rpm, workpiece weight (max.): 150 kg, total height: 3,040 mm, total length: 7,800 mm, total width: 4,100 mm, overall weight: 16,500 kg, controller manufacturer: SIEMENS, controller model: SINUMERIK 840 D, DMG GILDEMEISTER GMX 250 LINEAR CNC Turning and Milling Center - Recorded spindle hours: 39,361 - Swing diameter: 640 mm - Counter spindle turning diameter: 400 mm - Spindle distance: 1,500 mm - X1 axis travel: 550 mm - Y1 axis travel: 180 mm - Z1 axis travel: 1,185 mm - B1 axis travel: 240° - X2 axis travel: 180 mm - Z2 axis travel: 1,050 mm Rsdpfoyaqczex Aafjn - Z3 axis travel: 1,150 mm - Spindle speed range: 3,200/4,000 rpm - Rapid traverse rate, Slide 1 (X/Y/Z): 40/24/70 m/min - Rapid traverse rate, Slide 2 (X/Z): 24/36 m/min - Rapid traverse rate, Slide 3 (Z): 36 m/min - Tool holder: HSK 63 - Spindle speed: 12,000 rpm - Number of tool stations in chain magazine: 40 stations - Incl. tool holders mounted on the turret - Incl. bar loader, manufacturer: COCCHE GIOVANNI, type: CNC-DB 110, year of manufacture: 2008, serial number: CNCDB-08.306, weight: 1,500 kg Note: The machine has the following defects: - The hydraulic unit is faulty – it needs to be repaired - The Q2 axis (milling spindle tool changer) fails frequently - X2 axis (guideways) moves slightly askew - The linear guides and drives show wear commensurate with age Attention: A vehicle with 3,000 mm transport width is required for transport! FCA D-58256 Ennepetal, loaded onto truck at a mutually agreed date at the end of February 2026.

Condition: used, Year of construction: 2005, turning diameter 640 mm turning length 1.185 mm control SINUMERIK 840D swing diameter 640 mm distance of spindle heads 1500 mm slide I: X1 / Y1 / Z1 / B slide travel X-axis 550 mm slide travel Z-axis 180 mm Z- Travel 1.185 mm B - axis 240 ° feed x-axis 0 - 40.000 mm/min feed y- axis 1 - 24.000 mm/min Feed z- axis 1 - 70.000 mm/min feed B-axis 1 - 20 1/min rapid traverse X/Y/Z 40 / 24 / 70 m/min feed capacity X/Y/Z S6: 7,00/11,00/7,50 kN tool taper HSK 63 turning speed milling-spindle 10 - 12.000 1/min power capacity at 100 % load 13,20 kW power capacity at 40 % load 22,00 kW torque milling spindle 60 / 100 Nm no. of workpieces in the magazine 46 Stück tool length - max. 350 / 200 mm tool diameter 80 mm wotkpiece diameter with 2 vacant positions 120 mm weight of tools max. 6 / 10 kg slide II: X2 / Z2 slide travel X-axis 180 mm Z- Travel 1.050 mm feed x-axis 1 - 24.000 mm/min Feed z- axis 1 - 36.000 mm/min rapid traverse x + z axis 24 / 36 m/min feeding force S6: 11,00/9,00 kN turret (x-stations) 12 tool taper DIN 69880 Ø40 Driven tools - quantity 12 Driven tool turning speed 1 - 4.000 1/min Redpfx Aasydfllofsn power capacity at 100 % load 10,70 kW torque S1: 32 Nm Slide III - longitudial travel Z3 mm Z- Travel 1.150 mm Feed z- axis 1 - 36.000 mm/min rapid traverse Z-axis 36,00 m/min feed capacity Z - axes S6: 13,00 Nm Main spindle ISM90 turning speed main-spindle 10 - 4.000 1/min power capacity at 100 % load 36,00 kW power capacity at 40 % load 45,00 kW max. torque at 40% / 100% load 800 / 630 Nm spindle bore 80 mm turning speed opposed-spindle 10 - 5.000 1/min power capacity at 100 % load 21,00 kW power capacity at 40 % load 28,00 KW max. torque at 40% / 100% load 320 / 240 Nm spindle bore 80 mm total power requirement 70,00 kW weight of the machine ca. 20,00 t dimensions of the machine ca. 8,50 x 4,50 x H3,10 m Machine with SIEMENS SINUMERIK 840D control, main- and counter-spindle, chip conveyor, dust exhauster, DMG-automation WH10top. Main-spindle ISM90: hollow clamping device, C-axis, 3-jaw hydraulic chuck SMW-AUTOBLOK KNCS-NB-315-91 Counter-spindle ISM76: closed center clamping device, C-axis, 3-jaw hydraulic chuck SMW-AUTOBLOK KNCS-NB-315-91 Pick-up device with integrated conveyor belt, automatic protective cover, differential pressure clamps. Incl. pump-frame for coolant - Pump 1: 17 l/min at 80bar - Pump 2: 20 l/min at 8bar - Pump 3: 40 l/min at 20bar Without coolant unit. Was connected to a central coolant-system. Accessories: Hainbuch collet chuck incl. collets Ø30,45,50,55,60,65,72,82,85,90 1 piece workpiece pick-up-gripper for turret

Condition: excellent (used), Year of construction: 2016, Equipment: documentation/manual, Engel victory 1350/400 tech (2016) Controll : CC300 Clamping force: 400 t Screw diameter: 55 mm Shot weight: 560 g Distance between tie bars V: 1100 mm Distance between tie bars H: 1220 mm Shot volume: 618 cm3 Type: Horizontal Drive: Hydraulic Rodex H Nk Eepfx Aafsn 8x core pullers 2x pneu valve conveyor Wittmann linear robot

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, turning length: 1,185 mm, turning diameter: 640 mm, spindle speed (max.): 4,000 rpm, turning diameter over bed slide: 640 mm, counter spindle torque (max.): 5,000 Nm, Turning and Milling Center with Main and Counter Spindle and Comprehensive Equipment! TECHNICAL DETAILS Turning diameter: 640 mm Turning length: 1,185 mm Swing diameter: 640 mm Distance between headstocks: 1,500 mm SLIDE I X-Axis travel: 550 mm Y-Axis travel: 180 mm Z-Axis travel: 1,185 mm B-Axis: 240° Feed rate X-axis: 0 – 40,000 mm/min Feed rate Y-axis: 1 – 24,000 mm/min Feed rate Z-axis: 1 – 70,000 mm/min Feed rate B-axis: 1 – 20 rpm Rapid traverse X/Y/Z: 40 / 24 / 70 m/min Feed force X/Y/Z S6: 7.00 / 11.00 / 7.50 kN Tool interface: HSK 63 Milling spindle speed: 10 – 12,000 rpm Drive power 100% duty cycle: 13.20 kW Drive power 40% duty cycle: 22.00 kW Milling spindle torque: 60 / 100 Nm Max. tool length: 350 / 200 mm Tool diameter: 80 mm Tool diameter with 2 free pockets: 120 mm Max. tool weight: 6 / 10 kg SLIDE II X-Axis travel: 180 mm Z-Axis travel: 1,050 mm Feed rate X-axis: 1 – 24,000 mm/min Feed rate Z-axis: 1 – 36,000 mm/min Rapid traverse X + Z axes: 24 / 36 m/min Feed force Z / X S6: 11.00 / 9.00 kN Turret (positions): 12 Tool holder: DIN 69880 Ø40 Driven tool positions: 12 Speed: 1 – 4,000 rpm Drive power 100% duty cycle: 10.70 kW Torque S1: 32 Nm SLIDE III Z-Axis travel: 1,150 mm Feed rate Z-axis: 1 – 36,000 mm/min Rapid traverse Z-axis: 36 m/min Feed force Z-axis S6: 13.00 Nm MAIN SPINDLE Model: ISM90 Speed: 10 – 4,000 rpm Drive power 100% duty cycle: 36.00 kW Drive power 40% duty cycle: 45.00 kW Torque at 40% / 100% duty cycle: 800 / 630 Nm Spindle bore: 80 mm COUNTER SPINDLE Speed: 10 – 5,000 rpm Drive power 100% duty cycle: 21.00 kW Drive power 40% duty cycle: 28.00 kW Torque at 40% / 100% duty cycle: 320 / 240 Nm Spindle bore: 80 mm MACHINE DETAILS Electrical Data Total power requirement: 70.00 kW Dimensions & Weight Machine weight: approx. 20.00 t Footprint: approx. 8.50 x 4.50 x H3.10 m Control Control manufacturer: Siemens Control model: SINUMERIK 840D EQUIPMENT Chip conveyor Oil mist separator DMG Automation WH10top Main spindle ISM90: Hollow chuck, C-axis, 3-jaw power chuck SMW-AUTOBLOK KNCS-NB-315-91 Counter spindle ISM76: Partial hollow chuck, C-axis, 3-jaw power chuck SMW-AUTOBLOK KNCS-NB-315-91 Pick-off unit with integrated conveyor belt Automatic safety cover Differential pressure clamping With pump stand for coolant: Pump 1: 17 l/min at 80 bar / Pump 2: 20 l/min at 8 bar / Pump 3: 40 l/min at 20 bar Rodswyvc Uspfx Aafsn Hainbuch collet chuck including collets Ø30, 45, 50, 55, 60, 65, 72, 82, 85, 90 1 workpiece pick-off for turret

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, turning length: 1,185 mm, turning diameter: 640 mm, spindle speed (max.): 4,000 rpm, turning diameter over bed slide: 640 mm, counter spindle torque (max.): 5,000 Nm, Turning and Milling Center with Main and Counter Spindle and Comprehensive Equipment! TECHNICAL DETAILS Turning diameter: 640 mm Turning length: 1,185 mm Swing diameter: 640 mm Distance between headstocks: 1,500 mm SLIDE I X-Axis travel: 550 mm Y-Axis travel: 180 mm Z-Axis travel: 1,185 mm B-Axis: 240° Feed rate X-axis: 0 – 40,000 mm/min Feed rate Y-axis: 1 – 24,000 mm/min Feed rate Z-axis: 1 – 70,000 mm/min Feed rate B-axis: 1 – 20 rpm Rapid traverse X/Y/Z: 40 / 24 / 70 m/min Feed force X/Y/Z S6: 7.00 / 11.00 / 7.50 kN Tool interface: HSK 63 Milling spindle speed: 10 – 12,000 rpm Drive power 100% duty cycle: 13.20 kW Drive power 40% duty cycle: 22.00 kW Milling spindle torque: 60 / 100 Nm Max. tool length: 350 / 200 mm Tool diameter: 80 mm Tool diameter with 2 free pockets: 120 mm Max. tool weight: 6 / 10 kg SLIDE II Rsdpfxoxf A Edo Aafsn X-Axis travel: 180 mm Z-Axis travel: 1,050 mm Feed rate X-axis: 1 – 24,000 mm/min Feed rate Z-axis: 1 – 36,000 mm/min Rapid traverse X + Z axes: 24 / 36 m/min Feed force Z / X S6: 11.00 / 9.00 kN Turret (positions): 12 Tool holder: DIN 69880 Ø40 Driven tool positions: 12 Speed: 1 – 4,000 rpm Drive power 100% duty cycle: 10.70 kW Torque S1: 32 Nm SLIDE III Z-Axis travel: 1,150 mm Feed rate Z-axis: 1 – 36,000 mm/min Rapid traverse Z-axis: 36 m/min Feed force Z-axis S6: 13.00 Nm MAIN SPINDLE Model: ISM90 Speed: 10 – 4,000 rpm Drive power 100% duty cycle: 36.00 kW Drive power 40% duty cycle: 45.00 kW Torque at 40% / 100% duty cycle: 800 / 630 Nm Spindle bore: 80 mm COUNTER SPINDLE Speed: 10 – 5,000 rpm Drive power 100% duty cycle: 21.00 kW Drive power 40% duty cycle: 28.00 kW Torque at 40% / 100% duty cycle: 320 / 240 Nm Spindle bore: 80 mm MACHINE DETAILS Electrical Data Total power requirement: 70.00 kW Dimensions & Weight Machine weight: approx. 20.00 t Footprint: approx. 8.50 x 4.50 x H3.10 m Control Control manufacturer: Siemens Control model: SINUMERIK 840D EQUIPMENT Chip conveyor Oil mist separator DMG Automation WH10top Main spindle ISM90: Hollow chuck, C-axis, 3-jaw power chuck SMW-AUTOBLOK KNCS-NB-315-91 Counter spindle ISM76: Partial hollow chuck, C-axis, 3-jaw power chuck SMW-AUTOBLOK KNCS-NB-315-91 Pick-off unit with integrated conveyor belt Automatic safety cover Differential pressure clamping With pump stand for coolant: Pump 1: 17 l/min at 80 bar / Pump 2: 20 l/min at 8 bar / Pump 3: 40 l/min at 20 bar Hainbuch collet chuck including collets Ø30, 45, 50, 55, 60, 65, 72, 82, 85, 90 1 workpiece pick-off for turret

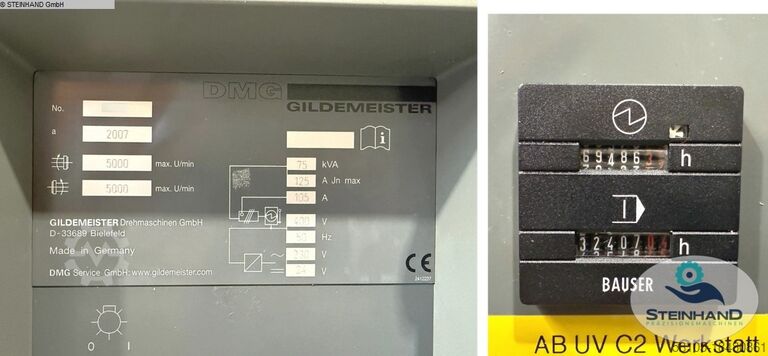

Condition: used, Year of construction: 2007, swing diameter 640 mm max. turning passage 640 mm control Simens 840 D Powerline - - - - - Main spindle - - - - - - - - - - - bar material dia. 65 mm chuck diameter 200 - 315 mm spindle bore diameter 80 mm diam. of main spindle in forward position 120 mm --- Subspindle --- - - - - - - bar material dia. 65 mm chuck diameter 315 mm spindle bore diameter 80 mm forward bearing diameter 120 mm - - - - - General data - - - - - - - - - - - spindle distance 1.500 mm turning length 1.185 mm Main-/Counter -spindle turning speeds 5.000 U/min driven tools turning speeds 12.000 U/min Slide cross X1, Y1: 550 / 180 mm Slide cross Z1: 1.185 mm Slide cross B1: 240 ° Slide cross X2: 180 mm Rodpfxsvx U A Se Aafjn Slide cross Z2: 1.050 mm Slide cross Z3: 1.150 mm CNC Turning- and Milling Center | DMG GILDEMEISTER - GMX 250 linear equipped with main/counter spindle, chip conveyor, tool changer, a turret for driven tools and and a portal loading system (Pneumotec Portalsystem S-01623a). The machine has only approx. 32.000h operation hours. The machine is in a well-maintained condition. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: GMX250linear | GMX-250 linear | GMX 250linear | GMX-250linear

Condition: ready for operation (used), Year of construction: 2005, operating hours: 57,588 h, functionality: fully functional, machine/vehicle number: 07500000781, spindle speed (max.): 12,000 rpm, spindle bore: 79 mm, swing diameter over bed slide: 640 mm, spindle diameter: 120 mm, center height: 1,343 mm, distance between centers: 1,930 mm, TECHNICAL DETAILS Center height: 1,343 mm Center distance: 1,930 mm Max. swing diameter: 640 mm Work Spindle Spindle head according to DIN: flat flange Size: 170 h5 Spindle diameter at front bearing: 120 mm Spindle bore: 79 mm Max. chuck diameter: 200 / 250 / 315 mm Max. torque at 100/40% duty cycle: 270 / 390 Nm Infinitely variable speed range: 20 to 4,000 / 12,000 rpm Slide Tool system: disc turret / tool spindle Number of saddle slides: 3 Number of cross slides: 2 Longitudinal travel: z₁ = 1,585 mm / z₂ = 1,400 mm / z₃ = 1,500 mm Cross travel: x₁ = 550 mm / x₂ = 180 mm Tailstock Rjdpfx Aaeww Hafefsn Quill taper: MK5 Max. tailstock offset, manual / automatic: 1,500 mm Feed Rate Rapid traverse, longitudinal: Z₁ = 65 / Z₂ = 40 / Z₃ = 40 m/min Rapid traverse, cross: X₁ = 40 / X₂ = 24 m/min Feed force, longitudinal: Z₁ = 7.5 kN / Z₂ = 11 kN / Z₃ = 11 kN Feed force, cross: X₁ = 7.5 kN / X₂ = 9 kN MACHINE DETAILS Year of manufacture: 2005 Length: 8.9 m Width: 4.5 m Height: 3.1 m Weight: 24,000 kg Power-on hours: 102,104 h Spindle hours: 57,588 h

Condition: used, Year of construction: 2004, operating hours: 11,022 h, functionality: fully functional, machine/vehicle number: 07520000211, turning length: 1,070 mm, turning diameter over cross slide: 400 mm, turning diameter: 560 mm, spindle motor power: 37 W, spindle speed (max.): 4,000 rpm, spindle bore: 79 mm, travel distance X-axis: 485 mm, travel distance Y-axis: 160 mm, rotational speed (max.): 12,000 rpm, Equipment: rotational speed infinitely variable, Gildemeister GMX 200 Linear with tailstock and steady rest for sale. Included are a coolant treatment system and a quality selection of tools HSK 63 - A, approximately 40 tools. Also included is a Berg chuck, see photos. The machine is being sold due to lack of orders. 49,700 power-on hours, 11,022 spindle hours. The machine can be inspected and tested at any time. Loading is possible without any issues. Rodpeug Uc Nsfx Aafjn

Year of construction: 2004, condition: ready for operation (used), A Gildemeister CNC double-spindle turning and milling center including coolant system and chip conveyor is available. Turning diameter over bed: 640mm, machining diameter: 400mm, center distance: 1930mm, travel X/Z: 550mm/1585mm, travel Y: +/-110mm, B-axis: +/-120° (interpolating), C-axis: 360°. Main spindle: power: 36kW/45kW, speed: 4000rpm, torque: 600Nm-730Nm, bore: 107mm. Milling spindle: Speed: 12000rpm, power: 13.2kW/22kW, torque: 100Nm. Tool places: 60, carrier: turret 12-fold star SW 380, machine dimensions X/Y/Z: approx. 9300mm/4600mm/3100mm, weight: approx. 20000kg, control: Siemens Sinumerik 840D powerline. Documentation available. On-site inspection is possible. Rodpswmdv Asfx Aafsn

Condition: like new (used), 400 linear meters pallet racking STOW, as new 🧰 Product Features • Color: frame galvanized / beams yellow • Load capacity: o Field load: 12,000 kg o Shelf load: 2,400 kg per level/evenly distributed load + 145 pcs. frames, height approx. 11,000 mm, depth 1,100 mm + 1,440 pcs. beams 2,700 mm length, 2,400 kg top load/with evenly distributed load + 2,880 pcs. hanging locks + 2,160 pcs. wire mesh decks 875 x 1,115 mm, mesh size 50 x 112 mm, 500 kg load capacity per mesh + 580 pcs. concrete anchors M12 x 110 mm for fastening 💰 Price / 79,900 € net excl. VAT • Other heights and quantities on request Rjdpfxewnf E Us Aafen • Quantity discount: on request • Shipping costs: Europe-wide on request • Delivery time: Available immediately • Inspection and pickup: possible anytime by appointment Constantly over 5000 linear meters pallet racking from numerous manufacturers in stock (Changes and errors in the technical data, information, and prices as well as prior sale reserved! See our terms and conditions, all prices excl. VAT ex stock.)

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 5600x1000x1550 mm Weight 2500 kg Total power requirement 6,5 kw Redpfxovz E E Ao Aafon

Condition: ready for operation (used), HSB Automation Beta 60-SSS-M-2005-400-680-2ES2-4BL-0 Mechanical linear unit, damage see photo, serial number as per photo, used, heavy signs of wear, 100% functional, scope of delivery as per photos Redpfei Ea Rkox Aafjn

Condition: excellent (used), Year of construction: 2003, turning diameter over cross slide: 390 mm, turning length: 2,250 mm, turning diameter: 610 mm, spindle bore: 118 mm, spindle speed (max.): 3,200 rpm, travel distance X-axis: 1,870 mm, travel distance Y-axis: 210 mm, travel distance Z-axis: 240 mm, Equipment: rotational speed infinitely variable, Siemens Sinumerik 840D control. CNC turning and milling center with main and counter spindle for efficient 4-axis complete machining of chuck, bar, or shaft parts. Rjdpow Ngmhsfx Aafjn

Condition: excellent (used), Year of construction: 2010, Wittmann W853 Linear Z=4000mm , payload: 41,5 kg Number of axis: 3 X: 1500 mm Y: 2600 mm Z: 4000 mm \+ C axis pneumatic Reach: 4000 mm Payload: 41 kg Rodpjwnfmfofx Aafen Robot has NEW CPU + batteries , fully tested by Wittmann technician in our showroom.

Condition: excellent (used), Year of construction: 2014, clamping force: 2,500 kN, Equipment: documentation/manual, Krauss Maffei KM250-1400CX (2014) Clamping force: 250 t Screw diameter: 60 mm Tie bar distance: 630x630 mm Show weight: 471 g/PS Shot volume: 518 cm3 Type: Horizontal Drive: Hydraulic Clamping Unit 1. Clamping force: 2500 KN 2. Platen size (H × V): 695 × 1050 mm 3. Tie bar distance: 630 × 630 mm 4. Opening stroke (max.): 630 mm 5. Mould height (min. / max.): 320 / 830 mm Injection Unit 1. Installed drive power: approx. 87 kW 2. Screw diameter: 55 / 60 / 70 mm 3. Injection pressure: 2387 / 2006 / 1473 bar 4. Injection volume: 417 / 518 / 679 cm³ 5. Shot weight (PS): 379 / 471 / 618 g 6. Injection stroke: 210 mm 7. Injection speed (max.): 120 mm/s Ejector System 1. Ejector stroke: 180 mm 2. Ejector force: 78 kN General Data 1. Machine dimensions (L × W × H): approx. 6.1 × 2.2 × 2.2 m 2. Machine weight: approx. 14.0 – 14.3 t 3. Total connected load: 87 kW Rjdpfx Aoxqhfysafon 4. Hydraulic oil capacity: approx. 700 L _Equipment of the machine:_ 1. BluePower servo pump drive system (energy-efficient servo-hydraulics) 2. Hydraulic core pull 1× on operator side \+ pressure release system 3. 8-fold water battery with magnetic valve shut-off 4. Hot-runner control 4 zones (ZE 88.5404) 5. MC6 control with 19″ Touch TFT screen 6. PV-control for injection speed, hold pressure, back pressure 7. Event log / quality monitoring / cycle analysis / maintenance reminders 8. BluePower energy-saving servo drive system LRX 150 linear robot (payload < 15 kg), incl.: 1. X = 900 mm / Y = 700 + 700 mm (telescopic) / Z = 2000 mm 2. B-servo / C-pneumatic rotation axes 3. Full integration (MC6 control interface) 4. Safety package – fencing, emergency stop, key switch 5. Vacuum circuits × 4 (Venturi) 6. Transport conveyor interface & control circuit 7. CE conformity declaration for integrated system (IMM + Robot) 8. Painted RAL 9002 grey-white / Pantone 3005 blue 2014 Running hours: 42.084

Condition: new, New motor from renowned German manufacturer Baumüller Nürnberg. The motor is unused, warehouse stock (old stock). No signs of operation. Rsdpfeyga Ugex Aafen Technical data – from nameplate: • Manufacturer: Baumüller Nürnberg GmbH • Type: GNA 132 MV • Supply voltage: 400 V • Current: 39 A • Power: 12 kW • Rotational speed: 1260–4000 rpm • Excitation voltage: 310–365 V • Excitation current: 0.17–0.38 A • Insulation class: F • Protection class: IP23 • Standard: VDE 0530 • Serial number: 88104349 The motor is intended for automation, CNC, special machine applications, and as a spare part for existing Baumüller drive systems. Price quoted per unit.

Condition: excellent (used), Device for precise setting, measurement, and inspection of CNC cutting tools. Equipped with an EZset optical camera system and EZvision (Image Controller 1) software. Condition: very good, complete, ready for operation. Technical data and features: • Model: PRECIsset 400 • Measurement system manufacturer: EZset GmbH & Co. KG, Germany Rodpfsxn Awxox Aafjn • Control screen: Image Controller 1 • Software: EZvision • Documentation version: 1.1.1 (18.08.2006) • Measuring range X / Z axes: up to 400 mm • Camera with image processing system • Edge, length, and tool diameter measurement function • Results can be saved and printed • USB and RS ports • Power supply: 12 V DC, 40 VA • Year of manufacture: approx. 2018–2019 • Supplied with original PRECITOOL technical documentation Condition: • Used, fully functional • Screen operates correctly • Longitudinal/Transverse axes reference correctly • Well-maintained unit from a German tool shop Functional description: The PRECIsset 400 enables fast and repeatable tool setup prior to CNC machining. The EZset vision system allows for blade geometry analysis and tool wear inspection. High measurement accuracy ensured by a stable column and industrial-grade optics.

Condition: excellent (used), Year of construction: 2021, We offer the ETL Prüftechnik ATS 400 X8 automatic test system, designed for electrical and safety testing of products in industrial and laboratory environments. The device is used for, among others: • Quality control (QC) • End-of-line production testing • OEM laboratories and testing stations ⸻ Basic data • Model: ATS 400 X8 • Power supply: 230 V / 50–60 Hz / max. 10 A • Year of manufacture: 03/2021 • Manufacturer: ETL Prüftechnik GmbH (Germany) • Condition: very good, well-maintained equipment • Last factory calibration by ETL: 05/2023 • Weight: 38 kg ⸻ Equipment / Included in delivery • Main ATS 400 X8 unit with integrated touchscreen display • Windows 10 Pro operating system (OEM) • Complete set of test leads and accessories (as shown in the photos) • Manufacturer’s documentation • Original markings, nameplates, CE certification ⸻ Technical notes • This is a professional test and measurement instrument, not consumer electronics Redpfeyc H N Nox Aafon • The equipment is ready for use in a production environment • No signs of tampering; all connectors and interfaces are complete

Condition: excellent (used), Catalogue number 7259 TECHNICAL DATA - Infeed width: 400 mm - Infeed height: 200 mm - Shaft width: 530 mm - Shaft diameter: 550 mm - Knife length: 530 mm - Number of knives: 2 pcs - Screen dimensions: 50x50 mm - 2 lower toothed feed shafts - Lower shaft motor: 2.2 kW - Upper toothed feed shaft - Upper shaft motor: 2.2 kW - Conveyor belt feeder: 0.55 kW - Feeder belt length: 3000 mm - Feeder belt width: 410 mm Rjdpfx Ajyaqz Deafon - Main motor: 45 kW - Auto-reverse - Reverse operation - Machine dimensions (L/W/H): 2900x1600x1600 mm - Feeder dimensions (L/W/H): 3070x720x670 mm - Weight approx. 3500 kg ADVANTAGES – German manufacture – Auto-reverse (adjustable) – Reverse function – Used shredder in very good condition Net price: 85,900 PLN Net price: 20,450 EUR depending on exchange rate 4.2 EUR (Prices may change with significant exchange rate fluctuations)

Condition: new, Catalog number: H0561 – new machine, in stock – CE certificate – Austrian production – professional – trolley on steel bars TECHNICAL DATA engine power S1 5500W (/750) voltage 400V / 50Hz table height 890mm extraction connector 100mm sliding table 3200x435mm extension table 1200x550mm max. cutting width with gauge 1300mm disc diameter 250-400mm (30) scoring blade diameter 120 x 20 x 3.2-4.2/2.2 mm rotational speed I: 3000; II: 4000; III: 5000 rpm Rotation speed of the scoring saw 8000 rpm Motor power of the scoring saw 750 W Blade tilt 0-45 ° Acoustic power level 90 dB (A) Acoustic pressure level 88.2 dB (A) Overall dimensions of the machine when unfolded L / W / H 3350 x 3600 x 900 mm Shipping dimensions 1350 x 2200 x 1170 mm Net/gross weight 930 / 1110 kg Features: - solid construction - with a large aluminum sliding table and boom, ideal for machining large elements and cutting large, heavy boards to size - cast iron work table (1100 x 700 mm) with table extension (900 x 830 mm) and table extension (610 x 600 mm) with solid steel construction – extension table (1200 x 550 mm) + cutting fence (1950 – 3300 mm) – scoring saw with separate motor – manually adjustable main saw blade angle 0°-45° (using angle indicator) – electric height adjustment of main saw blade and scoring saw Scope of delivery: LEUCO TCT main blade (Ø300 x 30 x 3.2 mm T72) LEUCO scoring saw blade (Ø120 x 20 x 3-3.8 T=2*12ES) Pressure beam – option Rjdpfx Aajvwlfbofen Net price: PLN 24,300 Net price: EUR 5,750 depending on price EUR 4.20 (Prices may vary with higher fluctuations)
