Used Fermat for sale (7)

Condition: good (used), Year of construction: 2009, CN Heidenhain TNC 530 Travel X – 3000 mm Travel Y – 2000 mm Travel Z – 1200 mm Travel W – 730 mm CNC table 1600 x 1800 mm Max. workpiece weight – 15 t External coolant system, 4 nozzles Heidenhain rotary table with B-axis Bdedpfx Amjz H Ui Usroh Heidenhain linear scale, X-axis – 3000 mm Heidenhain linear scale, Y-axis – 2000 mm Heidenhain linear scale, Z-axis – 1200 mm Spindle support 250 mm Safety guard

Condition: good (used), Year of construction: 2018, Ref. -No.: 10643 Manufacturer: FERMAT Type: Gantry Year of construction: 2018 Type of control: CNC-Steuerung Control: Siemens Sinumeric Storage location: Halberstadt Country of origin: Czech Republic X-Travel: 20000 mm Y-Travel: 7800 mm Z-Travel: 2000 mm W-Travel: 1000 mm Turning Speeds: 20000 RPM Speed work spindle: 0 - RPM Max. Torque: 3294 Nm Rapid Traverse X/Y/Z: 40000 m / min Table-Size (Lxw): 20000 x 5000 x 300 mm Power Capacity: 74 kW Headstock - (spindle diameter): 160 mm Bedpjzx Ny Uefx Amredh Further information: - Tool cooling - Low pressure - Tool cooling - High pressure 50 bar (6,000 liters) - Tool cooling - Oil separator - Sludge pump - Machine enclosure (CE) - Electrical - Linear measurement - Electrical - Remote diagnostics - ATC/Robot Robot 140 - Chip conveyor 2 - Operator cabin / protective screen - Electrical - HH iTNC 640 control system - Electrical - Handwheel - Electrical - Air conditioning for the distributor - Head - Type 2x UHA 0.001 The machine can be viewed while powered on by prior arrangement.

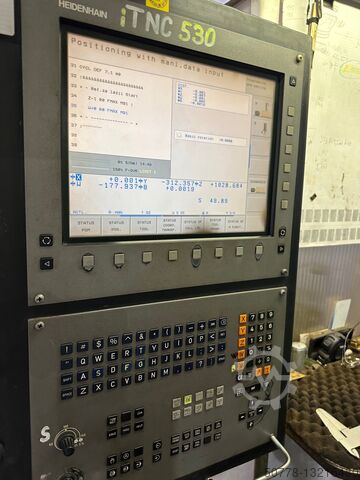

Year of construction: 2017, condition: used, power: 37 kW (50.31 HP), overall weight: 45,000 kg, total length: 8,500 mm, total width: 6,500 mm, total height: 5,400 mm, Technical data (XYZ): X 3500 mm / Y 2500 mm / Z 1700 mm Control: HEIDENHAIN iTNC 530 Miscellaneous: 40-tool changer, spindle Ø130 mm, 3000 rpm, T-slot clamping table 2400 × 2000 mm, spindle extension 730 mm, chip conveyor, coolant system with filter unit, separate cooling unit, protective fence enclosure. Dimensions (LxWxH) approx.: 8500 x 6500 x 5400 mm Weight approx.: 45,000 kg Travel Z-axis: 1700 - mm Travel X-axis: 3500 - mm Power: 37 kW Tool holder type: SK50 Spindle speed: 10 - 3000 rpm Bedpfxszwtaie Amrodh Travel Y-axis: 2500 - mm Year of construction: 2,017 Condition: in working order Terms of payment: 100% prepayment before pick-up Terms of delivery: EXW EX Works under power: No

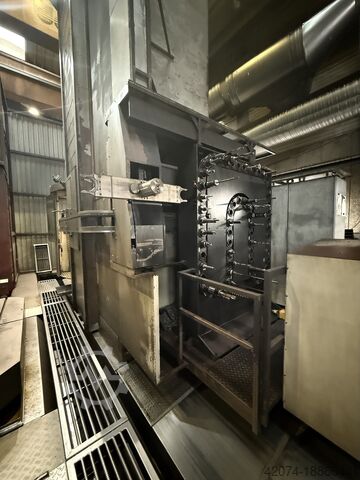

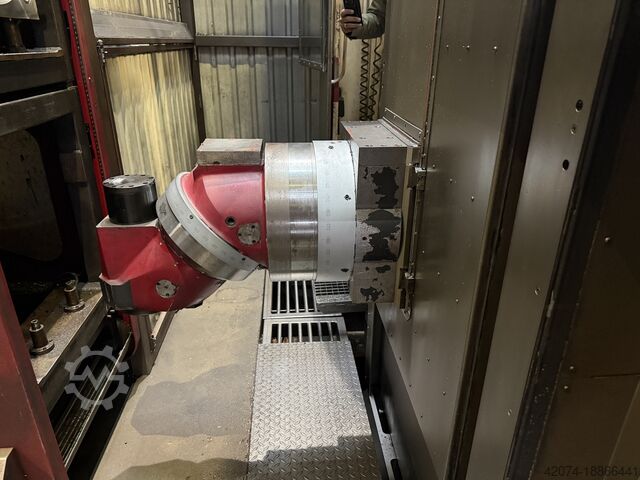

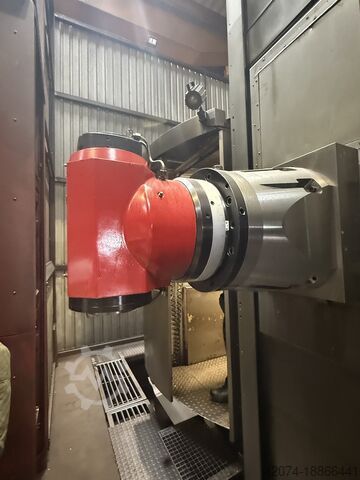

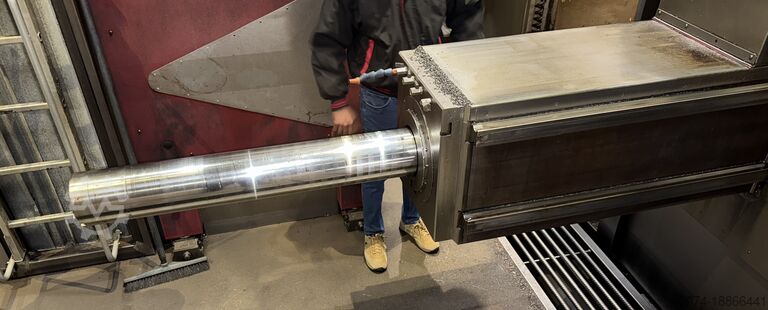

Condition: used, Year of construction: 2013, functionality: fully functional, travel distance X-axis: 8,900 mm, travel distance Y-axis: 7,300 mm, travel distance Z-axis: 1,500 mm, position of the milling head: 360.000°, spindle speed (max.): 2,500 rpm, table length: 4,000 mm, table width: 3,000 mm, table load: 800,000 kg, spindle motor power: 60,000 W, milling spindle length: 1,000 mm, Equipment: documentation/manual, FERMAT WRF 160 CNC HORIZONTAL BORER, CNC HEIDENHEIN iTNC 530. Built 2013. Robot ATC 90, Pickup station 4 positions. Universal Micro positioning head UHA mi 30 kW. Right Angle head 60 kW. Hand Wheel HR 520, M&H Probe. X= 8.900mm. Y= 7.300 mm. Z, Ram= 1.500 mm. W, Spindle= 1.000 mm. Rotary Table 3.000 x 4.000 mm, Travel 3.000 mm, 80 Ton. X Column travel 8.900 mm Y Headstock vertical travel 7.300 mm Z, Ram stroke 1.500 mm W, spindle stroke 1.000 mm W+Z 2.500 mm Spindle diameter 160 mm Spindle diameter ISO 50 Spindle speed 10 - 2.500 rpm Bdodpfoy Hwwtox Amrsh Spindle motor, 2 steps, ZF 60 kW Ram square section 520 x 520 mm Automatic robot tool changer 90 Tools Coolant through spindle 50 Bars Outside Coolant 4 Bars Rotary Table size 4.000 x 3.000 mm Table load 80 ton C-axes 360 000° Table travel, V 3.000 mm The machine is complete with all Manuals, Foundation Plan, Hydraulic Diagram, Electrical Drawings etc. These will be shipped along with the Machine

Condition: used, Year of construction: 2007, Technical details: faceplate diameter: 1600 mm power requirement: 80 kW weight of the machine ca.: 25 t dimensions of the machine ca.: 4,4 x 4,62 m max. workpiece diameter: 2000 mm max. diameter of face turning: 1800 mm Bdedpfx Amox Aq E Heroh tool taper: ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis *

Condition: used, Year of construction: 2004, Technical details: turning diameter over bed: 610 mm turning dia. over face-slide: 350 mm swing diameter over bed: 610 mm centre distance: 1390 mm control: Fanuc 0i-Mate TC x-axis: plan: ca. 305 mm z-axis: längs: ca. 1350 mm revolution per minute: 22 - 2200 U/min feed:: X + Z-Achse: 5 / 10 m/min. Bdjdpfxeu Ix I Ue Amroh spindle bore: Ø 70 mm tool turret - number of stations: 6 tailstock quill taper MT: MK5 tailstock quill stroke: 150 mm Weight approx.: 2,7 t total power requirement: 15 kW dimension machine xH: 3,7 x 1,7 x 1,7 m dimensions of hydaulic: 630 x 460 x 900 mm other features: -hydr. chuck TONFAU Ø 300mm -hydraulics -Coolant system -control panel -double foot switch accessories: -div. mold jaws -div. soft jaws -6 footrests *

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: V16TC1548, workpiece weight (max.): 8,000 kg, workpiece diameter (max.): 2,000 mm, faceplate diameter: 1,600 mm, workpiece height (max.): 1,350 mm, faceplate torque: 18,000 Nm, TECHNICAL DETAILS Faceplate diameter: 1,600 mm Maximum faceplate torque: 18,000 Nm Maximum thread milling diameter: 1,800 mm Maximum facing diameter: 1,800 mm Maximum distance between the faceplate and the clamping surface of the inserted tool slide: 1,550 mm Slide dimensions: 220 × 220 mm Maximum workpiece diameter: 2,000 mm Maximum slide stroke: 900 mm Maximum workpiece height when using the 200 mm tool holder: 1,350 mm Maximum workpiece weight, depending on faceplate rotation: 8,000 kg Maximum tool shank diameter: 40 mm Maximum crossrail travel: 800 mm Crossrail feed rate: 170 mm/min Working feed rate: 1–2,000 mm/min Rapid traverse: 10,000 mm/min Feed per revolution: 0.001–50 mm/rev Rotating tool spindle speed, programmable in two ranges 1st range: 1–1,200 rpm 2nd range: 1,200–2,400 rpm Tool holder: ISO50 Bjdpfexvxrbjx Amrjdh MACHINE DETAILS Total power requirement: 80 kW Dimensions & Weight Footprint approx.: 4.4 x 4.62 m Machine weight approx.: 25 t EQUIPMENT C-axis
