Used Continuous Grinding Machine for sale (92,621)

Condition: like new (used), Year of construction: 2020, functionality: fully functional, Point 1: The machine is capable of grinding both internal and external gears! Point 2: The machine comes with a converter included free of charge for connection to kW supply according to US standards. This means the machine can be commissioned for use anywhere in the world. Point 3: For sale are 2 x VIPER 500 W machines in excellent condition. You are welcome to inspect them yourself. The machine is currently automated with a robot. The robot can optionally be included upon request. Delivery time and price upon request. Technical Specifications – VIPER 500 W Working Range and Capacities Maximum workpiece diameter Ø 500 mm Maximum grinding stroke 500 mm Working range above table (min–max) 300 – 800 mm Distance center–table (min–max) 442 – 1,042 mm Module / (generating grinding module) 0.5 – 22 Swivel angle (min–max) −180° / +45° Grinding System Grinding wheel diameter (min–max) Ø 221 – 350 mm Grinding worm diameter (min–max) Ø 221 – 350 mm Maximum grinding wheel width 75 mm Maximum grinding worm width 150 mm Grinding spindle drive power 37 kW Maximum grinding wheel speed 6,000 rpm Table and Feeds Table diameter Ø 400 mm Table bore (Ø × depth) Ø 100 × 500 mm Table rotation speed (max) 1,000 rpm Axial feed (max) 20,000 mm/min Radial feed (max) 12,000 mm/min Tangential feed (max) 20,000 mm/min Power and Dimensions Total connected load 60 kVA Machine dimensions (L × W × H) 4,220 × 3,120 × 2,526 mm Filter unit dimensions (L × W) 3,490 × 2,250 mm Net weight (approx.) 19,300 kg Machine Configuration – VIPER 500 W Base Machine and Options VIPER 500 W base machine Preparation for internal grinding arms Internal grinding unit V5 for straight or helical internal gears Measuring system for profile, tooth flank line, and pitch external Measuring system for profile, tooth flank line, and pitch internal (V5) Probing system for phase position Power supply with voltage dip compensation (ESR) Table adjustment 100 mm Preparation for hydraulic clamping devices Hydromechanical unit for drawbar clamping systems Grinding oil preparation with band filter (100) Fire extinguishing system Automatic working area door Cleaning unit with spray gun Crane integrated into enclosure Kdodoxpx Hxspfx Afieu Isolation transformer Voltage stabilizer – stabilizer and isolation transformer Signal lamp Services Delivery according to Incoterms 2010 On-site installation and commissioning Operator training – 5 days Interpreter service for training Software Packages Gear PRO software Software for spline shaft grinding Software for spline shaft inspection BIAS control software for gear grinding CBN grinding wheel software ADI dressing process optimization Dressing tool lifetime monitoring (DLC) Flexible profile modifications during grinding Consumables Endless band filter Assembly/disassembly aid for band filter (100) Diamond dressing rollers CVD dressing roller D200/R1 for form grinding CVD special dressing roller for generating grinding Grinding wheels Grinding wheel D350/B60 for form grinding Grinding wheel D350/B45 for form grinding Profiled grinding wheel D350/B150 for generating grinding Spacer rings 4 spacer rings B100 22 spacer rings B60 30 spacer rings B45 37 spacer rings B30 Other Components Grinding wheel flange (without spacer rings) Set of standard probes Additional Options Closed Loop 1.0 basic version Interface for external automation

Condition: excellent (used), machine/vehicle number: 31.207.011, Manufacturing origin Swiss Voltage 380/50/3 Netweight 3150 kg Dimensions 400x185x175cm Custom position 8460 Kodpfeiwtm Sjx Afiedu TECHNICAL DATA Distance between centres 1000 mm Centres height 175 mm Wheelhead Wheel : diameter/width/bore 500 / 80 (100) / 203.0 mm Max width of wheel 80(100) mm Spindle speeds 1220,1360,1530 min-1 Table maximal travel 1100 mm Table, speed (variator, progressively adjustable) 0.02 to 6.0 m/min Workpiece headstock Swivel 360° speed (variator,progressive adjust) 20 min-1 to 400 min-1 Wheelhead motor 6 HP Total power 7 HP Max diameter of workpiece 249 mm Tailstock internal taper Morse 3 errors and omissions excepted-data given without obligation

Condition: excellent (used), Year of construction: 2014, Surface grinding machine Kedpfjpwkt Isx Afisdu Manufacturer: Ziersch Type: ZT 24 Year of construction: 2014 Control system: Mitsubishi GOT-1000 Technical data of the vehicle: ----- - Travel X/Z: 400 / 250 mm - Magnet: 400 x 200 mm P9 - Table load max.: 250 kg - Distance from center of grinding wheel to table: 540 mm - Y-axis with direct path measuring system - Grinding wheel: 250 x 38 mm (50.8 mm bore) - Gradual grinding spindle control 1,000 to 4,500 rpm - Grinding spindle new in 04-2024! - V-constant - automatic vertical infeed with compensation of the dressing amount - Coolant device / paper belt filter - Magnetic separator - Weight: approx. 2,900 kg - Dimensions: 2,600 x 1,800 x 2,350 mm Accessories: ----- - Documentation - Handwheel

Condition: new, neu ca. 6 Monate ab Auftragse Taiwan 189830 € 3587.79 € 2000 mm 730 mm 2000 x 600 mm 2x 1000 x 600 mm 2100 mm 5 - 30 m/min 0 - 2250 mm/min mm 685 mm 0 - 675 mm/min 0.001 - 0.04 mm 560 mm 500 - 2200 1/min 11 kW 5.5 kW 6225 mm 07 mm 2305 mm 6530 × 00 ×3350 (brutto mm 10200 kg 1600 kg 1150 kg 1600 kg Dm. 405 x 75 x 127 mm je 3,1 kW iSurface Steuerung mit 10,4“ Tochscreen für vollautomatische 3-Achsen Flach- und Einstechbearbeitungen Grober Inkrementialvorschub, Finish-Inkrementalvorschub, Ausfeuern (0- 9 mal) und automatischer Schleifzyklus Der Schleifkopf fährt am Ende nach oben zur Start- oder Referenzposition, der Tisch parkt am Zyklusende auf der linken oder rechten Seite Displaygenauigkeit 0,0001 mm I/O Diagnose und Alarmanzeige Kdsdpfjxpizmsx Afisu Max. Tischgeschwindigkei 30 m/min Integrierte Maschinenkörpertemparaturkontrolle Turcidbeschichtete Doppel-V-Führungen Hydraulischer Tischantrieb mit Kühlung Linearführungen mit Kugelumlaufspindeln und AC Motoren für präzise Positionierung in der X- und Z-Achse Automatische Schmierung mit einem Druckschalter für automatischen Stopp bei Druckabfall Elektro-Magnetspannplatte 2x 1000 x 600 mm Kühlmitteleinrichtung mit aut. Papierfilter und Magnetabscheider (500 lt) automatische Abziehvorrichtung am Tisch montiert, ohne Diamant, mit automatischer Kompensation Schleifscheibenflansch mit 1 Schleifscheibe Schleifscheibenauswuchtwaage LED Maschinenleuchte Maschine und Ausrüstung entsprechend den CE-Vorschriften Betriebsanleitung auf DEUTSCH oder ENGLISCH OPTIONEN: Komplette Einhausung des Arbeitsbereiches Ölnebelabsaugung

Condition: used, Deckel engraving tool grinding machine SOE with various grinding wheels, various collets + accessories Kdjdpsxpimvsfx Afiju

Condition: excellent (used), functionality: fully functional, workpiece weight (max.): 300 kg, grinding length: 1,500 mm, grinding diameter: 400 mm, TOS BHU 40/1500 Cylindrical Grinding machine, grinding diameter 400 mm, grinding length 1500 mm, very good technical and visual condition. Technical specifications: Grinding diameter: 400 mm Grinding length: 1500 mm Maximum workpiece weight: 300 kg Grinding wheel size: 600 × 150 mm Longitudinal table travel (X-axis): 1–1790 mm Rotating grinding head: ±45° Rotating table: ±5° Spindle taper: Morse 5 Kdsdoxphdmspfx Afiou Maximum spindle speed: 1240 rpm Total connected power: 22 kVA Machine weight: approx. 6 t

Year of construction: 2008, condition: ready for operation (used), General Data Measurements width 1555 Measurements depth 2310 Measurements height 1950 Machine weight 2500 Main Drive Spindle speed range 3000/3600 Spindle motor power 2.2kW/3HP This 3-axis Proth PSGS-3060AH surface grinding machine was manufactured in 2008. It offers precision and durability for various grinding applications. Consider the opportunity to buy this Proth PSGS-3060AH surface grinding machine. Contact us for more information. Kjdpfx Afjxn U A Teiodu Application Types Grinding

Year of construction: 2020, condition: good (used), controller manufacturer: SIEMENS, controller model: 840 D SL, CONTROLS .. CNC controls SIEMENS 840 D SL Microfinishing machine type Microstar 284 in vertical design with 8 workpiece holders and 4 microfinishing units for machining slide and counter ring grinding. Kdedpfxexn Icgo Afiou - 6500 houers Workpiece spindles: 8 pieces Speed max 2000 rpm Number of finishing units 4 pieces max. speed 10'000 rpm max workpiece length 160 mm Loading height 1200 mm

Year of construction: 1971, condition: good (used), 1 used cylindrical grinding machine, make Cincinnati, type R 75, year 1971 centre height 130 mm grinding length 760 mm spindle bore 38 mm grinding wheel diameter 300 mm, width 40 mm Kdsdpehf I Icefx Afieu Workpiece weight 75 kg. max. grinding spindle double swivelling

Condition: good (used), Year of construction: 1984, Used TOS KAMENICEK model BUC63A x 3000 Universal cylindrical grinding machine. YEAR OF MANUFACTURE: 1984. MACHINE FORMERLY INSTALLED AT ROLLS ROYCE PLC IN DERBY UK. IMMEDIATELY FOR SALE AND NOW LOCATED IN BELGUIM WHERE IT CAN BE INSPECTED. SPECIFICATION Max Swing 630 mm Kdodpfx Ash U Rznefiou Distance between centres 3000 mm Workhead swivel – towards wheelhead only 90 deg. mm Work spindle bored taper No. 6 M.T. Length of stroke of tailstock barrel 70 mm Tailstock barrel taper No. 6 M.T. Spindle nose clamping Din 55021 Swivelling of wheelhead + 30 deg – 10 deg Length of adjustment by re-circulating ball screw 290 mm Additional length of adjustment 250 mm Length of rapid feed 90 mm Length of infeed setting per each rev. of handwheel, measured on work diameter 0.5 mm Grinding wheel dia. X width X bore 750 x 80 x 305 mm Min. dia. of worn grinding wheel 570 mm Max. face width of grinding wheel 125 mm Rate of table traverse – steplessly variable 0.5-0.6 m/min Table traverse per 1 rev of handwheel 8 mm Swivelling of table +/- 5 deg. Max. permissible weight of work between centres 2500 kg Max. permissible weight of workpiece in chuck with overhang. (including weight of chuck) 150 kg Wheel spindle speeds (2) 840,970 rpm Grinding wheel surface speed 33 m/sec Work spindle speeds – int. var. in 2 ranges 8-50, 50-315 rpm Drive – total power required rated 31 kva Output of workhead motor 3 kw Output of wheelhead motor Electrics 15 kw 415V ,3Ph,50Hz Equipped with:- Additional wheel flanges, coolant system with clarifier and splash guards. FEATURES AND EQUIPMENT – Swivel Round Internal Grinding Attachment

Condition: good (used), Year of construction: 1997, Geldmacher engraving tool grinding machine GS 10 with collet set Kdodpfxsxpfc Tj Afiou

Condition: good (used), Year of construction: 2001, STUDER S145 CNC internal and external cylindrical grinding machine TECHNICAL DATA Main dimensions: Center height: 175 mm Center width: 200 mm Distance from workpiece spindle nose to grinding spindle carrier: 850 mm Kjdpfxst Hxv Us Afiedu Cross slide: Longitudinal axis Z1: 500 mm Smallest automatic path: 0.0001 mm Speed: 0,001 - 10`000 mm/min Resolution: 0.0001 mm Reversing delay: 0 - 9.9 s Cross axis X1: 120 mm Smallest automatic path: 0.0001 mm Speed: 0.001 - 5000 mm/min Resolution: 0.0001 mm Grinding spindle carrier: Turret grinding spindle carrier with 4 tool positions: 120 mm Bore: 100 / 120 mm External grinding device with wheel up to: 250 mm Fixed workpiece headstock: Speed range: 0-1500 rpm Spindle nose with centering diameter: 85 mm Spindle clearance: 50 mm Drive power: 3 kW Spindle torque: 30 Nm Load during fly grinding: 180 Nm Roundness accuracy during fly grinding: 0.0005 mm Spindle nose: Camlock 6 Control: Fanuc Series 16 GC We assume no liability for the correctness, completeness and up-to-dateness of the information.

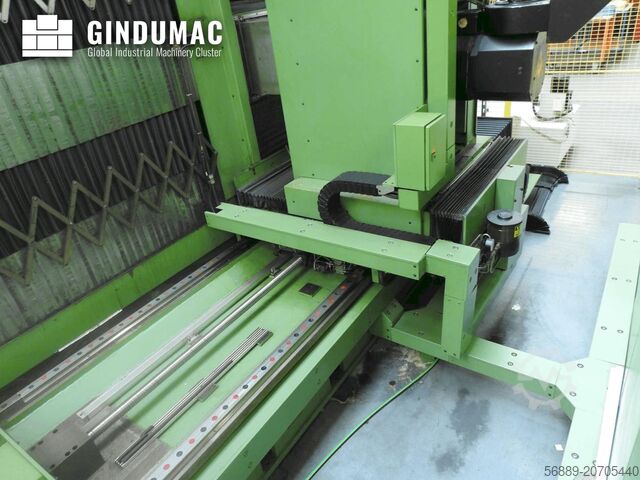

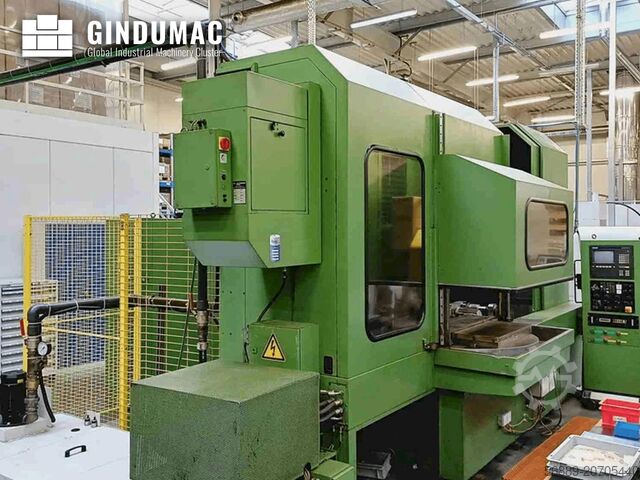

Year of construction: 1992, condition: ready for operation (used), Control Unit Brand SIEMENS Model Sinumerik 810G Main Drive Number of axis 3 Movement X-Axis Movement 2000 mm X-Axis Feed Force 10–24000 mm/min Y-Axis Movement 600 mm Y-Axis Feed Force 1–2000 mm/min Z-Axis Movement 280 mm Z-Axis Feed Force 1–5000 mm/min This 3-axis ABA PSM 1250 TT was manufactured in 1992. It features a CNC rotary table with a diameter of 1250 mm and a Sinumerik 810G control system. The machine offers extensive X, Y, and Z-axis travels of 2000 mm, 600 mm, and 280 mm respectively, supporting complex grinding tasks. If you are looking to get high-quality grinding capabilities, consider the ABA PSM 1250 TT machine we have for sale. Contact us for more information about this machine. Application Types Kdjdpfx Ajxadqqofieu Grinding

Condition: new, Year of construction: 2025, Designed for professional structuring and grinding work Motorised height adjustment of the working units with digital display Aggregates can be switched on individually Highly resistant rubberized conveyor belt Stepless feed Inlet height constant Models str l with infinitely variable, inverter-controlled brush speed: this enables the speed to be precisely adapted to the material, making them particularly suitable for sensitive materials. Unit for saw-cut optics optionally available Dimensions and weights Length approx. 1300 mm width/depth approx. 1000 mm Height approx. 1300 mm Weight approx. 440 kg Dust extraction connection Suction nozzle diameter 2 x 150 mm Brushes diameter 190 mm length 300 mm Kdodjff Hdispfx Afieu revolution 1500 min-¹ Electrical data Drive motor power 2 x 3.0 kW Power feed motor 0,22 kW Input power 6,25 kW Supply voltage 400 V Phase(s) 3 Ph Current type AC Mains frequency 50 Hz Noise emission Sound power level Lw (idling without extraction) 65 dB(A) Sanding unit grinding width max. 300 mm Feed unit Feed speed 1 - 13 m/min Workpiece Height max. 300 mm Weight max. 100 kg

Year of construction: 2006, condition: excellent (used), Swing angle 135 Motor 1.1 kW Kdodpfx Afohr D Aysiju table height 860 mm table surface 800×1000 mm spindle dimension 28 x 90 mm spindle speed 1500 rpm with feed unit: Fields S/308, year 2011 and accessories

Condition: good (used), Studer S30-12 cylindrical grinding machine TECHNICAL DATA Main dimensions Center height: 125 mm Kdjdpfxsvca Ize Afieu Center width: 400 / 700 / 1025 mm Largest longitudinal slide path: 400 / 700 / 1000 mm Longitudinal slide Table speed: 50 - 5000 mm/min Reversing delay: 0-6 s Smallest automatic travel: 1.5 mm Max. stroke: 400 / 700 / 1020 mm Max. Table inclination: 12 / 30 / 78° Cross slide Swivel range: +- 45° Quick adjustment: 40 mm Feed path with handwheel: 20 mm Largest plunge depth: 1.7 mm Sanding headstock Grinding wheel diameter x width x bore: 450 x 80 x 203 mm Speed: 1340 / 1500 1625 / 1800 / 2000 / 2200 rpm Coarse adjustment: 210 mm Workpiece headstock Swivel range: 0 - 90 Speed range: 30 - 675 rpm Mounting cone: Morse 5 Collets: W25 Tailstock Mounting cone: Morse 3 Adjustment travel of the center: 30 mm Total power requirement: 5 / 8.25 kW No liability is assumed for the correctness, completeness and up-to-dateness of the information.

Condition: new, Year of construction: 2025, MBSM 150-20 For sanding surfaces, edges and rounding off Powerful motors with vibration-free running to achieve the best sanding results Working height adjustable due to infinitely variable inclination of the sanding unit Workpiece support angle adjustable Continuous flat sanding surface enables sanding of long workpieces as well One suction nozzle each at the spark box and at the rear belt roller Protective disc can be folded away Quick clamping system for changing the abrasive belt in seconds Simple adjustment of the belt run via adjusting screw Motor with brake and circuit breaker Dimensions and weights Length approx. 527 mm width/depth approx. 995 mm height approx. 1025 mm Weight approx. 114 kg Suction Nominal width of external suction nozzle 60 mm Electrical data Supply voltage 400 V Kdsdpfohk Df Dox Afisu Mains frequency 50 Hz Noise emission Emission sound pressure level at the workplace Lp (idling without extraction) 80 dB(A) Grinding unit Grinding width max. 150 mm Sanding belt length 2000 mm Sanding belt width 150 mm Belt speed(s) 30 m/s Contact wheel diameter 200 mm

Condition: good (used), Year of construction: 1993, Graver grinding machine Make: Deckel Model: S0 Kdsdpfxju T Nfxe Afiou year of construction 1993

Condition: excellent (used), AGATHON 150 SL2 Centerless cylindrical grinding machine TECHNICAL DATA Working wheel: Diameter: 150 mm width: 50 mm Bore: 50 mm Regulating disk: Diameter: 100 mm Width: 50 mm Bore: 40 mm Workpiece diameter: Minimum: 0.1 mm Maximum: 12 mm Kdedpfx Afjr Hdi Aeiou Max. Length for plunge-cut grinding: 49 mm Weight: 750 kg Connected loads: 3 X 380 V / 50 Hz Compressed air: 5-6 bar Dimensions: Machine: 1000 x 500 x 880 mm Electrical cabinet: 1550 x 540 x 420 mm Coolant tank: 750 x 550 x 700 SCOPE OF OFFER U.A: (list not exhaustive): Grinding wheels regulating wheels Spare flange mandrel Grinding pads Complete operating documentation Exact scope of offer according to photo gallery We assume no liability for the accuracy, completeness and up-to-dateness of the information provided.

Condition: excellent (used), Rema double grinding head / school machine wheel mass (in mm) 300/40/76 power (in KW): 1,8 Speed (rpm): 1450 Voltage: 380 Volt Kedpfehaf Ndsx Afiodu Lamp Shields Location: Ex stock 54634 Bitburg - immediately available -

Year of construction: 1987, condition: good (used), 1 used steel grinding machine, make Solid, type DSCD Kjdpjglf Hbjfx Afijdu

Year of construction: 2003, condition: excellent (used), Schneeberger DMR Gemini CNC tool grinding machine TECHNICAL DATA Control: GE Fanuc 160, 5 axes simultaneous Software: Schneeberger Quinto Measuring system X,Y and Z axis: 0.1 μm A-axis: 0.0001° Kedpjmqni Asfx Afiodu C axis: 0.0001° Grinding head Power: 15 kW speed: 50 - 10`000 rpm spindle nose: HSK 50 Max. wheel diameter: 250 mm Max. Number of grinding wheels: 6 Linear axes X-axis, travel: 380 mm feed speed: 20`000 mm/min resolution: 0,0001 mm gear ratio: 1 : 1 Power: 1,0 kW / 3 Nm Y-axis, travel: 300 mm feed speed: 5`000 mm/min resolution: 0,0001 mm Gear ratio: 24 :4 Power: 1,6 kW / 8 Nm Z-axis, travel: 280 mm feed speed: 20`000 mm/min resolution: 0,0001 mm gear ratio: 1 : 1 Power: 1,0 kW / 3 Nm Rotary axes C-axis: 210 ° Speed: 72 ° / s Resolution: 0,0001 ° Power: 1.6 kW / 8 Nm C` axis: +- 180 ° Speed: 90 ° / s Resolution: 0,0001 ° Infeed: Hydraulic A axis: +- 360 ° Speed: 225 ° / s resolution: 0,0001° Power: 1,0 kW Nose: ISO 50 Center height: 210 mm Dimensions and weight Length: 1700 mm Depth: 2270 mm Height: 2260 mm Weight: 8`000 kg We do not guarantee the accuracy, completeness and timeliness of the information.

Condition: used, Year of construction: 1997, G+H (Geibel + Hotz), FS 635 SA Year: 1997 Grinding area: 600x350 mm Kjdjxbzh Nopfx Afisdu Weight: approx. 2,600 kg

Year of construction: 1994, condition: good (used), Manufacturer: Rollomatic Year of manufacture: 1994 Type: CNC 24-F Kjdpewhznxofx Afisdu Machine number: 142 3 x 380 V, 50 Hz

Condition: good (used), Year of construction: 1994, Graver grinding machine Make: Deckel Kdsdpfxju T Nf Se Afiju Model: S0 year of construction 1994
