Used Kieserling Eccentric Press - Single Column for sale (22,060)

Condition: used, Year of construction: 1987, pressure 60 t throat 280 mm stroke 10-140 mm no. of strokes 110 Hub/min ram - range of adjustment 60 mm table surface area 740x560 mm ram surface 380x195 mm hole in the table 300x200 mm table height 760 mm tool hole in ram Ø 40 mm Bledew E Nu Iopfx Amyok

Condition: used, Year of construction: 1975, pressure 200 t stroke 20 - 200 mm ram adjustment 130 mm daylight (stroke down, ram adjustment above) 380 mm table surface area 1150 x 800 mm no. of strokes 25 - 75 Hub/min Blsdpfxoyhq Sxe Amyek total power requirement 9,8 kW dimensions of the machine ca. L 1,7 x B 3,0 x H 3,8 m

Condition: new, Year of construction: 2024, pressure 30 t throat 180 mm stroke 8-76 mm no. of strokes 80-200 Hub/min ram - range of adjustment 60 mm table surface area 360x580 mm Bodpfxsvfhpxe Amyelk table height 840 mm hole in the table Ø 110 mm ram surface 250x350 mm tool hole in ram Ø 40 mm total power requirement 3 kW weight of the machine ca. 1,8 t dimensions of the machine ca. BxTxH 1350x1200x2100 mm

Condition: new, Year of construction: 2024, pressure 20 t throat 155 mm stroke 6-60 mm no. of strokes 84-210 Hub/min ram - range of adjustment 50 mm 300 mm table surface area 300x450 mm table height 840 mm hole in the table Ø 90 mm ram surface 190x278 mm tool hole in ram Ø 25 mm total power requirement 1,5 kW weight of the machine ca. 1,0 t dimensions of the machine ca. BxTxH 1100x1100x1900 mm Blodpfxevfhp Se Amyok

Condition: used, Year of construction: 1998, pressure 80 t throat 335 mm stroke 8 - 100 mm no. of strokes 60/90 Hub/min table surface area 900 x 670 mm hole in the table 280 x 200 mm dayligth max. 450 mm ram adjustment 80 mm ram surface 700 x 450 mm tool dimension, max 700 x 450 mm weight of tools max. 140 kg Bodpfx Ajuild Aomyslk total power requirement 11,07 kW weight of the machine ca. 6,5 t dimensions of the machine ca. BxLxH 1,72 x 2,0 x 2,82 m

Condition: used, pressure 63 t throat 315 mm stroke 16 - 125 mm max. distance table - ram 417 mm ram adjustment 70 mm no. of strokes 80 Hub/min Bsdpfstqm Dqex Amyjlk table surface area 800 x 630 mm ram surface 500 x 400 mm total power requirement 6 kW weight of the machine ca. 5 t dimensions of the machine ca. 1,5 x 2,2 x 2,75 m

Condition: used, Year of construction: 2007, pressure 200 t throat 510 mm stroke 16 - 160 mm ram - range of adjustment 120 mm table surface area 1500 x 1000 mm table height over floor 900 mm hole in the table 800 x 250 mm ram surface 1000 x 700 mm tool hole in ram 65 x 110 mm T-slot - width 28 mm number of strokes adjustable 30 - 120 min oil volume Hydraulikaggregat 5 l daylight, max. stroke above - ram adjustment above 600 mm daylight (stroke down, ram adjustment above) 440 mm total power requirement 32,2 kW weight of the machine ca. 24 t dimensions of the machine ca. BxTxH 2,85 x 3,1 x 3,65 m - hydraulic clutch - fixed table - hydraulic overload protection in the ram - hydraulic connecting rod clamping - Motorized ram height adjustment 120 mm with digital display set ram height, rapid and slow speed - fully automatic stroke adjustment, adjustment range 16 - 160 mm - Ram weight compensation - electronic OT correction - Planetary gears - Oil circulation central lubrication - Separate control panel with SIMATIC S7/300 screen control - Press force measuring device - Reversing switch (return) - additional operating mode “set-up-creep speed” - electric stroke counter - electrical preset counter - electrical travel limitation of the connecting rod journal - electronic cam switch - continuously variable drive (frequency controlled) - 2 sockets - Clamping plate - Temperature monitoring main bearing / support bearing / connecting rod bearing - Operating hours counter - Oil cooler - Set of oscillating elements Additional equipment: Electronic roller feed ebu EVX 500 Passage width: 10 - 500 mm Material cross section: max. 1,600 mm² Material thickness: 0.2 - 5.0 mm Number of reels: 2 Roller diameter: 100 mm Intermediate ventilation: up to over 300 l/min Feed length: 1.0 - 9,999.9 mm Feed speed: max. 150 m/min Bedpfxevbk Rws Amyolk

Year of construction: 1980, condition: used, pressure 80 t throat - mm stroke 50 mm table surface area 875 x 695 mm ram surface 350 x 355 mm ram adjustment 71 mm no. of strokes 30 - 90 Hub/min distance between columns 450 mm weight of the machine ca. 6,2 t dimensions of the machine ca. 2,0 x 2,1 x 3,2 m daylight (stroke down, ram adjustment above) 480 mm Further information: - the machine is currently being a partially overhauled - the machine was re-equipped with the following components: * separate control cabinet with touchscreen including cabling Bledsdlcy Hepfx Amyek * new painting of the individual components in the dismantled state After the partial overhaul, the machine is safe for manual insertion open tool, a current UVV test is carried out before delivery and braking time measurement.

Year of construction: 2002, condition: used, pressure 130 t throat 350 mm stroke 16-200 mm Bodpfxslp U Dlj Amyolk no. of strokes 55 Hub/min ram - range of adjustment 100 mm table surface area 1200x700 mm ram surface 730x530 mm hole in the table 300x210 mm table height 900 mm tool hole in ram Ø 50 mm weight of the machine ca. 8,0 t dimensions of the machine ca. BxTxH 1500x2200x3500 mm

Year of construction: 1971, condition: used, pressure 75 t Blodpjlp U Eijfx Amyjk throat 310 mm stroke 16-140 mm no. of strokes 105 Hub/min ram - range of adjustment 80 mm table surface area 800x610 mm ram surface 600x175 mm hole in the table Ø 170 mm table height 820 mm tool hole in ram Ø 40 mm weight of the machine ca. 4 t dimensions of the machine ca. 1500x2000x2700 mm

Condition: new, neu ca. 12 Wochen ab Auftrags Türkei 91200 € 1723.68 € 100 to 500 mm 600 x 900 mm Bedpewir Dgefx Amyelk 700 x 1100 mm 750 mm 320 mm 100 mm/s 8,5 mm/s 165 mm/s 11 kW 2100 mm 1900 mm 3350 mm 7300 kg 240 bar 30 to 200 mm 120 mm 170 bar 52 mm/sec. 700 x 400 mm 2-hand control Control over SPS Adjustable die cushion stroke Lubricant-free ram guide light barriers User Manual in German according to CE rules

Condition: new, neu ca. 12 Wochen ab Auftrags Türkei 104800 € 1980.72 € 150 to 500 mm Bljdpfswirl Rox Amyok 950 x 650 mm 1200 x 750 mm 750 mm 100 mm/s 5,5 mm/s 165 mm/s 11 kW 2200 mm 2200 mm 3650 mm 9500 kg 254 bar 32 to 200 mm 120 mm 160 bar 40 mm/sec. 720x540 mm light curtain cushion manual and automatic working manual stroke adjustment by camshaft switch maintenance free self lubricating 4-fold ram guiding polster plate with T-slots according to "CE" rules

Condition: new, neu ca. 12 Wochen ab Auftrags Türkei 80100 € 1513.89 € 60 to Blsdpfxswiqz Rs Amysk 350 mm 550?850 mm 600?1000 mm 600 mm 100 mm/s 10 mm/s 165 mm/s 11 kW 1950 mm 1900 mm 2850 mm 5350 kg 170 bar 24 to 150 mm 100 mm 156 bar 65 mm/sec. 470?650 mm light curtain cushion manual and automatic working manual stroke adjustment by camshaft switch maintenance free self lubricating 4-fold ram guiding polster plate with T-slots according to "CE" rules

Condition: used, Year of construction: 2000, pressing force: 260 t, stroke length: 250 mm, table width: 840 mm, table length: 1,500 mm, air pressure: 9.807 bar, compressed air connection: 9.807 bar, ram adjustment: 120 mm, We are offering this used Chin Fong OCP-260N eccentric press with double column, year of construction 2000. Model: OCP-260N Factory number: A00373 Year of construction: 2000-11 Capacity: 260 tons Blsdeykbcmjpfx Amyok Stroke frequency: 20–40 strokes/min Stroke: 250 mm Maximum die height: 500 mm Upper bolster clearance: 7 mm Slide adjustment (range): 120 mm Upper platen surface (L × W): 1130 × 700 mm Lower platen surface (L × W): 1500 × 840 mm Main motor power: 22 kW Poles: 4 Machine weight: 31.8 tons Compressed air pressure: 9.807 bar Oil temperature max.: +100 °C Oil temperature min.: -10 °C Oil volume: 180 liters If you have any questions or need more information, please feel free to send us a message or call us.

Condition: good (used), Year of construction: 1981, machine/vehicle number: 022-009-36, Offer 24374 Technical Data: - Max. pressing force: 100 t - Max. ram stroke approx.: 500 mm - Stroke speed: 25 mm/sec - Return speed: 125 mm/min - Installation height approx.: 1000 mm - Throat depth (to ram center): 380 mm - Ram clamping surface: 530 x 400 mm - Ram clamping pin: 40 mm - Table size: 750 x 560 mm - Table bore / through-hole: 200 mm - Table height above floor: 720 mm Blodexuhzcspfx Amysk - Oil capacity approx.: 200 ltr - Drive: 400 V / 11 kW - Space requirements approx.: W 1150 x H 3250 x D 1850 mm - Weight approx.: 4600 kg

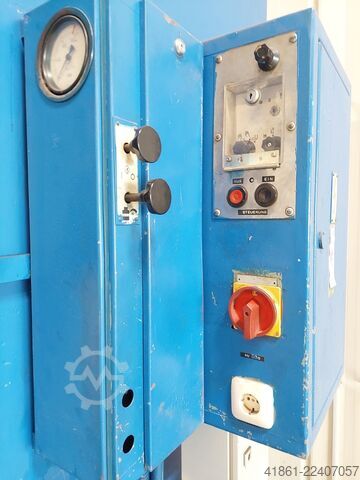

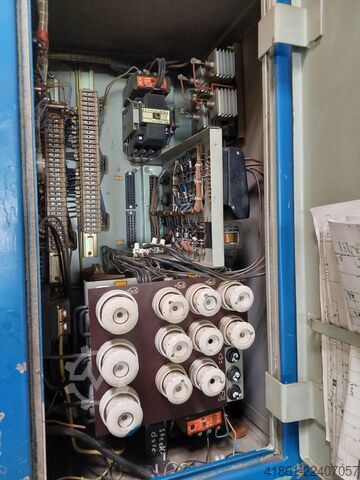

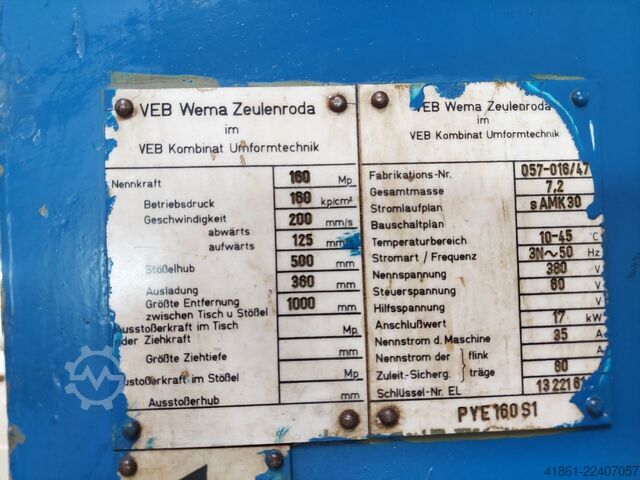

Condition: good (used), Year of construction: 1986, machine/vehicle number: 057-016-47,

Condition: new, Year of construction: 2026, pressing force: 100 t, Durendus DCD-100 – Hydraulic Deep-Drawing Press in C-Frame Design 15–100 t – 800 × 600 mm For sale: a hydraulic C-frame deep-drawing press (single-column press) from Durendus with an adjustable pressing force from 15 to 100 t. This machine is designed for demanding forming, deep-drawing, and assembly tasks. It is equipped with an integrated deep-drawing cushion and a state-of-the-art Siemens control system. Featuring high travel speeds and precise control, it is ideal for both series production and flexible single-part applications. ===== Technical Data & Information: Hydraulic C-Frame Press – DCD-100 ==== General Specifications - Manufacturer: Durendus - Model: DCD-100 - Design: C-frame / single-column press - Pressing force: 15–100 t (adjustable) - Total weight: approx. 6,500 kg - Overall dimensions: approx. 1,850 × 1,845 × 3,520 mm - Table height above floor: 1,000 mm ==== Working Area - Max. distance table – ram: 1,000 mm - Stroke: 0–700 mm (adjustable) ==== Table & Ram - Table size: 800 × 600 mm - Ram size: 800 × 600 mm - T-slots: according to DIN 650, 18 mm, cross arrangement Bodeyw I T Hspfx Amyelk ==== Speeds - Rapid traverse speed: 180 mm/s - Working speed: 22 mm/s - Return speed: 180 mm/s ==== Hydraulics & Drive - Operating pressure: max. 250 bar - Main pump: Bosch Rexroth, approx. 65 l/min - Motor power: 11 kW + 1.5 kW - Oil tank capacity: approx. 280 l - Hydraulic block: Duplomatic - Filter: Filtrec - Cooling: air cooler ==== Additional Functions - Deep-drawing cushion: 50 t, stroke 250 mm, speed 50 mm/s - Ram ejector: 10 t, stroke 100 mm ==== Control & Operation - PLC: Siemens S7-1200 - Touch panel: Siemens SIMATIC 10" - Programmable: up to 99 programs - Adjustable: pressure, stroke, speed, lubrication - Positioning accuracy: up to 0.1 mm - Remote maintenance available ==== Safety & Equipment - Two-hand operation - Safety PLC - Monitoring of all operation statuses via display - Oil temperature and filter monitoring - Automatic shutdown in case of overheating ===== Deep-drawing, forming, assembly operations, punching processes, series production, toolmaking Single-column press, C-frame press, deep-drawing press, hydraulic press, industrial press, tryout press, tool try-out press Are you looking for a hydraulic press tailored to your specific application? Contact us for a customized offer. Our hydraulic presses are manufactured according to German machinery directives, as well as European Machinery Directive 2006/42/EC, EC standards, and EU safety requirements. Additionally, our presses exceed Canadian and European safety standards by fully complying with the national Brazilian safety guideline NR 12, which is based on these requirements. Our core strengths are special machine construction and press automation. We supply bespoke hydraulic presses at surprisingly competitive prices. For the hydraulics, we primarily use components from leading European manufacturers.

Condition: new, Year of construction: 2021, pressing force: 10 t, Single-column press with 10 T capacity, suitable for continuous shift operation, with these basic data: a) Traversing speed 0 - 10 mm/sec. downwards, b) Opening speed up to 25 mm/sec c) Starting press speed 10 mm/sec, adjustable from 0 to 10 mm/sec. d) Table size 600x300 mm e) Ram size 300x300 mm, with T-slots and central cylinder clamping f) Overall size approx. 1100x600x1850 mm g) Oil temperature display on oil tank h) Pressure setting from 0.5 T to 10 T (adjustable via rotary control) i) Cable remote control for downward/upward movement j) Machine body powder coated, or double painted k) Control cabinet supply cable from above with 3000 mm cable and 16 ampere plug l) Assembly, commissioning, instruction at extra charge Type of construction Press design Single-column press Thermally neutral 80 - 120 °C Number of operating sides 1 side Forces Max. pressing force (at 250 bar) 100 kN Free ripping force max. 10 kN Pressure build-up time Closed tool Steel on steel Max. 2 sec. Dimensions Max. Opening width 800 mm Stroke and min. opening 500/300 mm Table height above floor 850 mm Height above floor (headroom) approx. 2850 mm Hall height min. 3,500 mm Parallel deviation at 20°C #ERROR! mm Deflection Determined at max. clamping force with 70% occupancy < = 0.1 mm/m Weight Bjdpshma Smefx Amyslk Total weight of the press without operating materials approx. 1.6 to Speeds Fast closing with 10 mm sec. Press speed 10 - 0 mm sec. Sound pressure Sound pressure level, measured at 1.5 m height at the control panel according to DIN 45635-T16-KL3 max. 78 db(A) Hydraulics Number of pressing cylinders 1 pc. Operating pressure max. 250 bar Pressing pressure build-up time . 2 sec. Pressure accuracy during pressing stroke #ERROR! bar Main pump Gear pump approx. 6 L/min Oil volume approx. HLP 46 MW 80 litres Ambient temperature max. 40 °C Oil temperature max. 55 °C Flow temperature °C Electrical system Main supply 400 V AC Control voltage 24 V DC Frequency 50 Hz Hydraulic connection Main motor 2.2 kW Total connection Approx. 3 kW

Condition: new, Year of construction: 2022, pressing force: 15 t, Single column press with 15 T capacity suitable for continuous shift operation a) travel speed 10 mm/sec. downwards, b) opening speed up to 25 mm/sec c) starting pressing speed 10 mm/sec d) table size 400x400 mm e) ram size 200x200 mm, with T grooves and central cylinder clamping f) Overall size approx. 1150x800x1750 mm g) oil temperature display on oil tank h) pressure adjustment from 5 T to 17 T ( adjustable by rotary control ) i) Hand lever operation with two speeds j) Machine body powder-coated, or double-painted k) Control cabinet supply line from above with 3000 mm cable and 16 Ampere plug l) assembly, commissioning, instruction against separate calculation Blodpfx Aoitylgemyek Press design Single column press Thermally neutral 80 - 120 °C Number of operating sides 1 side Forces Press force max. ( at 250 bar ) 150 kN Free ripping force max. 10 kN Pressure build-up time Closed die Steel to steel Max. 2 sec. Max. Opening width 400 mm Stroke and min. opening 350 mm Table height above floor 850 mm Height above floor (headroom) approx. 1900 mm Hall height min. 2.500 mm Parallel deviation at 20°C +/- 0.1 mm Determined at max. clamping force with 70% occupancy < = 0.3 mm/m Weight Total weight of the press without operating materials approx. 1.1 to Fast closing with 10 mm sec. Press speed 10 - 0 mm sec. Sound pressure level, measured at 1.5m height at the control panel according to DIN 45635-T16-KL3 max. 78 db(A) Number of pressing cylinders 1 pc. Operating pressure max. 290 bar Pressing pressure build-up time . 2 sec. Pressure accuracy during pressing stroke +/- 5 bar Main pump Gear pump approx. 9 L/min Oil volume approx. HLP 46 MW 80 liters Ambient temperature max. 40 °C Oil temperature max. 55 °C Flow temperature °C Electrical system 400 V AC Main supply Control voltage 24 V DC Hydraulic pumps 24 V DC Frequency 50 Hz Hydraulic connection Main motor 3 kW Total connection Approx. 5 kW Equipment control cabinet Protection class IP 54 Reserve space Approx. 20 Cooling no Interior lighting no Operating mode switch Lockable yes

Condition: new, Year of construction: 2026, pressing force: 100 t, Single-Column Press – 100 t – C-Frame – 700 × 750 mm – Hydraulic Press For sale is a hydraulic single-column press (C-frame) with a pressing force of 100 t. The machine features a table size of 700 × 750 mm, a maximum daylight opening of 550 mm, and a stroke of 400 mm, making it suitable for a wide range of pressing, assembly, and forming tasks in industrial production environments. ==== Technical Data & Information: Bjdpfxeytql Aj Amyjlk Hydraulic Single-Column Press – C-Frame – 100 t ==== General Information - Design: Single-column press / C-frame - Pressing force: 100 t - Table size: 700 × 750 mm - Max. distance ram – table: 550 mm - Working height: 1,000 mm - Overall dimensions (W × D × H): 1,200 × 1,150 × 2,550 mm - Total weight: approx. 5,800 kg - Frame: Welded steel construction - T-slots / boreholes: DIN 650 / 22 mm ==== Hydraulic Cylinder - Stroke: 400 mm - Piston rod: Ø 80 mm - Cylinder: Ø 140 mm - Max. working pressure: 270 bar - Interchangeable press head: Ø 100 mm ==== Hydraulic Power Unit - Return speed: 14 mm/sec - Working speed: 9 mm/sec - Hydraulic pump: ASC - Flow rate: 19 l/min - Motor power: 7.5 kW - Oil tank capacity: approx. 70 l - Hydraulic manifold / valves: Duplomatic - Pressure display: Manometer - Pressure adjustment: adjustable - Sensors: limit sensor and pressure switch - Cooling: air cooling - Hydraulic power unit: mounted on top of the press ==== Electrical Equipment - Main power supply: 400 V AC - Control voltage: 24 V DC - Frequency: 50 Hz - Main motor connection: 7.5 kW - Total connected load: approx. 10 kW ==== Control Cabinet - Protection rating: IP54 - Reserve space: 30 % - Cooling: available - Interior lighting: available - Operating mode selector: lockable ==== Operation - Manual operation via hand-lever valve - Foot pedal control - Pressure adjustment via pressure relief valve - Manometer display - Emergency stop on control panel ===== Assembly work, forming processes, straightening operations, pressing operations, industrial manufacturing Hydraulic press, single-column press, C-frame press, workshop press, assembly press, straightening press, industrial press, production press

Condition: as good as new (ex-display), Year of construction: 2018, machine/vehicle number: DF0151 - Rev.00, pressing force: 110 t, pressure:110 t passage width:800 mm stroke:500 mm Approx. weight (w/o operational materials):5 t Measurements L x W x H:ca. 1950 x 1510 x 3145 mm Return Capacity:11 t Engine Output:20 kW Cylinder diameter:200 mm Max Working height:700 mm Approaching Speed max. :195 mm/sec Pressure Speed:1 - 15 mm/sec. Return Speed:5 - 140 mm/sec Travel:500 mm Ram plate:800 x 600 mm Bsdsdxrqwepfx Amyjlk Thickness of ram plaet:6 Zoll Table size:800 x 700 mm Table height above ground level (approx.):900 mm Oil Tank Capacity:400 l Program Memory:200 prgms Monitor Siemens:10 Zoll Siemens Control System:S7 1200 Lightcurtains by Schmersal:700 mm Speed controlled via proportional valve for speeds between 5 to 195 mm/sec on approach, 1 to 15 mm/sec during pressure phase and 5 to 140 mm/sec during return. HMI - pressure regulation for capacity of hydraulic cylinder from 20 to 110 tons Siemens remote access for maintenance purposes Motor with energy efficiency level IE3 according to CE

Condition: new, Year of construction: 2026, pressing force: 100 t, pressure:100 t passage width:500 mm stroke:400 mm Approx. weight (w/o operational materials):5,5 t Measurements L x W x H:ca. 1300 x 2000 x 2750 mm Table size:750 x 600 mit T-Nuten mm Table height above ground level:850 mm Oil Tank Capacity:190 l main cylinder:230 Ø mm Auxiliary cylinder:2 Stk - 50 x 30 Ø mm Auxiliary guidance:2 Stk - 50 Ø stk. Engine Output:11 kW :23 Lt./min. Bsdpfsfu Nqxox Amyslk Approach Speed:110 mm/sec Pressure Speed:9 mm/sec Return Speed:200 mm/sec Ram plate:750 x 600 mit T-Nuten mm pre-run valve:NG.63 Stk Painting:Lichtgrau & Dunkelgrau Siemens Control System:S7 1200 Monitor:Siemens 7 Zoll Light sensors sick:750 + 150 mm Control Set-up operation:manuell ohne Lichtsensor Automatic control:mit Lichtsensor Special feature: When operating at 260bar the machine reaches a pressure level of 70 tons.

Condition: new, Year of construction: 2019, pressing force: 110 t, pressure:110 t stroke:400 mm weight of the machine ca.:4,5 t dimensions:ca. 1650 x 1150 x 2800 mm return capacity:11 t total power requirement:11 kW Max Working height:500 mm :10 mm :10 mm/sec. speed rapid traverse:10 mm/sec :400 mm pestle plate:600 x 500 mm table plate:800 x 700 mm Table cut-out:150 x 150 mm table height over floor:900 mm Bedpofxygtofx Amyolk :250 l Monitor SIEMENS:7 Zoll Side trim:2.800,- ? :4.800,- ? Light barriers front and back:2.400,- ?

Condition: new, Year of construction: 2021, pressing force: 17 t, Here are the technical data of the offered machine: If the press does not exactly match your requirement profile, please click to request an individual offer exactly according to your needs: Contact us for an individual offer HIDROBRASIL manufactures presses exactly according to your requirements at surprisingly low prices! Technical data + information: Hydraulic 17 T single column press Single column press with 17 T capacity, suitable for continuous shift operation, with these basic data: a) Traversing speed 10 mm/sec. downwards, b) opening speed up to 25 mm/sec c) starting pressing speed 10 mm/sec. d) table size 400x400 mm e) ram size 200x200 mm, with T grooves and central cylinder clamping f) Overall size approx. 1150x800x1750 mm g) oil temperature display on oil tank h) pressure adjustment from 5 T to 17 T ( adjustable by knob ) i) Hand lever operation with two speeds j) Machine body powder-coated, or double-painted k) Control cabinet supply line from above with 3000 mm cable and 16 Ampere plug l) assembly, commissioning, instruction against separate calculation Press design Single column press Thermally neutral 80 - 120 °C Number of operating sides 1 side Forces Press force max. ( at 250 bar ) 170 kN Free ripping force max. 10 kN Pressure build-up time Closed die Steel to steel Max. 2 sec. Dimensions Max. Opening width 250 mm Stroke and min. opening 100 mm Table height above floor 850 mm Height above floor (headroom) approx. 2200 mm Hall height min. 2.500 mm parallel deviation at 20°C +/- 0,1 mm Deflection Determined at max. clamping force with 70% occupancy < = 0.3 mm/m Weight Total weight of press without operating materials approx. 1 to Speeds Fast closing with 10 mmSec. Press speed 10 - 0 mmSec Sound pressure Sound pressure level, measured at 1.5m height at the control panel according to DIN 45635-T16-KL3 max. 78 db(A) Hydraulics Number of pressing cylinders 1 pcs. Operating pressure max. 250 bar Pressing pressure build-up time . 2 sec. Pressure accuracy during pressing stroke +/- 5 bar Main pump Gear pump approx. 6 L/min Oil volume approx. HLP 46 MW 100 liters Ambient temperature max. 40 °C Oil temperature max. 55 °C Flow temperature °C Electrical system Main supply 400 V AC Control voltage hydraulic pumps 24 24 V DC V DC Frequency 50 Hz Hydraulic connection Main motor 2.2 kW Total connection Approx. 3 kW Bedpsgrki Sofx Amyelk Design The press is designed as an oil-hydraulic single-column press. The hydraulic system and the tank are located on the top and inside of the press, respectively. Hydraulic unit The hydraulic system is mounted on the top of the press. Safety devices For the scope of delivery described, the press complies with the valid safety regulations according to UVV, as well as with the standards and directives valid for the EU, in each case in the latest version. Electrical system / control system The control cabinet with control, power and safety components is located on the right side of the press. The press is operated by a hand lever control.

Condition: new, Year of construction: 2019, machine/vehicle number: DF0287, pressing force: 25 t, pressure:25 t passage width:1000 mm stroke:800 mm Weight of machine approx.:4 t dimensions:ca. 2054 x 2200 x 3126 mm return capacity:2 t :5 kW Max Working height:800 mm :80 mm/sec :10 mm/sec. :80 mm/sec :800 mm pestle plate:400 x 400 mm table plate:1000 x 800 mm table height over floor:850 mm Table cut-out:650 x 150 mm :200 l pestle is stabilized by 4 per ø 50 mm chrome-plated linear guides:Bronzeführungen pestle strength:122 mm Steel plate on spring rolls:600 x 400 x 15 mm Blsdpfefxyikox Amyok :S7 1200 Lightcurtains by Schmersal:1800 mm ab Boden Monitor:SIEMENS 10 Zoll Installation table on the left of the machine body with 10mm thick plage-milled steel plates:1000 x 800, 850 hoch mm
