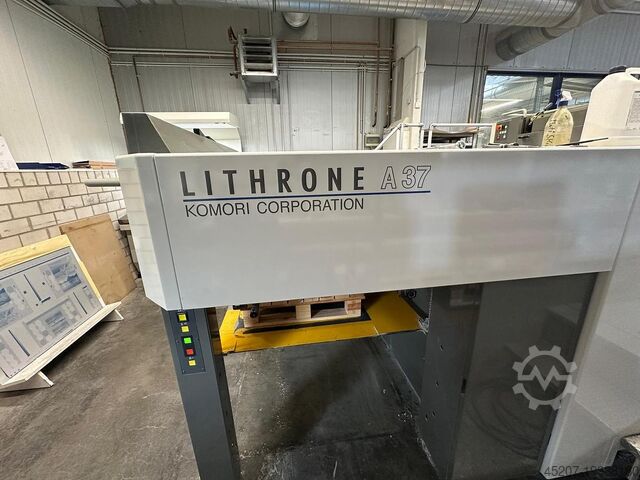

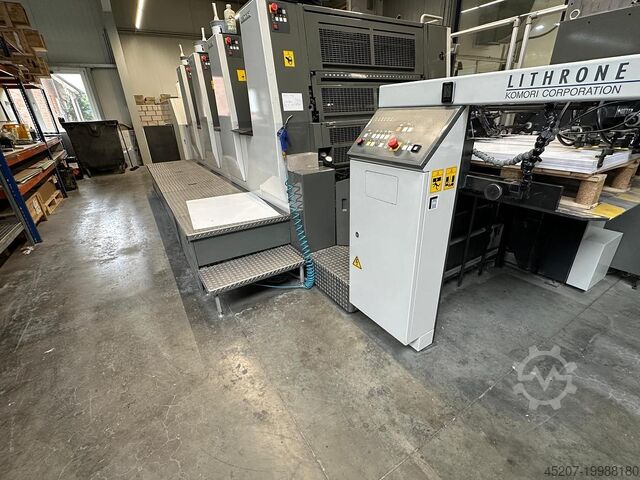

2014 Komori LA 437 67 M

Komori LA 437 67 M

Approx. 97 million prints

Format: 94 x 64 cm (37 x 25 inches)

Available at the end of November 2025

Technical data:

PQC-S control console with touchscreen
Chsdpfx Aexb U Ayodkoc

KOMORI KHS-AI system for makeready time optimization

KOMORI Smart Feedback for density adjustment and waste reduction

Automatic washing and ink presetting

KOMORI PSP automatic format and thickness adjustment

AMR (Automatic Make Ready) for preset job changes

Quick start function for production

Remote control of register and transfer cylinder adjustment

Automatic sheet format adjustment

Pneumatic stop fingers

Mechanical and ultrasonic double sheet detection in the feeder

S-APC: semi-automatic plate change (no plate bending required)

KOMORI DSC high-performance sheet guide with exclusively double-size countercylinder and transfer cylinders

KOMORImatic film dampening unit

technotrans alpha.c dampening system

Antistatic blower at the feeder head

Side blower (feeder)

2-zone suction belt delivery table

Delivery with sheet troller/smoother

Sheet brake with infinitely variable speed adjustment

Blowing bars above the delivery pile

Antistatic bar above the delivery pile

Adjustable fans for precise paper travel and pile formation

Weko AP160 printing powder device

KOMORI PDC LII, online density measurement

KOMORI PCC CIP3/4 data conversion software

Max. sheet format: 640 × 940 mm

Min. sheet format: 297 × 420 mm

Max. print format: 620 × 930 mm

Plate format: 700 × 945 mm (thickness: 0.30 mm)

Blanket size: 800 × 955 mm (with bars)

Substrate thickness: 0.04–0.6 mm

Gripper margin: 10 mm

Plate clamping margin: 45 mm

Max. printing speed: 13,000 sheets/hour

Stack height feed: 800 mm

Stack height at delivery: 900 mm (*depending on paper, ink, and operating conditions)

Length: approx. 8,169 mm

Width: approx. 3,320 mm (without peripheral devices)

Power consumption: approx. 53 kW / 50 Hz (without peripheral devices)
