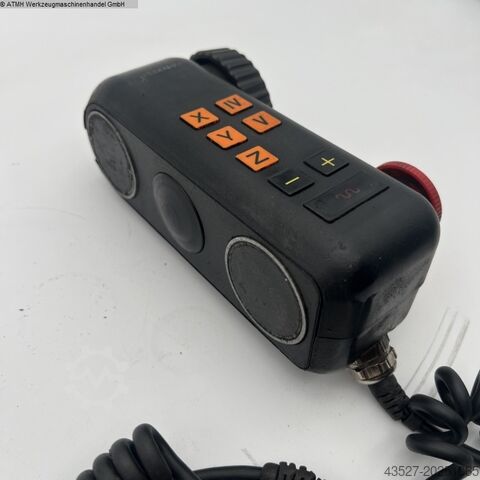

HEIDENHAIN HR 330 - Handrad

Year of construction: 1990, condition: ready for operation (used), Two nearly identical Maho milling machines, one with and one without a tool changer, as well as a complete range of accessories/spare parts, are available. Travel X/Y/Z: 600mm/450mm/450mm, tool holder: ISO40, quill stroke: 80mm, spindle speed: 5000rpm, feed rate: 4m/min, rapid traverse: 6m/min. Tool diameter: 130mm/100mm, max. tool length: 250mm, max. tool weight: 6kg. Machine dimensions: approx. 3150mm/3750mm/2150mm, weight: approx. 3600kg. Documentation available. On-site inspection possible. Dedpfexu I Atex Ah Neuu

Condition: new, Year of construction: 2025, Universal milling and drilling machine. X 600 mm Y 500 mm Z 450 mm - Heidenhain TNC 620 with ABENE/HEIDENHAIN software for easy operation - 2-stage gearbox, with frequency-controlled spindle motor 55 - 4,000 rpm. - 1 LED machine light 24 V / 70 W - HR-510 electronic handwheel for X, Y and Z axis - Complete electrical equipment for 400 V 3 phases 50 Hz. - Transformer for 24 V control voltage. - All fuses in the electrical cabinet are automatic. - Mechanical longitudinal, transversal and vertical feed - AC motor spindle, 7,5 kW - Spindle for Z axis, diameter 40 mm, ball screw. - Spindle for X and Y axis, with backlash free ball screw. Ø 32 mm. - All guides are hardened and ground. - An automatic central lubrication system lubricates all guides and ball screws. ball screws. - AC servo motors with infinitely variable control by Heidenhain TNC 620. - Chip tray, extendable - Collision protection monitoring in all axes by electronic threshold value monitoring - Keys, operating instructions, spare parts catalog and acceptance protocol. - Mechanical handwheels in all axes (option) - Table enclosure - Key switch to select between manual and automatic mode. Dsdpfx Aei Hqhmjh Nsuu We offer you a machine that is ideally suited for education and training. Our machine is characterized by its robust construction and allows precise machining of the workpieces. Thanks to its features, it is ideal for use in the training workshop or in professional training. The machine makes it possible to gain practical experience in CNC manufacturing and to deepen the understanding of CNC technology. Our machine is located in our warehouse in Pfullingen and can be inspected at any time. We would also be happy to allow you to perform a test machining to demonstrate the machine's capabilities. You will quickly discover how easy and efficient our machine is to operate. We offer you the machine at a fair price. Feel free to contact us for more information or to request a quote. We are confident that our machine will meet your requirements and look forward to your inquiry.

Condition: used, CNC Milling Machine ABENE Type VHF-360TI serial no. 36084 year of construction 2008 CNC control HEIDENHAIN TNC 320 Travel X: 650 mm, Y: 510 mm, Z: 450 mm Dedpfx Aety A Ehoh Neuu Table size 1200 x 400 mm Spindle holder SK 40 Spindle speed 55 - 3000 rpm. 2 steps Feed speed 30 - 4000 mm/min. infinitely variable Rapid traverse speed (X + Y-axis) 4000 mm/min. Rapid traverse speed (Z-axis) 2000 mm/min. Spindle nose-to-table distance 20-495 mm Motor power spindle drive 7.5 kW Mains connection 400 Volt, 50 Hz - CNC contouring control HEIDENHAIN TNC 320 with RS232, USB and LAN interfaces - Electronic handwheel - mechanical handwheels for X and Y axis - Spindle speed manually switchable with 2 gear stages (stage 1 = 55-700 rpm) + (stage 2 = 701-3000 rpm) - Inclined bed concept with laterally mounted swivel spindle head +/- 50° - Manual inclined bed adjustment via hand crank - Hydro-mechanical tool clamping - Automatic central lubrication - Coolant system with electric cooling lubricant pump opposite - Machine light - Switch cabinet permanently attached to the machine - Operating hours of control unit on = 14780 hours - Read operating hours machine on = 12980 hrs. - Read operating hours program run = 400 hrs. Space requirement L x W x H 2600 x 2000 x 2000 mm Weight 2500 kg Very good condition

Condition: excellent (used), Milling Machine MAHO MH 600 W * Max. travel in longitudinal X-axis: 600 mm * Max. travel in transverse Y-axis: 400 mm * Max. travel in vertical Z-axis: 400 mm * Clamping surface/table dimensions: 900 x 480 mm Dsdpfxjw I T Rws Ah Nouu * Spindle power: 5.5 kW * Spindle taper (ISO): ISO 40 * Speed range: 40 - 4000 rpm * Digital readout: Millplus CNC * Weight: 2900 kg

Condition: used, Year of construction: 2019, x-travel 550 mm y-travel 305 mm z-travel 460 mm Control Sinumerik 808D adv. Siemens turning speed range - main spindle 10 - 10.000 min/-1 power capacity - main spindel 11 / 7,5 kW max. Torque 70 / 48 Nm tool taper BT 40 table surface area 800 x 320 mm max. table load 300 kg T-slots 3x 14 x 100 mm Dedjww Nb Sjpfx Ah Nouu distance spindle /table 100 - 600 mm number of toolpositions 12 pos. tool taper BT 40 max. tool diameter 70 mm max. tool weight 6,0 kg change-time tool to tool 7,0 sec rapid traverse ( X / Y / Z ) 10 m/min feed speeds max. 10.000 mm/min repeating accuracy +/- 0,008 mm positioning accuracy +/- 0,01 mm total power requirement 15 kVA weight of the machine ca. 2,9 t dimensions of the machine ca. 3,5 x 2,5 x 2,4 m CNC-MachiningCenter Vertical OPTIMUM - OPTImill F 105 CNC - SHOW-ROOM-MACHINE

Condition: new, functionality: fully functional, travel distance X-axis: 1,200 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 800 mm, number of slots in tool magazine: 30, controller manufacturer: Siemens, total height: 2,826 mm, total length: 2,900 mm, total width: 2,239 mm, overall weight: 6,200 kg, table length: 1,300 mm, table width: 600 mm, controller model: 828D + Shopmill, coolant supply: 25 bar, distance table center to spindle nose: 910 mm, rapid traverse Z-axis: 36 m/min, rapid traverse X-axis: 36 m/min, rapid traverse Y-axis: 36 m/min, rotational speed (max.): 10,000 rpm, rotational speed (min.): 100 rpm, spindle nose: SK 40, table load: 1,400 kg, tool diameter: 76 mm, tool length: 300 mm, Equipment: CE marking, chip conveyor, documentation/manual, rotational speed infinitely variable, Including equipment such as: Robust roller guides on all axes Spindle cooling system (oil cooling) Fast double-arm tool changer with preselection and vertical magazine with 30 tool positions Hinged belt chip conveyor Coolant through the spindle with 25 bar high-pressure pump Air blast through the spindle Coolant gun Movable electronic handwheel Dsdju T Ir Repfx Ah Neuu

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, controller manufacturer: Siemens, controller model: 828D, Spindle Technology: Direct drive Speed: 12,000 rpm Power: 20 kW Dedpfx Aex Ahg Ieh Njuu Torque: 176 Nm Tool holder: SK 40 Tool changer: 40 stations Working Area Travel X: 1,500 mm Travel Y: 700 mm Travel Z: 650 mm Fixed table (X/Y): 1,650 x 700 mm Table load capacity: 1,400 kg Other Features Rapid traverse (X/Y/Z): 20/20/15 m/min Machine dimensions (L/W/H): 4,200 x 2,224 mm Machine weight: 11,000 kg Equipment Chip management: Hinged-belt conveyor Coolant management: Internal coolant supply 20 bar Coolant filtration: Oil separator Control cabinet cooling: Air conditioner Workpiece measurement: Renishaw OMP 60

Condition: new, Year of construction: 2021, Optimum CNC Milling Machine OPTImill F 105 CNC Sinumerik 808D ADVANCE with accessories (new, unused condition): Includes accessories: - CNC Tool Starter Set BT 40 - SPW 12 Clamping Tool Assortment, 58-piece - Hydraulic Milling Vise HCV 105 - 20 liters of cutting and drilling emulsion AQUACUT C1 - Preparation for 4th axis - Carousel tool changer with 12 tool positions - All linear guides with stainless steel covers - Automatic central lubrication - Siemens main spindle motor - Siemens servo drives on all axes (closed loop) - Max. spindle speed 10,000 rpm - Machine lamp in the working area - Portable electronic handwheel with enable switch and emergency stop - Coolant system with 120-liter tank - Tool change is automatic or at the push of a button (electropneumatic tool clamping system) Dimensions and weights: Length approx. 2,164 mm Width/depth approx. 1,860 mm Height approx. 2,200 mm Weight approx. 2,800 kg Drilling/milling capacity: Max. face mill diameter: 70 mm Max. shank cutter size: 35 mm Dsdpfsyxyhfjx Ah Nouu Rapid traverse speed: X-axis 15,000 mm/min Y-axis 15,000 mm/min Z-axis 15,000 mm/min Electrical data: Supply voltage 400 V Network frequency 50 Hz Electrical connection: Total connected load 15 kVA Horizontal milling table: Length 800 mm Width 320 mm Distance vertical spindle to table min. 100 mm Distance vertical spindle to table max. 600 mm T-slot size 14 mm Number of T-slots 3 T-slot spacing 100 mm Max. table load 300 kg Accuracy: Repeatability ± 0.008 mm Positioning accuracy ± 0.008 mm Coolant system: Coolant pump drive power: 650 W Tank capacity 120 l Pneumatic connection: Operating pressure 7 bar Travel range: X-axis automatic 550 mm Y-axis automatic 305 mm Z-axis automatic 460 mm Vertical spindle: Spindle taper BT 40 Speed range 10 – 10,000 rpm Motor power (continuous duty S1) 7.5 kW Motor power (intermittent duty S6-30%) 11 kW Motor torque (continuous duty S1) 48 Nm Motor torque (30% duty cycle S6) 70 Nm Feed motor torque: X-axis continuous duty S1: 8 Nm Y-axis continuous duty S1: 8 Nm Z-axis continuous duty S1: 11 Nm Tool changer: Type: Carousel Number of tool positions: 12 Max. tool diameter: 70 mm Max. tool length: 300 mm Max. tool weight: 6 kg Tool change time (T to T): 7 s CNC Tool Starter Set BT 40: - 1 pc. face mill arbor, 27 mm mounting - 1 pc. keyless drill chuck 1.5 – 16 mm - 2 pcs. Weldon 6 mm / 20 mm - 1 pc. each Weldon 8 mm / 10 mm / 12 mm / 16 mm - 1 pc. adaptor BT 40 to MK 3 - 4 pcs. collet chuck ER 32 - 1 pc. collet chuck wrench ER 32 - 18-piece collet set ER 32 - 1 pc. height adjustment device - 1 pc. assembly and tool presetting aid - 15 pcs. pull studs Hydraulic Milling Vise HCV 105: - Robust design for milling - Guide surfaces hardened and ground - Booster system: low effort, high clamping force when tightening - Wide clamping range with locating pin and various hole spacings - Manufactured from high-quality stainless steel - Long service life thanks to high quality - High clamping force Jaw height 42 mm Jaw width 107 mm Clamping width 170 mm Length without handle 442 mm Total height 107 mm T-slots 16 mm Clamping force 24.5 kN Clamping pressure 2,500 kg Dimensions and weights: Weight approx. 22 kg

Condition: ready for operation (used), Year of construction: 2023, travel distance X-axis: 550 mm, travel distance Y-axis: 305 mm, travel distance Z-axis: 460 mm, table load: 300 kg, overall weight: 2,800 kg, spindle speed (max.): 10,000 rpm, spindle motor power: 11,000 W, tool weight: 6,000 g, number of axes: 3, This 3-axis Optimum Optimill F 105 was manufactured in 2023. It features an X-axis travel of 550 mm, Y-axis travel of 305 mm, and Z-axis travel of 460 mm. The machine includes a robust table size of 800 x 320 mm and a maximum table load of 300 kg. If you are looking to get high-quality machining capabilities, consider the Optimum Optimill F 105 vertical machining centre we have for sale. Contact us for further details. • Electrical connection: 3 x 400 V ~ 50 Hz, 15 kVA • Spindle: • Power S1: 7.5 kW • Power S6-30%: 11 kW • Torque S1: 48 Nm • Torque S6-30%: 70 Nm • Lubrication / coolant system: • Coolant pump power: 650 W • Tank capacity: 120 L • Compressed air: • Min. connection: 0.6 MPa (6 bar) • Air consumption: 0.1 – 0.15 m³/h at 0.6 MPa • Recommended air quality: ISO 8573.1 class 2 • Air consumers: tool changer forward/backward; tool clamp/unclamp; optional rotary table clamping • Compressed air service unit: • Drainage filters: 40 μm • Housing: Polycarbonate • Max. pressure: 1.5 MPa • Recommended oil: ISO VG32 • Lubricator quantity: 90 ml • Dewatering: manual • Air connection thread: 3/8” • Axis travels: • Z distance spindle–table: 100 – 600 mm • Accuracy: • Repeat accuracy: ±0.008 mm • Positioning accuracy: ±0.01 mm • Servo motor torques: • X: 8 Nm • Y: 8 Nm • Z: 11 Nm • Table: • Size: 800 x 320 mm • T-slots (size/number/pitch): 14 / 3 / 100 mm • Max. feedrate: 10,000 mm/min • Tool changer: • Positions: 12 • Max. tool diameter: 70 mm • Max. tool length: 300 mm • Tool change time: 7 s • Environmental conditions: • Operating temperature: 19 – 21 °C • Relative humidity: 5 – 80% non-condensing • Pressure: 700 – 1060 hPa • Storage temperature: 5 – 45 °C Duedpoy Tl Ndefx Ah Nsu Technical Specification Taper Size ISO 40

Condition: used, Year of construction: 1989, Universal CNC Milling Machine MAHO MH 600 E2 Travel X: 600 mm Travel Y: 400 mm Travel Z: 450 mm Numerical Command CNC PHILIPS 432 Duodpfjxxa Amox Ah Nju Cone SA40 Spindle speed: from 20 to 4000 RPM Table size: 900 x 480 mm TravelSpindle sleeve travel: 80 mm Year of construction: 1989 1 lubricant tank Voltage: 380 V Width: 2500 mm Depth: 2400 mm Total height: 2000 mm Weight: approx 3,5 T
