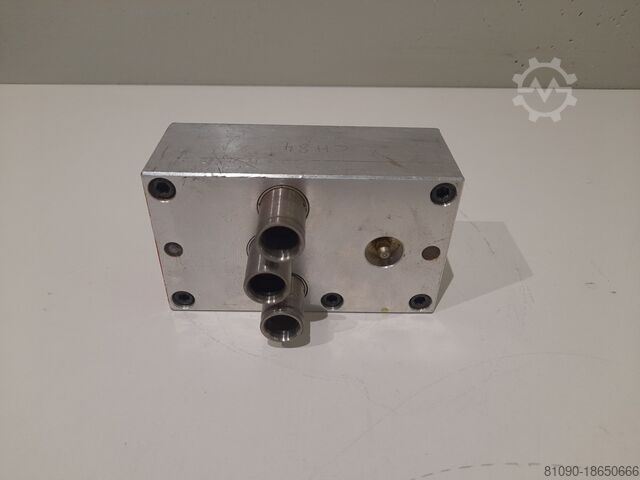

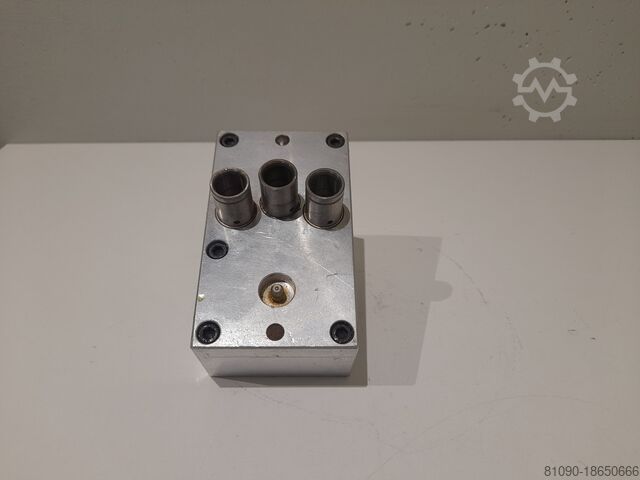

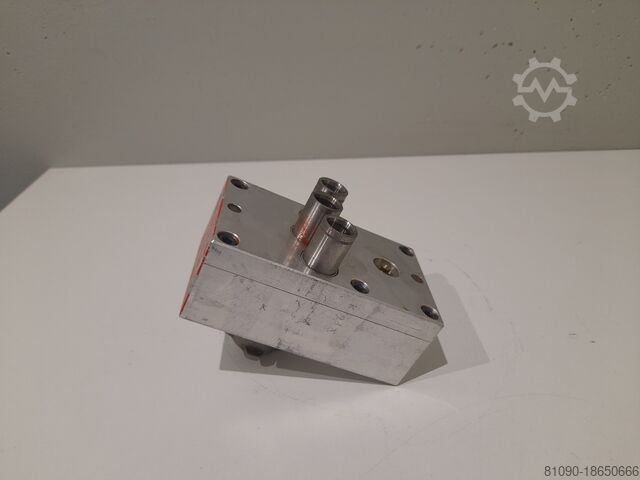

3-POINT HEAD MC

BIESSE

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 55595, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 60 mm, overall weight: 3,000 kg, controller model: Xp 600, TECHNICAL DETAILS Working Area X-axis: 3,000 mm Working Area Y-axis: 1,000 mm Working Area Z-axis: 60 mm Pgsdpfeydk Rmjx Ah Heg MACHINE DETAILS Control: Xp 600 with Biesse Works Software Weight: 3,000 kg EQUIPMENT Automatic loading system with motorized belt conveyor 2 clamps for securing and transporting the panel 1+1 vertical electrospindle (lower + upper) with 3 axes 1+1 independent saw (lower + upper) 29 + 29 independent spindles for vertical drilling in X and Y direction (upper + lower) 10 + 10 independent spindles for horizontal drilling in X and Y direction (upper + lower) Automatic unloading system with motorized belt conveyor

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, machine/vehicle number: 1000012445, travel distance X-axis: 3,600 mm, travel distance Y-axis: 1,800 mm, overall weight: 4,000 kg, TECHNICAL DETAILS Working area X-axis: 3,600 mm Working area Y-axis: 1,800 mm Number of working zones: 2 Tool change positions on the rear: 16 Tool change positions on the machine: 8 Vacuum pump: 250 m³/h Drilling head BH 10 configuration: 15 vertical spindles on the X-axis 17 vertical spindles on the Y-axis MACHINE DETAILS Electrospindle power: 13.2 kW Electrospindle type: ISO 30 Control: CNC with B-Solid software Pgsdpfx Ahoydk Ais Hog Weight: 4,000 kg EQUIPMENT Nesting work table Automatic loading system with side lift table Label printing system with automatic application on the loading table Panel separation system with suction cups Automatic unloading system with motorized conveyor belt Worktable cleaning system Protection and safety system with perimeter fencing Safety system with bumper Automatic lubrication system Air-conditioning system for cooling and cleaning the machine control unit

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 94464, travel distance X-axis: 3,400 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 155 mm, controller model: XNC Numerical Control, TECHNICAL DETAILS Working Area X-Axis: 3,400 mm Working Area Y-Axis: 1,300 mm Working Area Z-Axis: 155 mm Number of Work Fields: 2 Tool Changer Positions (lateral): 3 Pgodpfoydkkgox Ah Hjg Tool Changer Positions (chain): 20 Drilling Head Configuration: 10 vertical drills X-axis 12 vertical drills Y-axis 6 horizontal drills X-axis 2 horizontal drills Y-axis MACHINE DETAILS Control System: XNC Numerical Control Vertical Spindle Type: C-axis Vector, ISO 30 cone type EQUIPMENT Extraction pump 8 manually adjustable beams for suction cup support with display 8 pneumatic bakelite rails for panel lifting 3 manually adjustable suction cups per beam Front safety and protection system with mats Comprehensive safety fencing Motorized mat for chip removal

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: 57269, travel distance X-axis: 4,300 mm, travel distance Y-axis: 2,205 mm, controller model: NC 1000, TECHNICAL DETAILS X-axis working range: 4,300 mm Y-axis working range: 2,205 mm Vertical spindle: 1 unit, HSK F63 Tool changer system: 8 positions (head) Tool changer system: 21 positions (rear, chain) Drilling head: BH 20 Vertical spindles on X-axis: 8 units Vertical spindles on Y-axis: 8 units Horizontal spindles on X-axis: 4 units Horizontal spindles on Y-axis: 4 units Saw unit on X-axis: diameter 120 mm Saw unit on Y-axis: diameter 120 mm MACHINE DETAILS Control: NC 1000 Software: Biesse Works Podsydkdgopfx Ah Hsgg Weight: 400 kg EQUIPMENT FT nesting table with full surface Automatic loading system with side lift table Automatic labelling machine for barcode printing Automatic printing and dispensing system for adhesive labels Automatic unloading system with motorized conveyor belt Front safety and protection system with mats and fences Automatic lubrication system Air conditioning for control cabinet Vacuum pump

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 77503, feed rate X-axis: 25 m/min, workpiece height (max.): 60 mm, overall weight: 6,510 kg, controller manufacturer: SINTRA, TECHNICAL DETAILS Panel height: 60 mm Solid wood: 20 mm PVC / ABS: 3 mm Max. feed speed: 25 m/min MACHINE DETAILS Control: Sintra Weight: 6,510 kg EQUIPMENT - Sanding unit - Coil holder magazine with 2 positions and automatic edge change via CNC - Adhesive unit for EVA hot-melt glue with preheating device and glue pot - Preparation for adhesive unit for PUR glue - Pressure group for straight profiles with electronically adjustable pressure rollers via CNC Pgedpfx Ajydidrsh Heg - End trimming unit with 2 motors and automatic tilt adjustment - Filler unit with 2 vertically aligned motors - Edge smoothing unit with 2 swivelling motors - Multifunctional 4-motor corner rounding unit (smoother + corner rounder) with numerical control in automatic adaptation - Anti-stick unit - Adjustable edge scraper unit - Glue-saving unit - Oscillating brush unit - Electronically adjustable working height - Motorized rubber belt with increased pressure - Motorized and electronically adjustable panel guide - Side roller conveyor with idler rollers for panel support

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, machine/vehicle number: 21090, feed rate X-axis: 25 m/min, overall weight: 3,800 kg, controller manufacturer: SINTRA, Dismantling and loading can be carried out by the seller! TECHNICAL DETAILS Pgodpfeydc Scox Ah Hjg Feed speed: 25 m/min 2nd pass: 18 m/min MACHINE DETAILS Control: SINTRA Weight: 3,800 kg Air supply: 7 bar Extraction volume: 30 m/sec EQUIPMENT - CNC-adjustable working height - Infeed fence controlled by CNC - Side fence with idler rollers for panel support - Upper pressure unit with motorized belt - Anti-adhesive unit - Pre-milling unit - Panel edge pre-heating unit with lamps - EVA adhesive application system - EVA glue premelter - Pressure rollers 1 + 5 - End trimming unit with 2 motors and automatic angle adjustment - Rough milling - Fine milling unit with 2 tilting motors and automatic adjustment via CNC servo motors - Multifunction unit (fine milling + corner rounding) with 2 motors and automatic CNC adjustment - R1 R2 edge scraping unit (NC pneumatic positioning) - Groove unit - Glue scraping unit with anti-adhesive spray system - Polishing unit with 2 motors for panel cleaning

Condition: ready for operation (used), Year of construction: 2017, travel distance X-axis: 2,400 mm, travel distance Y-axis: 1,200 mm, overall weight: 1,700 kg, spindle speed (max.): 24,000 rpm, number of axes: 3, This 3-axis BIESSE ROVER J FT 1224 was manufactured in 2017, featuring a working area of 2400 mm by 1200 mm. It includes a CNC electrospindle with a maximum speed of 24,000 rpm, and a flat vacuum table ideal for routing, drilling, and panel machining. Consider the opportunity to buy this BIESSE ROVER J FT 1224 CNC Wood Machining Centre. Contact us for more information about this machine. • Axes: 3 CNC-controlled (X, Y, Z) • Capabilities: routing, drilling, pocketing, panel machining • Air supply: 7.5 bar • Suction air speed: 30 m/s Psdpfx Ahsyfnp As Hsgg Additional equipment • Flat vacuum table with suction cups

Condition: used, machine/vehicle number: 008277, X axis working area: 5680 mm Psdpfjx A Hgmox Ah Hjgg Y axis working area: 1320 mm Working Table: Pod and Rail Main Electrospindle power: 12 KW Number of controlled axes: 4 axes Total number of drilling spindles: 21 Total number of tool changer positions: 24

Condition: used, Year of construction: 1992, Used machine Year of manufacture: 1992 Working area: X-axis: 2310 mm, Y-axis: 628 mm, Z-axis: 90 mm Max. programmable speed: X-axis: 100 m/min; Y-axis: 75 m/min; Z-axis: 15 m/min Drill holder: diameter 10 mm Spindle speed: 4000 rpm Grooving saw: diameter 120 mm Pgsdpfsydf Ndsx Ah Heg Drill spindles: 4 horizontal spindles on the X-axis, 12 vertical spindles in the X-line Operating air pressure: 6 bar Maximum compressed air consumption: 0.75 NL/cycle Installed power: max. 7.5 kW Vacuum tool capacity: 40 m³/h CNC: Display: monochrome 9" Floppy disk drive PLC for machine cycle control Availability: short-term Stock location: Röllbach

Condition: used, machine/vehicle number: 007848, Type of edging: Thin edge, Thick edge, Solid wood Gluing System: EVA Hotmelt, Hot Air Premilling Unit: yes Pgodpfx Ajwkrqpjh Hog Corner Rounding Unit: yes Max feed speed: 20 m/min Maximum panel thickness: 60 mm Operating Units: 8 nr
