Foil processing machine

Öz-mak Plastik Makina ÖZM 85 LX UNIVERSAL BAG CUTTING MACHINE

CAPACITY: 250 pieces/minute max.
BAG WIDTH: 80 mm – 800 mm max.
BAG LENGTH: 70 mm - 1000 mm
FILM THICKNESS: 0.020 mm – 0.100 mm
TOTAL ELECTRIC POWER: 13 kW (380 V – 50 Hz)
SERVO MOTOR: 4
UNIT PHOTO CELL: 1
UNIT TOTAL AIR SUPPLY: 6 Bar min.
MACHINE WIDTH: 1650 mm
MACHINE LENGTH: 5450 mm
MACHINE HEIGHT: 1900 mm
WEIGHT: 1475 kg

STANDARD FEATURES

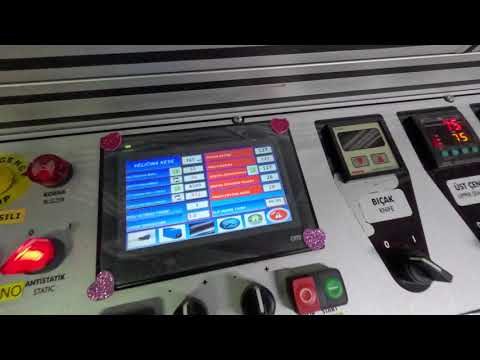

- Controlled via a touch operator panel: bag length, number of pieces per bag, production speed, visible number of bags in the package, stop function based on the total count.
- Equipped with one photocell. Handles both printed and unprinted bags.
- High-speed cutting with precise measurement, achieved through servo motor-controlled pulling rollers.
- Strong and high-quality sealing is achieved through a servo motor-controlled sealing jaw.
- The servo motor-controlled belt system ensures synchronous operation of the belts with the stacking system.
- Servo motor-controlled stacking rollers provide high-quality stacking.
- Warp rolls with inverter tension control system.
- Pneumatic ballerina system.
- Automatic edge control system.
Iodpfx Aqozd N Ipsuoau
- Automatic stop when the roll is empty.
- Automatic stop when the photocell print location is incorrect.
- Roll bobbin binding diameter: max. 800 mm.
- Capable of processing PP, OPP, CPP, High Density Polyethylene (HDPE), and Low Density Polyethylene (LDPE) bags.
