Mechanization

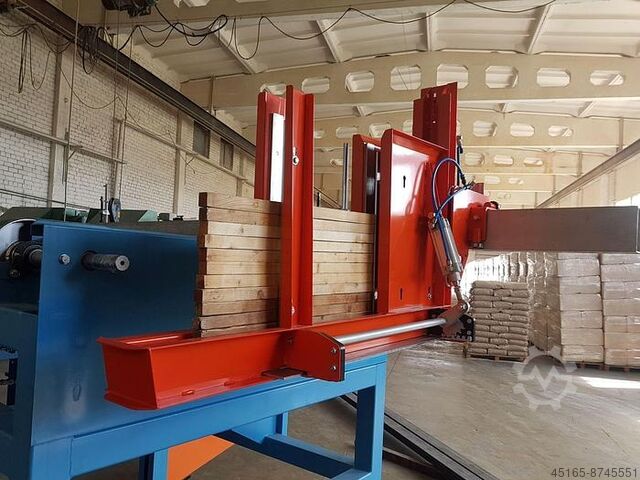

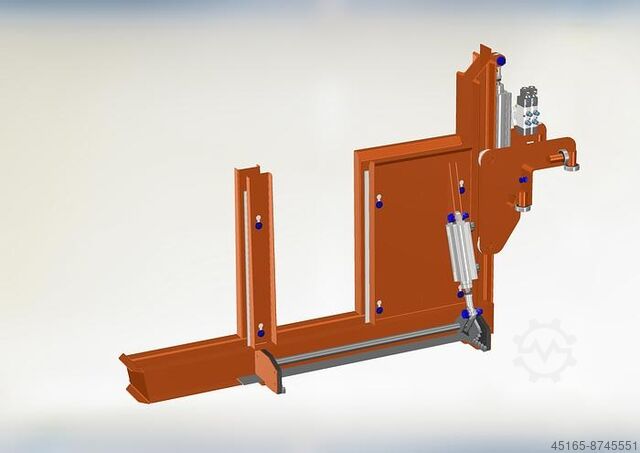

Swedabo AB Sticker - stacker cassettes BSCx2

Condition: new, Year of construction: 2025, functionality: fully functional, Hydraulic log ladder, for log diameters from 7 cm to 66 cm. Ljdpfx Ahev N Eiqjvsri

Condition: excellent (used), Complete planing line from intake to stacker with a Waco 3000 planer and surrounding equipment from System Hall Lodpom Uyknjfx Ahvori

Year of construction: 2005, condition: used, HIT mechanization for KVH and BSH production for components up to width 600 mm, height 300 mm, length 18 m consisting of different parts to be delivered individually or completely - layer cross pusher - various cross conveyors - workpiece roller conveyors - heavy duty roller conveyors Lodpfx Ahjpiurmjveri - 5 lifting tables with 2 cross conveyors each mounted on traversing carriages - stacker - control cabinets - Roller rails - Travelling binder cut-off saw with waste disposal system

Condition: used, functionality: fully functional, pressing force: 200 t, table width: 300 mm, cutting height with scoring (max.): 100 mm, milling spindle length: 250 mm, Equipment: 1 GRECON feed transfer with accumulation of 4 to 5 cleaned lamellas of different lengths for finger-jointing 1 GRECON double finger-jointer for deep teeth (for glulam beam production) 1 180° transfer with two-component gluing system 1 GRECON finger-jointing press Lsdpfx Aswz H Anshvori 1 CNC-controlled cross-cut saw 1 outfeed table

Condition: new, Year of construction: 2025, WOOD SHAVINGS MACHINE KÄLIN Hobeltechnik, mod. MPC-P • Quantity of fresh shavings by hour: 3.800 Kg/hour • Measures logs box: 2.800mm x 1100mm x 1.300mm • Max. log input length: 2.650mm • 2 removables symmetrical cutterheads. Lenght 1.140mm. Each one in 3 pieces of: - Diameter: 200mm - Length: 380mm - Number of knifes: 8 - Sharpening full cutterheads, without removing knifes!! • 2 extra removables symmetrical cutterheads, for replacement during sharpening. Super fast cutterheads change patented system!! • Power of the cutting heads: 90 kW/120 HP • Feeding speed controlled by ELECTRONICAL INVERTER: 6 to 36 m/min • Automatic control of the forward-charge ratio of the machine • Power of the feed motor: 15 kW/20 HP • Control System of the material level inside the logs box, to avoid working without logs • Cabinet and control panel. Touch screem to control the machine • Motorized conveyor belt for the wood shavings. 800mm x 5.000mm Ledpfxovk Saxs Ahvsri • Weight: 11.000 Kg • CE

Condition: excellent (used), Year of construction: 2018, working size (mm) 400X300mm Distance from saw blade to worktable (mm) 3~200mm Conveyor belt width (mm) 385mm Saw wheel power (kw) 18.5kw Saw unit sprocket diameter (mm) 711mm Feeding speed (m/min) 0~12m/min Hydraulic pressure (kg/cm²) 55kg/cm² Dust outlet diameter 102mmX2 Blade size (L x W x H) (mm) 4572 x 27 x 0.9mm Saw Gap (mm) 1.5~1.8mm Overall dimensions (LxWxH) (mm) 3000x2250x2000 Ledpfxoi Ay Hqo Ahveri Net weight (kg) 2100kg

Condition: new, New manufactured sawline with chipper canters and circular saws. Suitable for producing for example sawn wood for pallet production. Ledpfxowzklas Ahvsri Capacity per one shift approx 70 to 90 m3 ready sawn wood. Min log diameters 12 cm Max log diameters 38 cm Log length from 2 to 4 meters

Year of construction: 1998, condition: excellent (used), functionality: fully functional, Very stable creel roller conveyor with hydraulic lift and lowering cross conveyor. 1st part: Length 7,100 mm. Roller length 2,000 mm. Roller diameter 220 mm. Overall height 1,000 mm. Built-in hydraulic lifting and lowering cross conveyor Lrodpfx Ast Hg Huohvei With 4 chain strands. Spacing: 1,500 - 1,300 - 1,000 mm. Fully plated. Hydraulic model support rollers. Drive via geared motor. New bearings. 2nd part: Length 7,200 mm. Roller length 1,600 mm. Conveyor length 6,100 mm. Built-in hydraulic lifting and lowering cross conveyor with 6 chain strands. Unsupported, it is possible to convey the cut material under the roller conveyor to the left or right. Fully plated. Including hydraulic unit for both roller conveyors.

Condition: new, Year of construction: 2010, functionality: fully functional, Equipment: CE marking, double-sided, Linija za duzinsko spajanje sa dva frezera.Presa duzine 6000 mm. Masina je nova i nikada nije koriscena.Uz masinu idu svi pripadajuci alati. Lsdewptnmopfx Ahvori

Year of construction: 2011, condition: used, functionality: fully functional, Finger jointing line for cross sections up to 200 cm² (80/240 mm or 100/200 mm), with the following. components: 1. HOWIAL tilt unstacking - SH/4t - 1,75x1,75x6,00m - 4t - short. Length 2,50 m, semi-automatic separation of the package. For tilting the wood pile up to 45°. Electric motor drive. stack dim. max. 1,75 x 1,75 x 6,00 m max. stacking load 4 t shortest wood length 2,5 m 2. HOWIAL - VE 1 lamella separator for crosscut saw. With pneum. controlled tongues, on which the material is marked for defects, deposited on the roller conveyor below. 3. HOWIAL - evaluation roller conveyor RO-1 digital wood moisture measuring, control and recording system for autom. recording and control of wood moisture in cycle measuring method according to electric resistance principle. 4. gann DMT-8 dig. Wood moisture measuring, control and recording system for automatic detection and control of wood moisture in the cycle measuring method according to the electrical resistance principle. Plant in large switchboard complete with ink jet printer. 5. HOWIAL - crosscut saw AS-30 B pneum. Under table crosscut, with 2 autom. feed units, autom. crosscut. Special photocell control for detection of fluorescent line markings. Automatic waste disposal possible. Saw motor power 7,5 kW saw blade diameter 700 mm feed drive approx. 2 x 1,5 kW Air pressure 8 bar feed speed max. approx. 60 m/min. 6. HOWIAL - conveyor belt cut off waste, with studded belt and guide plates belt width 350 mm belt 2000 mm long Lredpfx Ahoi Ezx Devoi belt speed 0,4 m/sec. 7. HOWIAL - double roller conveyor RO-2 6,00 m long incl. transversal transport, drive by round belt, all rollers driven. Cross transport chain conveyor. Ejection ± moisture right Transport speed adjustable 100 m/min. length approx. 6,00 m Width of rollers approx. 400 mm Diameter 112 mm 8. compact finger jointing machine Cook Bolinder The technical data are original from Cook Bolinder: wood width from 75 to 245 mm Timber thickness from 20 to 105 mm Input lengths from 1m to 6 m Cross sections from 30 cm² to 200 cm² Pressing force 5 - 22 to Spindle diameter 50 mm tine profile 15/15 spindle speed approx. 6000 upm Total electrical connected load approx. 62 kW Machine weight approx. 9 to. Gluing OEST comb system for PU Modern Telemechanique SPS control. 9. HOWIAL - Roller conveyor with destacking system Driven roller conveyor with autom. ejector and hydr. driven destacking arms. Technical data: H: 920 mm L: approx. 12.000 mm 10. safety fences incl. circuit breaker 11. finger joint testing machine BSPLT-100 Testing machine for finger joint bending test according to DIN 1052-1/A1 and EN 385 Support distances freely adjustable, attached dimension scale, autom. calculation of support distances in the software. Fully automatic test procedure by mouse click on PC (not included). Alternatively, the test procedure can be started by key operation on the front panel. Connection of any commercially available PC or laptop (Win 2000/XP) via the supplied RS232 serial cable. Fully automatic measured value logging as well as automatic logging in MS-Excel with graphical display. Representation max. wood width: 300 mm max. wood thickness: 140 mm max. compression force: < 100 kN max. support length: 2100 mm Measuring accuracy WITHOUT DISMANTLING
