Edge banding machine FULL servo PUR

SCM Olimpic S3000

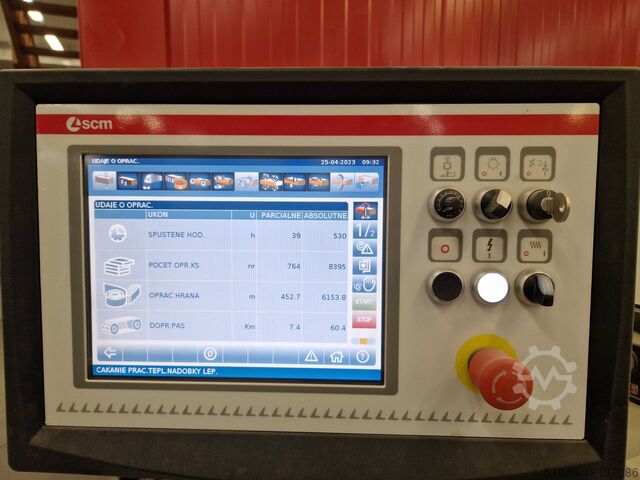

Condition: used, Year of construction: 2014, Power Control PC 22 with WoodWop software - POWERTOUCH Panel height mm 8 - 60 Pvc/Abs mm 3 Feed speed up to mt/min 25 (with rounding 20 mt\min) Working height electronically adjustable by N.C. Motorized rubberized belt with upper pressure Panel support guide and easy introduction for small panels Controlled infeed guide Anti-adhesive group Rectifying group with two KW 3 motors each, 9000 RPM Reel magazine Gluing group for PUR glue with pre-melter and glue tank Edge pressure group on straight profiles with pressure rollers electronically adjustable by N.C. End trimming unit with 2 motors (automatic tilt adjustment?) Overlapping trimming unit with 2 motors Rounding unit with 2 multifunction motors (cornering unit + rounding unit) with NC adjustment Edge scraping unit Glue scraping unit Brushing unit Anti-stick unit TECHNICAL DETAILS TO BE CHECKED Redpfxevqbh Ej Ahzjbt

Condition: good (used), Year of construction: 2004, Clampable cutter head type (max.) 460 mm Cutter head weight (max.) 150 kg Mounting disc diameter for cutter heads (Ø) 360 mm Rbedpfx Aoul Efmshzjt Mounting cone for cutter heads Nominal diameter Ø 58,227 mm travel -z axis 200 mm diagram-drawing enlargement ±10 - ± 500 µm weight of the machine ca. 2,3 t dimensions of the machine ca. 2 x 1,5 x 2,03 m In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in high gear cutting quality and a long service life can only be achieved with precisely can only be achieved with precisely adjusted cutterheads. The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with tolerance check - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data

Condition: excellent (used), functionality: fully functional, Year of construction: 2021, operating hours: 22,351 h, control type: CNC control, degree of automation: semi-automatic, laser source manufacturer: Trumpf, laser hours: 17,317 h, laser power: 4,000 W, sheet thickness (max.): 20 mm, sheet thickness steel (max.): 20 mm, sheet thickness stainless steel (max.): 15 mm, sheet thickness aluminum (max.): 10 mm, working length: 3,000 mm, working width: 1,500 mm, travel distance Z-axis: 115 mm, repeat accuracy: 0.03 mm, type of cooling: water, overall weight: 12,000 kg, Equipment: CE marking, cooling unit, documentation/manual, dust extraction, emergency stop, safety light barrier, For sale: TRUMPF TruLaser 3030 with LoadMaster automation Machine installed in June 2021. Serviced exclusively by TRUMPF Slovakia, with professional maintenance performed regularly every six months. Machine in excellent condition, equipped with LoadMaster automation. Sheet metal cutting up to 25 mm thickness. Type and power of resonator: CO₂, 4 kW. Maximum working area: 3000 × 1500 mm. The machine will be in operation until the end of December 2025; inspection in full operation is possible at any time. Full service history documentation will be provided. Redpfjwya Twex Ahzebt

Condition: ready for operation (used), Year of construction: 2005, operating hours: 52,455 h, functionality: fully functional, machine/vehicle number: 2501-0154, turning length: 600 mm, turning diameter over cross slide: 140 mm, turning diameter: 300 mm, spindle motor power: 25,000 W, spindle speed (min.): 5,000 rpm, spindle speed (max.): 5,000 rpm, travel distance Z-axis: 900 mm, rapid traverse X-axis: 3 m/min, rapid traverse Y-axis: 3 m/min, rapid traverse Z-axis: 3 m/min, rotational speed (max.): 4,000 rpm, rotational speed (min.): 4,000 rpm, torque: 239 Nm, bar passage: 80 mm, feed rate X-axis: 165 m/min, feed rate Y-axis: 165 m/min, feed rate Z-axis: 220 m/min, overall weight: 10,500 kg, Equipment: documentation/manual, Machine is still in use and can be seen working at VOVU Machining in Uden. In total there are 6 identical machines here. Fanuc 310is controller Redpfx Asur Hfzehzebt

Condition: good (used), Year of construction: 2007, Technical characteristics : - Max machinable length 3200 mm - Minimum machinable length 200 mm - Maximum width 200 mm - Minimum width 40 mm - Maximum workpiece height 130 mm - Depth with max Ø to tenon 320 mm: 105 mm - Tenoning carriage speed min / max 0/100 m / min - Min / max profiling speed: 3/15 m / min Tenoning: 1- end cut saw 5.5 hp (4 kW) Saw Ø 400 mm 2- tenoning router Counter bearing 50 x 620 mm 15 hp (11.3 kW) Max tool Ø 320 mm Axle stroke 575 mm Automatic splinter guard 3- tenoning router Counter bearing 50 x 620 mm 15 hp (11.3 kW) Max tool Ø 320 mm Axle stroke 575 mm Automatic splinter guard Vertical positioning with continuous axis 4- Digital angular adjustment clamp Rbedpfx Aet R T Hcshzot Profiling: 5-: router to be profiled on the right Shaft 50 x 320 mm 10 hp (7.5 kW) Ø tools 130/240 mm Axle stroke 280 mm Time-delayed anti-shattering intervention during calibration Double direction of rotation Vertical and horizontal positioning with continuous axis 6-: router to be profiled on the right Shaft 50 x 320 mm 10 hp (7.5 kW) Ø tool 130/240 mm Axle stroke 280 mm Vertical and horizontal positioning with continuous axis 7-: router to be profiled on the right Shaft 50 x 320 mm 10 hp (7.5 kW) Ø tool 130/240 mm Vertical and horizontal positioning with continuous axis 8-: close-out recovery group Vertical and horizontal positioning with continuous axis Device for extracting the shutter 9-: lower horizontal shaft for groove Vertical and horizontal positioning with continuous axis 88.5 hp (66.4kW) 10-: digital guide 11-: Return of parts to the operator NO TOOLS AVAILABLE OBTAIN ADDITIONAL PHOTOS NOTE: SUBJECT TO CHANGES IN TECHNICAL DATA

Condition: ready for operation (used), Year of construction: 1974, functionality: fully functional, machine/vehicle number: 74-4-10, ALTENDORF F90 sliding table saw, year of manufacture 1974 Machine no.: 74-4-10 Manufacturer Altendorf Germany Saw length mm: 2600 Rbsdpjipvrbsfx Ahzst cutting width mm: 1.300mm Cutting height max mm: 130 Saw blade diameter max. 400 mm Main motor 5.5 KW with scorer 4 speed levels Saw blade height adjustment: manual Weight approx. kg: 780 Technical data subject to change

Condition: like new (used), Year of construction: 2006, Technical data Manufacturer: KENT Model: VK 1600MC Year : 2.006 Serial number: 2200139 Control unit: FANUC 18 iMD Location: Tabaza (Asturias - Spain) Table Dimensions Working Surface: 1700 x 810 mm. T-Slot ( Size x Number x Center distance): 22 x 5 x 160 mm. Max. Table Load: 2.000 kg. Travel X axis traverse: 1600 mm. Y axis traverse: 815 mm. Z axis traverse: 815 mm. Distance from Spindle nose to table: 220 ~ 1035 mm. Distance from Spindle center to Column: 865 mm. Spindle Taper: BT50 Spindle speed (Gear type): 30 – 6000 rpm. ZF GEAR BOX (2 ranges): Yes Max. Tool Weight: 15 kg. Max. Tool Size (Diameter x Length): 125 x 300 mm. ATC Max. tool Ø x L: Ø125 x L250 Max. tool weight: 15 kg. Number of tools: 32 Feedrates Cutting Feed Rate: 1 – 10.000 mm./min. Rapid Traverse: 18/18/18 mm./min. Motor Rbsdpfxoqwyzfe Ahzst Spindle Drive Motor (30 Min Rating): 15/18,5 Kw. X,Y,Z Axis Drive Motor: X: 5.5 | Y: 5.5 | Z:5.5 Coolant Pump CTS: One air & two coolants – 4 bar. + 6 bar / 20 bar Weight and dimensions Machine weight: 16.150 kg Machine dimens: 4.488 x 3.448 x 3.250 mm. Base space: 5.000 x 3.500 mm.

Condition: good (used), Year of construction: 2015, functionality: fully functional, edge thickness (max.): 12 mm, ENGLISH: Heavy duty edgebander OLIMPIC (SCM Group) in rich configuration suitable for custom made and series production. Machine is equipped with aggregates with servomotors (ABS R1+R2mm + thin edge + solidwood). Model: Olimpic K800 TERL Rjdewxt Tbjpfx Ahzobt Manufacturer: SCM Group Production year: 2015 State: good Edgebanded edges: 238.800 meters Main technical parameters: - feeding speed: 12/18 m/min. (including rounding) - panel thickness: 10-60 mm (including rounding) Equipment and configuration of the machine: - control panel with LCD touch screen STARTOUCH - internal lightning of working area - automatic lubrication of the feeding chain - electronic top pressure adjustment - glue pot with quick change of the glue color Working units: - antiadhesiv spray - pre-milling unit (2x DIA cutter) - glue pot with roller "VC/1000" (glue pot with quick-release system) - pressure rollers (4 pcs) with timed intervention - 2 motor end cutting unit "K/SEL" with pneumatic tilting of the blades - radius trimming unit "RI/800" R1mm + thin edges + solid wood (12mm) (3 position pneumatic kit) - 2 motor rounding unit "ROUND K MULTI EDGE" R2mm + thin edge (each motor has: 2 electronic axis with servomotor) - radius edge scrapers "RAS/S 2P" MULTI-EDGE R1+R2mm (each unit has: 2 electronic axis with servomotor) - cleaning spray - glue scrapers "RCA/2C" - brushes"SP/F"

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 693068, overall weight: 7,300 kg, power: 30 kW (40.79 HP), Walter Helitronic Vision CNC Tool & Cutter Grinder with Pallet Loader Universal tool and cutter grinder (CNC controlled) Made by Walter, model Helitronic Vision, s/n 693068, year 2008 Description: Suitable to manufacture and regrind metal and woodworking tools of all kinds. Can be viewed under power. Specifications: • Longitudinal movement (X-axis) 480 mm Rbodpfx Ajuqzdpshzst • Y axis vertical movement 320 mm • Z-axis transverse movement 700 mm • Rotary table swivel range C-axis +/- 200 ° • Workpiece Holder ISO 50 • Max. Workpiece diameter 320 mm • Workpiece length circumferential grinding 370 mm • Workpiece length for face machining 320 mm • Accuracy linear resolution 0.0001 mm • Radial resolution 0.0001 ° • Diameter of the spindle 100 mm • Grinding wheel mount: HSK50 • Diameter of the grinding wheel 200 mm • Grinding spindle speed 0 – 12,000 rpm., • Top performance 30 kW • Connected load 35 kW (460 V / 60 Hz) • Weight approx. 7,100 kg • Dimensions L x W x H 3649 x 2490 x 2301 mm Accessories: • Does not include wheel opening stick fixture seen in the pictures • Stepless speed control, probe, pneumatic workpiece clamping • Electrostatic mist extractor • Fire extinguishing system • Oil collecting pan, 2 grinding wheel flanges, Complete set of Manuals • Turmoil Drive Chiller • Loader Pallets: 8pcs – 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4”, 1-1/4” • 10pcs - HSK Wheel Arbors Software: • Windows XP Pro Svc Pack 3 • Tool Studio V3.3 • The computer was upgraded & is very fast rendering tools in Tool Studio Condition: • Excellent condition, very accurate & consistent. October 2023 Y axis Complete rebuilt, Linear motor, rails, Compensation Cylinder, Festo Booster Pump done by United Grinding. • 1 Micron Filtration system was used on the machine (not included), so it’s been kept extremely clean • We can load onto a flatdeck for shipping for $1200. We can also provide shipping quotes if you would like & crating for Sea Freight shipping.

Condition: excellent (used), Year of construction: 1995, Max. panel width 4400 mm Max. panel length 4300 mm Main saw blade projection 110 mm No of Grippers 8 Front Loading Beam Panel Saws Max. saw blade projection 110 mm Front support tables no. tables 4 Control system NC 410 Rbsdpjmt Hhwjfx Ahzet Safety standard CE mark Total installed power 20 KW
