Winch

Planeta Porty 990 Hubwinde

Condition: new, Year of construction: 2020, CNC engraving machine MÜLLER LCF - 2 Travel: X 375 mm Y 570 mm Z 90 mm Technische0.321020121002 Daten: Table size 700 mm x 480 mm Gsdpfxof Tnf Ue Ankeub Weight: 50 kg External dimensions: Length: 700 mm Width: 500 mm Height: 350 mm Accessories : Calculator Screen Keyboard Mouse Software Control Kress cutter Vacuum pump Valve spray With it versch. Collets and cutters - NEW

Year of construction: 1955, condition: used, Radial drilling machine, drilling machine, boom drilling machine -Outreach: 2055 mm -Max. Distance from machine table to spindle mount: 1700 mm -Cone mount: MK5 -Motor power: 7.5 kW -Speeds: 11.2-1400 rpm -Columns: Ø 450 mm -Spindle stroke: 540 mm Gusdpfx Anjd Enr Iskob -Thread cutting device -automatic feed: 0.037-2.0 mm/rev -Clamping area: 920 x 1600 mm -Dimensions: 2580/1110/H3450 mm -Weight: 6465 kg

Year of construction: 1980, condition: good (used), A used very well preserved cycle controlled lathe from Weisser Heilbronn with SIEMENS control. centre distance 2000 mm centre height 295 mm Swing over bed 600 mm Swing over cross slide 260 mm Swing diameter in the bend 800 mm Total length of the crank 375 mm Bed width 450 mm Plan travel X-axis 350 mm Longitudinal travel Z-axis 1850 mm Spindle nose DIN 55022 size 8 Spindle speed Number 18 14 - 1400 rpm spindle bore 71,5 mm Diameter of front bearing 110 mm Gjdpfx Asgyy I Aonkeub feed range 0,01 - 40,95 mm/rev rapid traverse 8 m/min Direct current drive 15 kW 400V 50Hz Max. permissible torque at the spindle 2500 Nm Tailstock quill 80 mm quill stroke 250 mm inner taper quill MK 5 Length x width x height Weight of the machine 5500 kg Accessories Tailstock Pneumatic three-jaw chuck with interchangeable jaws 315mm Quick change holder "MULTIFIX "in front of the center size "C Quadruple turret behind the center Tool holder Coolant device Pneumatic steady rest Technical data and dimensions: Errors excepted. Videoconference via whatsapp possible by appointment

Condition: new, Year of construction: 2025, Dry rotary vane vacuum pump. Marpa Vacuum brand pump Pump completely new. 12 months warranty. Gusdpfxoftzhnj Ankjb Nominal flow: 140 m3 / h at 50Hz. Final vacuum: 150 mbar abs. Any clarification, do not hesitate to contact us.

Year of construction: 2023, condition: new, WLO 4 35 KW Hot air stove ,wood stove,Heating Gsdpfjixupuox Anksub Technical parameters of the furnace Nominal heating output: 30.00 kW maximum heat output: 35.00 kW / approx. 300 m2 in set: force axial fan speed: 1350 rpm and capacity: 3500 m3 / h in the set: driver Innovative design of the air jacket that completely surrounds the stove for maximum efficiency indestructible stove made entirely of p265gh and 16m06 certified boiler plates with thicknesses of # 6mm and # 10mm large exhaust deflector reduces fuel consumption by up to 30% Energy efficiency class: A Energy efficiency index: 110 Net weight: 290 kg Gross weight: 310 kg Furnace lining: 28 firebricks removable two large cast iron grids 300 x 200 mm covered with certified heat-resistant paint that protects against corrosion and gives an aesthetic look massive structure large combustion chamber large loading door User Guide Efficiency: 75.00% CO emission at 13% O2: 1.20m Type of fuel: recommended seasoned hardwood with a moisture content of ≤20% * mg/Nm3, briquettes, coal only as an admixture up to 10% Security and Certifications CE mark: YES / located on the nameplate Compliance with standard: EN13240: 2006 BimSchV level 2: Yes Dimensions External Dimensions: Overall Width: 580mm x Overall Depth: 950mm x Overall Height: 1310mm Oven dimensions: Width: 480mm x Depth: 580mm x Height: 560mm Upper door dimensions (sheet 3 and 4 mm): width: 390 mm x height: 230 mm Middle door dimensions (3 & 4mm sheet metal): Width: 390mm x Height: 155mm Bottom door dimensions (3 & 4mm sheet metal): Width: 390mm x Height: 150mm Top Loading Port Dimensions: Width: 310mm x Height: 210mm Center & Bottom Loading Port Dimensions: Width: 310mm x Height: 130mm Cast iron grate dimensions: Width: 210mm x Depth: 300mm Diameter hot air outlet: Ø 150mm Exhaust outlet diameter: Ø 150mm Leg height: 140mm Technical parameters of the fan Type of fan: axial fan Material: steel (propeller + housing) Diameter: Ø 400mm Power supply: 230V / 50Hz Engine: 4P Current consumption: 0.82A Speed: 1350 rpm Air flow: 3500 m3 / h Safety: CE mark + protective net

Condition: new, lifting capacity:30000 kg empty weight:429 kg dimensions:2450 mm height:535 mm width:265 mm length maximal:4250 mm extendable to ( + 800 JP):6200 mm Gusdpsd R Hvysfx Ankjb Extendable to:8500 mm Guarantee:12 Monate Shackles:4 + 4 Stück extensions (each 1 Set, 4 pcs):800 JP Webbing sling attachement:800 LKP 4 point lifting bracket :800 LK Lifting bracket, wide:800 NKL Equalizer plates:800 TL Unwinder:800 AR 7 Rack:800 ST 2

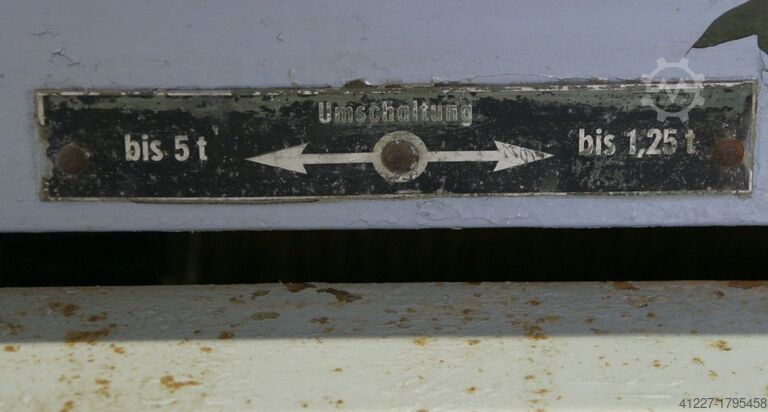

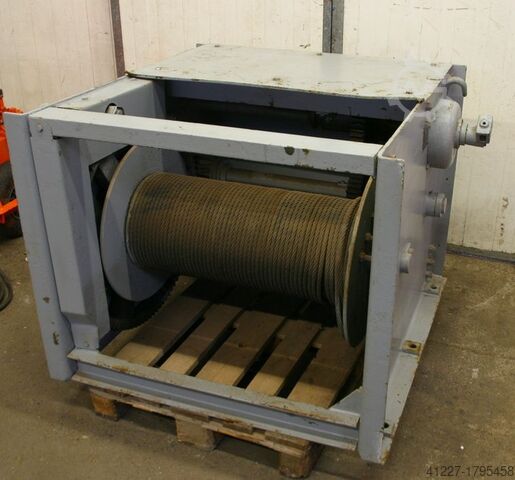

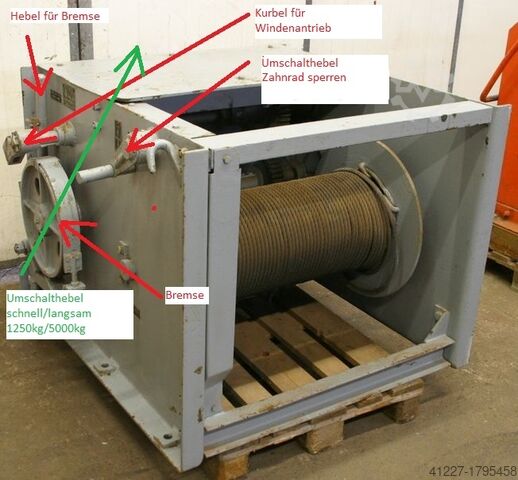

Condition: good (used), winch, lifting winch, construction winch, anchor winch -mechanical winch -Loading force switchable: 1,250 kg / 5,000 kg -with freewheel and mechanical brake -Drum: Ø 300 mm -Side windows: Ø 600 mm -Drum length: 800 mm -Operation: via hand lever Godpfx Aneb A Hpcekeub Quantity: 3 pieces available, 1 piece winch with Ø 12 mm rope Price: per piece -Dimensions: 1200/1200/H950 mm -Weight: 684 kg/piece

Year of construction: 1973, condition: used, bore capacity in steel (diameter) 32 mm arm length 410 - 1000 mm workpiece height max. 765 mm coolant ja boring spindle diameter 38 mm diameter of quill 70 mm spindle stroke 225 mm boring spindle MK 4 mm/min spindle turning speed - stepless 70 - 2000 U/min feed range - spindle 0,04 - 0,32 mm/U column diameter 225 mm bore radius max./min max. 1130 mm table surface area 630 x 1320 mm height adjustment 500 mm base plate 1500 x 1000 mm T-slots 4 Stück T-slot - distance 18 mm total power requirement 2,2 kW weight of the machine ca. 1,8 t dimensions of the machine ca. m Gedpfxjgmu A Ss Ankoub shift of supports: 590 mm without turntable and tools

Condition: ready for operation (used), machine/vehicle number: 1124, table mounting size: 300 x 1300 mm table movement x: 950 mm table movement y: 220 mm table movement z: 400 mm spindle taper horizontal: MK 4 spindle turning speed range: 25 - 1250 rpm carriages longitudinal and cross: 7,5 - 635 mm/min carriages vertical: 3 - 250 mm/min electrical connection: 380 V, 4 kW space needed: 1670 x 1500 x 1580 mm weight: 2600 kg Gujdpod H Ilrofx Ankeb

Condition: used, Cable winch, hoist winch, construction winch -Mechanical winch: with planetary gear without drive -hydraulic brake Gusdpoclnknofx Ankeb -Traction force: approx. 20,000 kg -Drum: Ø 500 mm -Rope diameter: 24 mm -Rope to be wound length: 2x 28 m -Number: 2x winches available -Price: per piece -Dimensions: 1640/700/H700 mm -Weight: 1026 kg/piece
