Used Spinner Mvc 1000 for sale (100)

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, machine/vehicle number: VT0479, VC850 travels: X850, Y510, Z510 mm High-performance milling spindle up to 12,000 rpm as a built-in hybrid spindle with direct drive, without belt Tool holder on spindle SK40 DIN69871 with pull stud DIN69872-A / ISO 7388-3-AD TOOL MAGAZINE with 32 tool stations DIRECT MEASURING SYSTEMS in X/Y/Z axis SIEMENS 840DE control with the following basic features: - SPINNER - SPIOS 24" touch panel for I4.0 applications - Control panel height-adjustable, rotatable and tiltable for best ergonomics - incl. engraving cycles - 24" liquid crystal flat color screen with multi-touch functionality - User memory 2 GByte - 15 zero-point offsets - 1 free USB interface - Ethernet interface standard In the latest generation of SIEMENS "SINUMERIK ONE" control - SPINNER - SPIOS 24" touch panel for I4.0 applications - Control panel height-adjustable, rotatable and tiltable for best ergonomics - incl. engraving cycles - 24" liquid crystal flat color screen with multi-touch functionality - User memory 2 GByte - 15 zero-point offsets - 1 free USB interface - Ethernet interface standard SPINNER MULTI-CONTROL-WHEEL on the control panel, integrating the following functions into a single control element: - Handwheel function in jog mode - Feed override in automatic mode - Start button and feed influence in single-block setup mode, automatically resetting to 0% at the end of the block -> all important functions of the setup mode integrated into one control element - SHOPMILL - 3D SIMULATION - REMNANT MATERIAL RECOGNITION - DXF reader Fully integrated 1-axis TILTING TABLE, centrally mounted in the working area on the table, with: Gksdsy S Tpiepfx Akyoc - Pivoting cheek approx. 580mm long for 3-sided machining - Swivel range of the A-tilting axis is infinite - Counter bearing to support the rotary table bridge UNIVERSAL CHIP CONVEYOR VC850 PREPARATION of the spindle FOR HIGH PRESSURE for the use of the additional tank up to 22 bar HIGH-PRESSURE TANK 22 bar Additional compressed air on the spindle head Compressed air centrally through the milling spindle, alternatively to coolant nozzle in the working area PREPARATION FOR SPINNER STANDARD MEASURING PROBE Wireless SPINDLE PROBE universal robot interface UNIROB CLAMPING HYDRAULICS incl. 2 pcs. 4/4-way VALVE for workpiece clamping up to 200 bar hydraulically STANDARD DOCUMENTATION GERMAN consisting of machine manual and CNC manuals is supplied in digital form on the control. Paper manuals available at an additional cost LIFTING LUGS for crane unloading, set consisting of 4 pcs. mandatory for crane transport STANDARD PAINTING two-tone in light gray RAL7035 and blue-gray RAL5008 Electrical design EUROPEAN STANDARD as follows: Operating voltage 3x400V +/-10% Mains frequency 50Hz (+/-2%) TN network (5-conductor) Notes: The price includes warranty services only within Germany. For new and demonstration machines, the images are not necessarily images of the individual machine, but of comparable machines. Accessories shown, such as clamping devices or tool holders, are only included in the scope of supply to the extent listed in the technical description. Ask for a detailed offer ex works. Visit our factory near Munich or one of our showrooms. We may have other offers for comparable machines. Subject to prior sale.

Condition: excellent (used), Year of construction: 2010, Technical specifications: Travel ranges (X/Y/Z): 1460 / 610 / 500 mm Clamping capacity 4th axis: 320 mm Gedpfxszn Rdao Akyokc CNC control: SIEMENS 840 D - SL Number of axes: 3 Spindle mount: ISO 40 Max. workpiece weight: 800 kg Number of positions in the tool changer: 32 Spindle speed: 12,000 RPM Dimensions (length x width x height): approx. 420 x 2500 x 3000 mm Machine weight: approx. 9.5 tons Accessories: Chip conveyor The seller is not liable for typing or data transmission errors. The machine's appearance, technology, and wear correspond to its age; used machines are sold without any warranty.

Condition: used, Year of construction: 2012, x-travel 760 mm y-travel 460 mm z-travel 460 mm control TNC 620 Heidenhain turning speed range - main spindle max. 12.000 min/-1 power capacity - main spindel 14 / 10 kW Torque 89 / 63,7 Nm Gkedpfx Akszgibueyec tool taper SK 40 table surface area 900 x 410 mm max. table load 350 kg T-slots 4x number of toolpositions 24 pos. max. tool diameter 130 mm max. tool length 200 mm max. tool weight 8,0 kg rapid traverse ( X / Y / Z ) 36 m/min total power requirement 20 kVA weight of the machine ca. 3,3 t dimensions of the machine ca. 3,0 x 2,5 x 2,9 m CNC Machiningcenter Vertical SPINNER - VC 750

Condition: excellent (used), Year of construction: 2007, CNC Lathe SPINNER TC 65 2007 ----- Dimensions / Weight Dimensions L × W × H (without chip conveyor): 2.73 × 1.44 × 1.62 m Footprint: 3.93 m² Total weight: 4,200 kg Swing diameter over bed: 425 mm Distance between centers: approx. 600 mm Max. turning diameter: 310 mm Axes Max. travel X-axis: 230 mm Max. travel Z-axis: 740 mm Max. rapid traverse X-axis: 15 m/min Max. rapid traverse Z-axis: 24 m/min Main Spindle Speed (bore 32 mm): 4,500 rpm Spindle head Ø: 100 mm Max. Ø collet chuck: 250 mm Max. permissible collet jaw weight: 1.25 kg Spindle bearing diameter: 120 mm Capacity of clamping cylinder: 65 mm Tailstock Arbor diameter: 80 mm / MK4 Arbor stroke: 120 mm Adjustable travel of tailstock: 475 mm Max. clamping force (at 30 bar): 500 daN Turret Manufacturer: Sauter Type: 0.5.473.516 Type with tool drive: 0.5.480.516 Coupling system: DIN 5482 with gear B15×12 Number of stations: 12 Tool holder: DIN 69880 / 30 mm Driven stations (only TC65-MC): 6 Speed of rotating tools (only TC65-MC): 6,000 rpm Gkodpfxszudxde Akyec Torques Main spindle Fanuc (S6 40 %): 178 Nm Main spindle Siemens (S6 40 %): 301 Nm Driven tool TC65-MC, Fanuc (S6 40 %): 7 Nm Driven tool TC65-MC, Siemens (S6 40 %): 9.5 Nm

Condition: used, Year of construction: 2018, functionality: fully functional, travel distance X-axis: 1,520 mm, travel distance Y-axis: 520 mm, travel distance Z-axis: 460 mm, rapid traverse X-axis: 32 m/min, rapid traverse Y-axis: 32 m/min, rapid traverse Z-axis: 32 m/min, controller manufacturer: SIEMENS, controller model: 840D, rotational speed (max.): 12,000 rpm, overall weight: 10,000 kg, spindle speed (max.): 12,000 rpm, spindle nose: ISO 40, number of slots in tool magazine: 32, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Year: 2018, CE compliant CNC: SIEMENS 840D with SHOP MILL 4+1 axes ONLY 18,300 power-on hours Worktable dimensions: 2-piece table - fixed 920x540 mm / rotary-tilting 650x500 mm (with extension ring) Longitudinal X-axis travel: 1520 mm Transversal Y-axis travel: 520 mm Vertical Z-axis travel: 420 mm Spindle taper type: ISO 40 Spindle speed: 12,000 rpm Automatic tool changer: 32 positions Gsdpfjy Azclex Akyekc Spindle motor power: 15 kW Approximate net weight: 10,000 kg Accessories: Internal coolant Chip conveyor Full upper enclosure Pneumatic door opening BLUM tool presetting and workpiece probe capability

Condition: ready for operation (used), Year of construction: 2009, operating hours: 1,000 h, spindle speed (max.): 2,600 rpm, travel distance X-axis: 360 mm, travel distance Y-axis: 120 mm, travel distance Z-axis: 980 mm, spindle motor power: 22,000 W, overall weight: 7,000 kg, controller manufacturer: SIEMENS, controller model: 840D Solution Line, number of axes: 4, This 4-axis SPINNER TC800 was manufactured in 2009. It features a radial turret and is equipped with Siemens control, ensuring reliable operation. With approximately 1,000 operating hours, this machine has been barely used. If you are looking to get high-quality turning capabilities, consider the SPINNER TC800 horizontal turning machine we have for sale. Contact us for further details. • Control: Siemens 840D Solution Line • Rapid traverse X-axis: approx. 18 m/min • Rapid traverse Z-axis: approx. 24 m/min • Main spindle speed: up to approx. 4000 rpm • Main spindle power: approx. 24 kW (100%) • Main spindle power: approx. 33 kW (40%) • Spindle nose: A11 • Bar capacity: approx. 77 mm Gjdpfx Akeyv Epvsyokc • Counter spindle: Yes • Counter spindle speed: up to approx. 5000 rpm • Counter spindle power: approx. 15 kW • Counter spindle spindle nose: A6 • Counter spindle bar capacity: approx. 52 mm • Tool turret type: VDI 50 • Number of tool stations: 12 • Driven tools: Yes • Number of driven tools: up to 12 • Driven tool speed: up to approx. 4000 rpm • Maximum turning diameter: approx. 500 mm • Maximum swing over bed: approx. 800 mm • Maximum turning length: approx. 800 mm • Tailstock: Yes • Tailstock taper: MK4 • Tailstock stroke: approx. 100 mm • Tailstock force: approx. 8500 N • Voltage: 400 V • Frequency: 50/60 Hz • Control voltage: 24 V DC • Compressed air pressure: approx. 6–10 bar • Hydraulic pressure: approx. 70 bar • Chip conveyor: Yes • Coolant system: Yes • Hydraulic unit: Yes • Electrical cabinet: Yes • Radial turret • No quill • Barely used, approximately 1,000 operating hours Technical Specification Counter Spindle Yes Driven Tools Yes

Condition: ready for operation (used), Year of construction: 2014, operating hours: 30 h, travel distance X-axis: 450 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, controller manufacturer: SIEMENS, controller model: 840D SL, total height: 2,515 mm, total width: 1,700 mm, table width: 410 mm, table length: 770 mm, table load: 200 kg, overall weight: 3,500 kg, spindle speed (max.): 15,000 rpm, spindle motor power: 16,000 W, number of slots in tool magazine: 24, product length (max.): 2,390 mm, number of axes: 3, This 3-axis SPINNER VC450 was manufactured in 2014. It features an X-axis travel of 450 mm, Y-axis travel of 400 mm, and Z-axis travel of 400 mm. The machine includes a robust table size of 770 x 410 mm and a maximum table load of 200 kg. If you are looking to get high-quality machining capabilities, consider the SPINNER VC450 vertical machining center we have for sale. Contact us for further details. • Control Unit Brand: Siemens • Control Unit Model: Siemens 840D SL • Spindle Power: 16 kW • Maximum Torque: 60 Nm • Rapid Traverse: 36 m/min • Tool Magazine Capacity: 24 Positions • Maximum Tool Diameter: 80 mm • Maximum Tool Length: 200 mm • High-Pressure Through-Spindle Coolant (CTS) • External Coolant Tank • Fully Enclosed Working Area • T-Slot Worktable • 3-Color Signal Tower • Machine Status: Tested and Fully Functional • Main Spindle Replaced by SPINNER in February 2026 • Operating Hours Since Spindle Replacement: approx. 30 h Additional Equipment • Chip Conveyor • Machine Vises (optional) • SK40 Tool Holders (optional) • Additional Tooling and Accessories (optional) Technical Specification Taper Size SK 40 Godpfxjzt Nvlo Akyjkc Through-spindle Coolant Yes

Condition: excellent (used), SPINNER TC600-65 SMCY | Year of manufacture 2012 | Y-axis | BMT45 | driven tools | Siemens 840D | 15 bar HPC For sale is a high-quality CNC turning center, the SPINNER TC600-65 SMCY, manufactured in 2012. Technical data: Manufacturer: SPINNER Werkzeugmaschinenfabrik GmbH Type: TC600-65 SMCY Year of manufacture: 2012 Machine number: AT0560 Working area: • Max. turning diameter: 400 mm • Max. turning length: 650 mm • Max. swing diameter: 600 mm • Travel in X-axis: 275 mm • Travel in Y-axis: mm • Travel in Z-axis: 700 mm • Spindle bore: 65 mm Tool system: • 16-position turret BMT45 • 16 driven tool stations • Spindle orientation • Tool measurement in the working area Control system: • Siemens 840D Equipment: • Y-axis for complex milling and drilling operations • 16-position BMT45 turret with driven tools • Direct measuring system in the X-axis • Tailstock Gkedpfx Akszgvgkoyjc • High-pressure coolant system 15 bar • Automatic sliding door • Robot interface for automation solutions • Hardened and ground slideways • Heavy-duty, FEM-optimized machine bed made of cast iron • High vibration damping for precise machining results Electrical data: • Mains connection: 400 V • Frequency: 50 / 60 Hz • Operating current: 53 A • Rated current: 63 A ✔ Y-axis and driven tools for complete machining ✔ Automation-ready via robot interface ✔ Powerful Siemens Sinumerik ONE control system Bar loader: CUCCHI GIOVANNI CNC-DB70 Stand loader 3300mm, 12-70mm diameter Year of manufacture 2012 is included in the price. The machine is in technically perfect and well-maintained condition and can be inspected under power by appointment. Further technical documentation, accessory lists, videos, as well as information on price and availability are available upon request.

Year of construction: 1997, condition: used, A compact CNC lathe is offered. Control: Siemens. Condition: defective. Turret enable signal is missing. Inspection possible by appointment. Godpfx Akez Hzd Ejyokc

Condition: used, Year of construction: 2015, turning diameter 250 mm turning length 600 mm control FANUC Series 31i-Model A Gedpfx Akey Ralneyjkc total power requirement 23 kW weight of the machine ca. 7,7 t dimensions of the machine ca. 2.880 x 2.130 x 1.990 mm m

Condition: ready for operation (used), Year of construction: 2020, operating hours: 25,585 h, spindle speed (max.): 7,000 rpm, controller manufacturer: FANUC, controller model: Series 31i-MODEL B, This SPINNER TTS 42 Lathe was manufactured in the year 2020 in Germany and has 25585 production hours. It is equipped with a Fanuc Series 31i-MODEL B control unit. The machine has a spindle speed of 7000 rpm. See tech specs file as PDF (German) attached for more details. Godpfx Aozx Ag Ijkyekc Machine Benefits • main spindle was replaced 2023 • maintained internally • runs on emulsion • no fire extinguishing Qualitative Machine Benefits • Unimag interface for bar loading magazines • Parts conveyor belt • Spinner bar loading machine type servo. Make spinner, for spindles up to 42mm passage, for material d=4-42mm, length up to 3,200 mm • 10x external turning holder • 12x boring bar holders d=32 • 3x recessed boring bar holders • 6x straight agw • 3x axial agw • Material processed so far: aluminum, brass Technical Machine Benefits • Spindle 2 (counter spindle) in version up to 7,000 rpm - 42mm • Revolver 1 : 12-fold with cnc servo drive revolver 2 : 12-speed with cnc servo drive revolver 3 : 12-speed with cnc servo drive dmjgmx • Ejector unit integrated in counter spindle for ejecting parts into the parts catcher • Signal lamp on top of machine in three colors red/yellow/green as status display • Late conveyor as hinged belt conveyor exiting to the right, incl. Integrated coolant tank and return pump • Coolant system as additional tank incl. Submersible pump 80l/4bar, high-pressure pump up to 80bar / 19. 5l/min • Flushing gun in the work area • Holder for messtaster on the machine bed as preparation for the use of a • Messtaster for tool measurement switching in 3 axes. • Extraction d=200 to the working area for connection to extraction system

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: AB1052, travel distance X-axis: 560 mm, travel distance Y-axis: 410 mm, travel distance Z-axis: 410 mm, controller model: Siemens Sinumerik 840D, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 560 mm Travel range, Y-axis: 410 mm Travel range, Z-axis: 410 mm Table length: 650 mm Table width: 450 mm Table load capacity: 250 kg Workpiece length: max. 650 mm Workpiece width: max. 450 mm Workpiece height: max. 450 mm Workpiece weight: max. 250 kg Feed rate, X-axis: 30 m/min Feed rate, Y-axis: 30 m/min Feed rate, Z-axis: 30 m/min Accuracy: ±0.015 mm Spindle speed: max. 12,000 rpm MACHINE DETAILS Control system: Siemens Sinumerik 840D Input voltage: 400 V Input current type: Three-phase Dimensions & Weight Gsdpfx Aozzx H Aokyjkc Dimensions (L x W x H): 2,000 x 3,000 x 2,500 mm Total weight: 4,000 kg EQUIPMENT Oil mist separator Spindle cooling (20 bar) Documentation ShopMill function Note: The machine has been regularly maintained electronically and mechanically. New ball screws and linear guides were installed approximately 2 years ago.

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: AB0704, travel distance X-axis: 810 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, controller model: Siemens Sinumerik 810D, spindle speed (max.): 8,000 rpm, TECHNICAL DETAILS Travel range X-axis: 810 mm Travel range Y-axis: 610 mm Travel range Z-axis: 610 mm Gkodszzx Hcjpfx Akyjc Workpiece weight: max. 1,000 kg Table load: 1,000 kg Spindle speed: max. 8,000 RPM Number of tool positions in the tool magazine: 32 MACHINE DETAILS Control model: Siemens Sinumerik 810D Total weight: 5,000 kg Input voltage: 400 V Type of input current: Three-phase EQUIPMENT CE marking Chip conveyor Spindle speed continuously adjustable 20 bar spindle cooling Paper filter Shopmill Note: The machine has been regularly maintained. One slot in the tool changer is defective.

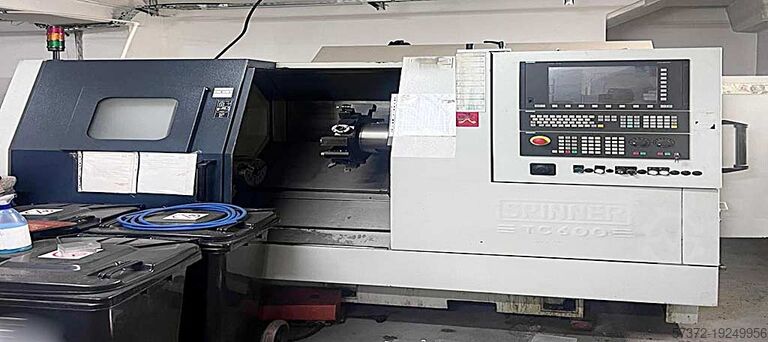

Condition: good (used), Year of construction: 2023, Spinner TC 600, Year of manufacture 2023, Fanuc 32 i TB control system, Travel range X/Z 275/700 mm, Chip conveyor, Tailstock, 16-position turret, VDI 40, C-axis, Powered tool holders, Gkedpoy Thmlefx Akyoc 3-jaw chuck Ø 250 mm.

Year of construction: 2015, condition: ready for operation (used), A CNC milling machine Spinner is available. Travel X/Y/Z: 760mm/460mm/460mm, table dimensions X/Y: 900mm/410mm, max workpiece weight: 350kg, tool stations: 24, max tool weight: 8kg, max tool length: 200mm, speed: 12000rpm, max tool diameter: 80mm, tool holder: SK40. Machine dimensions X/Y/Z: approx. 2600mm/1600mm/2850mm, weight: approx. 4000kg. Including automation and robot M10. Documentation available. An on site inspection is possible. Gedpfoxwn I Usx Akyekc

Condition: ready for operation (used), Year of construction: 2015, operating hours: 12,244 h, spindle speed (max.): 4,500 rpm, travel distance X-axis: 275 mm, travel distance Z-axis: 700 mm, spindle motor power: 11,000 W, total height: 1,620 mm, overall weight: 4,200 kg, controller manufacturer: SIEMENS, controller model: 840D-SolutionLine, number of slots in tool magazine: 16, number of axes: 2, This 2-axis SPINNER TC 600-65MC horizontal turning machine was manufactured in 2017, featuring a Siemens 840D control system and a 16-position indexing turret. It includes a main spindle with a speed of up to 4,000 rpm and a power of 24 kW. The machine offers a swing diameter over bed of 425 mm and a maximum turning diameter of 310 mm. Consider the opportunity to buy this SPINNER TC 600-65MC horizontal turning machine. Contact us for more information about this machine. Additional equipment • Full splash guard cladding + coolant unit • Work area light + pneumatic equipment • Panoramic window for optimum visibility into the work area Gsdpsx D E Hnjfx Akyjkc Machine Benefits Technical Machine Benefits • Center distance: approx. 600 mm • Max turning diameter: 310 mm • Torque: main spindle (fanuc, s6 40%) 178 nm, main spindle (siemens, s6 40%) 301 nm • Quill stroke: 120 mm • Adjustment travel: 475 mm • Speed of rotating tools: 6000 1/min • Driven tool power: (fanuc, 30 min) 3. 7 kw, (siemens, 40%) 6. 0 kw Extra Information Media Pneumatics max. operating pressure: 10 bar Normal pressure: 6 bar Hydraulics max. operating pressure: 30 bar Control Unit Control system: Standard Siemens 840D, Option Fanuc 21i Operating voltage: 400 V Mains frequency: 50/60 Hz Control voltage: 24 V DC Interfaces: USB, Ethernet, SPINNER-UNIMAG bar feed (electric) Technical Specification Through-spindle Coolant No Counter Spindle No Driven Tools Yes Taper Size VDI 30

Condition: excellent (used), SPINNER TC52-MC CNC turning machine with bar feeder Year of manufacture: 2004 Control system: Siemens 810 D ShopTurn Turning diameter: 280 mm Turning length: 550 mm Tool holder: VDI 30 Spindle speed max.: 5,000 rpm Godezw Avyepfx Akyskc Tool turret positions: 12 Speed of driven tool: 6,000 rpm Torque of driven tools: 23.5 Nm Rapid traverse X/Z: 15 / 24 m/min Bar diameter: 52 mm

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: AB0702, travel distance X-axis: 650 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 530 mm, controller model: FANUC 21 iMB, table load: 500 kg, TECHNICAL DETAILS Travel X-axis: 650 mm Travel Y-axis: 500 mm Travel Z-axis: 530 mm Table clamping surface: 800 x 500 mm Spindle speeds: 60 - 8,000 rpm Spindle taper: SK 40 Spindle taper standard: DIN 69871 A Gedpfx Akjya E Thjyokc Maximum table load: 500 kg Rapid traverse X/Y/Z-axis: 30 m/min Tool changer: 30 positions Tool diameter with full magazine: 80 mm Tool diameter with 2 free positions: 120 mm Maximum tool length: 250 mm Maximum tool weight: 7 kg MACHINE DETAILS Control: FANUC 21 iMB Total power requirement: 30 kVA Dimensions & Weight Machine dimensions (L x W x H): 2.4 x 2.2 x 2.46 m Machine weight: 4.5 t EQUIPMENT NC rotary axis with tailstock, manufacturer MECA-DIVIMEK (Spain), DCH 160 C 2 machine vices Coolant system

Condition: good (used), Year of construction: 2006, Turning center SPINNER TC32-MC, control system SIEMENS Sinumerik, hydraulic bar feeder LNS Super Hydrobar, purchased in 2006. Gkodpfxjztc Hqe Akyjc

Condition: ready for operation (used), Year of construction: 2015, operating hours: 5,381 h, functionality: fully functional, machine/vehicle number: AS0211, spindle speed (max.): 5,000 rpm, travel distance X-axis: 180 mm, travel distance Y-axis: 90 mm, travel distance Z-axis: 704 mm, controller model: FANUC SERIES 31 i-MODEL A, No minimum price – guaranteed sale to the highest bidder! Placing a bid obligates you to collect the machine within the specified periods: either between 11.05.2026 and 13.05.2026 or between 18.05.2026 and 21.05.2026. TECHNICAL DETAILS TRAVEL DISTANCES X1-axis: 180 mm X2-axis: 180 mm Y1-axis: ±45 mm Z1-axis: 704 mm Z2-axis: 620 mm E2-axis: 720 mm Rapid traverse X/Y/Z-axis: 30 m/min SPINDLE 1 Max. speed: 5,000 rpm Spindle nose: A6k Spindle bore: 65 mm Draw tube bore: 65 mm Chuck diameter: 210 mm Drive power: 24 kW SPINDLE 2 Max. speed: 7,000 rpm Spindle nose: Ø 110 mm Spindle bore: 42 mm Draw tube bore: 42 mm Chuck diameter: 140 mm Max. chuck jaw weight: 1.25 kg Output power: 16.5 kW Max. speed for driven tools: 8,000 rpm Number of tool turret stations 1: 12 Number of tool turret stations 2: 10 All tool positions are driven MACHINE DETAILS Control: FANUC SERIES 31 i-MODEL A Operating voltage: 400 V Frequency: 50–60 Hz Rated current: 80 A Dimensions & Weight Installation dimensions (L x W x H): 4,500 x 2,400 x 2,400 mm Machine weight: 9,000 kg Read operating hours: 5,381 h EQUIPMENT Chip conveyor by KNOLL Tool holders (as shown in the photos are included) Gkjdpoym Ai Hjfx Akyoc External reference: Dürr

Condition: ready for operation (used), Year of construction: 2016, travel distance X-axis: 2,660 mm, travel distance Y-axis: 520 mm, travel distance Z-axis: 460 mm, controller manufacturer: SIEMENS, controller model: 840D, spindle speed (max.): 10,000 rpm, number of axes: 5, This 5-axis SPINNER U5-2520 was manufactured in 2016. It features an impressive X-axis travel of 2660 mm, Y-axis travel of 520 mm, and Z-axis travel of 460 mm. The machine is equipped with a spindle speed of 10,000 rpm and an automatic tool changer with 2x52 positions. If you are looking to get high-quality machining capabilities, consider the SPINNER U5-2520 vertical machining centre we have for sale. Contact us for further details. • B-axis: +110° / -90° • ATC: 2 x 52 tools Technical Specification Gsdpfx Akoy Efxioyjkc Taper Size SK 40

Condition: good (used), Year of construction: 2005, Ref. -No.: 10475 Gsdpfx Akjzx Nxqoyskc Manufacturer: SPINNER Type: TC52-MC Year of construction: 2005 Type of control: CNC-Steuerung Control: Siemes 810 D ShopTurn Storage location: Halberstadt Country of origin: Germany Machine-No.: AN0XXXX Turning Speeds: 280/400 RPM Tool holder type: Stahlhalter 9 pcs. Turning Diameter: 280/400 mm Turning Length: 550 mm Tool Taper: VDI 30 Spindle Speed Max.: 5.000 RPM Turret places: 12 Pcs Further information: Three-jaw chuck: Schunk brand Driven tool stations Oil mist extraction Coolant system Cabin, extraction Donaldson Tirit DCE Machine can be inspected under power by arrangement.

Condition: ready for operation (used), Year of construction: 2008, turning diameter 500 mm swing dia. 800 mm turning diameter over bed 450 mm turning length 800 mm x-travel 360 mm z-travel 980 mm spindle turning speed range 3200 U/min max. torque on the spindle 235/939 Nm spindle bore 110 mm turret (x-stations) 12 control Fanuc 31i tailstock quill taper MT 4 total power requirement 30 kW weight of the machine ca. 7,6 t dimensions of the machine ca. LBH 4,2 x 1,98 x 2,1 m - Machine with C-axis and driven tools Gedpfx Aez Ebvxokyekc - 2 driven tool holders - 10 static tool holders - Incl. SMW 3-jaw chuck 315BB - Measuring arm - Chip conveyor - Incl. additional high-pressure pump

Condition: ready for operation (used), Year of construction: 2009, operating hours: 26,180 h, spindle speed (max.): 2,500 rpm, travel distance X-axis: 360 mm, travel distance Z-axis: 980 mm, spindle motor power: 33,000 W, total height: 2,090 mm, total width: 1,980 mm, overall weight: 7,500 kg, bar diameter (max.): 110 mm, controller manufacturer: SIEMENS, product length (max.): 3,250 mm, workpiece diameter (max.): 500 mm, number of slots in tool magazine: 12, number of axes: 3, This 3-axis SPINNER TC 800 110 MC was manufactured in 2009. It features a collet chuck for clamping and includes a dust extraction system. Optional equipment includes a bar feeder, parts catcher, turret with driven tool, chip conveyor, and tailstock. If you are looking to get high-quality turning capabilities, consider the SPINNER TC 800 110 MC horizontal turning machine we have for sale. Contact us for further details. • Live Tool Speed: 4,000 rpm • Live Tool Power (100%/40%): 5 / 9.6 kW • Rapid Traverse X/Z: 15 / 24 m/min • Maximum Turning Diameter: approx. 500 mm • Maximum Swing Diameter: approx. 800 mm • Distance Between Centers: 800 mm • Main Spindle Nose: A11 • Main Spindle Power (100%/40%): 22 / 33 kW • Main Spindle Torque (Gear 1, 100%/40%): 175 / 263 Nm • Main Spindle Torque (Gear 2, 100%/40%): 700 / 1050 Nm • Coolant Tank Capacity: approx. 235 l • Hydraulic Tank Capacity: approx. 11 l • Central Lubrication Tank: approx. 2–3 l • Machine Weight: approx. 7,000–7,500 kg • Supply Voltage: 3/PE ~ 400 V • Frequency: 50 / 60 Hz • Operating Current (IB): 63 A • Rated Current (IN): 80 A • Collet Chuck Used for Clamping • Supply Voltage: 3/PE ~ 400 V • Frequency: 50 / 60 Hz • Operating Current (IB): 63 A • Rated Current (IN): 80 A • Collet chuck used for clamping • Dust extraction system Optional equipment: • Bar feeder • Parts catcher • Turret with driven tools • Chip conveyor • Tailstock Technical Specification Gedpfx Akszlqycsyjkc Counter Spindle No Driven Tools Yes Taper Size VDI 50

Condition: good (used), Year of construction: 2008, Ref. -No.: 10474 Manufacturer: SPINNER Type: TC77 MCY Year of construction: 2008 Type of control: CNC-Steuerung Control: Siemens 840 D Storage location: Halberstadt Country of origin: Germany Machine-No.: AP0XXXXX Chuck diameter: 210 mm Tailstock - diameter: 110 mm Feed speed X / Z: 15/24 mm / min Turning Diameter: 500 mm Max. Torque: 113 Nm Travel -X Axis: 350 mm Travel -Y Axis: 230mm (-110mm +120mm) mm Travel -Z Axis: 1160 mm Distance Between Centres: 800 mm Spindle 1 spindle head diameter (flange): A8 mm Spindle 2 spindle head diameter (flange): A6 mm Quills Morse taper: MK4 Turret places: 12 Pcs Machine length: 3250 mm Machine width: 1980 mm Machine Height: 2090 mm Weight Of The Machine Ca.: 7,5 t Max. swing diameter: 690 mm Further information: Spindle head: A8 Bar capacity: 77mm Bar capacity: 52mm Number of rotating tool positions: 12 Gsdpfxszkpvao Akyjkc Y axis + C axis. Machine can be inspected under power by arrangement.
