Condition: new, power: 250 kW (339.91 HP), Year of construction: 2025, The Multiple Cylinder Hydraulic Cone Crusher is an advanced type of cone crusher designed to provide higher productivity and better crushing performance than traditional single-cylinder cone crushers. Here are some key features and information about multiple cylinder hydraulic cone crushers: 1. Structure and Working Principle: - Multiple cylinder hydraulic cone crushers typically have three or more cylinders. - The crushing chamber is formed between the mantle (outer fixed cone) and the concave (inner moving cone). - The cylinders control the movement of the inner cone, providing a highly efficient and uniform crushing process. 2. Hydraulic System: - Each cylinder is equipped with its hydraulic system, allowing for independent control of the crushing chamber. - The hydraulic system is used for adjusting the discharge opening size, controlling the tramp iron release, and providing overload protection. 3. Adjustable Discharge Opening: - The discharge opening can be easily adjusted to control the size of the crushed product. Lrsdpfxeq Nd Rbo Af Esu 4. Automation and Control System: - Multiple cylinder hydraulic cone crushers often feature advanced automation and control systems. - These systems can include programmable logic controllers (PLCs) and human-machine interfaces (HMIs) for convenient operation and monitoring. 5. Application: - Multiple cylinder hydraulic cone crushers are suitable for crushing hard and medium-hard materials in industries such as mining, metallurgy, building materials, and road construction. - They are particularly effective for crushing materials with high hardness and abrasive index. 6. Advantages: - Higher crushing efficiency and throughput compared to single-cylinder cone crushers. - Better shape of the crushed product due to the uniform crushing action. - Improved reliability and maintenance convenience. - Enhanced safety features with the hydraulic system providing overload protection. 7. Disadvantages: - Potentially higher initial cost compared to single-cylinder cone crushers. - May require more complex maintenance and repairs. 8. Models and Specifications: - Multiple cylinder hydraulic cone crushers come in various models, such as HPT series, HP series, and others, each with different specifications. 9. Manufacturers: - Various manufacturers produce multiple cylinder hydraulic cone crushers. Well-known manufacturers often provide reliable and high-quality equipment. When considering a multiple cylinder hydraulic cone crusher, it's essential to assess your specific needs, compare features of different models, and consider factors such as capacity, feed size, and required end product specifications. Additionally, check the reputation and customer feedback regarding the manufacturer and model you are interested in.

Condition: good (used), Single TL 1-12-B10/20-TKN6 Water Temperature Control System Areas of application: • Temperature control in plastics processing • Tool and mold making • Chemical industry • Testing and laboratory applications Temperature range up to 90 °C Max. external volume 61 l Heating capacity 12 / 18 / 24 kW Cooling capacity 35 kW (20 °C supply) / 100 kW (15 °C cooling water) Max. flow rate 200 l/min Lrsdsxl A Daspfx Af Eju Max. discharge pressure 3.8 bar Pump motor power 3.0 kW Circulating medium connections G 1¼" Cooling water hose connections 18 mm Dimensions (L × W × H) 690 × 400 × 880 mm Weight approx. 75 kg Heat transfer medium: Water For detailed technical data and processing instructions, we recommend We strongly recommend consulting the original data sheets or contacting the manufacturer directly. You can find more items – new and used – in our shop! International shipping costs upon request!

Year of construction: 2017, operating hours: 19,979 h, condition: good (used), The Single brand temperature control unit is for sale; Advanced 180 degree temperature control unit Membrane keypad Medium: water Device on castors Lrjdpfjuau Dtjx Af Eju Heating capacity : 9 KW Cooling capacity: 35KW and much more ....

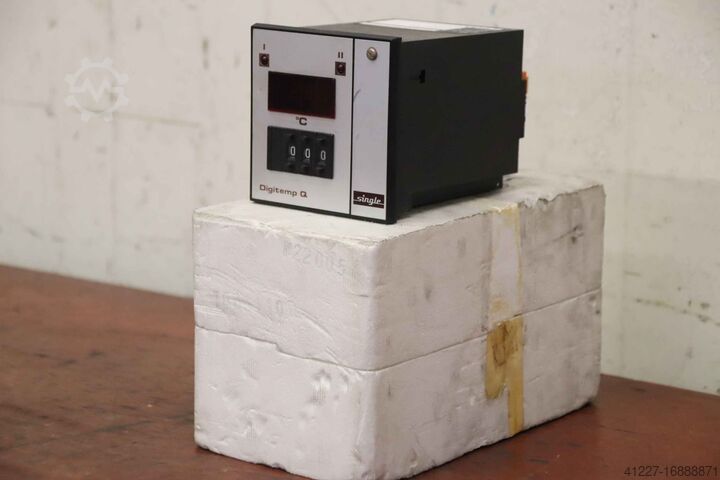

Condition: good (used), Temperature controller, temperature sensor, temperature setting, signal converter, temperature converter, temperature limiter, electronic temperature controller, process controller -Manufacturer: single, temperature controller Digitemp Q Lredpfxsudqbij Af Eju -Type: TQD 3110 D -Measuring range: 0 to 399 °C -Dimensions box: 220/130/H135 mm -Weight: 0.8 kg

Condition: used, functionality: fully functional, Single Temperiertechnik STW 1-6-30-M4 Temperature Controller. Lsdpfewf Anhex Af Ejru 4 for sale. 1 piece/300 EUR. Good working condition. Please check out our other listings as well.

Condition: refurbished (used), * Machine made in Germany, reelstands from Massenzana. • Single facer 2200mm, profile B, new Friese corrugating rolls. Lrsdpokyt Iiofx Af Eju • Brand new Friese steam heads (3pcs). • New condensate valves. • Bridge • Reelstands 2PC – Massenzana • Glue kitchen, 2 tanks 2+3T • Slitter- scorer, longitude • Rewinder, role former ejector • Robust cutter (crossway) • Steam generator Zafa, heating oil 8T tanks. • All unconditional bearings, belts etc. has been replaced (brand new).

Condition: new, Year of construction: 2025, functionality: fully functional, power: 11 kW (14.96 HP), A triple pass rotary drum dryer is a type of industrial dryer that is used to reduce or remove moisture from a material. It gets its name from the three rotating drums through which the material passes, each with a different purpose in the drying process. This type of dryer is commonly used in the production of various bulk solids, including minerals, agricultural products, and biomass. Here are the key features and components of a triple pass rotary drum dryer: 1. Triple Pass Design: - The material being dried passes through three rotating drums or cylinders, hence the term "triple pass." Each drum serves a specific purpose in the drying process. 2. Material Flow: - The material enters the dryer and first passes through the innermost drum. After the initial drying phase, it moves to the middle drum and then to the outer drum, undergoing additional drying in each pass. 3. Heat Source: - Heat is typically provided by a combustion system, such as a burner or furnace, located at one end of the drum dryer. The hot gases generated by the combustion process flow through the rotating drums, transferring heat to the material. 4. Air Flow: - The dryer is designed to optimize air flow through the drums, ensuring efficient drying. In a triple pass design, the material and hot gases move counter-currently through the three drums, enhancing heat transfer and drying efficiency. 5. Lifting Flights or Lifters: - Lifters are internal components inside the drums designed to lift and cascade the material as it rotates. This movement promotes good heat transfer and uniform drying. Lsdpfsq Nfuzex Af Eeru 6. Retention Time: - The triple pass configuration allows for an extended retention time of the material in the drying system. This longer exposure to heat enhances the drying efficiency, making the triple pass rotary drum dryer suitable for materials with high moisture content. 7. Cooling Section: - After the material completes the three passes and reaches the end of the drum dryer, a cooling section may be included to reduce the temperature of the dried material before it is discharged. 8. Applications: - Triple pass rotary drum dryers are used in various industries, including agriculture (drying crops like grains), minerals (drying ores or concentrates), and biomass (drying wood chips or other organic materials). 9. Efficiency and Energy Consumption: - Triple pass rotary drum dryers are known for their high efficiency due to the extended drying time and effective heat transfer. However, they may have higher energy consumption compared to single or double pass dryers. When selecting a triple pass rotary drum dryer, it's essential to consider factors such as the type of material to be dried, required moisture reduction, and overall processing requirements. Proper design and operation are crucial to achieving optimal drying performance.

Condition: good (used), Year of construction: 1998, Tempering unit Mrke: Single Lrodpfofcy Drjx Af Eou Type:STW 1-6-25- ZN FY CA 1998

Year of construction: 2017, condition: good (used), Single Compact K-160-9-24 160° C medium Water 11 KW year 2017 price: 4.950 € contact: Mr. Rainer Eckerle Lredjrupr Djpfx Af Eeu

Condition: new, *TECHNICAL SPECIFICATION: Heating capacity: up to 36 kW per consumer circuit Cooling capacity: up to 30 kW per consumer circuit at -30°C Load circuits: 1 or 2 as standard Temperature range: - 45°C to +130°C Medium: water / glycol mixture Dimensions LxWxH (without connections) : 1-circuit: 1950 x 1280 x 1725 mm 2-circuit: 2150 x 1640 x 1725 mm Weight: 1-circuit: approx. 1300kg 2-circuit: approx. 1500kg *HIGHLIGHTS EQUIPMENT: -Controls: Temperature control (standard) -Control via SPS with touch screen -Analogue and digital interfaces -Internal 2-circuit pump system (INFO: Ensures performance values even at low flow rates) -Heating control via solid-state relay (SSR) -Flow measurement in the internal circuit for flow monitoring (INFO: If the water/glycol mixture is incorrect, the system automatically warns and switches off in the next step) -Pressure-controlled cooling water regulator (INFO: Much more accurate than temperature controls) Stainless steel tank, corrosion-resistant components (stainless steel/non-ferrous metal) (non-ferrous metal-free optional) All medium-carrying components and piping insulated for low-temperature application -Water-cooled condenser (air-cooled on request). Lodpfxeg Ezars Af Esru *OPTIONS: -flow rate control: up to 100l/min, >4 l/min +/- 5% of measured value -Pressure control: 0.5 to 4.5 bar (control range) -compressed air monitoring -test piece emptying by means of compressed air - Cooling water monitoring -Limitation of inlet pressure -Other special options available on request and after technical inspection Visit our website for more details or for other performance classes. *This unit conforms to the European Directives. Other directives and standards are only fulfilled if they are listed in the order confirmation. This technical specification reflects the standard equipment, customer requests deviating from the standard will be shown in quotations or order confirmations.

Condition: excellent (used), Single STL 1-12-B10/20-TKN6 Temperature control technology Lsdpfx Afji A H Ipj Esru

Year of construction: 2017, condition: good (used), Single Adv. WP5 180-12-220 Water, 180°C 15 KW 0 hours ! Ljdpfx Asrupt Njf Eeru year 2023 price: 8.500 € contact: Mr. Rainer Eckerle

Condition: new, *Technical specification: -air-cooled, 25.5 kW referred to +10°C flow temperature at an ambient temperature of +32°C. -temperature range flow: +5°C to +30°C (optionally lower temperatures down to -5°C possible) -air flow rate: 8,000 m³/h -max. air inlet temperature: +30°C -Optionally with heating capacity up to 24kW *Pumps: -Delivery capacity up to 150 ltr/ min. -Delivery pressure up to max. 4 or 7 bar -Motor output 1.1 or 2.2 kW *Dimensions: -L/W/H: 1,450 mm x 750 mm x 1,680 mm -empty weight: approx. 480 kg -Circulation medium connection: DN 32 IG *Details & Highlights: -Internal refrigerant: R 123 a -Power supply: 380-425V/ 50Hz -Regulation and control unit SBC-T -Setpoint and actual value display, alarm display -Fully hermetic reciprocating compressor -Refrigerant receiver with safety valve according to DIN EN 378 -capacity control -frost protection monitoring -Flow monitoring -grid cover over condenser -oil sump heater Lrjdpjg Ewwrjfx Af Eju -drainage device -Level monitoring by magnetic float switch -installed dirt trap in the return line in the circulating medium -overflow valve between flow and return as pump protection, fixed setting -high and low pressure limiter according to DIN EN 378 -stainless steel tank, capacity: 80 litres, open system completely insulated Self-supporting housing with castors, mobile -system for indoor installation -control box IP 54 Other performance classes are available on request. Visit our homepage for further details. *This unit conforms to the European Directives. Other directives and standards are only fulfilled if they are listed in the order confirmation. This technical specification reflects the standard equipment, customer requests deviating from the standard will be shown in quotations or order confirmations.

Condition: new, *TECHNICAL SPECIFICATION: Heating capacity: up to 54 kW Cooling capacity: up to 300 kW medium: water up to 200°C Max. external volume: 43 ltr at 200°C max. Flow rate: max. 230 l/min  max. delivery pressure: up to 8.3 bar Motor power: up to 3 kW Dimensions LxWxH: 1,460 x 525 x 1,200 mm  Weight approx. 330kg Circulation medium connection: flange DN40 (DIN EN 1092-1), form B1 *HIGHLIGHTS EQUIPMENT: -Control and regulation Smart Controller (7" touch display) -Heating control via solid-state relay -Control box IP54, externally ventilated -Expansion tank, heater and piping stainless steel -Heating via stainless steel tubular heating elements made of Incolloy -Dirt trap (circulation) -Unit ready for connection and mounted on castors, 2 of them steerable and with brake -Cooling and filling controlled by solenoid valve -configurable automatic filling via KW inflow or separate connection (factory-supplied via cooling water inflow) -flow measurement by differential pressure principle -Level monitoring by magnetic float switch -automatic temperature-dependent system closure (not with WP7-90) -flow monitoring by recording the flow rate Ljdpfx Asg Ey T Esf Eeru -Bypass between flow and return with reduced cross-section -dirty filter in the cooling water inflow, filling and return of the circulation system -Continuous bypass of the heat exchanger via 3-way motorised control valve (WP7-180/200) -System pressure monitoring via pressure transmitter in the AD tank (WP7-150/180/200) -Pressure booster pump for system filling (WP7-180/200, otherwise optional) -Safety temperature limiter (STB) in the heater and flow (WP7-200) -Pressure gauge in the supply line on the back of the unit -heat-insulated circulation circuit (WP7-150/180/200) Visit our website for more details or for other performance classes. *This unit is compliant with the European Directives. Other directives and standards are only fulfilled if they are listed in the order confirmation. This technical specification reflects the standard equipment, customer requests deviating from the standard will be shown in quotations or order confirmations.

Condition: new, *TECHNICAL SPECIFICATION: Heating power hot circuit: 48 kW heating capacity cold circuit: 12 kW cooling capacity hot circuit: 42 kW cooling capacity cold circuit: 270 kW medium: water up to 200°C Max. external volume: 10 ltr at 200°C Max. flow rate: up to 200 l/min  max. delivery pressure: up to 6,5 bar motor power: 5,5 kW Dimension LxWxH: 1.395 x 753 x 1.180 mm Weight approx. 580 kg *HIGHLIGHTS EQUIPMENT: -regulation and control via SPS with touch screen -heating via stainless steel tubular heating elements made of Incolloy -Heating control via solid-state relay -control box IP54 externally ventilated2 -electrical wiring on terminal blocks -pot. free input for signal for cold/warm changeover (front door) - Pot.-free contact for collective alarm on 3-pin plug-in connector (front door) (front door) -temperature control unit with heating and cooling circuit, for connection of a valve station for quick changeover between hot and cold circuit -temperature controlled feed of the return water -level monitoring with automatic level compensation -dirt filter in the cooling water supply and in the return of the circulation system -Separate automatic filling with strainer -Flow measurement in differential pressure principle in both circuits -monitoring of the heating rod surface by temperature sensors -System pressure control, necessary compressed air connection: 6 to 8 bar -booster pump type DS 360 for water make-up -corrosion-resistant components (VA, MS) -unit mounted on rollers and ready for connection *OPTIONS: -System EcoTemp for intermittent operation -connection for ext temperature sensor PT100 or type J/K -Remote touch screen with 15 m cable Visit our website for more details or for other performance classes. Lrsdeg Ey Ufepfx Af Eju *This device is compliant with the European Directives. Other directives and standards are only fulfilled if they are listed in the order confirmation. This technical specification reflects the standard equipment, customer requests deviating from the standard will be shown in quotations or order confirmations.

Condition: new, *TECHNICAL SPECIFICATION: Lodpfxog Ey Rfs Af Esru Heating capacity: up to 36 kW Cooling capacity: up to 116 kW medium: oil up to 350°C Maximum external volume: 66 ltr at 350°C max. flow rate: up to 150 l/min  max. delivery pressure: up to 8,0 bar Motor power: 2.8 or 4 kW Dimensions LxWxH: 1,414 x 503 x 1,350 mm (without connections for continuous bypass) Weight approx. 225-320 kg Circulation medium connection: Flange DN25 PN16-40 (DIN EN 1092-1), form B1 *HIGHLIGHTS EQUIPMENT: -Regulation and control unit Smart Controller (7" Touch-Displ) -Heating control via solid-state relay -Control box IP54 -Cooling controlled via solenoid valve -Flow measurement using the differential pressure principle -Bypass between flow and return with reduced cross-section -Level monitoring by means of magnetic float switch -flow monitoring by recording the heating rod surface temperature and the flow rate -dirt filter in the cooling water supply and in the return of the circulation system -monitoring of the flow temperature by electronic safety temperature limiter -external oil filler neck -Dilo fittings on internal piping connections (except pump connections) -at 350°C: continuous bypass, including bellows valves -Connection for nitrogen blanketing with pressure gauge and safety valve 0.5 bar at 350°C (option) Visit our website for more details or for other performance classes. *Unit is compliant with European Directives. Other directives and standards are only complied with if stated in the order confirmation. This technical specification reflects the standard equipment, customer requests deviating from the standard will be stated in quotations or order confirmations.

Condition: new, *Technical standard specification: Heating capacity: 9 kW Cooling capacity: 50 kW medium: water up to 160°C Max. external volume: 16 ltr at 160°C max. Flow rate 57l/min  max. Delivery pressure 6,0 bar Dimension L x W x H 780 x 305 x 705 mm Weight approx. 80 kg HIGHLIGHTS EQUIPMENT: - Smart Controller Plus 7" touch / 4.0 capable - Flow measurement, adjustable flow alarms - Return temperature display - Frequency converter for pump speed control with automatic mode for energy-optimised operation, or adjustable flow rate (in the operating range of the temperature control system) - Electronic pressure transducer in the flow - Interface via 9-pin D-Sub connector 20mA/TTY - Connection for external temperature sensor PT 100 for measuring and displaying the mould temperature - Continuous bypass of the heat exchanger with a 3-way valve to reduce deposits in the heat exchangers - More powerful pump, hydraulic parts made of VA, magnetically coupled Lrodpfeftm Hrsx Af Eeu - Tool emptying by suction - Booster pump for tool filling at high temperatures - Filling via cooling water can be switched to separate filling - SSR for heating control - IP54 splash water protection Visit our website for more details or for other performance classes. *This unit is compliant with European Directives. Other directives and standards are only complied with if stated in the order confirmation. This technical specification reflects the standard equipment, customer requests deviating from the standard will be shown in quotations or order confirmations.

Condition: new, *Technical standard specification: Unit type: 6/150 Heating capacity: 6 kW Cooling capacity: 45 kW (Performance data at 80°C flow temperature and 15°C cooling water temperature and a pressure difference between cooling water inlet and outlet of at least 2 bar) Medium: water up to 150°C Maximum external volume: 9 ltr at 150°C *Functional equipment: - Cooling and filling controlled via solenoid valve - Automatic filling via cooling water - Level monitoring by magnetic float switch - Dirt filter in return flow of circulation and cooling water inflow Ledpfx Afefnvwqe Esru - Reversing circuit for leakage stop operation (usable up to system closing temp.) - Ball valve in flow & return - Automatic temperature-dependent system closure - Filling time monitoring and aquatimer - Adjustable pump overrun - Adjustable temperature alarm - Options: Interface cable - Regulation and control unit SBCmini, with relay for common alarm, 230V, on rear of controller on terminal block - Heating control SSR - Control box IP54 - Interface 20mA TTY; pin assignment Arburg - Cekon plug 16A - Corrosion-resistant components (VA,MS) - Unit mounted on castors, two of them steerable with brake - Additional temperature fuse for safe shutdown of the heating on heating contactor - Bypass between flow and return with reduced cross-section *Pump: Type: Y2051 Delivery rate (max) 27 ltr/min Delivery pressure (max) 4.5 bar Motor power 0.5 kW Type of submersible pump / peripheral impeller *Dimensions/Weights/Colours Dimensions L/W/H: 600 mm x 240 mm x 493 mm (without connection) Weight: approx. 43 kg Colour: Housing: RAL 7035 light grey Front door: RAL 5015 sky blue *Connections: Circulation medium socket G1/2" cooling water socket G3/8" *This unit conforms to the European Directives. Other directives and standards are only fulfilled if they are listed in the order confirmation. This technical specification reflects the standard equipment, customer requests deviating from the standard will be shown in quotations or order confirmations.

Condition: new, *Technical Specification: device type: 6/95 heating capacity: 6 kW cooling capacity: 45 kW Medium: water up to 95°C maximum external volume: 50 ltr at 95°C *Equipment hydraulic: - Cooling and filling controlled by solenoid valve - Automatic from cooling water or manual filling (at filling nozzle/option) - Level monitoring by magnet float-switch - Dirt trap in from process line of circulating system and cooling water inlet - Pump reversing for leak-stop operation - Manual mould draining via leak-stop operation and venting by tap at backside of unit - Filling time monitoring and aquatimer - Cool down mode (temperature adjustable) - Adjustable temperature alarm - Options: filling nozzle, interface cable, mechanical flow metering *Equipment electrical: - Controller SBCmini, with relay for collective alarm 230V switchable, on the back of controller on terminal - Heating control by SSR - Control cabinet IP54 - Interface 20mA TTY; pinning Arburg - Cekon plug 16A *General equipment: - Corrosion resistant components (stainless stell, brass) - Heating rod made of Incoloy - Unit mounted on rolls, two pieces steerable with break - Additional temperature fuse for safe heating switch-off by contactor *Cooling: Power: 45 kW (stainless steel plate heat exchanger) Cooling water connection: Socket G3/8" IG Lrsdjfnvvispfx Af Eju (Performance data at 80°C flow and 15°C cooling water temperature and a pressure difference between cooling water inlet and outlet of 3 bar) *Pump: Type: T401 Output rate (max): 40 ltr/min Pressure (max): 3,8 bar Motor capacity: 0,5 kW Construction: submersible pump / peripheral wheel *Dimensions/Weights/Colours Dimensions L/W/H: 514 mm x 238 mm x 493 mm (w/o conne.) Weight: approx. 30 kg Colour: Case: RAL 7035 light grey Front door: RAL 5015 sky blue *Connections: Circulating medium int. thread G1/2" Cooling water int. thread G3/8" Filling (option) *This unit complies to the European Directives. Other directives and standards are only fulfilled if they are listed in the order confirmation. This technical specification reflects the standard equipment; customer requests deviating from the standard will be indicated in offers or order confirmations.
