Used Sac Ts 110 for sale (28)

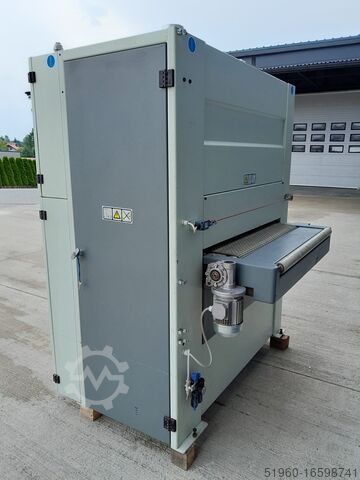

Condition: excellent (used), Technical data: Working width: 960 MM 1 Combination unit Shaft diameter: 160 MM Height of processed material: 160 MM Grinding belt dimensions: 990x1800 mm Extraction spigot(s) diameter: 140 mm Electric lifting Digital display Safety switch Main motor power: 11 kW Voltage: 380V Lodpjt Iv Azsfx Af Eoru Overall dimensions: Length: 1550 mm Width: 1680 mm Height: 2200 mm

Condition: excellent (used), functionality: fully functional, SAC F4 window making tenoning machine Technical condition: good, the machine is in working order. The price of the machine includes a large set of spare parts. Technical data: Min. workpiece height: 30 mm Max workpiece height: 90 mm (105-130 mm) Min. workpiece width: 30 mm Max. workpiece width: 600 mm Min. workpiece length: 200 mm (measured inside the pivots) Max. workpiece length: 3000 mm Max. tenoning depth: 130 mm Max. trimming width: 1000 mm Wave length (Wellenlänge): 320 mm Shaft diameter: 50 mm Vertical stroke: 290 mm Zero tool diameter: 300-350 mm Stumpfstoßsäge (keel saw) Horizontal stroke: 130 mm Positioning with continuous axis Tool diameter: 400 mm RPM: 3000 rpm Motor power: 3.2 kW Zapfenschneidwelle (journal cutting shaft) Motor power: 5.5 kW (7.5 or 9.25 kW) RPM: 3500 rpm Profilschneiden (profile cutting) Min. workpiece height without guide on the left side: 20 mm Max. workpiece height: 140 mm Min. workpiece width: 45 mm Min. workpiece length: 200 mm (measured inside the pivots) Wave length (Wellenlänge): 320 mm Shaft diameter: 50 mm Horizontal movement: 60 mm Vertical movement: 290 mm Tool diameter in zero position: 110-140 mm Maximum tool diameter: 240 mm First profile cutting shaft: Motor power: 5.5 kW (7.5 or 9.25 kW) Speed (clockwise and counterclockwise): 6000 rpm Second shaft for profile cutting: Motor power: 5.5 kW (7.5 or 9.25 kW) Lrodpfjrzvkcjx Af Eou RPM: 6000 rpm Tenon cutting carriage: Work surface dimensions: 750x900 mm Motor power: 1.1 kW Working speed: 3-10 m/min Positioning speed: 45 m/min Number of splinter guard positions: 4-8 Scale positioning with continuous axis up to 3000 mm Angular guide ± 60° Saw for glass weld unit: Motor power: 2.2 kW Saw diameter: 200 mm RPM: 6000 rpm Profile milling feeding device: Motor power: 0.75 kW Feed speed (from ... to ...): 4-20 m/min Number of rollers: 16 Diameter of rollers: 145 mm Groove cutter for metal fittings (on request) Motor power: 3.3 kW (5.5 kW) Maximum tool diameter: 190 mm Spindle diameter: 30 mm RPM: 6000 rpm Horizontal movement: 70 mm Vertical movement: 40 mm Hydraulic power: 0.25 kW Weight: 4300 kg

Condition: used, Year of construction: 2003, with electronic rip fence and large cutting width 1500 mmused, top condition, top equipmentMake SACType CS 450Year of construction 2003Machine no. LD 2206CE-type testedMotor 5.5 kWSteel guidesCar length approx. 3200 mmCutting width approx. 1550 de diameter 450 mmswiveling up to 45 °Scoring unitControl panel can be swiveled at the topRip fence with automatic controlTable top extension approx. 940 mm x 650 mmElectric height adjustmentPositioning control 3 axesDigital display:- Height- cutting angle- Rip fence- Rotation speedExtraction connection D 100 mm / 120 mmRequired space approx. 3400 mm x 3700 mm x 1800 mmWeight approx. 1500 kgTotal connected load approx. 6.25 kWStorage location 97447 Gerolzhofen, free on truck, unpackedHandover in the current condition as viewed,without overhaul,without guarantee and warranty Ledpfx Aevyd Dbjf Eoru
