Used Golmatic Milling Machine for sale (83,783)

Condition: ready for operation (used), Fanuc 6-assige robotfreescentrum voor aluminium en staal X-beweging van de robot: 10.500 mm Verlengd bereik van de robotarm (links en rechts): 3045 mm maximale werkstuklengte indien het een profiel betreft: 15 meter max. werkstukgrootte zonder verlengde armbereik: 10.500 x 3045 mm max. werkstukhoogte: 3500 mm 13-positie gereedschapswisselaar: - 12 elektrische gereedschappen - 1 meetsonde Freeskop: -SK40 - 10 kW op spindel 12.000 tpm / 15.000 tpm - 7,5 kW op spindel / 18 000 tpm - 4 kW op spindel / 24.000 tpm - automatische smering Er zijn veel configuraties mogelijk, afhankelijk van het type werkstuk. Momenteel zijn er twee aparte werkgebieden, maar u kunt dit wijzigen naar één werkgebied (voor een groot werkstuk) of het opsplitsen in meerdere aparte werkgebieden voor kleinere werkstukken. Knjdpfjv Sfk Hex Ag Aod

Condition: used, Year of construction: 2019, functionality: fully functional, feed length X-axis: 787 mm, feed length Y-axis: 500 mm, feed length Z-axis: 500 mm, spindle speed (max.): 5,000 rpm, workpiece weight (max.): 600 kg, The machine is in good technical condition, connected to power and can be tested. Ksdpfjxxtmfsx Ag Aend

Condition: excellent (used), Year of construction: 2017, XYZ 2000 Turret Milling Machine (2017) (Ex College) 3 Axis Newhall DRO (X, Y & Knee) Spindle Taper R8 Spindle speeds to 500 – 4200 rev/min Table Size 1270 x 254mm Table Travel: X - 812mm Y - 406mm Knee Travel: Z - 406mm Quill Travel Z - 127mm For sale with Jet Machinery Ltd Jet Machinery Stock No: #79003 Knodpfx Agoxxb Rro Asd Machine Serial Number: 12907 Cost: £9,950.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Condition: good (used), Year of construction: 2018, Table 1473 x 305mm, Traverses XYZ: 1000 x 410mm x 400mm (knee), quill travel 127mm, Kodpfx Agexftqdo Asnd Spindle Taper ISO40, Power Drawbar, Spindle Motor 5HP, Spindle Speeds 70 - 3600rpm, Prototrak SMX CNC Control,

Condition: new, functionality: fully functional, machine/vehicle number: RM310119, feed length X-axis: 787 mm, feed length Y-axis: 508 mm, feed length Z-axis: 584 mm, quill diameter: 105 mm, table width: 355 mm, table length: 1,372 mm, type of input current: three-phase, rotational speed (max.): 5,000 rpm, rotational speed (min.): 40 rpm, table load: 600 kg, overall weight: 2,390 kg, input voltage: 400 V, workpiece weight (max.): 600 kg, warranty duration: 12 months, input current: 22 A, input frequency: 50 Hz, Built-in programming cycles: Position: Spindle positioning Drilling: Simple holes, holes on a circle Milled holes: Holes made by milling cutter – straight and circular Arcs: Arcs in XY, XZ, and YZ plane Pockets: Rectangular, circular, irregular Island: Milling rectangular, circular, and irregular islands Profile: Rectangular, circular, irregular Helix: Spiral ramping Milling: Straight lines along X, Y, or Z axis or any combination Engraving: Text engraving Thread cutting: Thread cutting with tap Thread milling: Thread milling with form cutters Copying: Copying a series of cycles Mirror: Mirror image Rotation: Rotation around an axis Repetition: Repetition of a series of cycles Knodewtnxnjpfx Ag Aod G-code editor Clipboard

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 6,000 mm, travel distance Z-axis: 1,250 mm, spindle speed (max.): 12,000 rpm, controller model: Heidenhain iTNC530 mit Handrad, Machine with 4th axis as a swivel axis & regularly serviced by the machine manufacturer! TECHNICAL DETAILS Working areas X-axis: 3,000 mm Y-axis: 6,000 mm Z-axis: 1,250 mm Milling head A-axis: controllable, tiltable Milling spindle Spindle power: 4.4 kW Spindle speed: 12,000 rpm Tool holder: 78/8 flange Tool clamping: manual with clamping nut Linear axis drives Feed rate X, Y, Z axes: up to 20 m/min Axis acceleration X, Y, Z axes: up to 1.5 m/s² MACHINE DETAILS Control: Heidenhain iTNC530 with handwheel Connected load: approx. 25 kW Main fuse: 42 A Kedpfx Agoxvx U Aj Ajnd Dimensions & Weight Space requirement for machine: approx. 5,500 x 9,000 x 4,500 mm Total weight: 9,600 kg FEATURES Conversion to high-frequency spindle possible Important: Table and the wooden board shown in the photos are not included in the scope of delivery.

Condition: ready for operation (used), Year of construction: 2008, operating hours: 16,722 h, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,000 mm, spindle speed (max.): 4,200 rpm, controller model: Heidenhain iTNC 530, Submission of a bid obligates the buyer to collect the machine by the end of this year! TECHNICAL DETAILS Travel X: 4,000 mm Travel Y: 1,200 mm Travel Z: 1,000 mm Maximum spindle speed: 4,200 rpm Tool holder: SK50 DIN 69871 Table load capacity: 10,000 kg MACHINE DETAILS Control system: Heidenhain iTNC 530 Operating hours Control unit on-time: 47,181 h Machine on-time: 45,697 h Program running time: 16,722 h EQUIPMENT Ksdpexx Uayofx Ag Asnd 45° diagonal milling head with 2.5° indexing Drum-type tool changer with 24 tool positions (vertical tool change) Machine enclosure: front guard with 2 doors Rear guard with additional door Side slats for machining of extra-long workpieces Longitudinal chip conveyor (discharge on right-hand side) Control cabinet air conditioning Swivel arm for machine control (operation from front and rear)

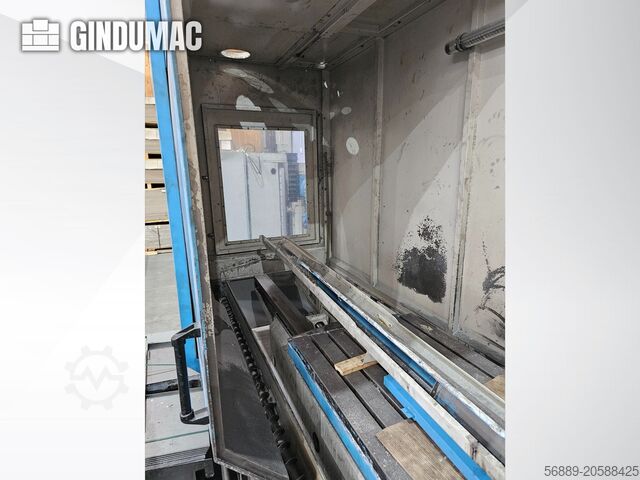

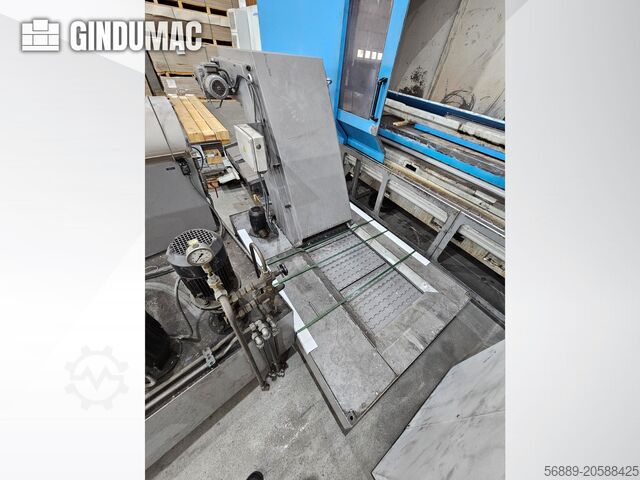

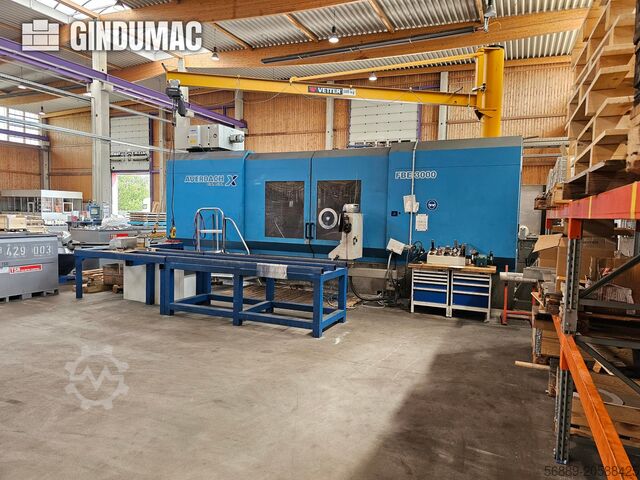

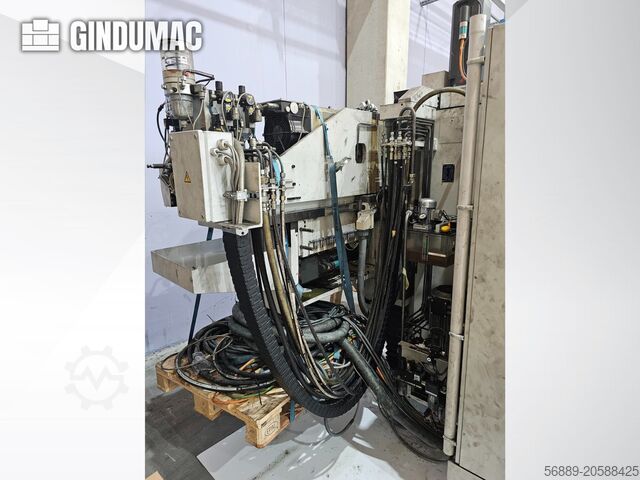

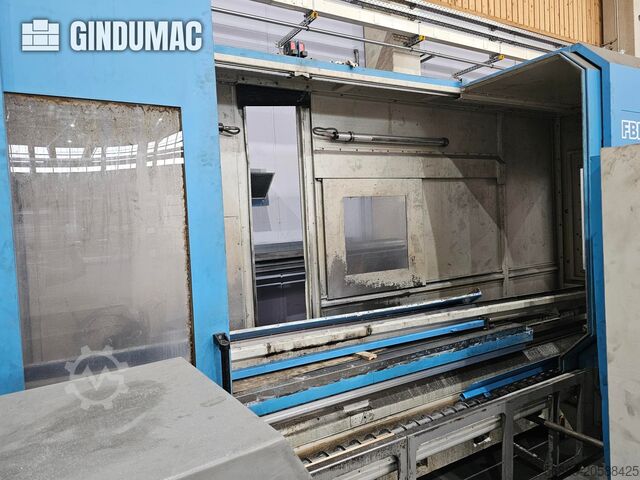

Year of construction: 2011, condition: ready for operation (used), Main Drive Number of axis 3 Spindle Speed 4000 RPM Spindle motor power 25 kW Movement X-Axis Movement 3000 mm Z-Axis Movement 900 mm Y-Axis Movement 865 mm Table Table load 10000 kg Kedpfx Asxyl Rlog Aend This 3-axis Auerbach FBE 3000 Bed Type Milling Machine was manufactured in 2011. It features a robust clamping surface of 3100 x 800 mm, capable of handling a maximum table load of 10,000 kg. The machine is equipped with a multi-position milling head KFM 1, a tool holder SK 50, and offers a spindle power of 25 kW with speeds up to 4000 rpm. If you are looking to get high-quality milling capabilities, consider the Auerbach FBE 3000 machine we have for sale. Contact us for more information. Application Types Milling

Condition: excellent (used), Year of construction: 2000, Stanko Universal Tool Milling Machine Model SMK 25/32 TNC355 Low hours – previously used in a school Machine No.: 55 Year of manufacture: 2000 Travel X: 400 mm, Y: 320 mm, Z: 440 mm Table size: 800 x 320 mm Spindle taper: ISO 40 Spindle speed: 40 – 2000 rpm Feed rate X, Y, Z axes: 10 – 1000 mm/min, infinitely variable Rapid traverse X, Y, Z axes: 1800 mm/min Quill stroke: 60 mm Spindle motor drive power: 3 kW Electrical connection: 380 Volt, 50 Hz Kjdpfx Asw D Hmlog Asnd Torque. Horizontal spindle: 230 Nm Vertical spindle: 82 Nm Total power: 5.87 kW Control voltage: 110 Volt Feed drive power: 2.2 kW Feed force: 7500 N Distance horizontal spindle to table clamping surface: Minimum 45 mm Maximum 595 mm Distance vertical spindle to table clamping surface: Minimum 45 mm Maximum 490 mm T-slot width: 14 H 7 mm T-slot spacing: 50 mm Number of T-slots: 5 Equipment: - CNC contouring control Heidenhain TNC 135 - 18 spindle speeds - Fixed angle table - Chip collection tray - Coolant splash guard and chip protection shield - Coolant system - Centralized lubrication - Lighting - Heidenhain control - Electromagnetic clutches for feed transmission - Hydraulic-mechanical axis clamping - Hydraulic tool clamping - Centralized lubrication for guideways and gearbox - Precision ground flat guideways Space requirement (L x W x H): 1685 x 1890 x 1890 mm Weight: 2200 kg Good condition – Ex-school machine Low hours Location: ex-stock 54634 Bitburg - Immediately available -

Condition: used, Year of construction: 2003, x-travel 4.000 mm y-travel 1.000 mm z-travel 1.500 mm control Heidenhain TNC 430 spindle tunring speed 5.000 U/min tool taper SK 50 number of tool places 40 Pos. Number of working hours ca. 15.829 h In our assessment, the machine is in good used condition and can be inspected under power by appointment. Technical features & accessories: - Automatic swivel head with B-axis, infinitely variable - Internal coolant supply 20 bar - Air blower through spindle - Chip conveyor - Chip flushing Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Ksdsxylqrjpfx Ag Asnd Technical data and specifications are subject to change without notice. Prior sale reserved.

Condition: ready for operation (used), Year of construction: 2009, x-travel 560 mm y-travel 320 mm z-travel 400 mm turning speeds 25 - 2000 U/min turning speeds 18 Stufen spindle taper ISO 40 quill stroke 100 mm table: 320x1000 / 450x950 mm table load 125 kg feed range 5 - 400 mm/min feed 18 Stufen rapid traverse 1.400 mm/min workpiece weight max. 125 kg T-slots 7x 14.0 mm total power requirement 4.2 kW weight of the machine ca. 1650 kg. range L-W-H 1800 x 1500 x 1780 mm from a training workshop - good condition (!!) New price ~ 25.000 euros - in checked conditions - machinevideo - ?v=2DcUYH1OMRQ Equipment: - electro-motorized universal milling machine - ACURITE 3-axis digital display - electro-motorized adjustment of all axes (X/Y/Z axis) * ball screws X and Y axis * rapid traverse in all 3x directions Kodpfx Aoxacc Esg Ajnd * electrical locking of all axes - electromagnetic brake for spindle stop * foldable milling spindle guard - coolant system - lower chip tray - vertical milling head with quill adjustment * milling head rotation 90° * tool holder ISO 40 with internal thread M16 - fixed box table 950 x 450 mm * number / size of T-slots 7 pieces / 14.0 mm * distance between T-slots 63.0 mm * minimum distance between base table / spindle axis 163 mm - Counterholder block for horizontal milling - Halogen lighting - Slatted cover on the vertical column guide - 4x machine feet - Central lubrication including container - Original operating instructions

Condition: good (used), Counter support, counter bearing, bearing block, pillow block, bearing for milling machine -Dovetail: 141 by 175 mm high Kedpod D Nfnofx Ag Aend -Drawing: in the photos -Quantity: 1x counter bearing available Price: per piece -Dimensions: 250/70/H205 mm -Weight: 12.2 kg

Condition: good (used), Year of construction: 1996, feed length X-axis: 700 mm, feed length Y-axis: 550 mm, feed length Z-axis: 500 mm, travel distance X-axis: 700 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 500 mm, feed rate X-axis: 10,000 m/min, feed rate Y-axis: 10,000 m/min, feed rate Z-axis: 10,000 m/min, spindle speed (max.): 4,500 rpm, spindle speed (min.): 25 rpm, rapid traverse X-axis: 10,000 m/min, rapid traverse Y-axis: 10,000 m/min, rapid traverse Z-axis: 10,000 m/min, mount diameter: 40 mm, table length: 1,000 mm, table width: 500 mm, overall weight: 3,500 kg, X-axis / longitudinal 700 mm Y-axis / transverse 550 mm Z-axis / vertical 500 mm Table dimensions 1000 x 500 mm Spindle speed range stepless in 3 gear steps 25 - 4200 rpm Tool holder SK 40 Feed range X-Y-Z 1 - 10000 mm/min Rapid traverse X-Y-Z 10000 mm/min Weight approx. 3500 kg Control: Heidenhain TNC 407 - TNC 415 Knedpfx Agjxg Rxbe Ajd

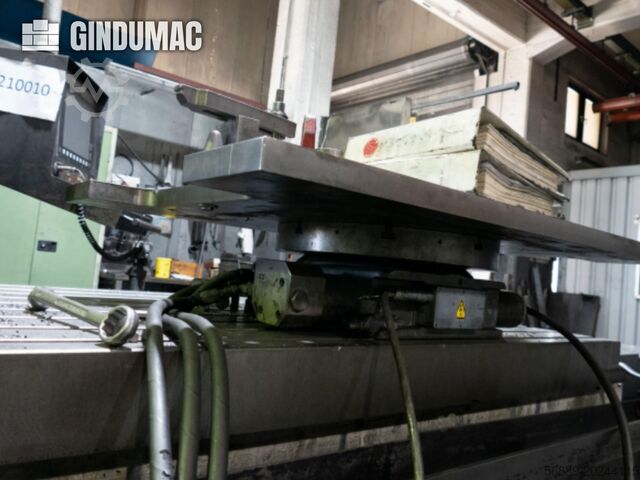

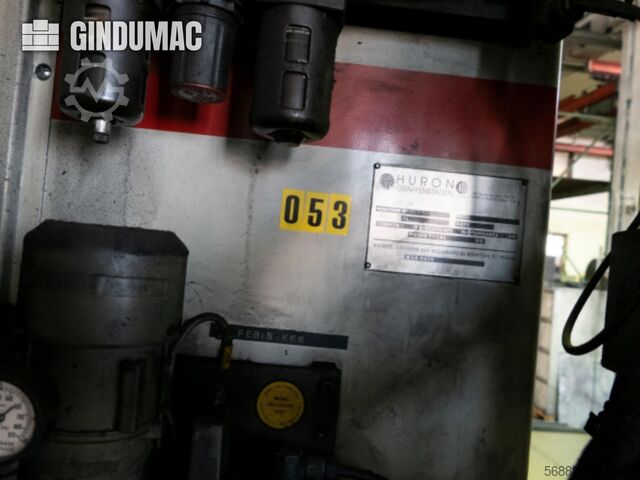

Year of construction: 1991, condition: ready for operation (used), Control Unit Knedoxl Hyxopfx Ag Ajd Brand HEIDENHAIN Model TNC 415 This 3-axis Huron X 61 38 bed type milling machine was manufactured in 1991. It is equipped with a Heidenheim TNC 415 control system and offers substantial travel dimensions with an X-axis of 2400 mm, Y-axis of 1000 mm, and Z-axis of 1000 mm. The machine's transport dimensions are 3000 mm in breadth, 1400 mm in thickness, and 3000 mm in height. Consider the opportunity to buy this Huron X 61 38 machine we have for sale. Reach out for more information. Application Types Milling

Condition: as good as new (ex-display), Year of construction: 2025, The machine is currently on display. Optimill F200 ECO Premium CNC Milling Machine—direct from the manufacturer. F200 ECO – The OPTIMUM Premium CNC Milling Machine with Siemens SINUMERIK 828D Control stands out for its performance, speed, precision, and long service life. Model: F200 ECO Control: SIEMENS SINUMERIK 828D PPU271.5 Milling Spindle: Belt Drive Machine Specifications Electrical connection: 400 V / ~50 Hz Total connected load: 15 kVA Milling Spindle Drive motor S1 operation: 9 kW Drive motor torque S1 operation: 57 Nm Drive motor S6 30% operation: 17.1 kW Drive motor torque S6 30% operation: 118 Nm Spindle taper: BT40 Coolant System Coolant pump power: 900 W Max. delivery rate: 35 l/min Tank capacity: 116 liters Flushing pump Milling Precision Repeatability: 0.008 mm Positioning accuracy: 0.004 mm Tool Changer Type: Double-arm gripper Number of tool stations: 20 Max. tool diameter: 78 mm Max. tool diameter (adjacent stations empty): 120 mm Tool length: 300 mm Max. tool weight: 8 kg Tool change time, tool-to-tool: 2.5 seconds Travel X-axis: 850 mm Y-axis: 500 mm Z-axis: 550 mm Feed Drive Rapid feed, X-/Y-/Z-axis: 48 / 48 / 48 m/min Motor Torque X / Y / Z-axis: 16 Nm / 16 Nm / 20 Nm Feed Forces X / Y / Z-axis: 5,34 kN / 5,34 kN / 6,68 kN Speed Range Spindle speed*: 10,000 rpm Pneumatics Compressed air: 6 bar Air consumption per hour: 6 – 8 kg/m³ Milling Table Spindle-to-table distance: 100 – 650 mm Table length × width: 1000 × 500 mm T-slot size / number / spacing: 18 mm / 5 / 100 mm Maximum load capacity: 500 kg Dimensions Length × width × height: 2,400 × 2,355 × 2,860 mm Total weight: 5,500 kg Equipment Kodpfxsxyh Dbo Ag Ajnd • Linear guides with ball screw for high rapid traverse speeds on all axes • Telescopic guideway covers on all three axes • Automatic lubrication • Portable electronic handwheel with enabling switch and emergency stop • RJ45 port and 230 V power outlet • Machine lamp in work area • Cleaning blow gun • Ball screws and linear guides from THK • Chip flushing system • Cooling at the spindle head (machining area) • Control cabinet • Arm-type tool changer • SW24 • CE compliant *More options available

Condition: used, Year of construction: 2005, - Heidenhain TNC 410 M contouring control, control panel can be moved over the entire machining length - Robust basic structure as welded frame construction - Ball rail guides on all axes - Milling spindle unit: 80 - 6000 rpm, tool holder SK30 - X-axis with rack and pinion drive (30 m/min) - Y/Z-axis with ball screw (20 m/min) - 2 chip drawers - Swiveling clamping device for 4700 mm workpiece length - 10 pneumatic workpiece clamps - Manually operated central lubrication system - Moving disk tool changer for 8 tools - Micro-Spray - Cooling emulsion pump - machine light - Safety bumper - Machine protection hood pneumatic vertical opening - Year of construction 2005 - Control on: 26910h - Program run: 9185h - Spindle on: 6557h Defects: - Air hoses of the clamps must be partially replaced - Contact cables of the cylinders for the tensioner displacement must be partially replaced Machine specifications - Control: Heidenhain iTNC 530, 3 controlled axes - Travel X/Y/Z: 5000 / 275 / 310 mm - Working range X/Y/Z with swivel device: 4700 / 155 / 110 mm - Rapid traverse X/Y/Z: 30 / 10 / 10 m/min - Infinitely variable feed: 0 - 5000 mm/min - Tool change: disk changer with 8 tool positions - Tool holder: SK30 - Tool clamping: pneumatic - Coolant device: Micro-spray for flow drilling, cooling emulsion - Spindle speed: 80 - 6000 rpm - Speed correction: 80 - 120 % - Drilling capacity in St60/Alu Ø: up to 18 / 20 mm - Tapping capacity: up to M14 / M16 Kjdpfx Agsu E Ti Ij Aend - Position measuring system: Rotary encoder - Positioning accuracy: 0.05 mm - Repeat accuracy: 0.025 mm - Machining accuracy tolerance: ± 0.2 mm - Compressed air connection: R 3/8" / 6 bar - Device connection: R 1/4" - Operating pressure: approx. 6 bar - Air consumption per outlet: approx. 600 l/min at 6 bar - Noise emission: 79 dBA - Electrical connection: 3x 400 V ± 5% / 50-60 Hz - Back-up fuse: max. 25 A - Power consumption: approx. 13 kVA - Control voltage: 24 V DC - Space requirement with safety fence: approx. 34 square meters (11.4 x 3 m) - Machine weight with accessories: approx. 5000 kg

Year of construction: 2012, condition: used, Used machine Year of manufacture: 2012 Technical data: Axes: X-axis: Max. workpiece length: unlimited Min. workpiece length: 250 mm Travel speed: 0-25 m/min Y-axis: Max. workpiece width: 1,000 mm Min. workpiece width: 80 mm Travel speed: 0-50 m/min Z-axis: Max. workpiece thickness: 60 mm Min. workpiece thickness: 10 mm Travel speed: 0-20 m/min The minimum and maximum workpiece dimensions depend on weight and also on the length-to-width ratio! Units: 16-position drilling head: vertical spindles in X-direction: 5 units vertical spindles in Y-direction: 5 units horizontal twin drilling spindle in X-direction: 2+2 units horizontal twin drilling spindle in Y-direction: 1+1 units Drill spindle spacing: 32 mm Kodpfxsxya Rge Ag Aond Drill spindle speed: 4,000 rpm Motor: 1.7 kW Grooving saw: in X-direction Speed: 4,000 rpm Max. saw blade diameter: 125 mm Motor: 1.7 kW (grooving saw integrated in the drilling head) Milling unit for MASTERWOOD Project TF Speed: 1,000 to 18,000 rpm Motor (frequency controlled): 3.3 kW Collet chuck capacity: max. 25 mm Incl. integrated extraction control (only the drilling head is extracted during drilling, only the milling unit during milling) Program: MASTERWORK MACHINE VERSION (office version on request) Additional data: Machine dimensions: 1,990 x 2,410 x 1,510 mm (L x W x H) Weight: 1,300 kg Required air pressure: 8 bar Air consumption: max. 750 l/min Extraction: Volume: 2,000 m³/h Air speed: 25 - 30 m/sec Extraction connection: 1 x 150 mm Additional equipment features: - Air tables in the working area - Roller table at infeed and outfeed - Additional folding roller table at infeed - Sensor for panel measurement - Ball screw and linear guides - Rack and pinion drive - Central lubrication - Import of DXF files Condition: Function-tested Availability: from approx. December 2025 Location: Bavaria

Condition: used, Year of construction: 1991, Eye-level control panel, Aigner integral stop including feed with sliding carriage (without stop ruler), milling stop with digital display and swivel mechanism Kedov Ai N Uspfx Ag Ajnd Storage location: Nattheim

Condition: refurbished (used), Year of construction: 1988, - Refurbished in 2022 - Heidenhain TNC320 CNC control - CNC or manual control possible - Movable vertical milling head with extendable spindle - Counter bearing for long milling arbors - Hydraulic tool clamping - Automatic gearshift - Automatic clamping in the X, Y, and Z axes - Automatic central lubrication - Coolant system - Direct position measurement - Collision protection coupling in the Y and Z axes - Built in 1988 - Including tool holders, drilling/milling tools, and tool carriage Specifications Working area: - X-axis (longitudinal): 485 mm - Y-axis (transverse): 385 mm - Z-axis (vertical): 380 mm - Quill stroke (vertical): 80 mm - Vertical milling head manually movable on spindle block: 150 mm Main drive: - Pole-changing Three-phase brake motor: Manual gearbox with forward/reverse rotation - Power: 3.7 / 4.4 kW - Work spindle speeds: 63 - 3150 rpm (18 steps) - Step increment: 1.25 - Tool holder: SK40 (M16) - Tool clamping: Disc spring package - Tool release: Hydraulic Feed drive: - X-axis: 1 DC motor - Y & Z-axis: 1 DC motor - Ball screws: all axes - Feed rate: 2 - 3000 mm/min (programmable) - Rapid traverse X/Y/Z-axis: 3000 mm/min Table slide: - Number of T-slots: 4 - T-slot width: 14H7 mm - T-slot spacing: 63 mm - Permissible load: approx. 600 kg Installation: - Space requirement (including safety area): approx. 2300 x 2500 mm Kjdpfxewhk Ubj Ag Aend - Machine weight including vertical milling head and angle table: approx. 1830 kg - Operating voltage: 400 V - Total connected load: 12.5 kVA - Floor load: 3000 kg/m²

Condition: used, Year of construction: 2011, - Heidenhain TNC-320 CNC control - Electronic handwheel HR-410 - Heidenhain glass measuring rods on all axes - Ball screws - Hydraulic tool retractor - AC servo feed motors - Sliding doors with safety glass - Universal milling head - Hardened guideways - Plastic-coated counter guide - Electromagnet. Main spindle brake - Automatic central lubrication system - Integrated coolant system - Steel telescopic cover for transverse travel Kodpfx Aewf Ntqog Aond - Steel telescopic cover for longitudinal travel - Work light - Year of manufacture 2011 Specifications Worktable: - Table clamping area: 1800 x 500 mm - Max. workpiece weight: 1000 kg Travel paths: - X-axis - Longitudinal travel: 1250 mm - Y-axis - Transverse travel: 540 mm - Y-axis - Transverse travel with steel telescopic cover: 500 mm - Distance between spindle center and column: 500 mm Column: - Z-axis - Vertical travel: 550 mm - Distance between spindle nose and table with vertical head position: approx. 50 - 600 mm - Distance between spindle nose and table with horizontal head position: approx. 360 mm 910 mm Milling spindle: - Tool holder: DIN 2080 ISO 50 - Speed range: 40 - 2000 rpm Feeds and rapid traverse rates: - Longitudinal/transverse feed: 4000 mm/min - Vertical movement (column): 2000 mm/min - Rapid traverse longitudinal/transverse: 4000 mm/min - Rapid traverse vertical: 2000 mm/min Motors: - Milling spindle motor: 11 kW - Feed motors for X/Y/Z axes: 1.5 kW each - Coolant pump: 0.12 kW - Lubricant pump: 12 W Installation: - Dimensions W x H x D: 3000 x 1880 x 2660 mm - Net weight of the machine: approx. 3800 kg

Condition: used, Year of construction: 2007, Urban AP 6500 F - travelling column milling machine - Heidenhain path control iTNC 530, control panel can be moved over the entire machining length - robust basic structure as a welded frame construction - ball rail guides on all axes - milling spindle unit: 80 - 6000 rpm, tool holder SK30 - X-axis with rack and pinion drive (30 m/min) - Y-/Z-axis with recirculating ball screw (20 m/min) - 6 chip drawers - swivel clamping device for 6200 mm workpiece length - 12 pneumatic workpiece clamps - manually operated central lubrication - moving plate tool changer for 8 tools - micro spray - cooling emulsion pump - machine light - safety fence - safety bumper - safety light grid - machine protection hood opens pneumatically vertically - control on: 33922 h - Program run: 9847 h - Spindle on: 7221 h - Year of manufacture 2007 Technical data - Travel paths X/Y/Z: 6500 / 275 / 310 mm - Working area X/Y/Z with swivel device: 6200 / 155 / 110 mm - Rapid traverse X/Y/Z: 30 / 10 / 10 m/min - Continuous feed: 0 - 5000 mm/min - Tool change: Disc changer with 8 tool positions Knsdeu Awm Sopfx Ag Aod - Tool holder: SK30 - Tool clamping: pneumatic - Coolant system: Micro-spray for flow drilling, cooling emulsion - Spindle speed: 80 - 6000 rpm - Speed correction: 80 - 120 % - Drilling capacity in St60/Alu Ø: up to 18 / 20 mm - Thread cutting capacity: up to M14 / M16 - Position measuring system: rotary encoder - Positioning accuracy: 0.05 mm - Repeatability: 0.025 mm - Machining accuracy tolerance: ± 0.2 mm - Compressed air connection: R 3/8" / 6 bar - Device connection: R 1/4" - Operating pressure: approx. 6 bar - Air consumption per cycle: approx. 600 l/min at 6 bar - Noise emission: 79 dBA - Motor power: 15 kW - Electrical connection: 3x 400 V ± 5% / 50-60 Hz - Pre-fuse: max. 25 A - Power consumption: approx. 13 kVA - Control voltage: 24 V DC - Space requirement with safety fence: approx. 34 m² (11.4 x 3 m) - Machine weight with accessories: approx. 5000 kg

Condition: used, Year of construction: 1995, - Heidenhain position display - Infinitely variable feed in all axes - rapid traverse in all axes Kodsvhfqrepfx Ag Ajnd - Hydraulic tightening system - Rigid angular table - electric central lubrication - coolant system - workplace lighting - machine feet - year of construction 1995 Specifications Milling table: - Clamping surface: 650 x 350 mm - Clamping grooves: 5 - Slot width: 14 H7 - Groove spacing: 63 mm - Max. load: 250 kg Working range: - X-axis: 400 mm - Y-axis: 320 mm - Z-axis: 400 mm Max. Max. distances: - Top edge of table to horizontal spindle center: 140 - 540 mm - Max. table top edge to vertical head bottom edge: 430 mm Milling spindle: - Tool holder: SK40 - Vertical/horizontal speeds: 40 - 2550 rpm - Gear stages: 2 - Vertical quill stroke: 60 mm - Vertical head can be swiveled on both sides: 90 ° Feed rates: - Feed lengthwise & crosswise: 0 - 1000 mm/min - Rapid traverse lengthwise & crosswise: 4000 mm/min - Vertical feed: 0 - 1000 mm/min - Rapid traverse vertical: 3000 mm/min General data: - Drive power: 3 kW / 1410 rpm - Dimensions WxHxD: approx. 1600 x 1850 x 1350 mm - Weight: approx. 1300 kg

Condition: used, Year of construction: 1987, - Lid Contour 3 CNC control - Sliding vertical milling head with extendable spindle - counter bearing for long milling arbors - Hydraulic tool clamp - Automatic speed gearbox - Automatic clamping in X/Y/Z axes - Automatic central lubrication - coolant device - direct path measurement - Collision protection clutch in Z/Y axes - year of construction 1987 Technical data Working range: - X-axis (longitudinal): 485 mm - Y-axis (transverse): 385 mm - Z-axis (vertical): 380 mm - Vertical quill stroke: 80 mm - Vertical milling head can be moved on headstock: 150 mm Knsdpfsu Awlzox Ag Ajd Main drive: - Motor: pole-changing three-phase AC brake motor and manual gearbox with clockwise/anticlockwise rotation - Power: 3.7 / 4.4 kW - 18 working spindle speeds: 50 - 2500 rpm - Step change: 1.25 - Tool holder: SK40 (M16) - Tool clamp: hydraulic Feed drive: - X-axis: 1 DC motor - Y- and Z-axis: 1 DC motor - All axes: ball screws - Feed speed programmable: 10 - 1000 mm/min - Rapid traverse X-/Y-/Z-axis: 2000 mm/min Universal table: - Number of T-slots: 7 - T-slot width: 14/H7 mm - T-slot spacing: 63 mm - Center bore Ø/depth: 63H6 / 8 - Distance from table center to screw-on surface: 260 mm - Max. Passage height (vertical milling spindle/table surface): 490 mm - Permissible load: 300 kg - Weight: 230 kg - Rotation range in horizontal position (axis C): 360 ° - Tilt range (axis A): +450 / -150 ° - Pivoting range (axis B): ± 450 ° - Measuring range with direct digital display: Resolution 360000 x 0.001 ° - Reduction ratios: 60:1 / 120:1 / 240:1 Installation: - Space requirement with safety area: approx. 2.3 x 2.5 m - Operating voltage: 400 V / 50 Hz - Total connected load: 7.5 kW / 9.5 kVA - Machine weight: approx. 1830 kg - Floor load: 3000 kg/m²

Condition: used, Year of construction: 1999, automatic feed in all axes ACU-RITE 3-axis position display hydraulic tool clamping coolant system workplace lighting year of manufacture 1999 Specifications Working area: - Horizontal longitudinal movement of the table (axis X): 600 mm - Horizontal transverse movement of the milling head (axis Y): 400 mm - Vertical movement of the table (axis Z): 400 mm Clamping surface of the vertical table: - Length x height: 500 x 320 mm - Number/distance/size of T-slots: 5 / 50 mm / 14H8 Fixed clamping surface of the angle table: - Length x width: 800 x 400 mm - Number/distance/width of T-slots: 8 / 50 mm / 14H8 Feed and rapid traverse: - Motor power/speed: 1.5 kW / 940 rpm - Feed levels: 18 - Feed range of X and Y axes: 16 - 800 mm/min - Feed range of Z axes: 8 - 400 mm/min - Rapid traverse of X and Y axes: 2000 mm/min - Rapid traverse of Z axes: 1000 mm/min - Maximum feed force of X and Y axes: 8 + 4 kN - Maximum feed force of Z axes: 10 + 5 kN Drive and speed of horizontal spindle: - Motor power/speed: 4 kW / 1400 rpm - Speed levels: 18 - Speed range: 63 - 3150 rpm - Maximum permissible torque on the spindle clamp: 500 Nm - Tapered bore in the spindle: SK40 Hydraulic unit: - Operating pressure of tool clamping circuit: 10 MPa - Pump motor power/speed: 0.55 kW / 1395 rpm - Tank capacity: 15 l - Pump flow rate: 2.3 l/min Cooling device: - Pump motor power: 0.09 kW Ksdpovtzkxsfx Ag Ajnd - Pump operating pressure: 0.04 MPa - Maximum amount of liquid pumped by the pump: 25 l/min - Maximum amount of liquid at the outlet: 7 l/min - Tank capacity: 40 l Required power supply: - Operating voltage/frequency: 3x 400V / 50 Hz - Power consumption: 8.0 kW - Nominal fuse rating (user-side): 20 A - Control voltage: 24 V Machine dimensions: - Dimensions WxHxD: 1975 x 1910 x 1810 mm - Machine weight including angle table and vertical milling head: 2200 kg

Condition: used, Year of construction: 2001, - 3-axis position display - Universal milling head - Hardened and ground guideways - Infinitely variable feeds - Infinitely variable speeds with 2 speed ranges - Horizontal milling attachment - Hydraulic tool clamping - 11 kW drive - Automatic central lubrication - Coolant system - Table guard - CE certification - Including milling tools - Including operating manual and documentation - Year of manufacture: 2001 - Complete service performed Technical Data Work Table: - Clamping surface: 1500 x 360 mm - Table load capacity: 800 kg Knedpfxewkvlks Ag Asd Travel: - X-axis longitudinal: 1000 mm - Y-axis cross: 540 mm - Z-axis vertical: 430 mm Working Area: - Distance spindle nose / table: 50 - 480 mm - Distance spindle center / column: 350 mm Feeds: - Number of feeds: infinitely variable - Feed longitudinal / cross: 16 - 1200 mm/min - Feed vertical: 8 - 450 mm/min - Rapid traverse longitudinal / cross: 2500 mm/min - Rapid traverse vertical: 1000 mm/min - Feed motors: 3 x 1.5 kW Main Spindle: - Number of speed steps: 12 - Speed range: 40 - 1750 rpm - Graduation: 160, 225, 315, 440, 620, 880, 1240, 1750 - Drive power: 11 kW - Spindle taper: ISO50 DIN2080 - Milling head overhang: 420 mm Dimensions and Weights: - Machine footprint: 3050 x 2150 mm - Machine dimensions: 2050 x 2210 x 1830 mm - Machine weight: 2800 kg
