Used Mazak Cnc Turning-Milling Center With Counter Spindle for sale (30,507)

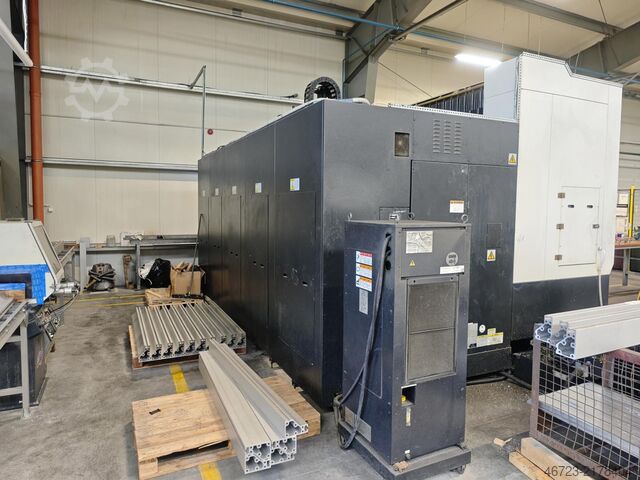

Condition: good (used), Manufacturer: MAZAK Type: Integrex 200-4 S Control: MAZATROL MATRIX Year of Manufacture: 2010 Specifications Metric US Standard Max. turning diameter 660 mm X-axis 580 mm Y-axis 160 mm Z-axis Lrjdpfxjwpufge Afajk 1045 mm B-axis 225° Spindle bore 82 mm Spindle speed 5000 rpm Spindle power 18.5 kW Counter spindle speed 6000 rpm Counter spindle bore 82 mm Counter spindle power 18.5 kW Tool changer 80 Driven tool speed 12,000 rpm Dimensions (estimated) Length 4500 mm Width 2400 mm Height 2900 mm Weight 9200 kg Please note: The information on this page was obtained to the best of our knowledge and, as far as possible, from the manufacturer. The information is provided in good faith, but accuracy cannot be guaranteed. Accordingly, they do not constitute representations or contractual terms. We recommend you check all important details.

Condition: used, Year of construction: 1999, Turning length 1575 mm X 450 mm Y +/- 90 mm Z 1575 mm Max. swing 510 mm Max. turning diameter 400 mm Lsdjuimaxspfx Afaork Spindle bore 76 mm Spindle speeds 3000 rpm on main spindle Spindle speeds 6000 rpm on mill spindle Tool changer w/ 40 stations Hydraulic tailstock Control: Mazatrol Pc Fusion 640 MT Equipped with: Hydraulic 3-jaw chuck Chip conveyor App. 20 holders for turning

Year of construction: 2020, condition: ready for operation (used), X1-/ X3-axis: 180mm, X2-axis: 180mm, Y1-/ Y3-axis: ±45mm, Z1-/ Z3-axis: 704mm, Z2-axis: 620mm, E2-axis: 720mm, rapid traverse X, Y, Z-axis: 30m/min, spindle 1: max. speed: 5000/min, spindle bore: 65mm, chuck diameter: 210mm, spindle 2: max. speed: 7000/min, spindle bore: 42mm, max. chuck diameter: 140mm, spindle nose diameter: 110mm, max. chuck jaw weight: 1.25kg, number of stations: 2x12, number of driven tool stations: 2x12, max. speed: 8000/min, power S3 25%: 4.3kW, torque S3 25%: 13.6Nm. Length: 2880mm, width: 2130mm, height: 1990mm, weight: 7.5t, operating hours: 16,597.7h. Including bar feeder Top Automazioni X-FILES S, year of manufacture 2020, 4x tool holders, straight, left-right square mount, external coolant, 4x machine interface: BT45A, 1x milling head 90°/BMT 45 Spinner, angled milling head/ BMT45/ ESX-25 right and left twin-spindle, Spinner flat coupling, ER25 max. speed: 6000/min, i=1:1, raised design with center distance 85mm, 1x cut-off holder, rotation direction universal, external coolant. Regularly maintained, maintenance records available, an on-site inspection is possible. Lsdpsw Sxx Uofx Afajrk

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, machine/vehicle number: 7024NL256160890J, spindle speed (max.): 10,000 rpm, travel distance Y-axis: 200 mm, rotational speed (max.): 4,000 rpm, bar diameter (max.): 80 mm, distance between centers: 700 mm, Condition: Ball screw drives in X, Y, and Z axes replaced; major maintenance package carried out approx. one year ago (machine has not been in operation since)! TECHNICAL DETAILS Distance between centers: 700 mm Spindle speed range: 1 - 4,000 rpm Tool spindle speed: 10,000 rpm Bar capacity: 80 mm Lrsdpfx Aey A Icrsfaek Mounting: MT5, revolving tailstock Without center Turret: 12 stations, bolt-on turret Overhang for driven tools: ±100 mm Assemblies: Integrated MK4 bearing for live center Chip and coolant system: Scraper-type chip conveyor with magnetic separator, discharge height approx. 1,000 mm Coolant system: high pressure 5 bar, pump 800 W, delivery rate 20 l/min Coolant shower at chuck, including high-performance pump Compressed air blow-off system for tool holder sleeves Compressed air blow-off system for tailstock live center Line filter for coolant system MACHINE DETAILS Control: M730UM, CELOS - ERGOline Touch Total power: 18.5 / 18.5 / 15 kW (25% duty cycle / 50% duty cycle / continuous) Tool spindle power: 5.5 / 5.3 / 7 kW (3 min / 5 min / continuous) EQUIPMENT Interface for oil mist separator (diameter: 150 mm) Signal beacon: red, yellow, green, blue EtherNet/IP interface for automation Robot interface for portal robot DMG Mori Seiki Transformer: 45 kVA, three-phase autotransformer X-axis direction ISO Note: The machine is supplied without a chuck, tool pre-setter, or workholding devices.

Condition: ready for operation (used), Year of construction: 2008, operating hours: 61,440 h, functionality: fully functional, machine/vehicle number: 06800003891, rotational speed (max.): 5,000 rpm, controller model: Siemens 840D powerline, Equipment: chip conveyor, documentation/manual, TECHNICAL DETAILS Max. speed: 5,000 rpm MACHINE DETAILS Control: Siemens 840D powerline Electrical Data Apparent power: 50 kVA Rated current: max. 72 A Current: 80 A Mains voltage: 400 V Lrodpeyzqtkefx Afajk Frequency: 50 Hz Control voltage: 230 V Voltage: 24 V Operating hours: approx. 76,300 h Spindle hours: approx. 61,440 h EQUIPMENT Pallet circulation system Material conveyor belts for machined parts Chip conveyor Documentation/manual Note: The machine is sold without chuck, tools or raw part holders. Additionally, the seller can offer the following accessories: SMW KNCS225 chuck for €1,500 Ewab pallets (base pallets) 10 units for €500 Extension of transport belts for finished parts €2,000 Basic holder set VDI 40 suitable for the machine, 10 units for €1,000

Condition: ready for operation (used), Year of construction: 2005, operating hours: 60,683 h, functionality: fully functional, turning length: 1,524 mm, turning diameter: 820 mm, spindle speed (max.): 3,300 rpm, rapid traverse X-axis: 40 m/min, milling spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Turning length: 1,524 mm Turning diameter: 820 mm Lodpfx Ajy Akpnjfasrk Travel X-axis: 870 mm Travel Y-axis: 500 mm Travel Z-axis: 1,598 mm Main spindle Max. spindle speed: 3,300 rpm Main spindle drive power: 30 kW / 22 kW Max. torque main spindle: 588 Nm Main spindle nose: A2-11" Spindle bore: 104 mm Indexing: 0.0001 Sub spindle Max. spindle speed: 3,300 rpm Sub spindle drive power: 30 kW / 22 kW Max. torque sub spindle: 588 Nm Sub spindle nose: A2-11" Indexing: 0.0001 Milling spindle Milling spindle drive power: 37 kW Max. torque milling spindle: 260 Nm Milling spindle speed range: 0-10,000 rpm Rapid traverse X-axis: 40 m/min Rapid traverse Y-axis: 40 m/min Rapid traverse Z-axis: 40 m/min MACHINE DETAILS Control: Mazatrol 640M PRO Tool holder: SK50 Number of tool stations: 120 Operating voltage: 400 V / 50 Hz Connected load: 104 kVA Required floor space (L x W): 7 x 3.5 m Operating hours: 60,683 h EQUIPMENT Infinitely variable speed adjustment 120-position tool magazine High-pressure coolant 70 bar Renishaw Laser measuring system for rotating tools Interface set Air / water cooling through the spindle Overload monitoring system Mayfran Consep 2000 chip conveyor SMW quick-change chuck

Condition: ready for operation (used), Year of construction: 2008, operating hours: 3,858 h, functionality: fully functional, turning length: 705 mm, turning diameter: 275 mm, travel distance X-axis: 260 mm, travel distance Z-axis: 795 mm, controller model: MSX-850III, TECHNICAL DETAILS Ljdpfxsyz Aq Is Afajrk Travel X-axis: 260 mm Travel Z-axis: 795 mm Turning length: 705 mm Max. turning diameter: 275 mm Swing over bed: 923.8 mm Swing over cross slide: 755 mm Bar work capacity diameter: 80 mm Upper turret Number of tool stations: 12 Main spindle Spindle speed: 4,000 rpm Spindle drive power: 18.5/18.5/15 kW (10 min/30 min/cont) Spindle nose: JIS A2-8 Tailstock Tailstock travel: 734 mm Taper: MT5 MACHINE DETAILS CNC control: MSX-850III Dimensions & Weight Dimensions (L x W x H): 3,100 x 1,922 x 2,120 mm Weight: 5,800 kg Operating Hours Main spindle hours: 3,858 h Power-on hours: 21,543 EQUIPMENT Chip conveyor Tool measuring arm

Condition: ready for operation (used), Year of construction: 2010, operating hours: 5,002 h, functionality: fully functional, turning length: 424 mm, turning diameter: 370 mm, travel distance X-axis: 380 mm, bar passage: 52 mm, controller model: FANUC FS-31iA5 (MAPPS 4), TECHNICAL DETAILS Turning length: 424 mm Maximum turning diameter: 370 mm (270 mm with turret 2) Lrjdpfey Edc Hsx Afask Bar capacity: 52 mm Turn-mill spindle Full indexing specifications: Yes X-axis travel: 380 mm Y-axis travel: ±105 mm Z-axis travel: 460 + 155 mm (ATC) B-axis: ±120º Spindle speed: 12,000 rpm Drive power: 9/5.5 kW Tool magazine Magazine positions: 38 Tool holder: Capto C5 Maximum tool length: 250 mm (210 mm for tools under Ø70 mm) Maximum tool diameter: Ø70/Ø130 mm (with/without adjacent tools) Maximum tool weight: 5 kg Lower Turret X-axis travel: 155 mm Z-axis travel: 610 mm Number of tool stations: 10 Tool rotational speed: 6,000 min⁻¹ Driven tool power: 1.5/1.2 kW Main Spindle Spindle speed: 6,000 rpm Drive power: 11/7.5 kW Spindle bore: 73 mm Chuck type: Hollow chuck (8") Manufacturer: KITAGAWA Spindle nose: JIS A2-5 Maximum torque: 223 Nm Sub Spindle Spindle speed: 1,000 rpm BW axis: 4 fixed positions, 0º, -30º, -180º (-225º for overhang to conveyor, if equipped) MACHINE DETAILS Control: FANUC FS-31iA5 (MAPPS 4) Potential rated output: 39.24 kVA Dimensions & Weight Dimensions (L x W x H): 2,705 x 2,425 x 2,385 mm Weight: 8,800 kg Operating Hours Powered on: 54,061 hours Spindle 1 operating hours: 9,813 hours Spindle 2 operating hours: 5,002 hours EQUIPMENT Chip conveyor Signal lamp High-pressure pump Air blower outside the spindle Foot switch (double) for main and sub spindle

Condition: ready for operation (used), Year of construction: 2005, operating hours: 19,229 h, functionality: fully functional, machine/vehicle number: 8043943123C, turning length: 1,050 mm, turning diameter: 465 mm, travel distance X-axis: 300 mm, travel distance Z-axis: 1,050 mm, controller model: Siemens 840 D, TECHNICAL DETAILS Turning diameter: 465 mm Turning length: 1,050 mm Swing diameter: 680 mm Chuck diameter: 325 mm X-axis travel: 300 mm Z-axis travel: 1,050 mm Spindle speed range: 3,500 rpm Rapid traverse X/Z: 30 m/min MACHINE DETAILS Control: Siemens 840 D Lodpfxey D I Ttj Afaerk Number of tool positions: 12 positions Tool holder: VDI 40 Weight: 7,500 kg Operating hours Spindle hours: 19,229 h Power-on hours: 81,347 h Note: The machine can be inspected under power upon request.

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, turning length: 1,585 mm, turning diameter: 300 mm, controller model: Siemens 840D Powerline, number of slots in tool magazine: 120, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Turning length: 1,585 mm Turning diameter: 300 mm Tool magazine capacity: 120 positions MACHINE DETAILS Control: Siemens 840D Powerline EQUIPMENT Sub spindle Lrodpfoy Dqtiox Afask C-axis Hollow clamping device (diameter 68 mm) on main spindle, left Measuring device with probe Oil mist separator

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 144205, turning length: 2,500 mm, controller model: MAZATROL PC-Fusion CNC 640MT, Equipment: chip conveyor, TECHNICAL DETAILS Turning length: 2,500 mm MACHINE DETAILS Control: MAZATROL PC-Fusion CNC 640MT Tool magazine: 30 tool stations EQUIPMENT High-pressure coolant system Driven tools Chip conveyor Measuring probe/tool measurement Steadies (lunettes) Note: A minor repair has been carried out on the machine. The repair certificate is attached. Ledpsy Dp Acefx Afasrk

Condition: ready for operation (used), Year of construction: 2019, operating hours: 2,770 h, functionality: fully functional, machine/vehicle number: NL257181158, turning length: 705 mm, travel distance X-axis: 260 mm, travel distance Y-axis: 50 mm, travel distance Z-axis: 795 mm, swing diameter over cross slide: 742 mm, swing diameter over bed slide: 920 mm, TECHNICAL DETAILS Working Area Swing diameter over bed max.: 920 mm Swing diameter over cross slide max.: 742 mm Turning length max.: 705 mm Bar capacity: 80 mm X-axis travel: 260 mm Y-axis travel: 50 mm Z-axis travel: 795 mm Main Spindle Power: 18.5/15 kW Max. speed: 4,000 rpm Chuck size: 10 inch Spindle bore: 91 mm Front bearing diameter: 140 mm Sub Spindle Power: 11/7.5 kW Max. speed: 4,000 rpm Chuck size: 6 inch Spindle bore: 45 mm Front bearing diameter: 85 mm Turret and Axes Tool stations: 12 Tool shank cross-section: 25 mm Max. driven tool speed: 10,000 rpm Rapid traverse X-axis: 30,000 mm/min Rapid traverse Y-axis: 10,000 mm/min Rapid traverse Z-axis: 30,000 mm/min Rapid traverse B-axis: 30,000 mm/min MACHINE DETAILS Control: M730UM with CELOS Operating hours: 2,770 h Power-on hours: 10,820 h Dimensions & Weight Machine height: 2,000 mm Installation dimensions: 3,347 x 2,106 mm Weight: 5,820 kg Lrodpfx Afoy A Nf Ijaok EQUIPMENT Y-axis Sub spindle Main spindle with 10-inch chuck Sub spindle with 6-inch chuck Chip conveyor High-pressure coolant system Tool measuring system Parts catcher Workpiece ejector Interface for bar loader

Condition: used, Year of construction: 2012, turning diameter 350 mm turning length 650 mm control 840 D SL ShopTurn Siemens greates pass round over bed 385 mm Swing dia. over traverse guideway 350 mm turning speed range - main spindle 0 - 4.500 min/-1 power capacity - main spindel 11,5 / 8 kW max. Torque 340 Nm spindle diameter in front bearing 130 mm Ljdpfxey E Tvvj Afaerk spindle bore 87 mm bar material dia. max. 65 mm max. chucking diameter 250 mm spindle head 170 h5 number of toolpositions 12 pos. Shank diameter DIN 69880: 30 mm Number of driven toolspositions 6 pos. Spindle speed - driven tool stations max. 4.500 min -1 power capacity driven tool-stations 5,5 kW x-axis 255 mm z-axis 800 mm tailstock 680 mm taper of center MK 4 clamping capacity 6,8 kN feed speeds 0 - 30.000 mm/min rapid traverse ( X / Y / Z ) 30 / - / 30 m/min Feed force ( X / Y / Z ) 4,5 / - / 6,2 kN total power requirement 28 kW weight of the machine ca. 3,3 t dimensions of the machine ca. 5,0 x 2,5 x 2,3 m CNC Universal Lathe GILDEMEISTER - NEF 400 V3 - C-Axis - Tool-Drive - only ca. 8093h Spindle hours - incl. 1x workbench - incl. 1x tool cabinet - incl. 1x cabinet for VDI tool holders - incl. 8x tool holders - incl. 4x driven tools (2 radial, 2 axial)

Condition: used, Year of construction: 2008, functionality: fully functional, Turning / milling center with counter spindle with 10 CNC axes (X1, X2, Z1, Z2, Y1, Y2, B1, B2, C1, C2) Control: FANUC 31:iA Lredpfey E Nz Isx Afajk Main Spindle Power: 15/11 kW bar material dia.: 51 mm spindle revolution: 5.000 min-1 Counter Spindle Power: 11/7,5 kW bar material dia.: 51 mm spindle revolution: 5.000 min-1 Turning and milling spindle Power: 7,5/3,7 kW Turning and milling spindle speed: 12.000 min-1 max. rotation length turret bottom: 1.005 mm Slide cross X1 / X2 / Z1 / Z2 / B2: 455 / 222,5 /1.090 / 1.005 / 1.008 mm Slide cross Y1 / Y2: +/- 70 / +20, -50 mm Swivel range B1 axis: +/- 95 ° Linear rack magazine incl. support robot CNC support steady rest Coolant cyclone filter system incl. 2 pcs. coolant pumping spindle oil cooler

Condition: used, Year of construction: 2000, max swing 700 mm, X/Y 255/520 mm, 12-position upper tool turret and 8-position lower tool turret with driven tools, measuring head, tailstock, CNC SIEMENS SINUMERIK 840D, 400V 50Hz 45kW, weight 15 t Ljdpfx Ajym Sx Djfajrk

Condition: excellent (used), Year of construction: 2015, 1000mm Swing, 760mm max. machining diameter, 1540mm max turning length, 4000rpm main spindle, 76mm bar capacity, 12000rpm milling 18.5kW, C axis 0.001 degrees, Y axis -/+115mm, 40 station ATC, Lodpfx Aow I Tniefaerk 12 station lower turret, milling speed 4,000rpm, 22kW spindle motors, FANUC 31i control, 3 Jaw Power Chuck, Swarf Conveyor, Coolant

Condition: new, Year of construction: 2025, Ref. -No.: 10465 Manufacturer: IGREK Type: FR 1000 T Year of construction: 2025 Type of control: CNC-Steuerung Control: Siemens / Heidenhain Storage location: Istanbul Country of origin: Türkiye X-Travel: 1350 mm Y-Travel: 1500 mm Z-Travel: 900 mm B-Axis: ° C-Axis: 360 ° Spindle Taper: HSK-T100 Turntable diameter: 1000 mm Table Load: 2000 kg Tool Piece Magazine With: 48 Pcs./pcs. Spindle Speed: 15000 RPM Lredpoxmd S Isfx Afajk Rapid Travel X/Y/Z: 48 mm / min Drive Capacity - Spindle Motor: 35 kW Max Spindle Torque: 220 Nm Machine length: 3200 mm Machine width: 6400 mm Machine Height: 4050 mm Weight Of The Machine Ca.: 40 t Further information: IGREK FR 1000 T – Compact precision for demanding applications The IGREK FR 1000 T is a CNC turning and milling center with 5-axis simultaneous machining that combines state-of-the-art technology in a compact design. Manufactured in 2024, this machine is ready for immediate use and is ideal for the precise machining of medium-sized workpieces in a wide range of industries. Key features: Compact performance: Traverse paths of 1,350 mm (X), 1,500 mm (Y) and 900 mm (Z) and a table load capacity of up to 2,000 kg provide optimal conditions for flexible applications. 5-axis simultaneous machining: With a B-axis (°/°) and a C-axis (360°), even complex geometries can be precisely machined. High-performance spindle: The spindle achieves speeds of up to 15,000 rpm, a maximum torque of 220 Nm and a drive power of 35 kW – ideal for demanding milling work. Extended capacity: A tool magazine with 48 tool spaces and the HSK-T100 holder enable quick changes and efficient processes. Top speed: Rapid feed speeds of 48 m/min on all axes minimize machining times. Technical data at a glance: Traverse paths: X 1,350 mm / Y 1,500 mm / Z 900 mm Rotary table diameter: 1,000 mm Max. table load: 2,000 kg Spindle power: 35 kW Spindle speed: up to 15,000 rpm Machine dimensions (LxWxH): 3,200 x 6,400 x 4,050 mm Weight: approx. 40 tons Additional advantages: Thanks to the latest control systems (Siemens or Heidenhain) and a robust machine concept, the IGREK FR 1000 T is suitable for both single-part and series production. The manufacturer offers international service and comprehensive warranties. Discover the IGREK FR 1000 T as your reliable partner for precise and efficient manufacturing – now available from stock. Contact us for more information!

Condition: excellent (used), Year of construction: 1998, Mazatrol T-Plus control Max. turning diameter: 470 mm Max. swing diameter: 575 mm Turning length: 1,500 mm Spindle speed: 3,000 rpm Magazine for 40 tools (KM 63/SK 40) B-axis Y-axis Steady rest Tailstock Lodpfjy Ehm Aox Afasrk Chip conveyor

Condition: good (used), Year of construction: 2010, Ref. -No.: 10287 Manufacturer: DMG Type: DMC 210 FD Year of construction: 2010 Type of control: CNC Control: Heidenhain Mill Plus Storage location: Halberstadt Country of origin: Deutschland X-Travel: 2100 mm Y-Travel: 2100 mm Z-Travel: 1250 mm Machine length: 11.000 mm Machine width: 5.000 mm Machine Height: 3.500 mm Max. Workpiece diameter: 2500 mm Max. Workpiece Weight: 6.000 kg Max. rotary table diameter: 1.850 O Table speed range: 250 min/-1 Tool Taper: HSK-A100 Tool Piece Magazine With: 183 Pcs./pcs. Spindle Speed: 12.000 RPM Max. Torque On The Boring Spindle: 288 Nm Max. Torque: 2.000 Nm Feed Speeds X/Y/Z Axis: 30.000 mm / min Max. Workpiece height: 1.460 mm axes: 5 Further information: Turning and milling center incl. pallet changing system Lredpfx Aey Edzpjfaek Gear spindle Coolant treatment system, with belt filter, 710 x 50mm 1 Knoll 600S2 chip conveyor 2 Losma oil mist extraction units 1 steel platform (storage space for clamping device): 5,300 x 2,900 mm - Axes renewed 11.2024 - New encoder, electrical components renewed - Geometry protocols available Machine is still in production and under power. The machine can be viewed at any time by appointment.

Condition: used, Year of construction: 2001, Technical details: turning diameter: 120 mm turning length: 100 mm control: Fanuc Spindle 1 power: 7,5 kW Spindle 1 RPM: 4500 1/min Spindle 2 power: 7,5 kW Spindle 2 RPM: 4500 1/min Distance between spindle noses: 600 mm Turret No.1 stations / rotary tools: 15/15 Power rotary tools turret 1: 2,7 kW RPM of rotary tools turret 1: 4000 1/min Turret No.2 stations / rotary tools: 15/15 Power rotary tools turret 2: 2,7 kW RPM of rotary tools turret 2: 4000 1/min Travel x/z turret 1: 250 / 300 mm Travel x/z turret 2: 250 / 920 mm Bar capacity spindle 1: 51 mm Bar capacity spindle 2: 51 mm power chuck: 165 mm Spindle bore sp. 1: 62 mm Spindle bore sp. 2: 62 mm Lodey D Nxdspfx Afaork dimensions of the machine ca.: 3700 x 2300 x 3000 mm weight of the machine ca.: 5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 120 x 100 mm Doublegripper capacity 2 x 3 kg *

Condition: like new (used), Year of construction: 2014, operating hours: 925 h, functionality: fully functional, turning length: 500 mm, turning diameter over cross slide: 290 mm, turning diameter: 500 mm, spindle speed (max.): 5,500 rpm, spindle bore: 73 mm, travel distance X-axis: 210 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 525 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 22 m/min, rapid traverse Z-axis: 30 m/min, total height: 1,808 mm, total length: 4,447 mm, chuck outer diameter: 210 mm, total width: 2,378 mm, swing diameter over cross slide: 290 mm, spindle nose: FL 140h5, overall weight: 4,300 kg, Equipment: documentation/manual, rotational speed infinitely variable, 925 spindle hours—in other words, virtually as good as new; that’s certainly the case for this DMG MORI CTX ALPHA 500 V4! The machine comes from a prototype department where primarily plastics were machined. Lsdpoy Duinofx Afaork

Condition: used, Year of construction: 2005, Technical details: turning diameter: 275 mm turning length: 900 mm spindle passage: 65 mm power capacity at 100 % load: 25/20 kW spindle turning speed range: 1 - 5000 U/min spindle diameter in front bearing: 110 mm c-axis: 1 - 500 U/min. number of workpiece supports: 4 tool turret: 1 x-axis: 290 mm Lrjdpjwp D Nbefx Afask y-axis: 165 mm z-axis: 360 mm b-axis: 360 ° rapid speed: 18/30 m/min number of tools: 2x2 + 2x2 number of driven tools: 2x2 + 2x2 mm toolpiece turning speed range: 8000 / 2000 U/min power capacity: 25% ED 5,8 kW tool taper: TRAUB 60 tool turret: 2/3/4 x-axis: 170 mm z-axis: 600/950 mm y-axis: +/- 60 mm rapid speed: 18/15/30 m/min number of driven tools: 10 mm toolpiece turning speed range: 1 - 6000 U/min power capacity: 25% ED 5,8 kW tool taper: DIN 69880 40 x 63 total power requirement: 95 kW weight of the machine ca.: 16 t dimensions of the machine ca.: 10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and Sub spindle with C-axis 1 support with B-axis 3 turret supports dust exhauster, coolant attachment with coalescence-seperator and chip conveyor 2 pc. 3-jaw chuck SMW KNCS-N 170-43 2 pc. HAINBUCH Spanntop chuck 40 pc. various tool holder non-driven 6 pc various tool holder driven Spare parts package *

Condition: used, Year of construction: 1990, Technical details: turning diameter: 445 mm turning length: 2000 mm turning diameter over bed slide: 660 spindle bore: 65 mm spindle speeds:: 16 - 3150 U/min. Lrsdjw I R Ndopfx Afaok rapid motion - x-axis: 10 mm/min rapid traverse Z-axis: 15 m/min total power requirement: 34 kW weight of the machine ca.: 7,5 t dimensions of the machine ca.: 6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment *

Condition: ready for operation (used), Year of construction: 2006, operating hours: 16,093 h, functionality: fully functional, turning length: 1,000 mm, spindle speed (max.): 5,000 rpm, controller model: MITSUBISHI M-720BM (MAPPS 2), counter spindle speed (max.): 5,000 rpm, milling spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Turning length: 1,000 mm Main Spindle Max. spindle speed: 5,000 rpm Drive power: 22/15 kW Spindle bore: 73 mm Counter Spindle Max. spindle speed: 5,000 rpm Drive power: 22/15 kW Spindle bore: 73 mm Milling spindle speed: 0 - 12,000 rpm Tool holder: Capto C6 Tool stations: 100 positions Hollow clamping device: 67 mm MACHINE DETAILS Control unit: MITSUBISHI M-720BM (MAPPS 2) Operating Hours Operating hours: 26,875 h Spindle hours: 16,093 h EQUIPMENT Y-axis Fully indexable B-axis Chip conveyor, discharge right Standard coolant system Interface for high-pressure coolant system, 70 bar Tool spindle with through-spindle cooling Coolant spray gun Blow air through sub spindle Manual tool presetting on main spindle 3-color signal tower Double foot switch Simultaneous 5-axis machining Automatic power off Tool offset for 5-axis machining Programmable data input Dynamic interchange diameter/radius Stroke check prior to movement Lredpfx Ajy Eydyefajk

Condition: good (used), Year of construction: 2000, functionality: fully functional, Control brand: FANUC Control model: 21T Machine depth: 1850 mm Machine weight: 3000 kg Lrodsy Eyazjpfx Afaek Max. turning length: 450 mm Max. swing over cross slide: 310 mm Max. swing over bed: 500 mm Spindle bore: 77 mm Tool stations in turret: 12 pcs Turret traverse x / z: 200 / 450 mm Rapid traverse x / z: 24 / 30 m/min
