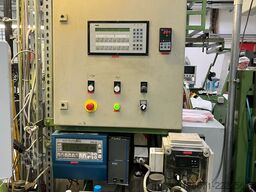

Paper bag making machine

Fischer & Krecke Combi 11B

Condition: ready for operation (used), A Honsel bag making machine (packaging machine) is available. Working width: 500mm, wrapping closure: one-sided. Including cardboard flange feeder. The machine is partially dismantled. Toothed belts must be tensioned and partially replaced. Toothed belt wheels are disassembled and must be installed. On-site inspection is possible. Pgjdpfx Adjvtqrls Sjn

Condition: used, Year of construction: 1980, Paper bag making machine 3 colors flexo inline Psdpfx Aoy Umq Ssd Segn Photocell bag widht: 170 - 280 mm tube lenght: 300 - 600 mm gusset: 60 - 150 mm

Condition: used, Year of construction: 1978, functionality: fully functional, FISCHER & KRECKE 31 DF Type: Rotary flexographic printing machine Model: 31 DF | Year of manufacture: 1978 Manufacturer: Fischer & Krecke, Bielefeld, Germany Machine purpose: The machine is designed for flexographic printing on paper and various types of films, both for independent use and in a line with other machines (e.g., for bag production, cutting, or lamination). It is ideal for printing packaging materials, labels, bags, and other paper products in various weights. The machine is fully functional. Technical parameters Input material: • Number of rolls: 1 • Core diameter: 70, 76, 100, 150 mm • Max. roll width: 89 cm (throughput) • Max. roll diameter: 125 cm • Printing width: max. 85 cm • Material weight: 15–350 g/m² Printing: • Number of colors: 1–4 • Printing line: max. 64 lpi • Printing repeat: 290–660 mm • Speed: up to 250 m/min Longitudinal cut: • up to 60 g/m²: approx. 2 × 4 cm • over 60 g/m²: approx. 2 × 3 cm Gluing: paper + microtene, hot melt adhesive Podpfxey Uc Uys Ad Sjgn Output: • Core diameter: 70, 76 mm • Max. roll diameter: 107 cm Fischer Krecke 31DF printing cylinders Repeat number of cylinders number of gears Repeat number of cylinders number of gears REPEAT NUMBER OF CYLINDERS NUMBER OF GEAR WHEELS 290 3 3 300 4 4 310 4 4 320 4 4 330 4 4 340 4 4 350 4 4 360 4 4 370 4 4 380 4 4 400 4 4 420 4 4 440 4 4 460 4 4 480 4 4 500 4 4 520 4 4 540 4 4 560 4 4 630 2 2 660 3 3

Condition: new, functionality: fully functional, Year of construction: 2024, machine/vehicle number: VM-WO-250-90-0-2-AAM00064R, total length: 1,600 mm, load capacity: 250 kg, throat depth: 650 mm, Schmalz plate vacuum lifter, original packaging, year of manufacture 2024, with two suction pads, maximum plate load of 250 kg. Boom arm swivels 180°, up to 3500 mm. Suction plate design: transverse orientation. Suction pad length: 550 mm, width: 200 mm, quantity: 2 pcs. Accessories: Spiral hose for compressed air supply: 2500 mm, compressed air supply length to crane: 12 m, number of hose connections: 2 pcs. Weight: 0.00178 kg. Customs tariff number: 84289090. Country of origin: Germany. Pgodpfx Aeycva Red Sjn

Condition: ready for operation (used), Year of construction: 1968, A mechanical Karges-Hammer eccentric press for series production in can manufacturing is available. Ram stroke: 75mm, flywheel speed: 80rpm, motor power: 3HP, speed: 294rpm. An on-site inspection is possible. Pgjdpfjy Ndfisx Ad Sjn

Condition: good (used), functionality: fully functional, Production line for sealed block-bottom bags The machine can also be used as a standard block-bottom machine for paper. The necessary parts are available. The sealing unit can also be used offline without a bridge. Pre-printed bottom sheet Self-adhesive bottom sheet In-line coding printer Material: Paper and composites Format: Bag width: 140 mm - 320 mm Bag length: 240 – 900 mm Bottom width: 70 – 180 mm With servo drive - Block-bottom standard materials: Uncoated paper: 70 g/m² and 100 g/m² Coated paper: 80g Plastic films (LDPE): 40 µ, 70 µ and 100 µ PE-coated paper: Pa 60 g/m² + LDPE 40 g/m² Airsickness bags: Pa 65 g/m² + LDPE 23 g/m² Paper-aluminum-PE composite: Alu 8/25 and Alu 8/50 PET/Alu/PE composite: PET 12 µ / Alu 8 or 9 µ / LDPE 90 µ - Possible materials Outer layer Coated paper 60–120 g/m² Over 100 g/m² only in large format Inner layer LDPE mono-film 0.03–0.10 mm (optionally needled) Alternatives: LDPE 0.08–0.12 mm OPP 20–40 µ PE-coated paper (various combinations) Aluminum foil on carrier paper with PE coating Construction from outside to inside 30 g/m² bleached kraft paper 12 g/m² PE 0.008 mm aluminum foil 25 or 50 g/m² PE Intermediate layer (only with material 21) Alternative: Bleached kraft paper 80–100 g/m² Brown kraft paper 80–100 g/m² Pgjdpfx Adezgwnio Son LDPE 80–100 µ
