Used transformers for sale (174)

Condition: excellent (used), functionality: fully functional, Year of construction: 2006, Oil hermetical distribution transformer, producer - ELIN, made in Czech republic, 630kVA, 10/0,42kV, Dyn1, ONAN, uk=4%, year of production 2006, functional, rutine test report, design documentation, available 2 pcs. Dsdpfxex Nxtuo Albecl

Condition: new, Year of construction: 2023, Never used dry epoxy casted rectifier transformer - manufacturer TESAR Italy, power 1600kVA 21(2x±2,5%)/2x0,570kV, Dd0yn11, IP00, standard losses according to IEC standard, Al-Al winding, electrostatic screen, THDi=25%, complete design documentation and test report, available 1 pc on stock, year of manufacture 2023. Dcedpey Ah Nrjfx Albsl

Condition: excellent (used), Year of construction: 1993, functionality: fully functional, machine/vehicle number: K2 22674, type of input current: AC, overall weight: 2,910 kg, input voltage: 21,000 V, input frequency: 50 Hz, nominal power (apparent): 1,250 kVA, type of output current: AC, We are offering our transformer with a capacity of 1250 kVA. The transformer operates flawlessly and has verifiably never been run at maximum load. It can still be inspected in its installed state until 08/26. We are replacing the transformer due to our company’s expansion and the resulting higher energy demand. Dodpfx Alsy Epy Isbocl

Year of construction: 1991, condition: ready for operation (used), Primary voltage: 3 x 400 V, +/- 5% Primary current: 2.4 A Secondary voltage: 3 x 19.5 V Secondary current: 44 A Duty cycle: 100% Space requirement: 230 x 150 x 220 mm Weight: 20 kg Dcedpjd Atqcsfx Albol

Condition: ready for operation (used), Primary voltage: 3 x 400 V Primary current: 10.1 A Secondary voltage: 3 x 113 V Secondary current: 36 A Secondary voltage: 220 V Secondary current: 0.91 A Dcsdpfxjd Atrdo Albol Duty cycle: 100% Primary power: 7000 VA Frequency: 50/60 Hz Space requirement: 330 x 160 x 190 mm Weight: 51 kg

Year of construction: 1989, condition: used, machine/vehicle number: 89 051 371, Primary voltages: U1 V1 W1: 400 V U9 V9 W9: 257 V U10 V10 W10: 246 V U11 V11 W11: 235 V Secondary voltages: U1 V1 W1: 710 V at 400 V, U3 V3 W3: 650 V Primary voltage: U4 V4 W4: 540 V U5 V5 W5: 475 V U6 V6 W6: 475 V U7 V7 W7: 446 V U8 V8 W8: 430 V Rated power: 50 kVA Space requirement: 870 x 680 x 850 mm Dcsdpfx Alsdqrl Sjbsl Weight: 300 kg

Condition: new, Year of construction: 2024, Manufacturer: Green Transfo Type: Minera MP Dsdpfx Alovx Tmiobjcl Year of construction: 2024, unused Available units: 9 units Rated power: 7000 kVA Rated voltage: 30 / 0.72 kV The transformers are being sold due to an incorrect order. It was subsequently discovered that 33 kV transformers were required – the offered models only provide 30 kV each. Therefore, they are now for sale. Condition: Unused, fully functional, technically perfect

Condition: good (used), Year of construction: 2002, Transformer 400 kVA Own weight: 1410 kg Dedpfx Ajvnifgjlbocl Loading and shipping are possible! Please arrange an appointment for inspection in advance!

Condition: used, frequency 47-63 Hz total power requirement 18,5 kW dimensions of the machine ca. 0,52x0,28x0,25 m Dcsdpfjd Ihdbsx Albsl Artikel-Nr.: 6SE6440-2UE31-8DA1 MICROMASTER 440 without Filter 3 AC 500-600V +10/-10% 47-63Hz Konstantmoment 18,5 kW Overload 150% for 60 seconds, 200% for 3 seconds square moment 22 kW 520x275x245 (hxbxt)safety class IP20 environmental temperature -10+50°C e without OP/BOP

Condition: ready for operation (used), Year of construction: 2019, functionality: fully functional, machine/vehicle number: 118394, type of input current: AC, overall weight: 2,540 kg, input voltage: 21,500 V, input frequency: 50 Hz, nominal power (apparent): 800 kVA, secondary voltage: 420 V, protection type (IP code): IP00, temperature: 100 °C, type of output current: AC, output voltage: 420 V, Equipment: type plate available, Transformer that has been used on short occasions for backup operation, especially the last two years, is in a heated container. Can be sold with or without container, can also be rented for short periods, We have our own crane truck if express delivery is needed. The container can also be supplemented with low-voltage switchgear made by ABB Kabeldon attached to the outside of the container. Dcsdpfx Asx Run Djlbjl

Condition: new, Year of construction: 2021, functionality: fully functional, type of input current: AC, overall weight: 100 kg, input voltage: 380 V, input frequency: 50 Hz, total height: 200 mm, total width: 300 mm, total length: 300 mm, nominal power (apparent): 20 kVA, secondary voltage: 44 V, temperature: 100 °C, input current: 55 A, type of output current: AC, output voltage: 44 V, Equipment: type plate available, New - 3 transformers. 380/400/415V to 44V(460A) Dedpfxox D Uw Ae Albocl

Condition: used, Year of construction: 1980, functionality: fully functional, machine/vehicle number: 28461, overall weight: 3,860 kg, input frequency: 50 Hz, nominal power (apparent): 1,000 kVA, Equipment: type plate available, For sale: EMIT 1000kVA Transformer Type: TA0o1000/15, serial no. 28461 Dodpfx Alsyt Er Dsbecl 50Hz HV 15,750V ±5% - 2x5%; LV 400/231V; Short-circuit voltage 5.34%; No-load losses 2080W; Load losses 11,090W; Total weight 3860kg; 50 Hz; active part 2200kg; oil 940kg; Current 3; Duty type C; Standard PN69/E06040 S1min Net price 12,000 EUR Price negotiable

Condition: used, Year of construction: 1980, functionality: fully functional, overall weight: 3,730 kg, input frequency: 50 Hz, nominal power (apparent): 1,000 kVA, Equipment: type plate available, For sale: 1000kVA Transformer BEZ BRATISLAVA CZECHOSLOVAKIA Type a T0394/22 50Hz Djdpfx Aloyt El Rjbjcl 15750±5%; 400/231V; 36.66A; 1444A Oil 840kg Total weight 3730kg S1min Net price: €12,000 Price negotiable

Condition: new, Year of construction: 2025, functionality: fully functional, type of input current: three-phase, overall weight: 2,330 kg, input voltage: 11,000 V, input frequency: 50 Hz, nominal power (apparent): 630 kVA, secondary voltage: 400 V, empty load weight: 2,330 kg, type of output current: three-phase, output voltage: 400 V, Equipment: documentation/manual, type plate available, For sale: 1 new 11/0.4KV 630KVA transformer with small oil volume. Dodpfx Aeyph Slelbscl

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: 786630-01, type of input current: three-phase, overall weight: 4,020 kg, input frequency: 50 Hz, Equipment: documentation/manual, For a high level of safety and exceptional environmental friendliness, there’s nothing to beat a dry-type cast resin transformer. The epoxy resin insulation used in this kind of transformer means no oil is used, greatly reducing the risk of fire and improving recyclability, all without loss of Dodexywk Dspfx Albjcl performance compared to other transformer types. Dry-type cast resin transformers are therefore ideal for critical applications and high-traffic areas. Even among dry-type cast resin transformers, Trihal from Schneider Electric stands out due to its outstanding performance and unrivalled certifications.

Condition: used, Year of construction: 1989, input - primarily 400 V three phases output - secondarily reversible - 230 V three phases - 400 V three phases - 525 V three phases - 660 V three phases Dcodpfx Alecw Twpjbjl power 50 KVA space requirements width - 800 x depth - 400 x height - 2,000 mm weight approx. 430 kg

Condition: used, Year of construction: 1979, 31.5 MV power transformer, 110 kV / 10.5 kV with tap changer (19 steps), with expander, Buchholz relay, dehumidifier, switching group Yy0, Dodpfork Nrtox Albscl transformer book available

Condition: good (used), Block DTT 10000 Transformer Manufacturer: Block Type: DTT 10000 10000 VA 50-60 Hz Switching Rating: Dyn 5 Code: 9129 IP: 23 Primary: 500 V 12 A Secondary: 399/231 V 380/220 V 361/209 V 15.15 A Dcodpfx Alsxl Tbvsbsl HxWxD: 580 x 700 x 430 mm Weight: approx. 170 kg Find more items - new and used - in our shop! International shipping costs on request!

Condition: new, Year of construction: 2024, functionality: fully functional, machine/vehicle number: SN: B397497, Equipment: type plate available, Three-phase oil hermetic transformer Type: 1000 kVA 20/0.4 kV Dy11 with significantly reduced losses according to Directive 2009/125/EC EU Regulation No. 548/2014 Rated power: 1000 kVA High voltage: 20 kV Low voltage: 400 V Tapping: +/- 2 x 2.5% Frequency: 50 Hz Vector group: Dy11 HV terminals: external cone according to DIN 47 636-2, 250 A LV terminals: according to DIN EN 50386 with connection flags Equipment: thermometer Dcjdpfxswxm E Dj Albol

Condition: new, Year of construction: 2025, functionality: fully functional, machine/vehicle number: 0400-01-0010000, type of input current: AC, overall weight: 2,750 kg, input voltage: 10,000 V, input frequency: 50 Hz, total height: 1,953 mm, total width: 1,000 mm, total length: 1,600 mm, warranty duration: 72 months, nominal power (apparent): 1,000 kVA, nominal power: 1,000 kW (1,359.62 HP), secondary voltage: 400 V, protection type (IP code): IP00, temperature: 40 °C, empty load weight: 2,750 kg, space requirement width: 1,600 mm, space requirement length: 1,000 mm, space requirement height: 1,920 mm, ambient temperature (max.): 40 °C, roll spacing: 820 mm, Equipment: documentation/manual, type plate available, Three-phase cast-resin transformer Designed according to DIN EN 60076-11, VDE 0532, with separate winding Reduced no-load losses in accordance with Ecodesign Regulation EU No. 548/2014, Eco Directive 2009/125/EC Design features: - Flame-retardant and self-extinguishing Dodov U Ncrjpfx Albscl - High-voltage winding vacuum-encapsulated, low-voltage winding vacuum-impregnated - Partial discharge-free (< 5 pC) - Taps can be changed in the de-energized state using switch lugs - Mobile design, 4 interchangeable transport rollers - Winding material: aluminum/aluminum - 4 lifting eyes, 4 draw eyes, 2 grounding screws - Documentation: Dimensional drawing, nameplate, data sheet, circuit diagram, operating instructions in German/English - Use of double-sided insulated, grain-oriented, low-loss electrical steel sheets - Reduced power losses A0 Level 2/Ak (Eco Directive 2009/125/EC) - Suitable for converter operation, THDu < 5% - 3x PT100 connected to terminals in the terminal box (IP 54) RATED POWER: 1000 kVA CIRCUIT: Dyn5 OVERVOLTAGE: 10 kV, with a value of ± 2x 2.5% FREQUENCY: 50 Hz UNDERVOLTAGE: 400 V + N SHORT-CIRCUIT VOLTAGE: 6% (tolerance ±10%) NO-LOAD CURRENT: 0.6% (tolerance +30%) INSULATION LEVEL HV (AC/LI): 12/28/75 kV – L2 INSULATION LEVEL LV (AC/LI):

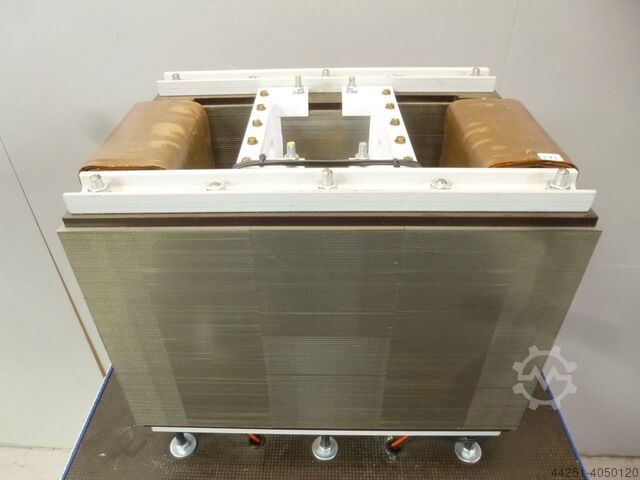

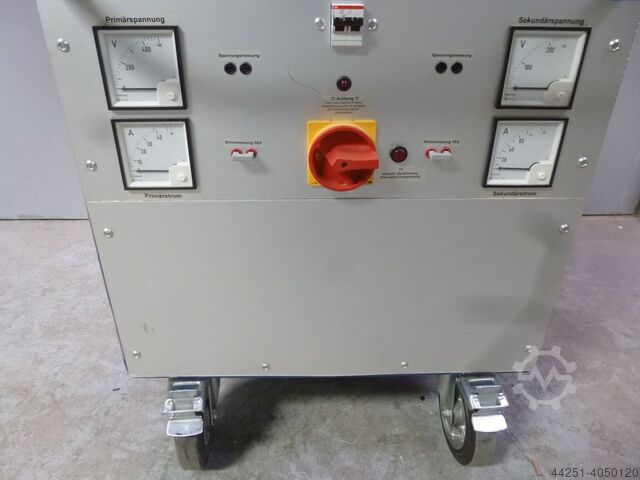

Condition: good (used), Betschart Swiss transformer core testing system KPA 15 function The output voltage, which can be infinitely adjusted by hand using a rotary knob, is fed directly to the excitation coils of the test core. As a result, in the air gap of the test core a homogeneous electromagnetic field is to be built up, with which core material inserted into the air gap can be characterized. The basic operation of the core testing system is carried out via the switching and display elements on the front panel on the front of the test car. Technical specifications Input voltage: 2 x 400 V - 50/60 Hz Input current: 38.3 A maximum Output voltage: 0 ... 230V Output current: 65 A maximum Measurements: Moving iron voltmeter 0 ... 500V for input voltage Dcsdpfxed Nxhko Albel Moving iron Voltmeter 0 ... 250V for output voltage Moving iron ammeter 0 ... 40 / 80A for input current Moving iron ammeter 0 ... 75 / 150A for output current Laboratory sockets for external voltage measurement direct, 1: 1 Miniature circuit breaker 2-pole, 63A characteristic B Voltage measurement output voltage Current measurement output current Voltage measurement input voltage Current measurement input current Laboratory sockets for external current measurement Current transformer 50A / 5A Current measurement current transformer 75A / 5A output side Main and emergency stop switch Manufacturer price: 27,000, - € gross Matching variable transformers can be found in our shop More articles - new and used - can be found in our shop! International shipping costs on request!

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, type of input current: three-phase, input voltage: 400 V, input frequency: 50 Hz, nominal power (apparent): 1,600 kVA, output voltage: 20,000 V, Equipment: type plate available, One transformer station in container, transformer + cell. Power: 1600 kVA Voltage: 400-20000 V Dsdpfxeyvgyvo Albecl Year of manufacture: 2007-2009

Condition: new, Year of construction: 2024, functionality: fully functional, machine/vehicle number: 2838 664, type of input current: AC, overall weight: 4,710 kg, input voltage: 16,800 V, total height: 1,820 mm, total width: 1,270 mm, total length: 1,920 mm, nominal power (apparent): 2,000 kVA, secondary voltage: 420 V, protection type (IP code): IP54, temperature: 40 °C, space requirement width: 1,270 mm, space requirement length: 1,920 mm, space requirement height: 1,820 mm, Equipment: type plate available, Three-phase oil transformer according to IEC 60076, hermetically sealed design suitable for ambient temperatures from -25°C to 40°C and maximum installation altitude of 1,000 m above sea level, for outdoor installation, with aluminium windings, routine test according to IEC60076, in accordance with Regulation (EU) No. 548/2014 of 21.05.14 Stage 2, valid from 01.07.2021. Dsdpjynhwrsfx Albscl

Condition: new, Year of construction: 2023, functionality: fully functional, overall weight: 8,000 kg, Siemens Energy transformer Year of manufacture: 2023, new, not commissioned Incl. enclosure Dcedsyw Tf Uspfx Albel
